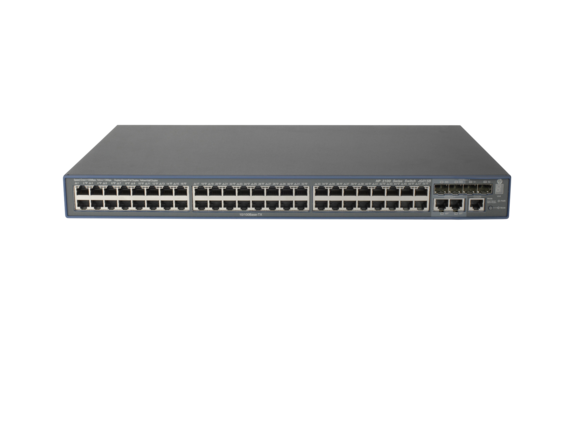

HP 3100-48 v2 Switch

(JG315B)

Categories: Networking, HP Switches, HP Campus LAN, HP 3100 EI

The HP 3100 EI Switch Series enhance security by providing reliable fully managed Fast Ethernet Layer 2 switches ideal for the access layer of medium and large enterprises. Features include enterprise class quality of service and security features including rate limiting, QinQ, ACLs, a 24-port PoE model and improved reliability with backup redundancy.

The HP 3100 EI Switch Series can be managed with the optional HP Intelligent Management Center (IMC) Software Platform for a single view of your entire network.

Details Specification

Product Specifications

Differentiator
HP 3100-48 V2 Switch with 48 10/100BASE-T ports and 4 GbE SFP ports
AC-powered

Ports
(48) RJ-45 autosensing 10/100 ports
(2) SFP dual-personality 10/100/1000 ports
(4) SFP fixed Gigabit Ethernet SFP ports

Memory and processor
Storage: 256 MB SDRAM, 128 MB flash
Packet buffer size: 4 MB

Latency
100 Mb Latency: < 6 µs
1000 Mb Latency: < 5 µs

Throughput
up to 13.1 Mpps

Routing/switching capacity
17.6 Gbps

Stacking capabilities
Virtual
16 switches

Management features
Imc – intelligent management center
Command-line interface
Web browser
Snmp manager

Dimensions (W x D x H)
17.32 x 10.24 x 1.72 in (43.99 x 26.01 x 4.37 cm)
Weight
7.72 lb (3.5 kg)

What’s in the box
(1) HP 3100-48 V2 Switch
Warranty
Limited Lifetime warranty: Advance hardware replacement with next-business-day delivery (available in most countries). See www.hp.com/networking/warrantysummary for duration details.
Electronic and telephone support: limited electronic and telephone support is available from HP- for details on the duration of support provided with your product purchase
refer to www.hp.com/networking/warrantysummary.
Software releases: for details on the software releases available with your product purchase
refer to www.hp.com/networking/warrantysummary.
