AI Training SuperServer SYS-820GH-TNR2

(SYS-820GH-TNR2)

instock

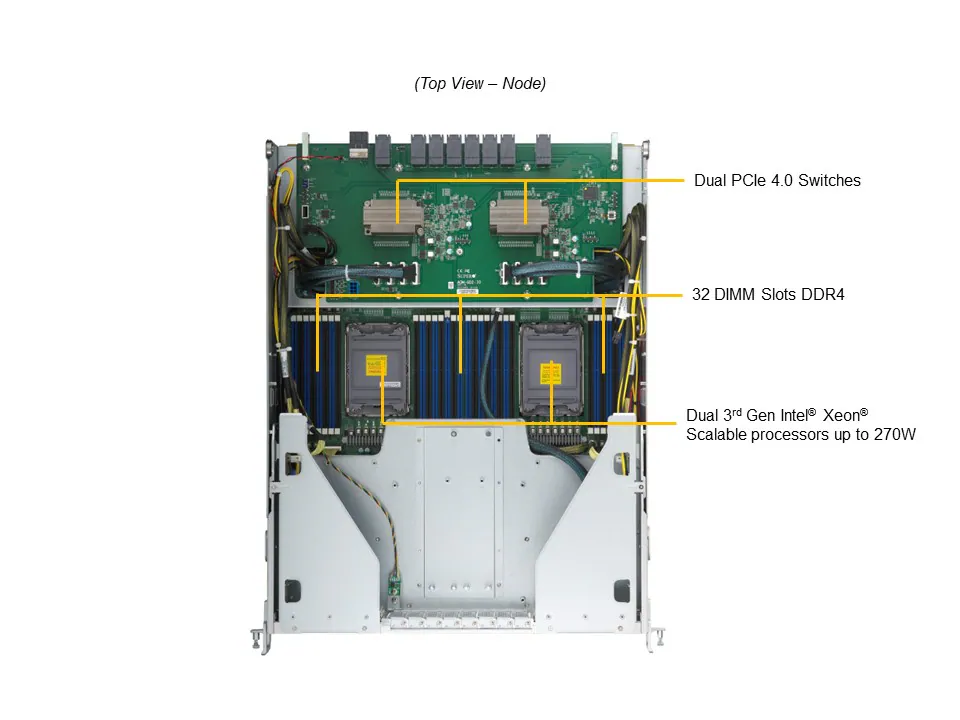

Dual Intel® Xeon® 3rd Gen Scalable Processors (Ice Lake) TDP up to 270W
Intel® C621A Chipset
32x DIMM slots, up to 8TB Registered ECC DDR4 3200MHz SDRAM
2x PCIe 4.0 x16 FHFL slot and 2x PCIe 4.0 x8 FHFL slot

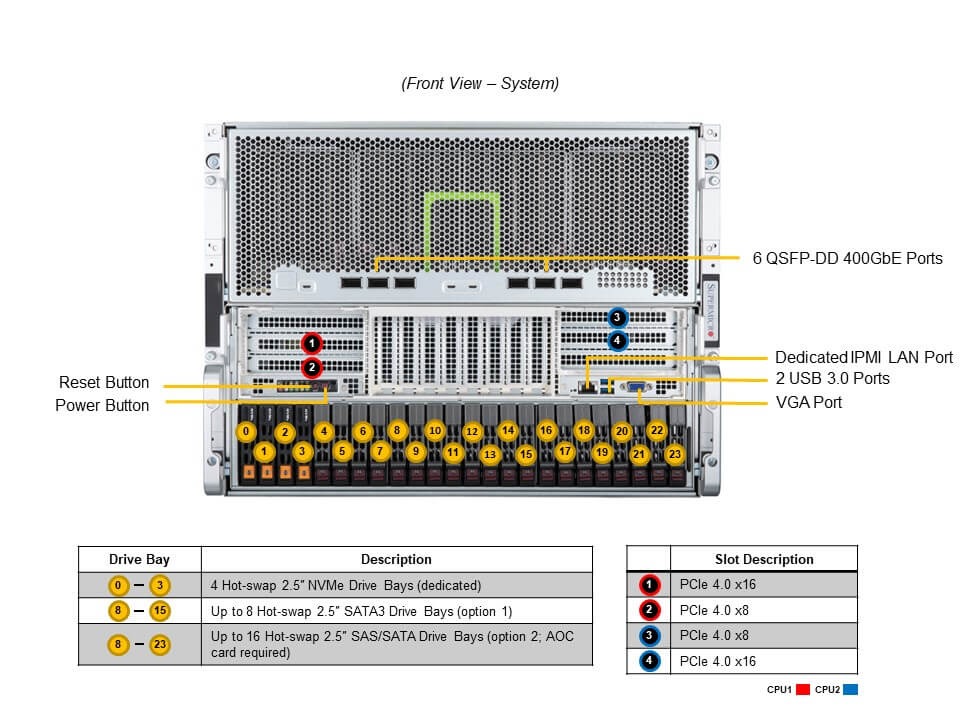

6x 400GbE QSFP-DD for scale-out and 1x 1GbE BaseT (dedicated IPMI port)

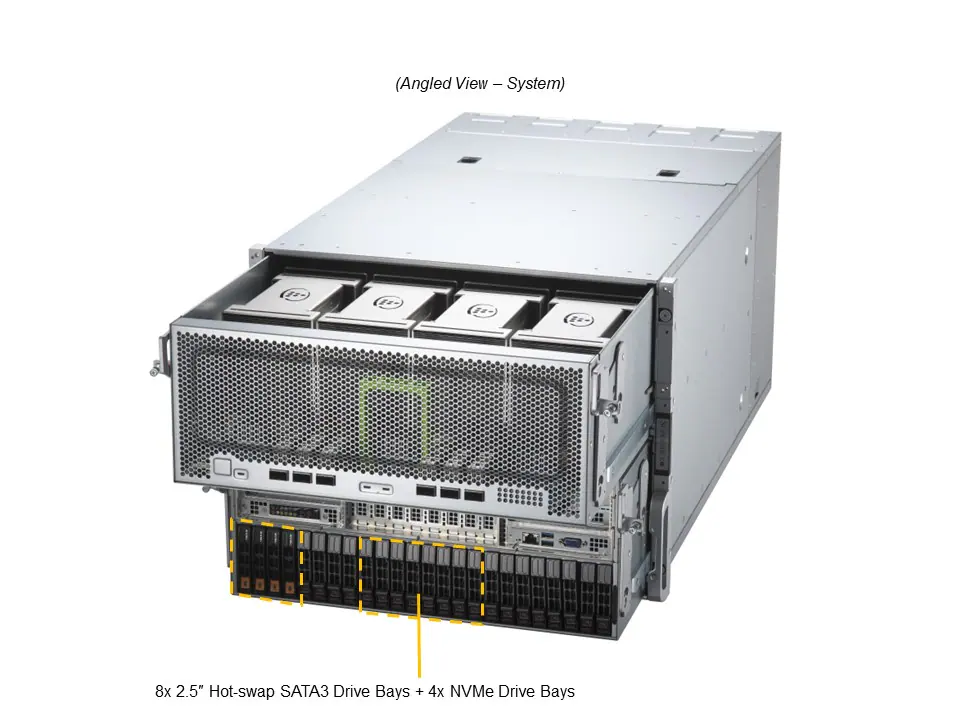

4x 2.5”NVMe Hot-Swap Drive Bays
Up to 8x 2.5″ SATA Hot-Swap Drive Bays
Up to 16x 2.5″ SATA Hot-Swap Drive Bays (Additional SAOC is required)

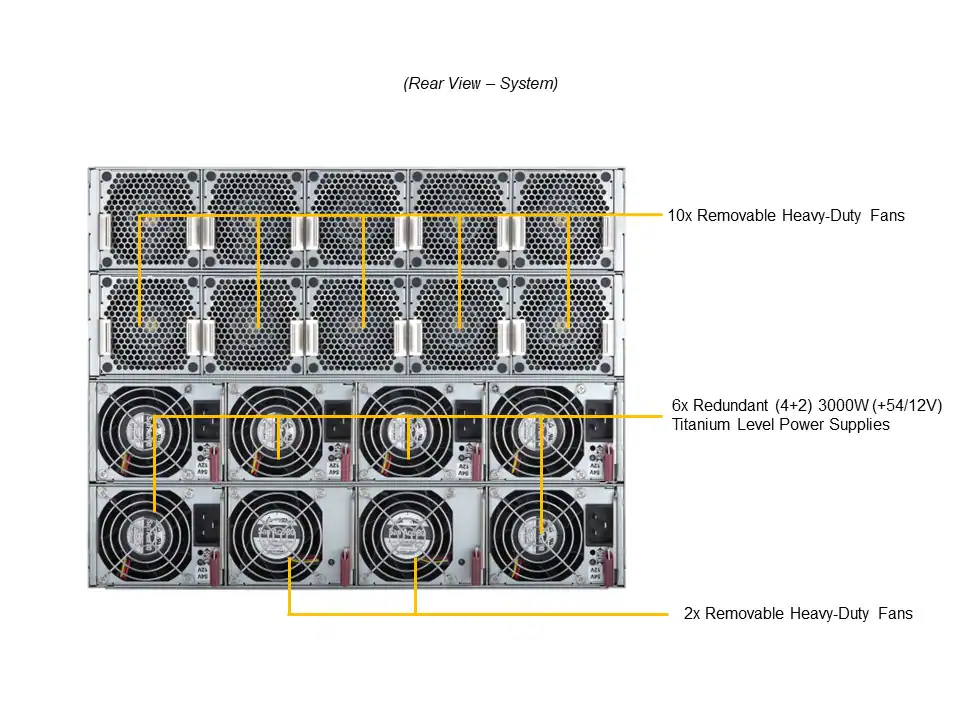

12x Removable Heavy-Duty FANs (Includes 2x Dummy PSU FAN)
6x 3000W(54V+12V) Redundant Power Supplies, Titanium Level

MSRP^*

N/A

* Manufacturer’s Suggested Retail Price

Product Specifications

CPU	Dual Socket P+ (LG-4189) 3rd Gen Intel® Xeon® Scalable Processors
Core Count	Up to 40C/80T; Up to 60MB Cache per CPU
Note	Supports up to 270W TDP CPUs (Air Cooled)

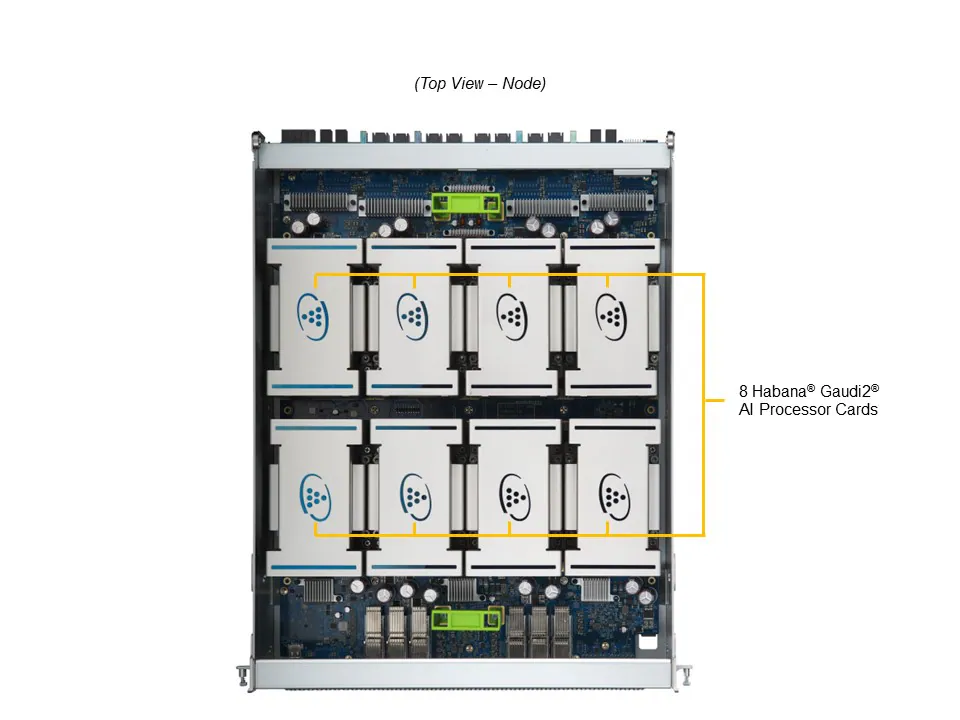

Max GPU Count	Up to 8 double-width GPUs
Supported GPU	Intel OAM: Gaudi 2 View GPU Options
CPU-GPU Interconnect	PCIe Gen4 x16
GPU-GPU Interconnect	21x 100GbE PAM4 SerDes Links

Memory

- Slot Count: 32 DIMM slots
- Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM

Memory Voltage

Chipset

Network Connectivity

Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management

Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

CPU	Monitors for CPU Cores, Chipset Voltages, Memory 7+1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Form Factor	8U Rackmount
Model	CSE-GP802TS-R000NP

LED	HDD Information LED Information LED Power Failed LED Power On LED PSU Failed LED
Buttons	Power On/Off button Reset button

PCI-Express (PCIe) Configuration

Drive Bays Configuration

M.2

Fans	Up to 2 Removable Heavy-Duty 106.5 x 203.5 x 82.4mm Fan(s) Up to 10 Removable Heavy-Duty 80 x 80 x 80mm Fan(s)

6x 3000W Redundant Titanium Level (96%) power supplies

Dimension (WxHxL)	106.5 x 82.4 x 203.5 mm
Input	2880W: 200-207Vac 2880W: 200-207Vac / 50-60Hz 3000W: 207.1-240Vac 3000W: 207.1-240Vac / 50-60Hz 3000W: 240Vdc 3000W: 240Vdc / 50-60Hz
+12V	Max: 91.66A / Min: 0A (200Vac-240Vac) Max: 91.66A / Min: 0A (Vdc-240Vdc)
12V SB	Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)
