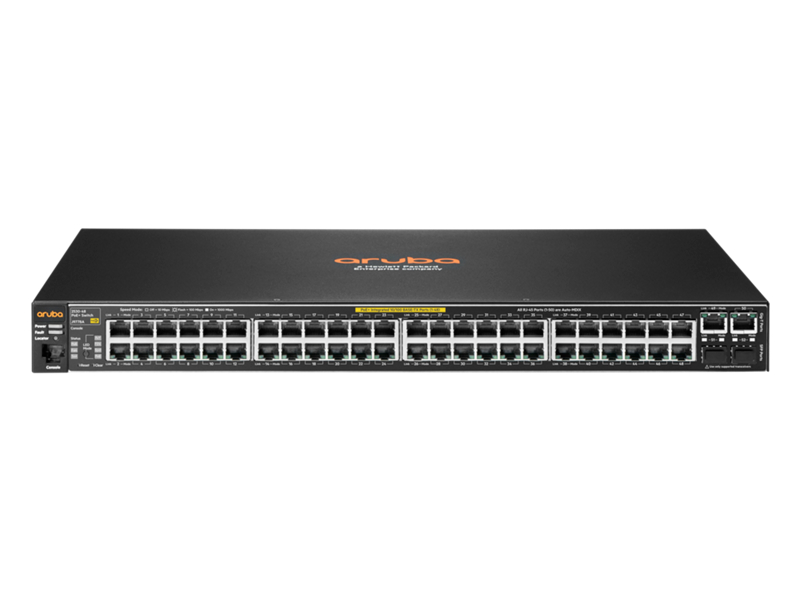

Aruba 2530 48 Switch

(J9781A)

Aruba 2530 switch with 48 ports, 2 1GbE ports, and 2 SFP ports

What’s New

  • Cost-effective, reliable and secure Aruba Layer 2 switch series for a better mobile-first experience.
  • ACLs, EEE, traffic prioritization.
  • 8-, 24-, and 48-port Gigabit or Fast Ethernet models.
  • PoE+ models for voice, video and wireless.
  • Supports Aruba ClearPass Policy Manager, AirWave and Central.
  • Simple deployment with zero touch provisioning (ZTP).

Product Specifications

Product Informations

Product Differentiator (long)
High density fully managed 48 port Fast Ethernet switch with Gigabit uplinks. This model has 48x 10/100 ports. Additionally the switch has two 10/100/1000 ports and two dedicated Gigabit SFP ports.

Power Consumption Description
29.9 W (maximum)

Heat Dissipation
102 BTU/hr (107.61 kJ/hr)

Input Voltage
100 – 127 / 200 – 240 VAC, rated

External I/O Ports
(48) RJ-45 autosensing 10/100 ports (2) autosensing 10/100/1000 ports (2) fixed Gigabit Ethernet SFP ports

Latency
100 Mb Latency: < 6.6 µs 1000 Mb Latency: < 2.2 µs

Switching Capacity
17.6 Gbps

Stacking Capabilitie
sVirtual 16 switches

Throughput
up to 13 Mpps

Memory and Processor
ARM9E @ 800 MHz 128 MB flash Packet buffer size: 3 MB dynamically allocated 256 MB DDR3 DIMM

Management Features
Aruba Central and Aruba AirWave Network Management IMC—Intelligent Management Center command-line interface Web browser configuration menu out-of-band management (serial RS-232C or Micro USB) IEEE 802.3 Ethernet MIB Repeater MIB Ethernet Interface MIB AirWave Network Management

Warranty Standard Statement
Limited Lifetime Warranty: See www.hpe.com/networking/warrantysummary for warranty and support information included with your product purchase. Software releases: for details on the software releases available with your product purchase refer to www.hpe.com/networking/warrantysummary.

Detailed Product Description
Aruba 2530 switch with 48 ports, 2 1GbE ports, and 2 SFP ports

Weight (imperial)
6.3 lb

Weight (metric)
2.86 kg

Product Dimensions (imperial)
17.4 x 9.7 x 1.75 in

Product Dimensions (metric)
44.2 x 24.64 x 4.45 cm

System Features
