Home » Products » Networking » Aruba 2930F 48G 4SFP+ Switch

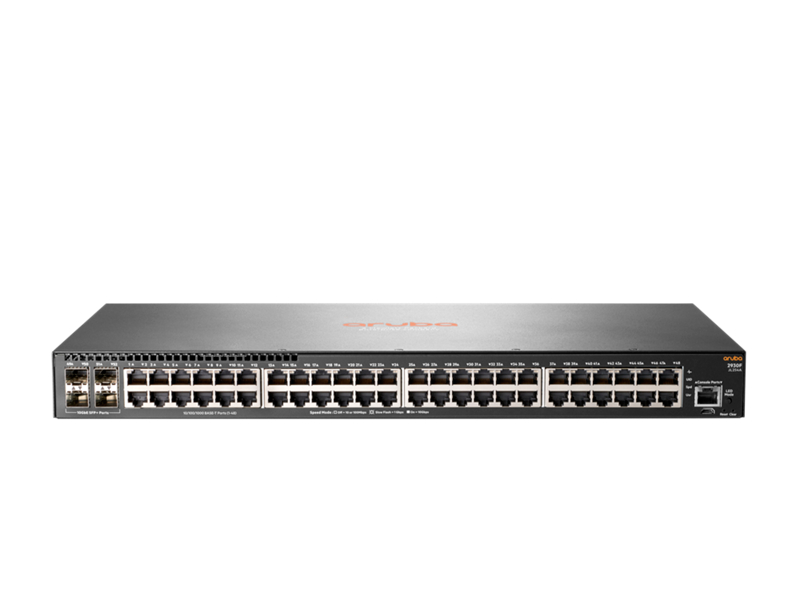

Aruba 2930F 48G 4SFP+ Switch

(JL254A)

Categories: Networking, Aruba 2930F Switch Series, HP Switches, Aruba

The Aruba 2930F Switch Series is designed for customer creating digital workplaces optimized for mobile users. These Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central. Virtual Switching Framework (VSF) provides stacking scale and simplicity for enterprise edge, SMB and branch offices. The 2930F delivers performance and value with support for RIP routing, Access OSPF, 10GbE uplinks, up to 740W PoE+, robust QoS, and requires no software licensing.

What’s New

Aruba Layer 3 switch series that is easy to deploy and manage with Aruba ClearPass Policy Manager and Aruba AirWave.
Simplify with zero touch provisioning (ZTP) and cloud-based Aruba Central support.
Scale with 8 chassis VSF stacking.
Convenient built-in 1GbE or 10GbE uplinks and up to 740W PoE+.

Product Specifications

Product Differentiator (long) Popular Aruba 52-port Gig + 10G access switch. This model has 48x 10/100/1000 ports and 4x 10G / 1G SFP+ transceiver slots for uplink connectivity.Power Consumption Description 46.6 W (maximum)Heat Dissipation 157.2 BTU/hr (165.8 kJ/hr)Input Voltage 100 – 127 / 200 – 240 VAC, ratedExternal I/O Ports (48) RJ-45 autosensing 10/100/1000 ports (4) SFP+ 1/10GbE ports PHY-lessLatency 1000 Mb Latency: < 3.8 µs 10 Gbps Latency: < 1.6 µsSwitching Capacity 176 GbpsThroughputup to 112 MppsMemory and Processor Dual Core ARM Cortex A9 @ 1016 MHz 1 GB DDR3 SDRAM Packet buffer size: 12.38 MB 4.5MB Ingress/7.875MB Egress 4 GB eMMCManagement Features Aruba AirWave Central Network Management IMC – Intelligent Management Center Command-line interface Web browser Configuration menu SNMP manager Telnet RMON1 FTP Out-of-band management (serial RS-232C or micro USB)Warranty Standard Statement Limited Lifetime Warranty: See www.hpe.com/networking/warrantysummary for warranty and support information included with your product purchase.Weight (imperial) 6.83 lbWeight (metric) 3.1 kgProduct Dimensions (imperial) 1.73 x 17.42 x 9.7 inProduct Dimensions (metric) 4.39 x 44.25 x 24.63 cm
