Categories: Networking, HP Switches, Aruba, Aruba 2930F Switch Series

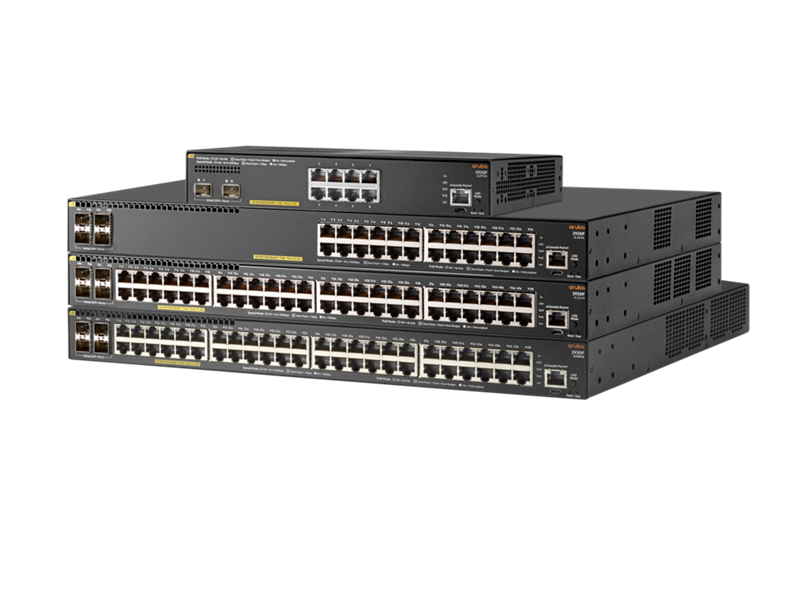

The Aruba 2930F Switch Series is designed for customer creating digital workplaces optimized for mobile users. These Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central. Virtual Switching Framework (VSF) provides stacking scale and simplicity for enterprise edge, SMB and branch offices. The 2930F delivers performance and value with support for RIP routing, Access OSPF, 10GbE uplinks, up to 740W PoE+, robust QoS, and requires no software licensing.
Power Consumption Description
155 W (maximum)
Heat Dissipation
58.6 BTU/hr (61.8 kJ/hr)
Input Voltage
90 – 264 VAC, rated
External I/O Ports
(8) RJ-45 autosensing 10/100/1000 PoE+ ports (2) SFP+ 1/10GbE ports PHY-less
Latency
1000 Mb Latency: < 3.8 µs 10 Gbps Latency: < 1.6 µs
Switching Capacity
56 Gbps
Throughputup
to 41.7 Mpps
Memory and Processor
Dual Core ARM Cortex A9 @ 1016 MHz 1 GB DDR3 SDRAM Packet buffer size: 12.38 MB 4.5MB Ingress/7.785 Egress 4 GB eMMC
PoE Capability
125 W PoE+
Management Features
Aruba AirWave Central Network Management IMC – Intelligent Management Center Command-line interface Web browser Configuration menu SNMP manager Telnet RMON1 FTP Out-of-band management (serial RS-232C or micro USB)
Warranty Features
Not applicable
Warranty Standard Statement
Limited Lifetime Warranty: See www.hpe.com/networking/warrantysummary for warranty and support information included with your product purchase.
Weight (imperial)
4.41 lb
Weight (metric)
2 kg
Product Dimensions (imperial)
1.73 x 10 x 10 in
Product Dimensions (metric)
4.39 x 25.4 x 25.4 cm
