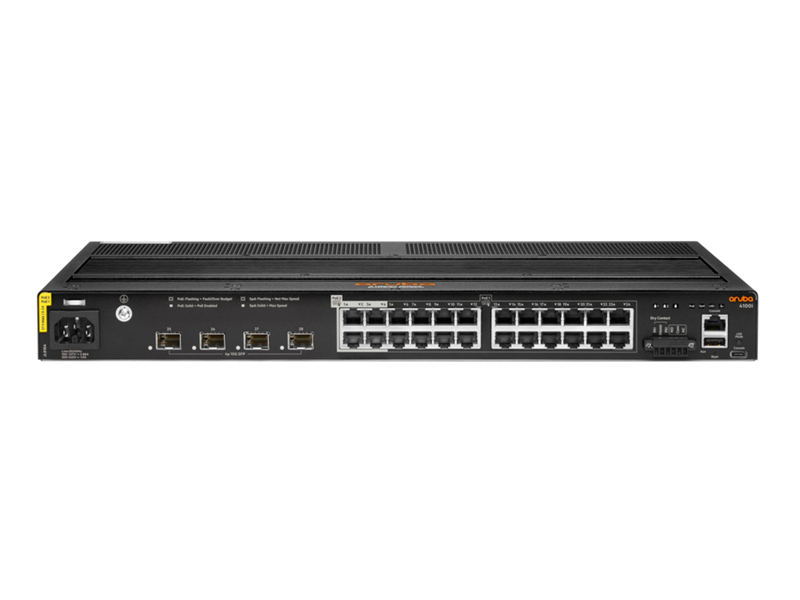

The Aruba CX 4100i Switch Series is a modern family of ruggedized Ethernet switches ideal for connecting IoT, access points, and user devices in harsh environments. Created for high performance, reliable, and access with enhanced security, the Aruba CX 4100i switches provide versatile deployment options for enterprise networks extending beyond carpeted areas to challenging outdoor and industrial spaces.
Based on the programmable AOS-CX operating system used across the Aruba CX portfolio, this IP30 ruggedized series helps deliver a more consistent, more efficient operator experience. This Layer 2 series has convenient built-in high speed uplinks, supports both 30W and 60W PoE, and is ready for deployment with fan less 12 port DIN mount and 24 port 1U rack mount models. With robust QoS, support for static routing, and IPv6, the Aruba CX 4100i also simplifies ownership with no switch software licensing requirements.
Power Consumption
DescriptionIdle: 23W 100% Traffic Rate: 34W 100% Traffic Rate (w/ heater): 62W Note: Heater will only turn on at extreme low temperature condition.
Heat Dissipation
117 BTU/hr at 230V – Room temperature (25°C)
Input Voltage
100V-240V
External I/O Ports
4x ports 100M/1G BaseT Class 6 PoE ports supporting up to 60W per port 20x ports 100M/1G BaseT Class 4 PoE ports supporting up to 30W per port 4x 1G/10G SFP ports 1x USB-C Console Port 1x RJ45 Console 1x USB Type A Host port 1x Alarm socket
Latency
1 Gbps: 1.585 ?Sec , 10 Gbps: 1.243 ?Sec Average Latency (LIFO-64-bytes packets)
Routing/switching Capacity
Switching: up to 128 Gbps Routing throughput: Up to 95 Mpps 64 byte frames
Stacking Capabilities
No Stacking capability
Memory and Processor
4 GB DDR3 32 GB eMMC Dual Core ARM Cortex A9 @ 1016 Mhz
Management Features
Management flexibility with support for Aruba Central, easy-to-use Web GUI, CLI, and Aruba NetEdit. Note: Central support in a future-release of Aruba Central.
Warranty Standard Statement
5 year Warranty, see https://www.arubanetworks.com/support-services/product-warranties/ for warranty and support information included with your product purchase.
Weight (imperial)
14.26 lbs
Weight (metric)
6.47 kg
Product Dimensions (imperial)
H:1.73” x W:17.5” x D:12.0”
Product Dimensions (metric)
H:44 mm x W:444.5 mm x D:304.4 mm
