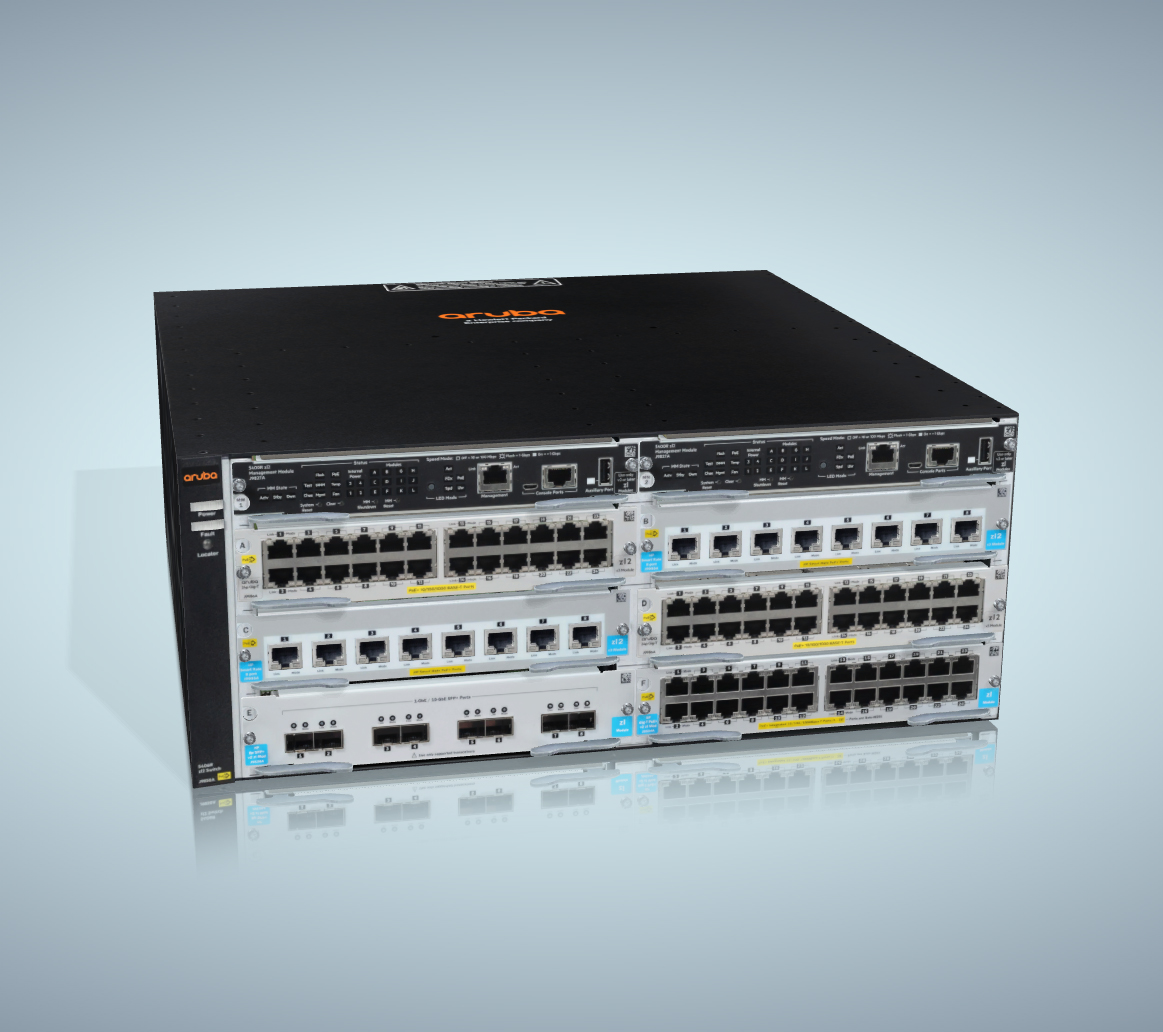

Aruba 5412R zl2 Switch

Product Differentiator (long)
Ultra-flexible 12-slot campus access switch ready to be built out. This configuration comes with a 12-slot 5400R chassis, one (1) J9827A management module, and one (1) J9832A fan tray. The configuration does not include a power supply power supplies must be ordered separately.

Heat Dissipation
4900 BTU/hr (5169.5 kJ/hr)

Input Voltage
100 – 127 / 200 – 240 VAC, rated

External I/O Ports
(12) open module slots Supports a maximum of 288 autosensing 10/100/1000 ports or 288 SFP ports or 96 SFP+ ports or 96 HPE Smart Rate Multi-Gigabit or 24 40GbE ports, or a combination

Latency
1000 Mb Latency: < 2.8 µs 10 Gbps Latency: < 1.8 µs 40 Gbps Latency: < 1.5 µs

Routing/switching Capacity
1920 Gbps

Switch Fabric Speed
2030 Gbps

Throughputup
to 1142.8 Mpps

Memory and Processor
Freescale P2020 dual core @ 1.2 GHz 16 MB flash 1 GB SD Card 4 GB DDR3 SODIMM

Management Features
Aruba AirWave Network Management Aruba Central IMC – Intelligent Management Center Command-line interface Web browser Configuration menu Out-of-band management (RJ-45 Ethernet) SNMP manager Out-of-band management (serial RS-232C or micro USB)

Warranty Standard Statement
Limited Lifetime Warranty: See www.hpe.com/networking/warrantysummary for warranty and support information included with your product purchase. Software releases: for details on the software releases available with your product purchase refer to www.hpe.com/networking/warrantysummary.

Detailed Product Description
Aruba 5412R zl2 switch 7U height

Weight (imperial)
38.1 lb

Weight (metric)
17.28 kg

Product Dimensions (imperial)
17.5 x 17.75 x 12.1 in

Product Dimensions (metric)
44.45 x 45.09 x 30.73 cm
