Home   »   Products   »   Networking   »   Aruba 6100 12G Class4 PoE 2G/2SFP+ 139W Switch

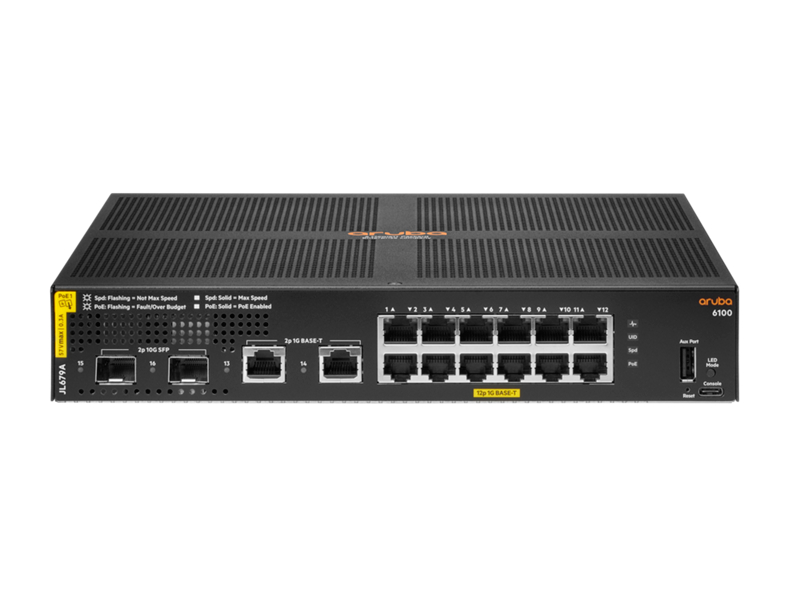

Aruba 6100 12G Class4 PoE 2G/2SFP+ 139W Switch

(JL679A)

The Aruba CX 6100 Switch Series is a modern family of entry level access switches ideal for branch offices, mid-market enterprise, and SMB networks. Designed for reliable, simple, and secure access, the Aruba CX 6100 switches provide a
convenient wired access solution for enterprise networks supporting IoT, mobile, and cloud applications.

Prepare your network for tomorrow’s unpredictable demands with a powerful Aruba ASIC architecture and programmable AOS-CX operating system used across the Aruba CX portfolio to deliver a more consistent, more efficient operator experience. This layer 2 switch series has convenient built-in high speed uplinks with up to 370W of IEEE 802.3at Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless 12 port model is ideal for use in quiet work spaces. With robust QoS, support for static routing, and IPv6, the Aruba CX 6100 also simplifies ownership with no switch software licensing requirements.

What’s New

  • Simplify IT operations with next-gen Layer 2 switch series that provides entry level, reliable, and convenient wired access connectivity.
  • Right size with 12, 24, and 48 port 1U models with convenient built-in 1/10 GbE uplinks and up to 370W of Class 4 PoE.
  • Silent deployment with compact and fanless 12 port PoE model.
  • Flexibility to manage and simplify configurations with Aruba Central, Aruba NetEdit, easy to use Web GUI, or industry standard CLI.
  • Software defined ready with REST APIs.
  • Layer 2 feature set with static routing and no switch software licensing required.

Product Specifications

Product Informations
Product Differentiator (long) The Aruba CX 6100 Switch Series delivers entry level, reliable, and convenient Layer 2 wired access connectivity ideal for branch offices, mid-market enterprise, and SMBs. This model has 12x 10/100/1000BASE-T, 2x 1G/10G SFP ports, and 2x 1GbE ports. 139W Class 4 PoE/PoE+ power. Power Consumption Description Max Power (w/o PoE): 21.9W Max Power (w/ PoE): 170W Input Voltage 100-127 VAC / 200-240 VAC External I/O Ports 12x ports 10/100/1000BASE-T Ports 2x 1G/10G SFP ports 2x 1GbE ports Latency 1 Gbps: 2.3 µSec , 10 Gbps: 2.6 µSec Switching Capacity 68 Gbps Throughput 45.1 Mpps Memory and Processor Dual Core ARM Cortex A9 @ 1016 Mhz 4 GB DDR3, maximum, depending on model 16 GB eMMC PoE Capability 139W Class 4 PoE/PoE+ Warranty Standard Statement Limited Lifetime Warranty, see https://www.arubanetworks.com/support-services/ productwarranties/ for warranty and support information included with your product purchase Weight (imperial) 6.13 lbs Weight (metric) 2.8 kg Product Dimensions (imperial) 1.73 x 10.0 x 10.4 in Product Dimensions (metric) 4.4 x 25.4 x 25.5 cm
System Features
