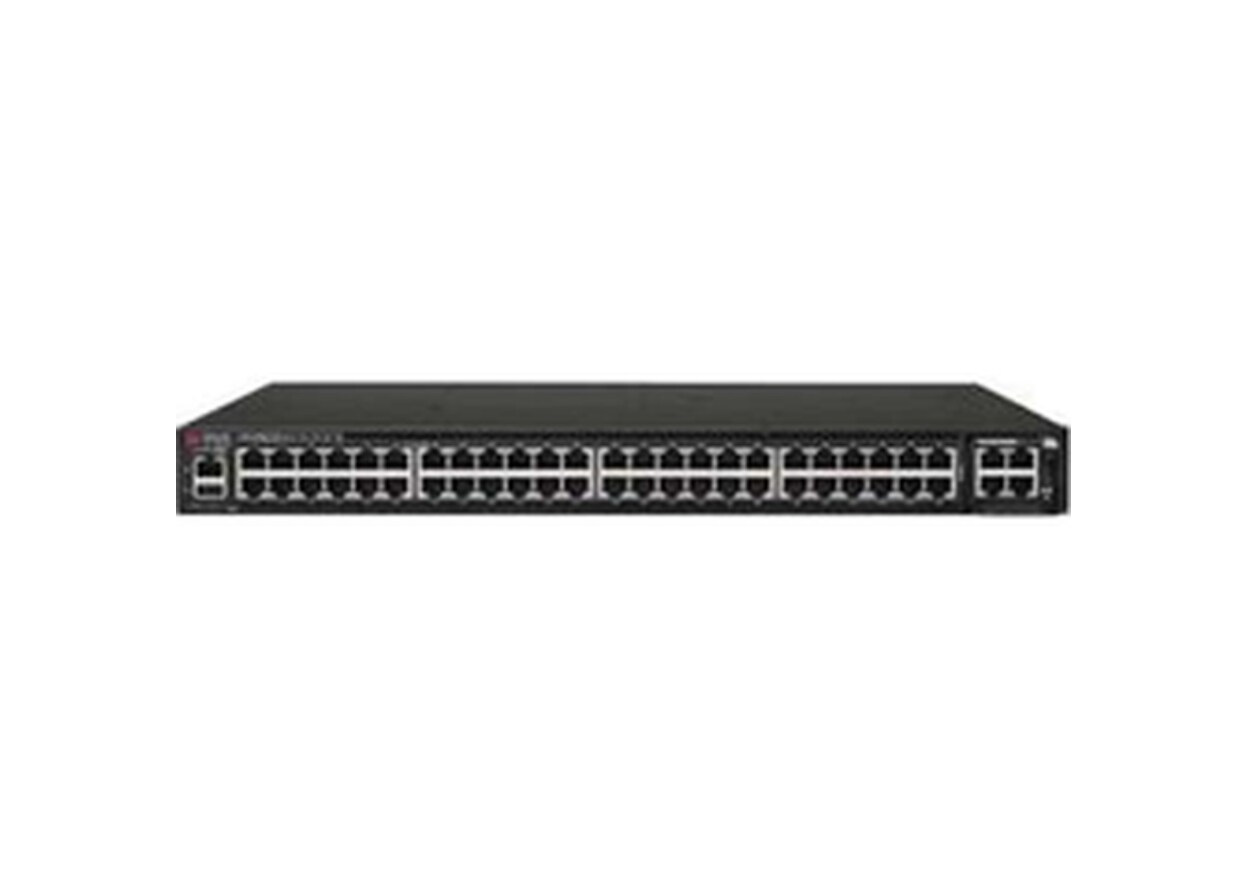

Brocade ICX7450-48P-E-RMT3 Switch

(ICX7450-48P-E-RMT3)

Categories: Networking, Ruckus, ICX7450, ICX Switches

48-port 1GbE switch PoE+ bundle includes 4x10G SFP+ uplinks, 2x40G QSFP+ uplinks/stacking, 1x1000W AC power supply and one fan, front to back airflow.

Main Features

port 1GbE switch PoE+
Bundle includes 4x10GbE SFP+ uplinks/stacking
2x40GbE QSFP+ uplinks/stacking
1×1,000 W AC power supply and one fan
Front-to-back airflow
Three years 24×7 remote support

Product Specifications

ManufacturerRuckus Wireless

BrandRuckus

Product LineRuckus ICX

Model7450-48P

Packaged Quantity1

Airflow DirectionFront to back airflow

Installed Devices / Modules Qty3

Supported Devices / Modules Qty3

Installed Size2 GB

Installed Size2 GB, 2 GB

PerformanceAggregate stacking bandwidth: 960 Gbps, Forwarding performance: 250 Mpps, Latency: 1.3 µs, Switching capacity: 336 Gbps

CapacityIPv4 routes: 15168, IPv6 routes: 5120, Layer 2 multicast groups: 8192, Layer 3 multicast groups: 8192, Next hop address: 16000, Ports per trunk group: 16, QoS priority queues per port: 8, Spanning Tree Protocol instances: 254, Trunk groups: 256, Virtual interfaces (VLANs): 4096

TypeSwitch

SubcategoryNetwork hubs and switches

SubtypeGigabit Ethernet

Form FactorRack-mountable

StackableStackable

Max Units In A Stack12

Ports Qty48

Advanced SwitchingLayer 3

Routing ProtocolBGP-4, BGP-4+, ECMP, GRE, IGMP, IGMPv2, IGMPv3, MLD, MLDv2, MSDP, OSPFv2, OSPFv3, PIM-DM, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RIPng, Static IPv4 routing, Static IPv6 routing, VRRPE, VRRPv3

MAC Address Table Size32768 entries

Jumbo Frame Support9216 bytes

ManageableYes

Remote Management ProtocolCLI, HTTP, HTTPS, RMON, SNMP 1, SNMP 2c, SNMP 3, Telnet, TFTP

Power Over Ethernet (PoE)PoH

Features8MB packet buffer, Access Control List (ACL) support, Auto-uplink (auto MDI/MDI-X), BOOTP support, DHCP relay, DHCP server, DHCP snooping, DiffServ Code Point (DSCP) support, DiffServ support, Digital Optical Monitoring (DOM) support, DoS attack prevention, Dynamic ARP Inspection (DAI), Energy Efficient Ethernet, Flow control, Front to back airflow, GARP VLAN Registration Protocol (GVRP), High Availability, Hot swappable fan, IGMP proxy, IGMP snooping, IPv4 support, IPv6 support, LACP support, Link Fault Signaling (LFS), MAC address filtering, MACsec support, Management Information Base (MIB), Metro Ring Protocol (MRP) support, MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, Per-VLAN Rapid Spanning Tree (PVRST), Per-VLAN Spanning Tree (PVST), Per-VLAN Spanning Tree Plus (PVST+), Port based access control, Port mirroring, Port Security, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Remote Fault Notification (RFN), sFlow, Spanning Tree Protocol (STP) support, STP Root Guard, Strict Priority (SP), Syslog support, Tagged VLAN, Trunking, Type of Service (ToS), Uni-Directional Link Detection (UDLD), Virtual Switch Redundancy Protocol (VSRP) support, VLAN Stacking, VLAN support, Weighted Round Robin (WRR) queuing

Compliant StandardsIEEE 802.1ab (LLDP), IEEE 802.1ae, IEEE 802.1AX, IEEE 802.1BR, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Qty40

Qty8

Type10/100/1000 (PoH)

Qty4

Type10 Gigabit SFP+

Qty2

Type40 Gigabit QSFP+

Expansion Slots3 (total) / 0 (free) x expansion slot

Interfaces1 x 1000Base-T RJ-45 management, 1 x mini-USB management, 1 x USB Type A, 2 x 40Gbit LAN QSFP+ uplink/stacking, 4 x 10Gbit LAN SFP+ uplink/stacking, 40 x 1000Base-T RJ-45 PoE+ – 30 W, 8 x 1000Base-T RJ-45 PoH – 95 W

TypeInternal power supply

Hot-PlugHot-plug

Power RedundancyOptional

Power Redundancy Scheme1+1 (with optional power supply)

Installed Qty1

Max Supported Qty2

Power Provided1000 watt

Nominal VoltageAC 120/230 V

Frequency Required50/60 hertz

Power Consumption Operational935 watt

FeaturesFront-to-rear air?ow

Color CategoryBlack

Height (Rack Units)1

Encryption AlgorithmAES

Authentication MethodExtensible Authentication Protocol (EAP), RADIUS, Secure Shell v.2 (SSH2), TACACS, TACACS+

MTBF444,360 Hours

Compliant StandardsAS/NZS 55022, CAN/CSA C22.2 No. 60950-1-07, EN 55022/CISPR 22 Class A, EN 60825-1, EN 60950-1:2006, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-1, EN 61000-6-3, EN55024, FCC Part 15 A, ICES-003, IEC 60950-1, IEC 68-2-27, IEC 68-2-32, IEC 68-2-36, IEC 68-2-6, RoHS 6/6, UL 60950-1, VCCI Class A, WEEE

Width17.3 inch

Depth15.5 inch

Height1.7 inch

Weight15.87 lbs

TypeLimited lifetime warranty

Min Operating Temperature23 degree Fahrenheit

Max Operating Temperature122 degree Fahrenheit

Min Storage Temperature-40 degree Fahrenheit

Max Storage Temperature158 degree Fahrenheit

Humidity Range Operating10 – 90% (non-condensing)

Humidity Range Storage5 – 95% (non-condensing)
