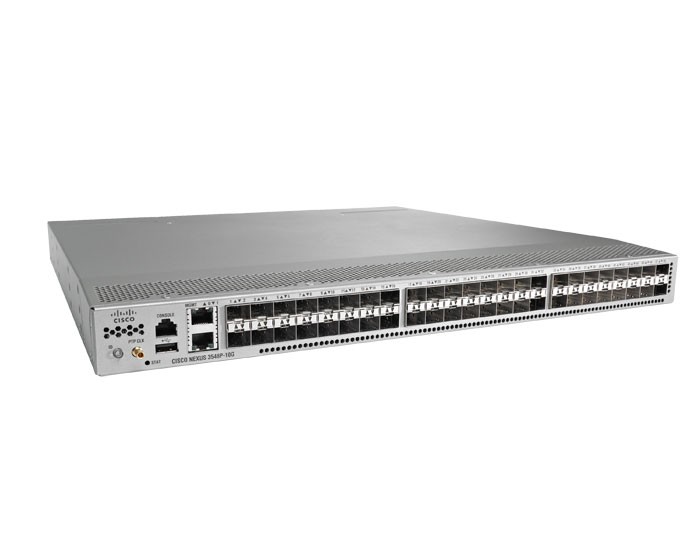

Cisco Nexus 3524 DATA CENTER Switch

(N3K-C3524P-10G)

Categories: , , ,

The Cisco Nexus 3524/3524-X Switch, part of the Unified Fabric Family, is well suited for mainstream top-of-rack (TOR) data center deployments. It offers wire-rate Layer 2 and Layer 3 switching with a comprehensive feature set, including Algo Boost technology, and ultra-low latency. All comes in a compact, cost effective, 1-rack-unit (1RU) form factor.

Product Specifications

Physical
● 24 fixed SFP+ ports (1 or 10 Gbps); expandable to 48 ports
● Dual redundant hot-swappable power supplies
● Four individual redundant hot-swappable fans
● One 1-PPS timing port, with the RF1.0/2.3 QuickConnect connector type*
● Two 10/100/1000-Mbps management ports
● One RS-232 serial console port
● One USB port
● Locator LED
● Locator LED button

Performance
● 480-Gbps switching capacity
● Forwarding rate of 360 mpps
● Line-rate traffic throughput (both Layer 2 and 3) on all ports
● Configurable MTUs of up to 9216 bytes (jumbo frames)

Typical operating power
● 142W: 24p with Twinax at 100% load; 2 power supply units (PSUs) at 25C
● 160W: 24p with SR optics at 100% load; 2 PSUs at 25C

Maximum power
● 245W

Typical heat dissipation
● 484 BTUs per hr: 24p with Twinax at 100% load; 2 PSUs at 25C
● 545 BTUs per hr: 24p with SR optics at 100% load; 2 PSUs at 25C

Maximum heat dissipation
● 835 BTUs per hr

MIB support
Generic MIBs

● SNMPv2-SMI
● CISCO-SMI
● SNMPv2-TM
● SNMPv2-TC
● IANA-ADDRESS-FAMILY-NUMBERS-MIB
● IANAifType-MIB
● IANAiprouteprotocol-MIB
● HCNUM-TC
● CISCO-TC
● SNMPv2-MIB
● SNMP-COMMUNITY-MIB
● SNMP-FRAMEWORK-MIB
● SNMP-NOTIFICATION-MIB
● SNMP-TARGET-MIB
● SNMP-USER-BASED-SM-MIB
● SNMP-VIEW-BASED-ACM-MIB
● CISCO-SNMP-VACM-EXT-MIB Ethernet MIBs
● CISCO-VLAN-MEMBERSHIP-MIB Configuration MIBs
● ENTITY-MIB
● IF-MIB
● CISCO-ENTITY-EXT-MIB
● CISCO-ENTITY-FRU-CONTROL-MIB
● CISCO-ENTITY-SENSOR-MIB
● CISCO-SYSTEM-MIB
● CISCO-SYSTEM-EXT-MIB
● CISCO-IP-IF-MIB
● CISCO-IF-EXTENSION-MIB
● CISCO-NTP-MIB
● CISCO-IMAGE-MIB
● CISCO-IMAGE-UPGRADE-MIB

RoHS
RoHS 5 compliant except for lead press-fit connectors
