CloudDC A+ Server AS -1114CS-TNR

instock
  • Ready to Ship Today
Categories: Servers, SuperMicro, Rack Servers

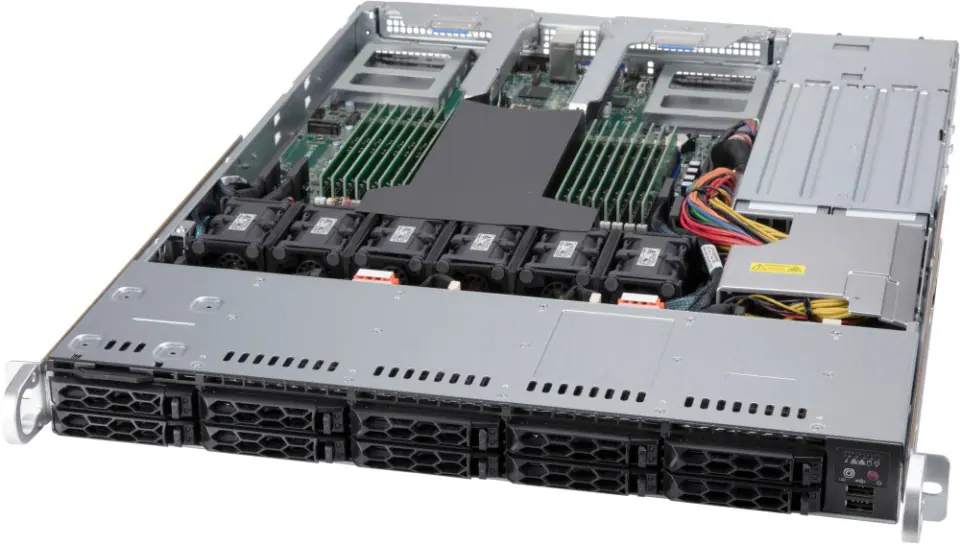

1U CloudDC with 10 hot-swap SATA bays and 2 PCIe 4.0 x16 slots

Key Features

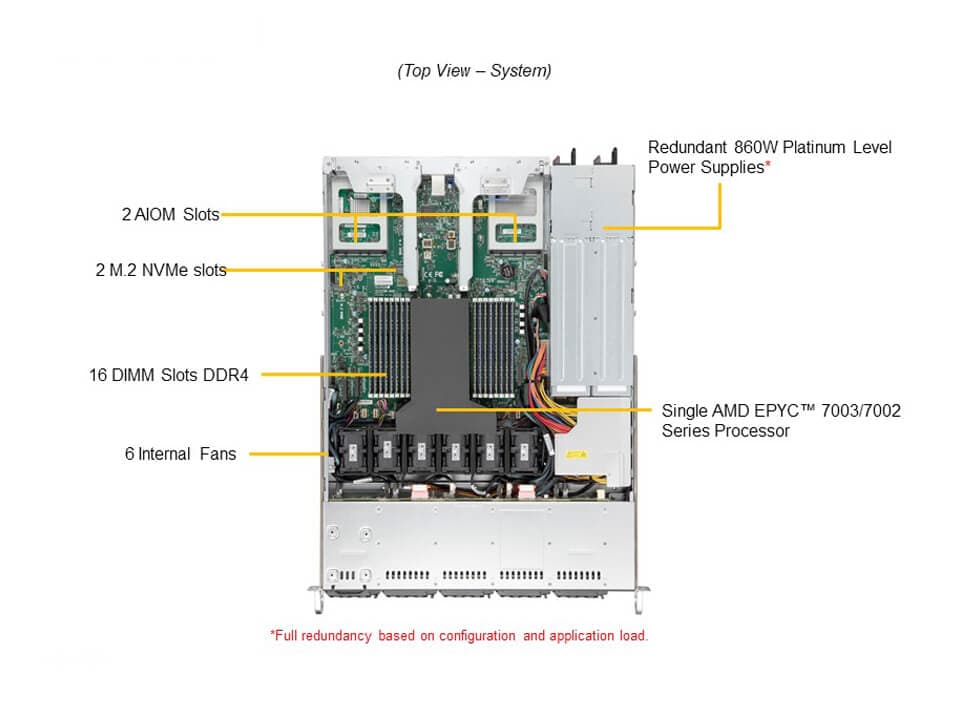

  1. Single AMD EPYC™ 7002/7003 Series Processor
    (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  2. 16 DIMMs; up to 4TB 3DS ECC DDR4-3200MHz
    RDIMM/LRDIMM
  3. 2 PCIe 4.0 x16 FHHL slots
    2 AIOM slots for flexible networking (1 x8 AIOM slot + 1 x16 AIOM slot)
  4. 10 Hot-swap 2.5″ SATA3 drive bays
    optional 10x SAS3/NVMe support via additional SAS/NVMe kit
    M.2 Interface: 2 PCIe 4.0 x4
    M.2 Form Factor: 2242, 2260, 2280, 22110
    M.2 Key: M-key
MSRP*
N/A
Call for pricing
request for quote

* Manufacturer’s Suggested Retail Price

Product Specifications

System Features

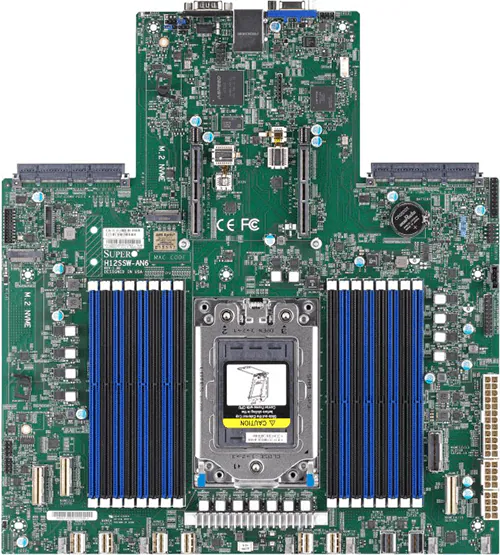

Super H12SSW-AN6
CPU
Core Count
  • Up to 64C/128T
Note
  • Supports up to 280W TDP CPUs (Air Cooled)
Max GPU Count
    • Up to 2 double-width or 2 single-width GPUs


Supported GPU
    • NVIDIA PCIe: T4, A2

Memory
    • Slot Count: 16 DIMM slots
    • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM

Memory Voltage
    • 1.2V


SATA
    • SATA (6Gbps)


Chipset
    • System on Chip


Network Connectivity
    • Ethernet

IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support


LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports(rear)
Video
  • 1 VGA port
Serial
  • 1 COM port(rear)
BIOS Type
  • AMI 256MB SPI Flash EEPROM
Software
Power configurations
  • ACPI/APM Power Management
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Form Factor
  • 1U Rackmount
Model
Height
  • 1.7″ (43 mm)
Width
  • 17.2″ (437 mm)

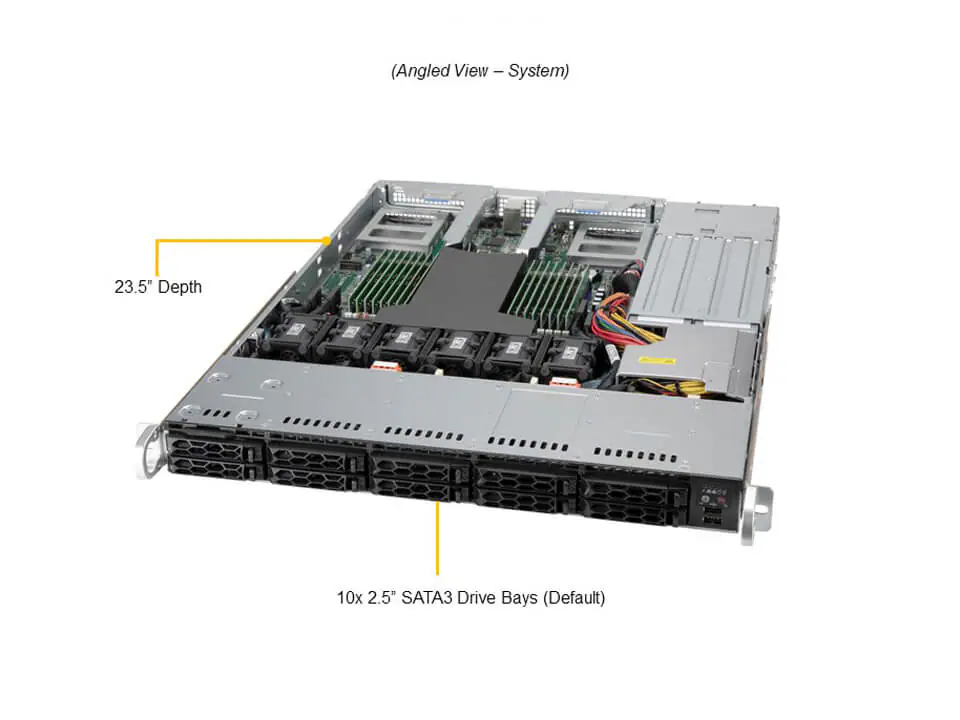

Depth
  • 23.5″ (597 mm)
Package
  • 7.7″ (H) x 23.7″ (W) x 31.8″ (D)
Weight
  • Gross Weight: 40 lbs (18.14 kg)
  • Net Weight: 25 lbs (11.34 kg)
Available Color
  • Black
LED
  • Device Activity
  • LAN 1 Activity
  • LAN 2 Activity
  • Power status
  • System information
Buttons
  • Power On/Off
  • UID button

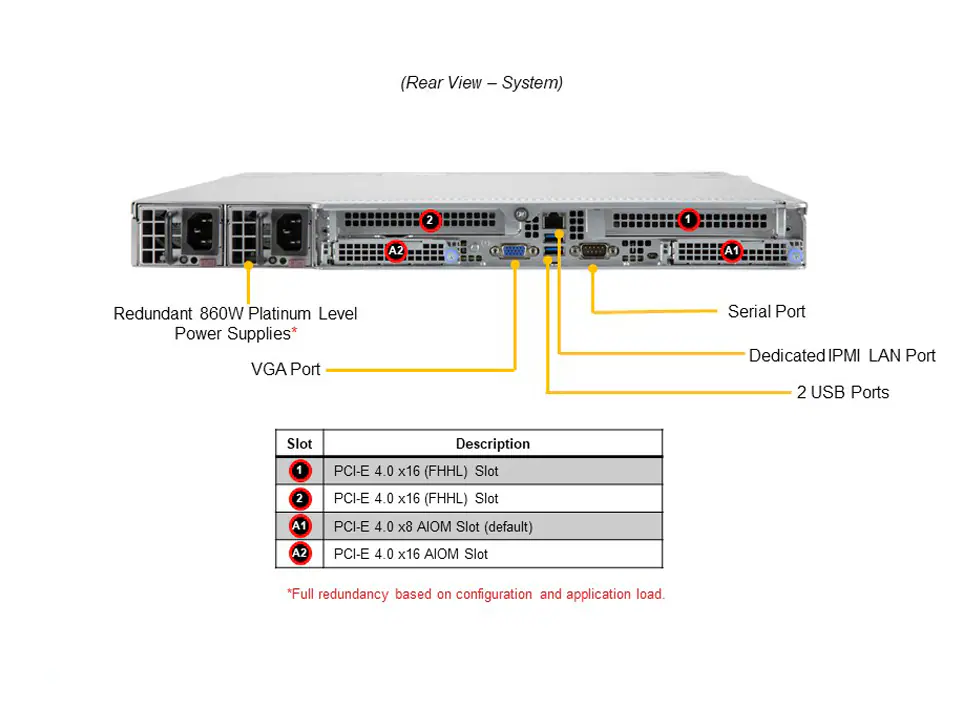

PCI-Express (PCIe) Configuration
    • Default
      • 2 PCIe 4.0 x16 FHHL slots
      • 2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible)

M.2
    • 2 M.2 PCIe 4.0 x4 slots (M-key 2242/2260/2280/22110)

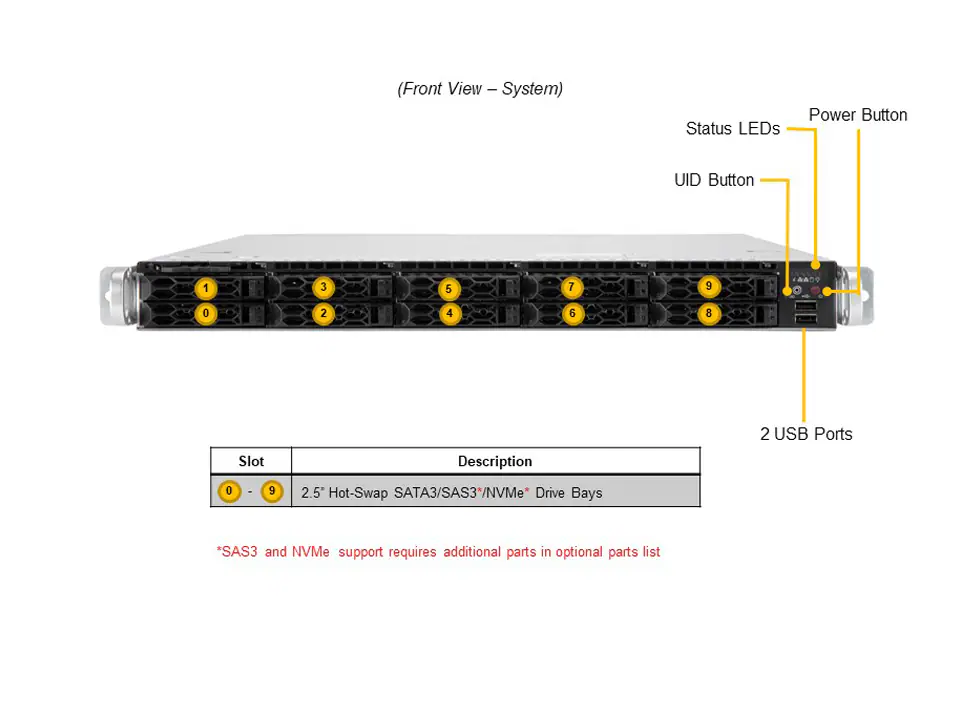

Drive Bays Configuration
    • Default: Total 10 bays
      • 10 front hot-swap 2.5″ SATA drive bays
    • Option A: Total 10 bays
      • 10 front hot-swap 2.5″ NVMe* drive bays
    • Option B: Total 10 bays
      • 10 front hot-swap 2.5″ SAS* drive bays
    • (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)

Fans
  • Up to 6 Counter-rotating 40x40x56mm Fan(s)
2x 860W Redundant (1 + 1) Platinum Level (94%) power supplies
Dimension (WxHxL)54.5 x 40.25 x 322 mm
Input800W: 100-127Vac
800W: 100-127Vac / 50-60Hz
860W: 200-240Vac
860W: 200-240Vdc / 50-60Hz
860W: 200-240Vac / 50-60Hz
+12VMax: 66.6A / Min: 0A (100Vac-127Vac)
Max: 71.6A / Min: 0A (200Vdc-240Vdc)
Max: 71.6A / Min: 0A (200Vac-240Vac)
5V SBMax: 4A / Min: 0A
Output TypeBackplanes (gold finger)
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
