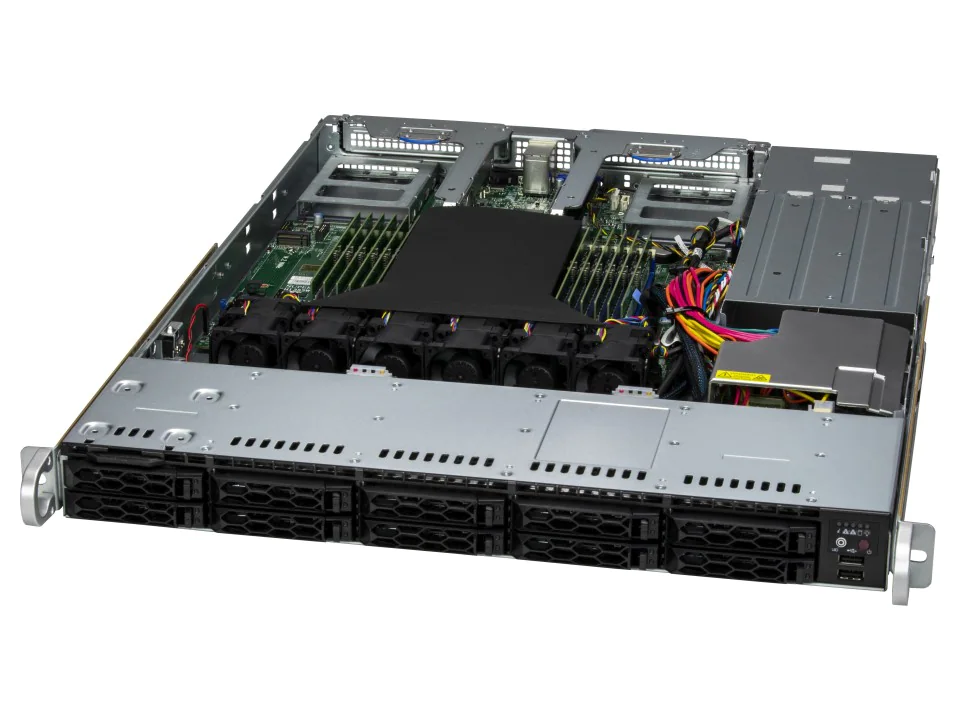

CloudDC A+ Server AS -1115CS-TNR

(AS -1115CS-TNR)

instock

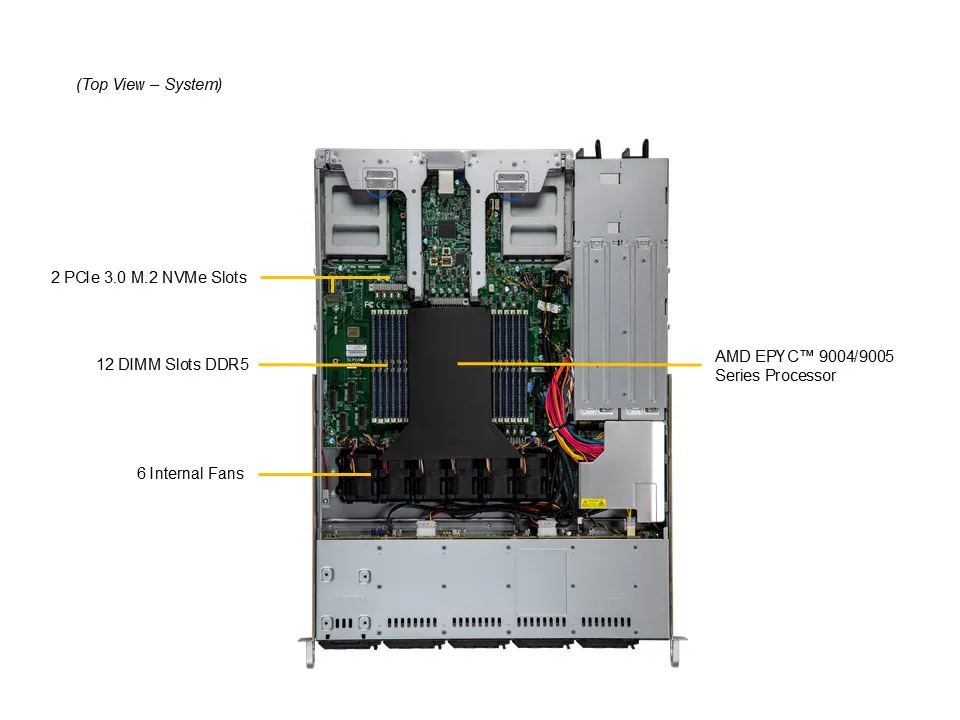

Single AMD EPYC™ 9004/9005* Series Processor
(*AMD EPYC™ 9005 series drop-in support requires board revision 2.x)
Support up to DDR5 12 DIMM slots (1DPC), speed up to 6400MT/s
(Please check System Memory Section for detail)

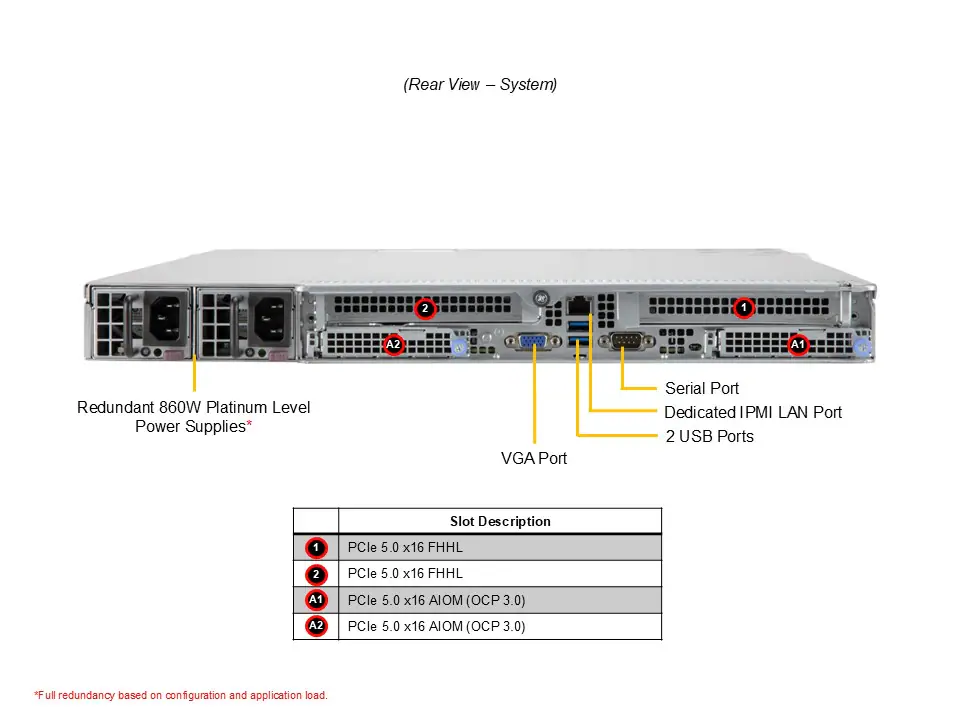

2 PCIe 5.0 x16 FHHL
Dual AIOM (OCP 3.0) for networking, 1 dedicated IPMI LAN

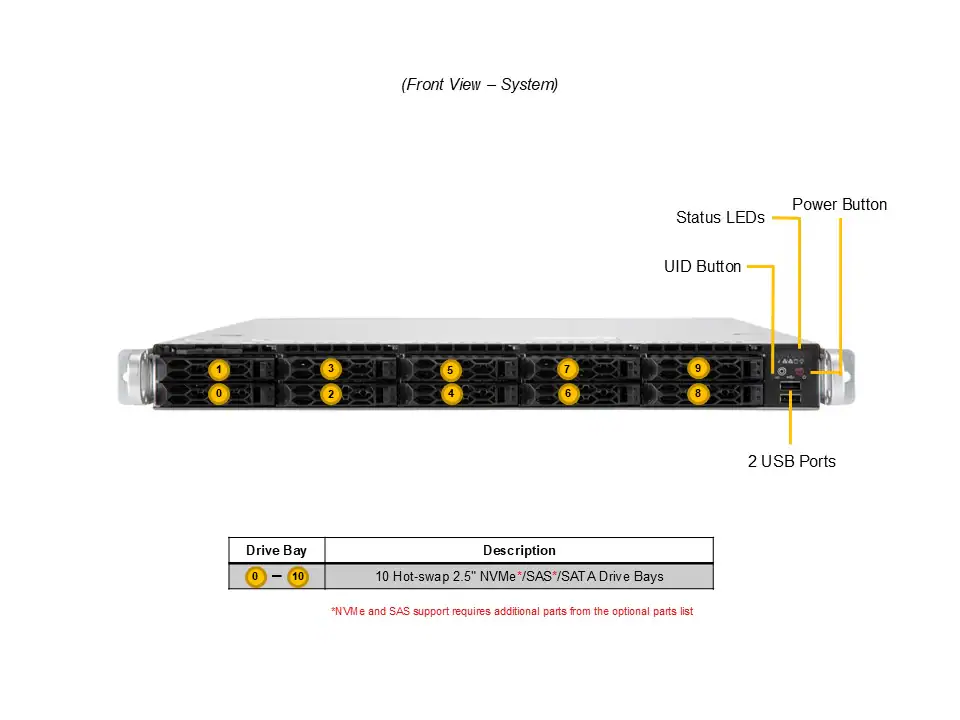

10 Hot-swap 2.5″ SATA drive bays
Optional 10 Hot-swap NVMe/SAS drives support via additional parts
2 M.2 PCIe 3.0 x2 NVMe slots
Dual 860W Redundant Platinum Level power supplies
(Power supply full redundancy based on configuration and application load)

MSRP^*

N/A

* Manufacturer’s Suggested Retail Price

Product Specifications

CPU	Single processor(s) AMD EPYC™ 9004/9005 Series Processors (* AMD EPYC™ 9005 Series drop-in support requires board revision 2.x)
Core Count	Up to 160C/320T
Note	Supports up to 400W TDP CPUs * *Air Cooled CPUs with TDP over 360W only supported under specific conditions. Contact a Supermicro representative for details.

Max GPU Count	Up to 2 single-width GPUs
Supported GPU	NVIDIA PCIe: L4, A2 View GPU Options
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	PCIe

Memory

- Slot Count: 12 DIMM slots
- Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor, MB R1.x/R2.0/R2.01)
- Max Memory (1DPC): Up to 3TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.0)
- Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.01)

Memory Voltage

Chipset

Network Connectivity

LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	2 USB 3.0 ports(rear) 2 USB 2.0 ports(front)
Video	1 VGA port
Serial	1 COM port(rear)
TPM	1 TPM header

BIOS Type	AMI 32MB SPI Flash ROM
BIOS Features	ACPI 6.4 Plug and Play (PnP) SMBIOS 3.5 or later UEFI 2.8 USB Keyboard support

Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) OOB Management Package (SFT-OOB-LIC ) SuperServer Automation Assistant (SAA) New!
Power configurations	ACPI Power Management Power-on mode control for AC power loss recovery Power button override mechanism,

Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
Voltage	System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support

Form Factor	1U Rackmount
Model	CSE-LB16TS-R860AWP-A

Height	1.7″ (43 mm)
Width	17.2″ (437 mm)

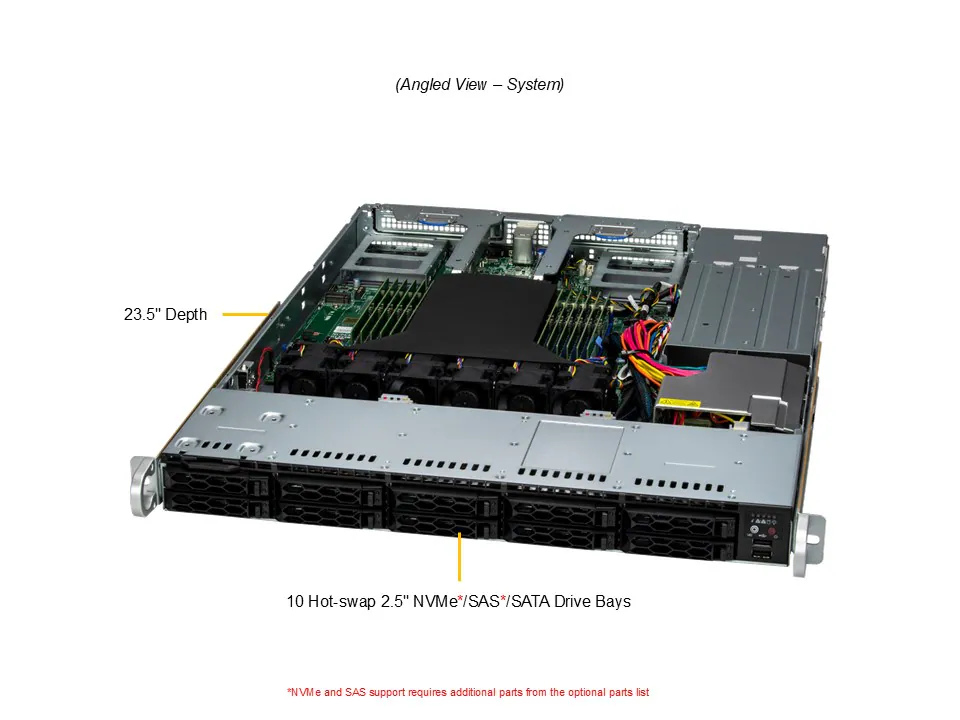

Depth	23.5″ (597 mm)
Package	7.8″ (H) x 23.8″ (W) x 32.4″ (D)
Weight	Gross Weight: 46 lbs (20.9 kg) Net Weight: 25 lbs (11.3 kg)
Available Color	Black front & sliver body

LED	Drive activity Network activity Power status Universal Information (UID)
Buttons	Power On/Off Universal Information (UID)

PCI-Express (PCIe) Configuration

- Default
  - 2 PCIe 5.0 x16 FHHL slots
  - 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)

Drive Bays Configuration

M.2

Fans	Up to 6x 4cm heavy duty fans with optimal fan speed control
Air Shroud	1 Air Shroud

2x 860W Redundant (1 + 1) Platinum Level (94%) power supplies

Dimension (WxHxL)	54.5 x 40.25 x 322 mm
Input	800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 860W: 200-240Vac 860W: 200-240Vdc / 50-60Hz 860W: 200-240Vac / 50-60Hz
+12V	Max: 66.6A / Min: 0A (100Vac-127Vac) Max: 71.6A / Min: 0A (200Vdc-240Vdc) Max: 71.6A / Min: 0A (200Vac-240Vac)
5V SB	Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)
