CloudDC A+ Server AS -1116CS-TN

(AS -1116CS-TN)
instock
  • Ready to Ship Today
Categories: Servers, SuperMicro, Rack Servers

1U UP CloudDC with DC-MHS, up to 12 hot-swap 2.5″ NVMe/SAS/SATA bays and 2 PCIe 5.0 x16 slots + 1 PCIe 5.0 x16 AIOM slot

Key Features

  1. All-in-one platform for cloud data centers, based on the OCP Data Center Modular Hardware System (DC-MHS) with flexible I/O and storage configurations
    Based on Modular DeNsity Optimized HPM Form Factor (M-DNO)
    Support DC-SCM module with OpenBMC
  2. Single AMD EPYC™ 9005/9004 Series Processor
  3. Support up to DDR5 12 DIMM slots (1DPC), speed up to 6400MT/s
    (Please check System Memory Section for detail)
  4. 2 PCIe 5.0 x16 FHHL slots
  5. Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible)
    1 RJ45 1 GbE Dedicated BMC LAN Port (DC-SCM)

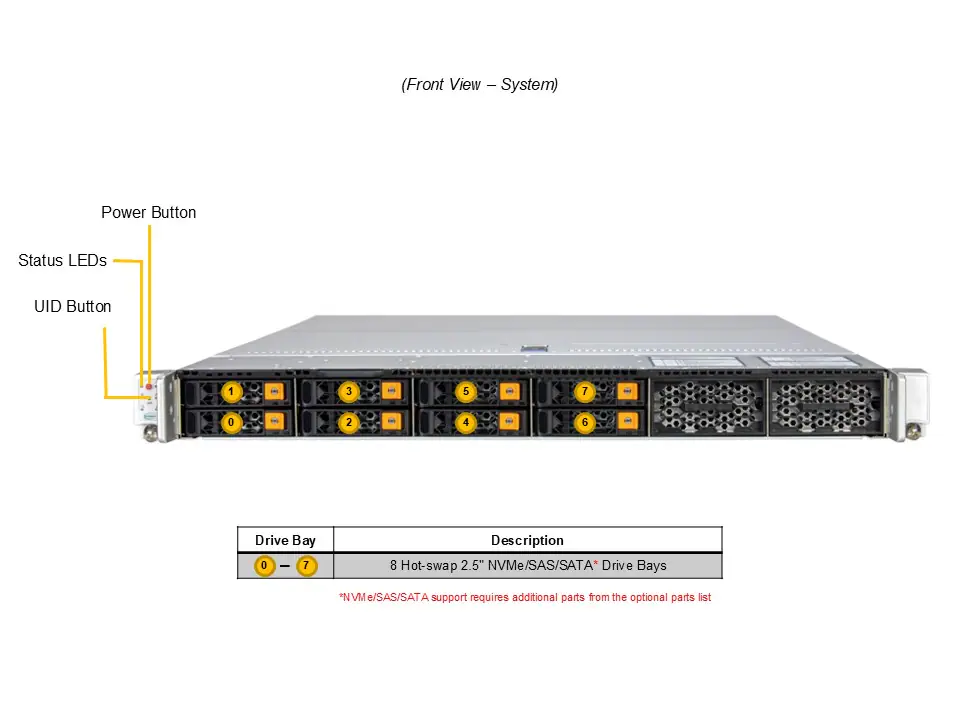

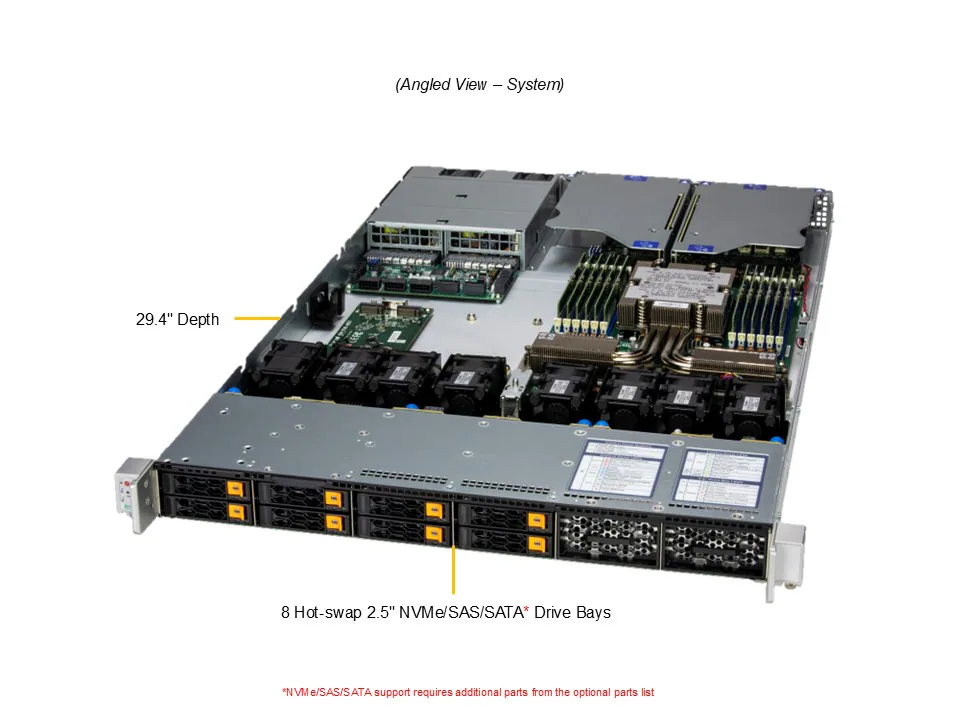

  6. 8 Hot-swap 2.5″ NVMe/SATA/SAS drive bays

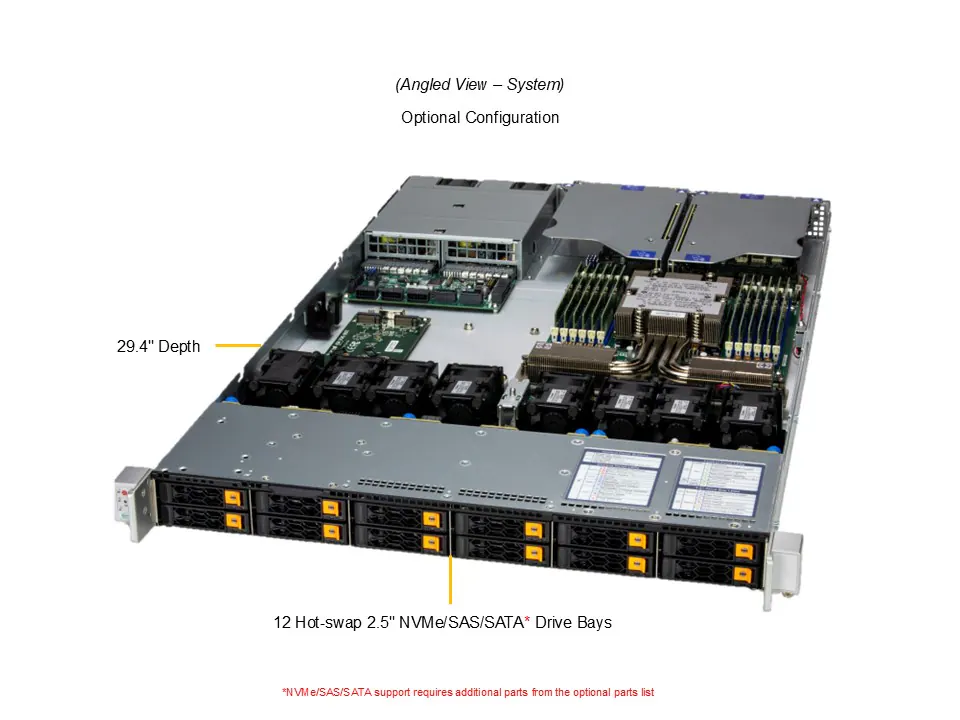

    Optional 4 Hot-swap 2.5″ NVMe/SAS/SATA drive bays
    Optional RAID support via storage add-on card
  7. Support up to 2 FHHL GPU accelerator cards
  8. Dual 1000W / 2000W Redundant Titanium Level power supplies
    (Power supply full redundancy based on configuration and application load)
MSRP*
N/A
Call for pricing
request for quote

* Manufacturer’s Suggested Retail Price

Product Specifications

System Features
Super H14SHM
CPU
Core Count
  • Up to 192C/384T
Note
  • Supports up to 500W TDP CPUs *
  • *Air Cooled CPUs with TDP over 500W only supported under specific conditions. Contact a Supermicro representative for details.
Max GPU Count
    • Up to 2 single-width GPUs


CPU-GPU Interconnect
    • PCIe 5.0 x16 CPU-to-GPU Interconnect

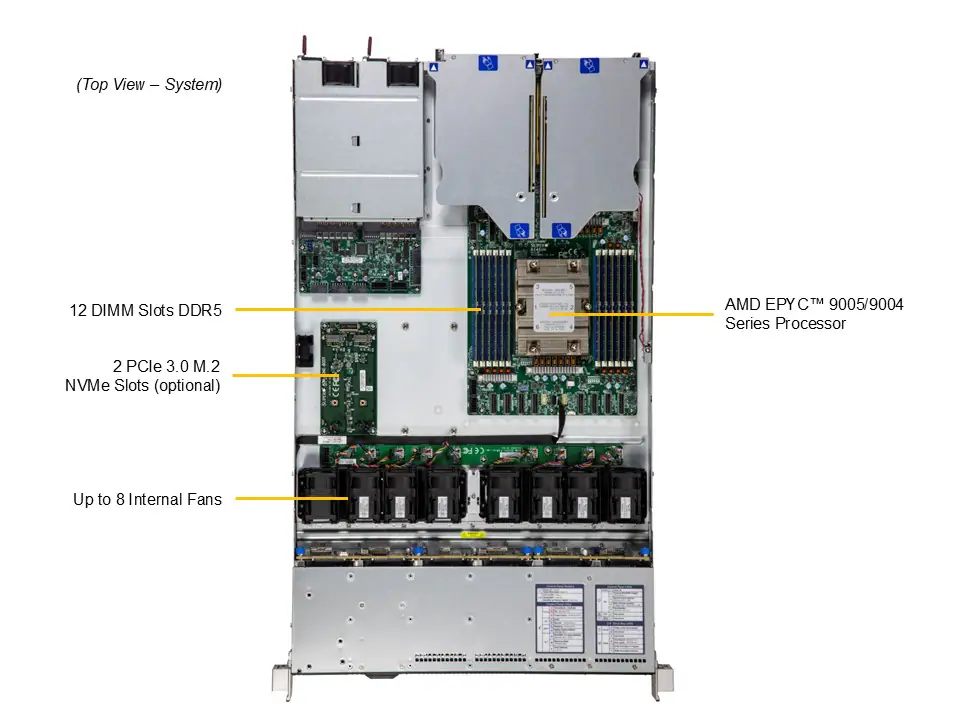

Memory
    • Slot Count: 12 DIMM slots/12 Channels
    • Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
    • Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)

Memory Voltage
    • 1.1V


Chipset
    • System on Chip


Network Connectivity
    • Via AIOM

IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support


LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 1 USB 2.0 Type-A port(Rear)
  • 1 USB 3.2 Gen1 Type-A port(Rear)
Video
  • 1 VGA port(Rear)
TPM
  • 1 TPM header
BIOS Type
  • AMI 64MB SPI Flash EEPROM
BIOS Features
  • Plug and Play (PnP)
  • SMBIOS 3.5 or later
  • UEFI 2.8
  • USB Keyboard support
  • ACPI 6.5
Software
Power configurations
  • ACPI/APM Power Management
  • Power-on mode control for AC power loss recovery
  • Power button override mechanism,
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Voltage
  • System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
Form Factor
  • 1U Rackmount
Model
Height
  • 1.7″ (43 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 29.4″ (747 mm)
Package
  • 8.1″ (H) x 23.8″ (W) x 40.6″ (D)
Weight
  • Gross Weight: 49 lbs (22.2 kg)
  • Net Weight: 34 lbs (15.4 kg)
Available Color
  • Black
LED
  • HDD activity
  • LAN1 activity
  • LAN2 activity
  • Power Failed LED
  • Power status
  • System information
Buttons
  • Power On/Off button
  • UID button
PCI-Express (PCIe) Configuration
    • Default
      • 2 PCIe 5.0 x16 FHHL slots
      • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)

CXL Support
    • Up to 2 CXL 2.0 x16 devices


PCI-Express (PCIe) Configuration
    • Default
      • 2 PCIe 5.0 x16 FHHL slots
      • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)

CXL Support
    • Up to 2 CXL 2.0 x16 devices


Fans
  • Up to 8 Counter-Rotating PWM 40x40x56mm Fan(s)
Air Shroud
  • 1 Air Shroud
2x 1000W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)73.5 x 40 x 185 mm
Input800W: 100-127Vac / 50-60Hz
1000W: 200-240Vac / 50-60Hz
+12VMax: 66.7A (100Vac-127Vac)
Max: A (100Vdc-240Vdc)
Max: 83A (200Vac-240Vac)
12V SBMax: 2.1A
Output TypeBackplanes (gold finger)
CertificationTitanium Level94%+  Titanium Level

[ Test Report ]

Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (non-condensing)
