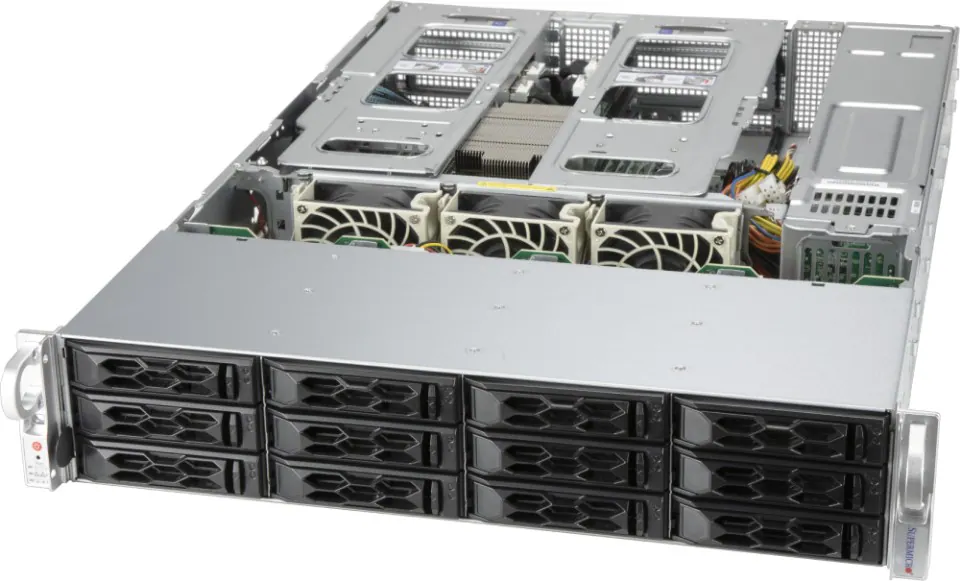

CloudDC A+ Server AS -2014CS-TR

(AS -2014CS-TR)

instock

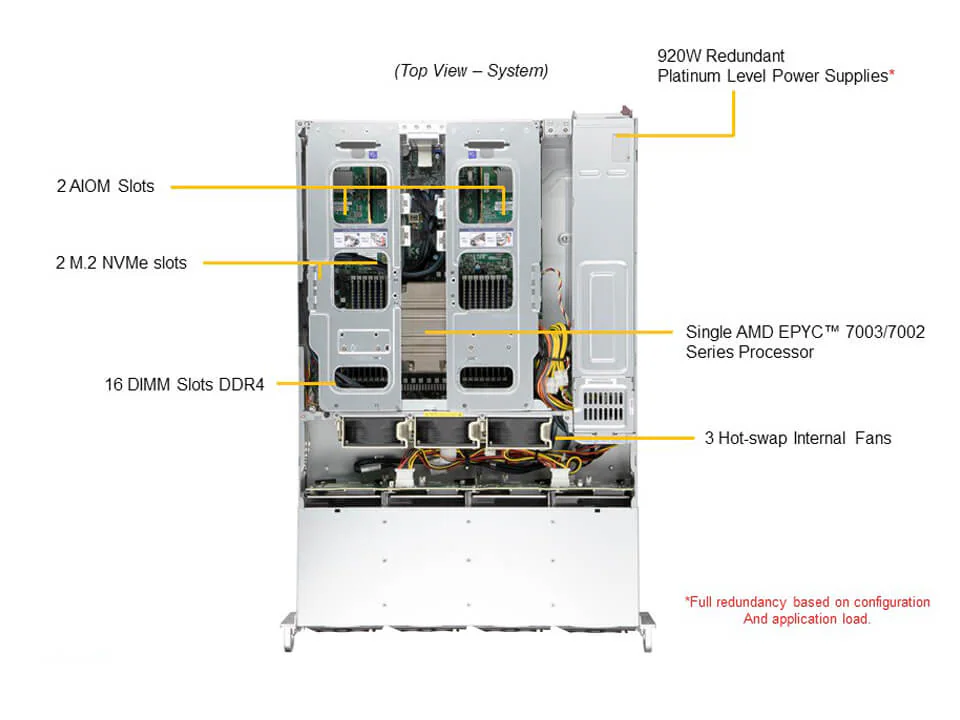

Single AMD EPYC™ 7002/7003 Series Processor
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
16 DIMMs; up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
4 PCIe 4.0 x16 FH, 10.5″ L slots
2 AIOM slots for flexible networking (1 x8 AIOM slot + 1 x16 AIOM slot)

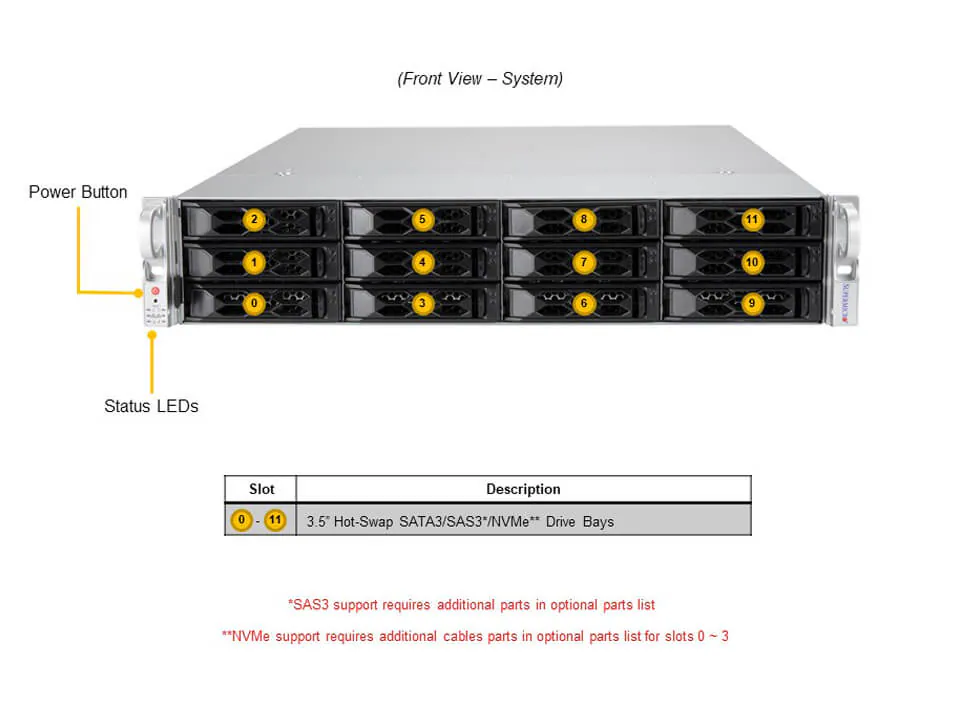

12 Hot-swap 3.5″ SATA3/SAS3/NVMe drive bays
12 SATA3 by default
or 8 SATA3 + 4NVMe via optional cables
or 12 SAS3 via optional SAS kit
Optional dual 2.5″ peripheral drive bays via rear drive bay kits
M.2 Interface: 2 PCIe 4.0 x4
M.2 Form Factor: 2242, 2260, 2280, 22110
M.2 Key: M-key

MSRP^*

N/A

* Manufacturer’s Suggested Retail Price

Product Specifications

CPU	Single SP3 AMD EPYC™ 7002/7003 Series Processors
Note	Supports up to 280W TDP CPUs (Air Cooled)

Max GPU Count

Supported GPU

- NVIDIA PCIe: T4, RTX A6000, RTX A5000, RTX A4000, A40, A16, A2, A100, A10
- AMD PCIe: Instinct™ MI210, Instinct™ MI100

Memory

- Slot Count: 16 DIMM slots
- Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM

Memory Voltage

SATA	SATA (6Gbps)
Chipset	System on Chip
Network Connectivity	Ethernet View AIOM Options View AOC Options
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

BIOS Type

Software	Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) KVM with dedicated LAN IPMI 2.0 Watch Dog OOB Management Package (SFT-OOB-LIC )
Power configurations	ACPI/APM Power Management

Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

CPU	Monitors for CPU Cores, Chipset Voltages, Memory 4+1 Phase-switching voltage regulator
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
FAN	Pulse Width Modulated (PWM) fan connectors 3 fans with tachometer status monitoring, Status monitoring for speed control

Form Factor	2U Rackmount
Model	CSE-LA26TS-R1K23AWP1

Height	3.5″ (89 mm)
Width	17.2″ (437 mm)
Depth	25.5″ (648 mm)
Package	11.4″ (H) x 26.7″ (W) x 34.5″ (D)
Weight	Gross Weight: 59 lbs (26.76 kg) Net Weight: 33 lbs (15 kg)
Available Color	Black front & sliver body

LED	Drive activity Network activity Power status Universal Information (UID)
Buttons	Power On/Off Universal Information (UID)

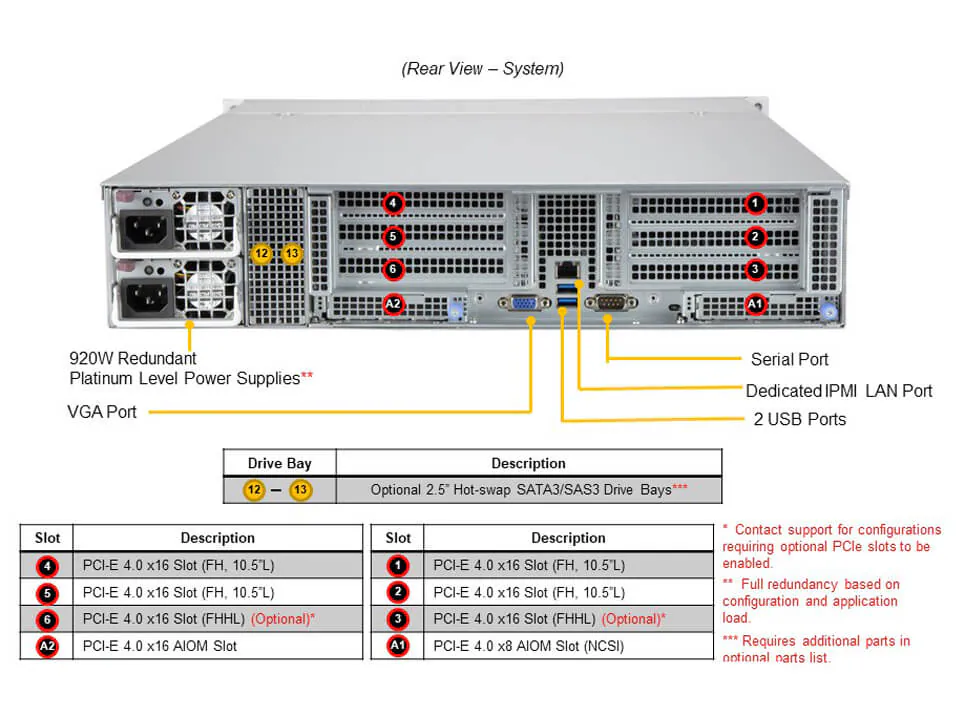

PCI-Express (PCIe) Configuration

- Default
  - 4 PCIe 4.0 x16 FH/10.5″L slots
  - 2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible)

M.2

Drive Bays Configuration

Fans	Up to 3 middle cooling 80x80x38mm Fan(s)

2x 920W Redundant (1 + 1) Platinum Level (94%) power supplies

Dimension (WxHxL)	76 x 40 x 336 mm
Input	920W: 100-127Vac 920W: 100-127Vac / 50-60Hz 920W: 200-240Vac 920W: 200-240Vdc / 50-60Hz 920W: 200-240Vac / 50-60Hz
+12V	Max: 75A / Min: 0A (100Vac-127Vac) Max: 75A / Min: 0A (200Vac-240Vac)
5V SB	Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)

ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
