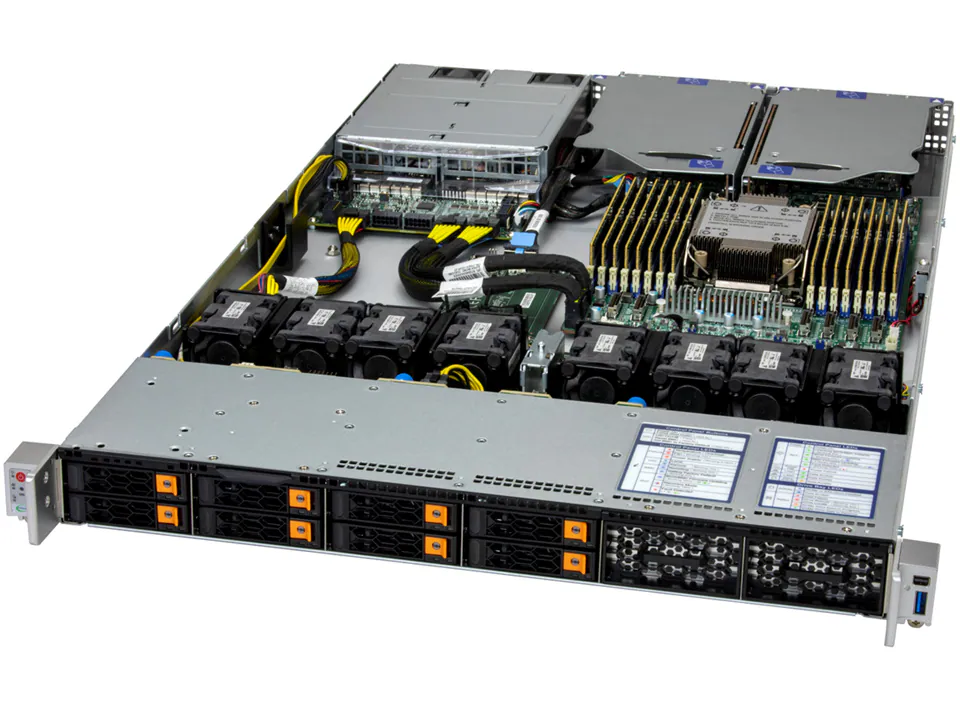

CloudDC SuperServer SYS-112C-TN

(SYS-112C-TN)
instock
  • Ready to Ship Today
Categories: Servers, SuperMicro, Rack Servers

1U UP CloudDC with DC-MHS, up to 12 hot-swap 2.5″ NVMe/SAS/SATA bays and 2 PCIe 5.0 x16 slots + 1 PCIe 5.0 x16 AIOM slot

Key Features

  1. All-in-one platform for cloud data centers, based on the OCP Data Center Modular Hardware System (DC-MHS) with flexible I/O and storage configurations
    Based on Modular Scalable DeNsity Optimized HPM Form Factor (M-SDNO)
    Support DC-SCM module with OpenBMC

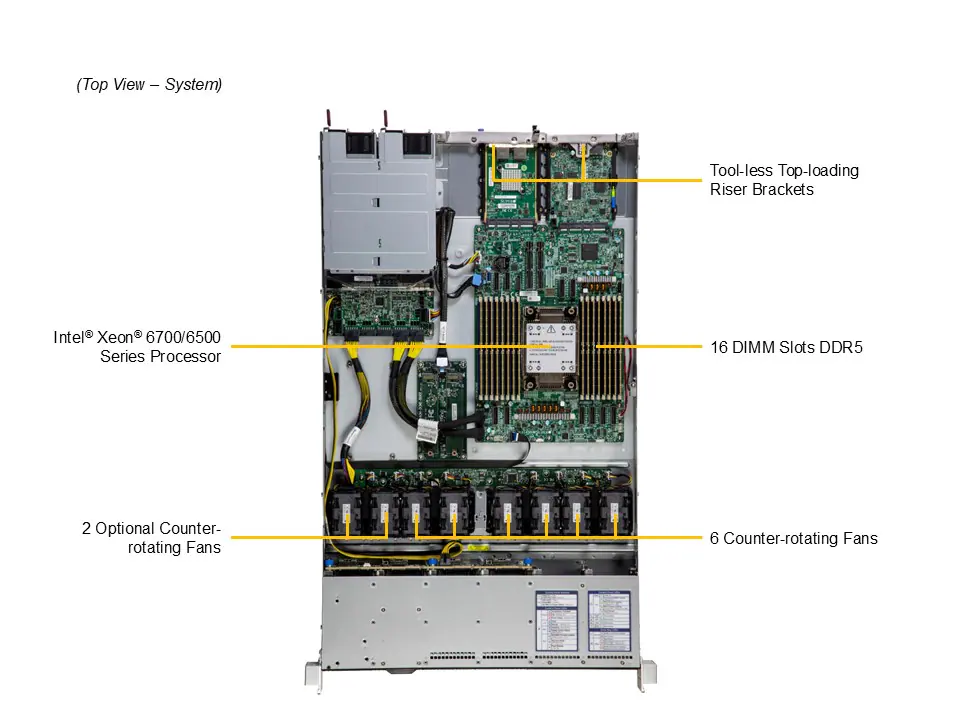

  2. Single Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores
  3. 16 DIMM slots supporting DDR5 RDIMM(2DPC/1DPC) or MRDIMM(1DPC)
  4. Support FH DPU and single slot GPU
  5. Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible).
  6. Breeze through high throughput workloads with PCIe 5.0 NVMe drive support
  7. Trusted Platform Module (TPM) 2.0 9672 onboard
MSRP*
N/A
Call for pricing
request for quote

* Manufacturer’s Suggested Retail Price

Product Specifications

System Features
Super X14SBHM
CPU
Core Count
  • P-cores: Up to 86C/172T; Up to 336MB Cache
  • E-cores: Up to 144C/144T; Up to 108MB Cache
Note
  • Supports up to 350W TDP CPUs (Air Cooled)
Max GPU Count
    • Up to 2 single-width GPUs


Supported GPU
    • NVIDIA PCIe: L4

CPU-GPU Interconnect
    • PCIe 5.0 x16 CPU-to-GPU Interconnect


Memory
    • Slot Count: 16 DIMM slots/8 Channels
    • Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM
    • Max Memory (1DPC): Up to 512GB 8000MT/s ECC DDR5 MRDIMM (P-core only)
    • Max Memory (2DPC): Up to 4TB 5200MT/s ECC DDR5 RDIMM

Memory Voltage
    • 1.1V


NVMe
    • NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)

Chipset
    • System on Chip


Network Connectivity
    • Via AIOM

LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port (via DC-SCM)
USB
  • 2 USB 3.2 Gen1 Type-A ports(Rear) (via DC-SCM)
Video
  • 1 Mini-DP port(Rear) (via DC-SCM)
TPM
  • 1 TPM header
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Software
Power configurations
  • ACPI/APM Power Management
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Form Factor
  • 1U Rackmount
Model
Height
  • 1.7″ (43 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 29.4″ (747 mm)
Package
  • 8.1″ (H) x 23.8″ (W) x 40.6″ (D)
Weight
  • Gross Weight: 47 lbs (21.3 kg)
  • Net Weight: 31 lbs (14.1 kg)
Available Color
  • Black
LED
  • HDD activity
  • LAN1 activity
  • LAN2 activity
  • Power Failed LED
  • Power status
  • System information
Buttons
  • Power On/Off button
  • UID button

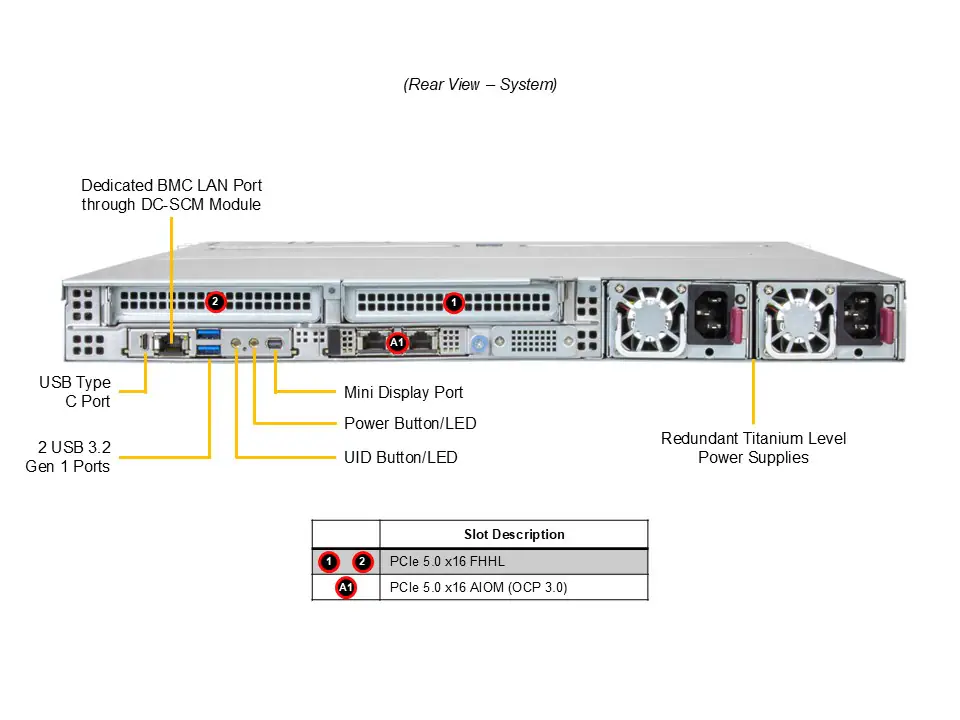

PCI-Express (PCIe) Configuration
    • Default
      • 2 PCIe 5.0 x16 FHHL slots
      • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)

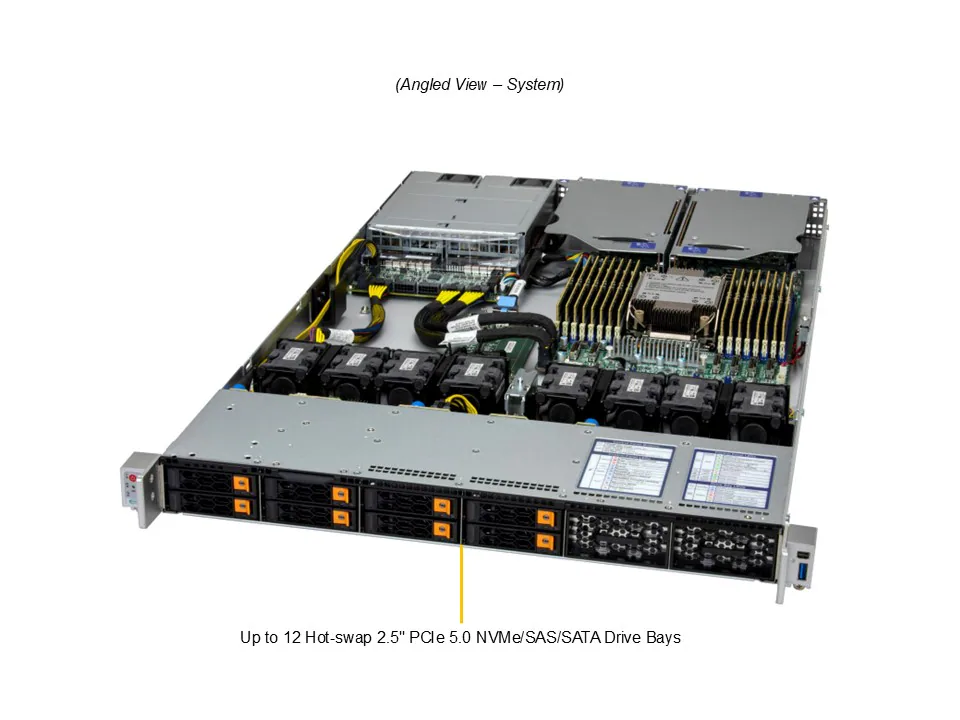

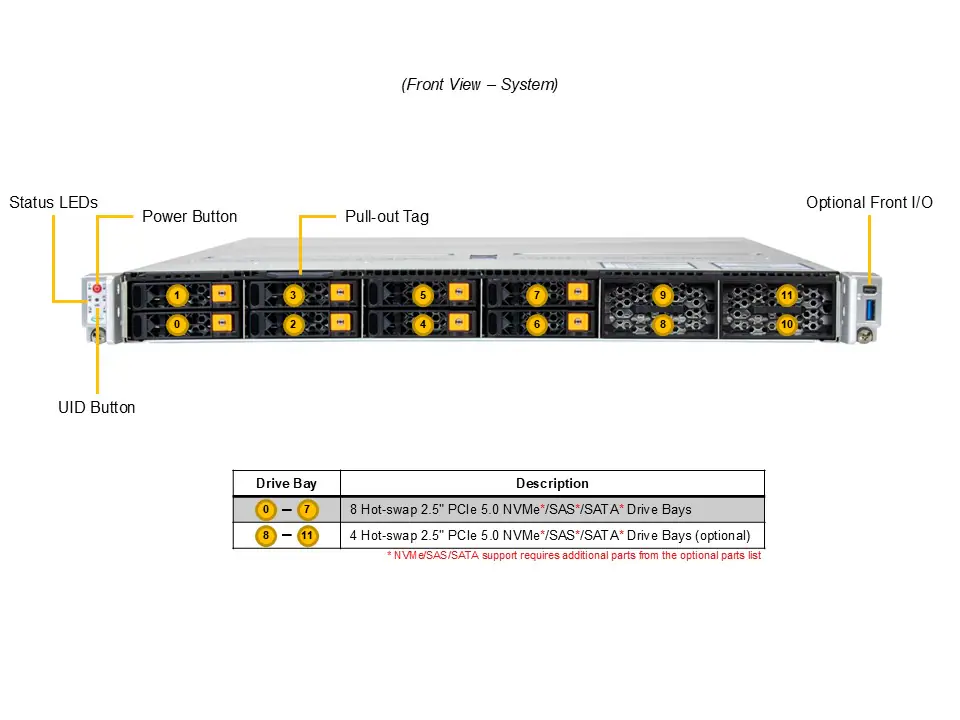

Drive Bays Configuration
    • Default: Total 8 bays
      • 8 front hot-swap 2.5″ PCIe 5.0 x4 NVMe*/SAS*/SATA* drive bays
    • Option A: Total 12 bays
      • 8 front hot-swap 2.5″ PCIe 5.0 x4 NVMe*/SAS*/SATA* drive bays
      • 4 front hot-swap 2.5″ SAS*/SATA* drive bays
    • Option B: Total 12 bays
      • 12 front hot-swap 2.5″ PCIe 5.0 x4 NVMe*/SAS*/SATA* drive bays
    • (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)

M.2
    • 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280(default)/22110; optional configuration)

Fans
  • Up to 8 Counter-Rotating PWM 40x40x56mm Fan(s)
Air Shroud
  • 1 CPU Air Shroud
  • 1 M.2 Side Air Shroud
2x 1000W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)73.5 x 40 x 185 mm
Input800W: 100-127Vac / 50-60Hz
1000W: 200-240Vac / 50-60Hz
+12VMax: 66.7A (100Vac-127Vac)
Max: A (100Vdc-240Vdc)
Max: 83A (200Vac-240Vac)
12V SBMax: 2.1A
Output TypeBackplanes (gold finger)
CertificationTitanium Level94%+  Titanium Level

[ Test Report ]

Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (non-condensing)
