CloudDC SuperServer SYS-120C-TN10R

(SYS-120C-TN10R)

instock

MSRP^*

N/A

* Manufacturer’s Suggested Retail Price

Product Specifications

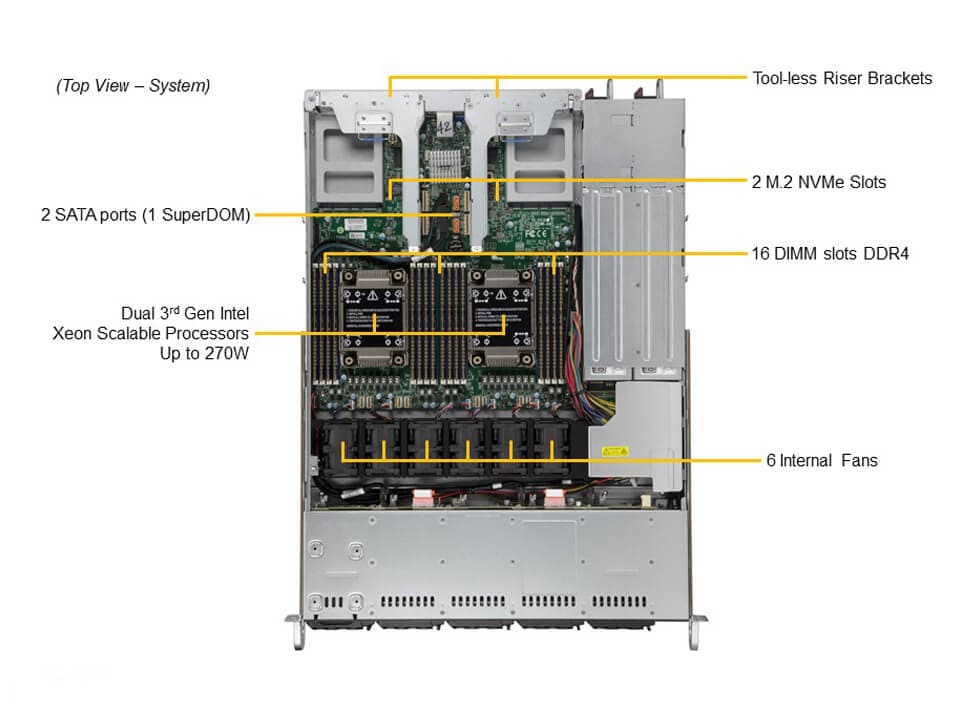

CPU	Dual Socket P4 (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Core Count	Up to 40C/80T; Up to 60MB Cache per CPU
Note	Supports up to 270W TDP CPUs (Air Cooled)* *Air Cooled CPUs with TDP over 205W only supported under specific conditions. Contact a Supermicro representative for details.

Max GPU Count

Supported GPU

Memory

- Slot Count: 16 DIMM slots
- Max Memory (1DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
- Supports Intel® Optane™ persistent memory 200 series

Memory Voltage

SATA	SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe	NVMe; RAID 0/1/5/10 support(VROC HW key required) View NVMe Options

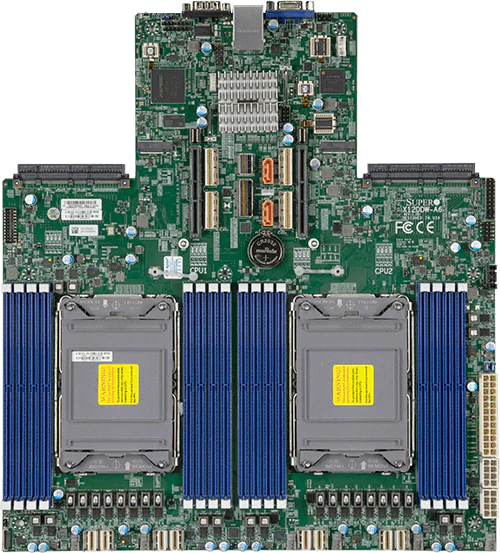

Chipset	Intel® C621A
Network Connectivity	Via AIOM View AIOM Options View AOC Options

LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	2 USB 3.2 Gen1 Type-A ports(rear) 2 USB 2.0 Type-A ports(front)
Video	1 VGA port
Serial	1 COM port(rear)
DOM	1 SuperDOM (Disk on Module) port
TPM	1 TPM header

BIOS Type

Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	ACPI/APM Power Management

Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
CPU	Monitors for CPU Cores, Chipset Voltages, Memory. 8 Phase-switching voltage regulator

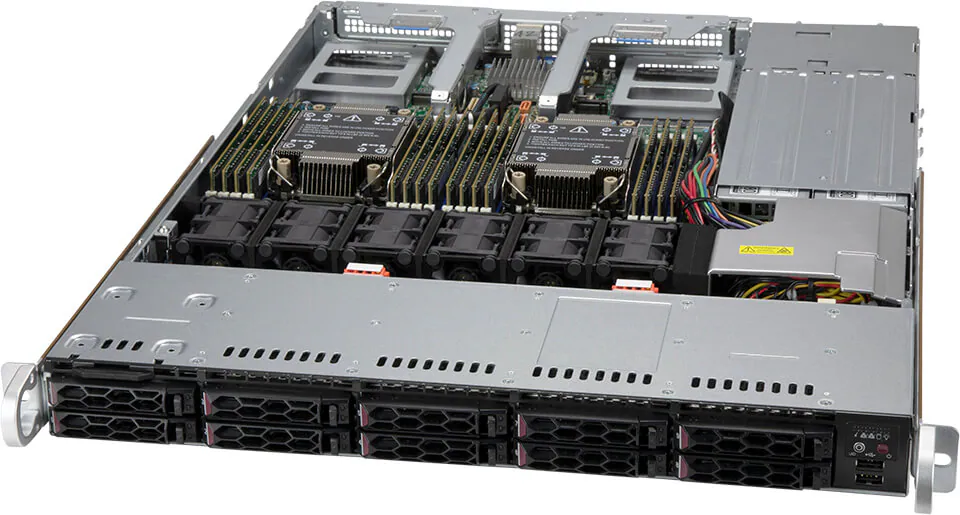

Form Factor	1U Rackmount
Model	CSE-LB16TS-R860AWP

Height	1.7″ (43 mm)
Width	17.2″ (437 mm)
Depth	23.5″ (597 mm)
Package	7.7″ (H) x 23.7″ (W) x 31.8″ (D)
Weight	Gross Weight: 40 lbs (18.14 kg) Net Weight: 25 lbs (11.34 kg)
Available Color	Black

LED	Device Activity LAN 1 Activity LAN 2 Activity Power status System information
Buttons	Power On/Off UID button

PCI-Express (PCIe) Configuration

- Default

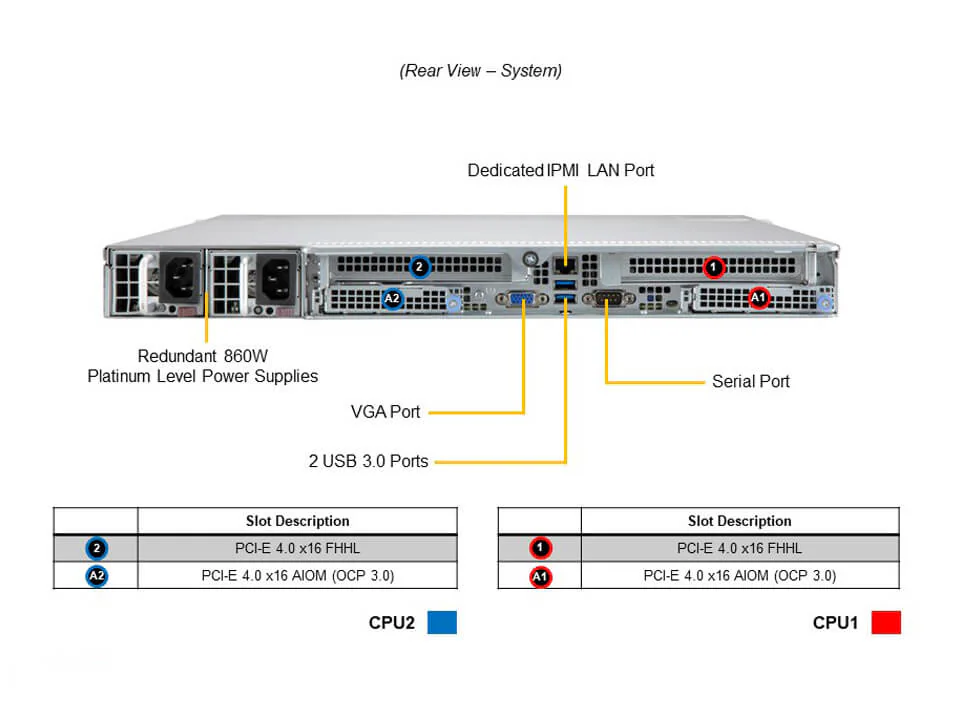

  - 2 PCIe 4.0 x16 FHHL slots
  - 2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible)

Drive Bays Configuration

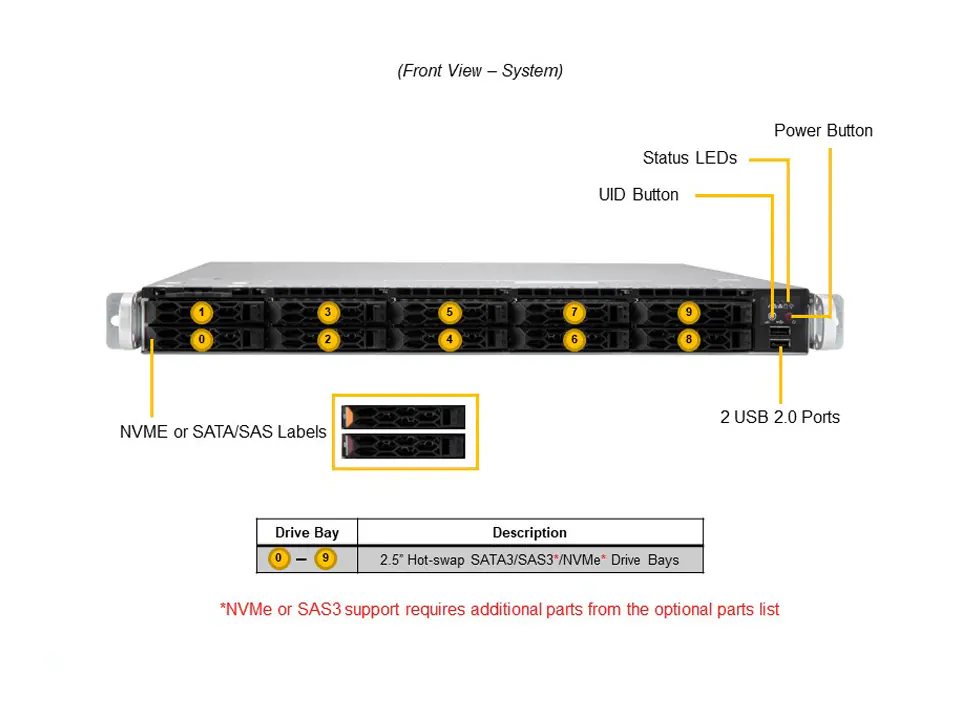

- Default: Total 10 bays

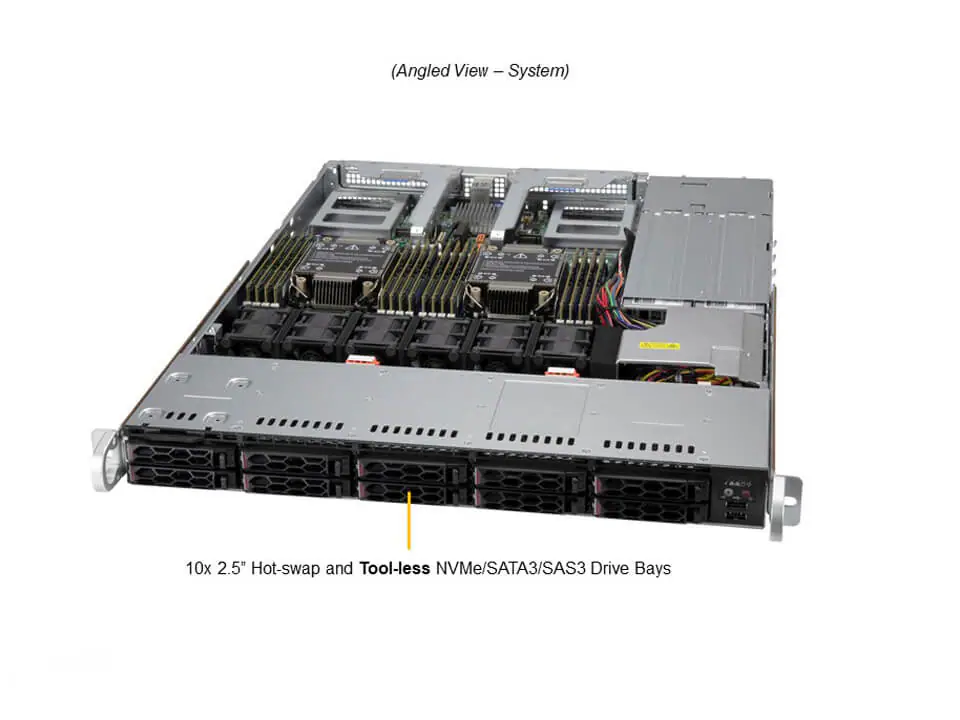

  - 10 front hot-swap 2.5″ NVMe*/SAS*/SATA drive bays
- (*NVMe/SAS support may require additional storage controller and/or cables)

M.2

Fans	Up to 6x 4cm heavy duty fans with optimal fan speed control
Air Shroud	2 Air Shrouds

2x 860W Redundant (1 + 1) Platinum Level (94%) Hot-plug power supplies

Dimension (WxHxL)	54.5 x 40.25 x 322 mm
Input	800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 860W: 200-240Vac 860W: 200-240Vdc / 50-60Hz 860W: 200-240Vac / 50-60Hz
+12V	Max: 66.6A / Min: 0A (100Vac-127Vac) Max: 71.6A / Min: 0A (200Vdc-240Vdc) Max: 71.6A / Min: 0A (200Vac-240Vac)
5V SB	Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)

ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
