CloudDC SuperServer SYS-122C-TN

(SYS-122C-TN)

instock

Categories: Servers, SuperMicro, Rack Servers

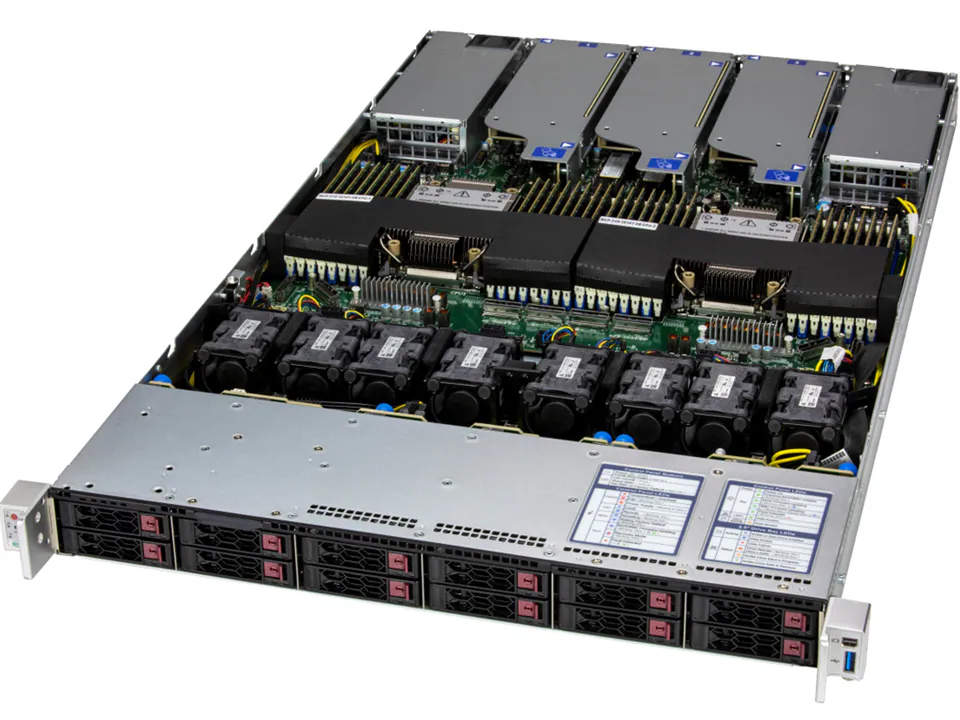

1U CloudDC with DC-MHS, 12 hot-swap 2.5” NVMe/SATA/SAS bays, 3 PCIe 5.0 x16/x8 slots and 2 PCIe 5.0 x16 AIOM slots

Key Features

Designed for Data Center Modular Hardware Systems (DC-MHS) to simplify CSP deployments and serviceability
Optimized power & balanced performance for cloud applications
Server management flexibility with OpenBMC

MSRP^*

N/A

* Manufacturer’s Suggested Retail Price

Product Specifications

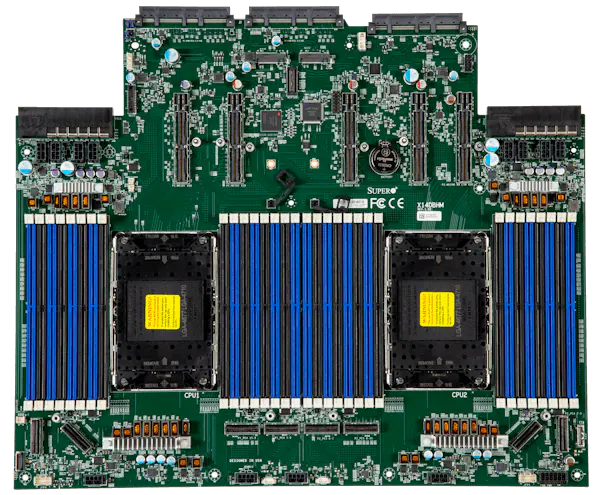

Super X14DBHM

CPU	Dual Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores
Core Count	P-cores: Up to 86C/172T; Up to 336MB Cache per CPU E-cores: Up to 144C/144T; Up to 108MB Cache per CPU
Note	Supports up to 350W TDP CPUs (Air Cooled)* *Air Cooled CPUs with TDP over 250W only supported under specific conditions. Contact a Supermicro representative for details.

Max GPU Count

- Up to 3 single-width GPUs

Memory

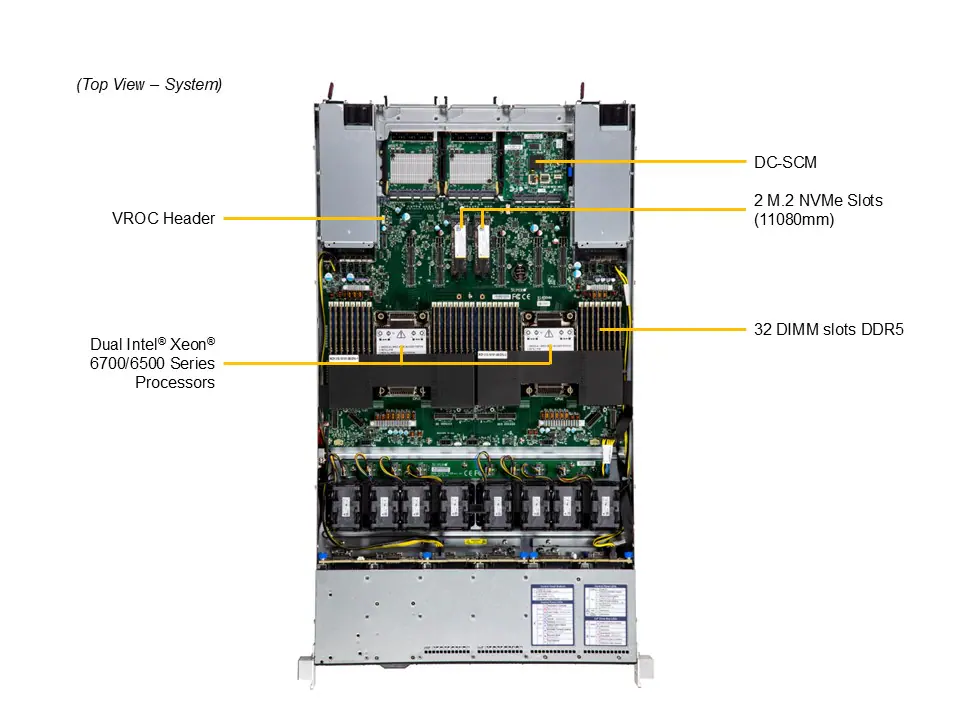

- Slot Count: 32 DIMM slots
- Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM
- Max Memory (2DPC): Up to 4TB 5200MT/s ECC DDR5 RDIMM

- View Memory Options

Memory Voltage

- 1.1V

NVMe

- NVMe; RAID 0/1/5/10 support(VROC HW key required)

- View NVMe Options

Chipset

- System on Chip

Network Connectivity

- Via AIOM

- View AIOM Options
- View AOC Options

LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	1 USB 2.0 Type-A port(Rear) 1 USB 3.2 Gen1 Type-A port(Rear)
Video	1 VGA port(Rear)

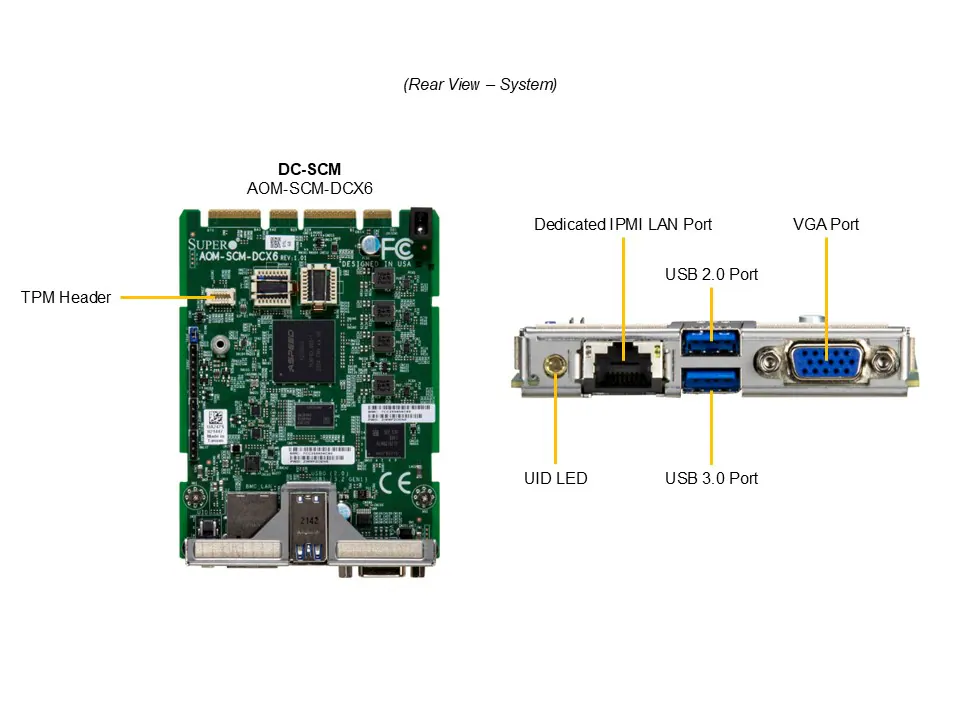

TPM	1 TPM header

BIOS Type

AMI 64MB SPI Flash ROM

Software	SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	ACPI Power Management

Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

Form Factor	1U Rackmount
Model	CSE-DC101TS-R000NP

Height	1.7″ (43.6 mm)
Width	17.2″ (438.4 mm)
Depth	29.7″ (755.1 mm)
Package	7.28″ (H) x 22.83″ (W) x 42.5″ (D)
Weight	Gross Weight: 41 lbs (19 kg) Net Weight: 31 lbs (17 kg)
Palletized Packing (W x H x L)	49.6″ (1260 mm) x 4.7″ (120 mm) x 44.5″ (1130 mm)
Available Color	Silver

LED	HDD activity LAN1 activity LAN2 activity Power Fail LED Power status System information
Buttons	Power On/Off UID button

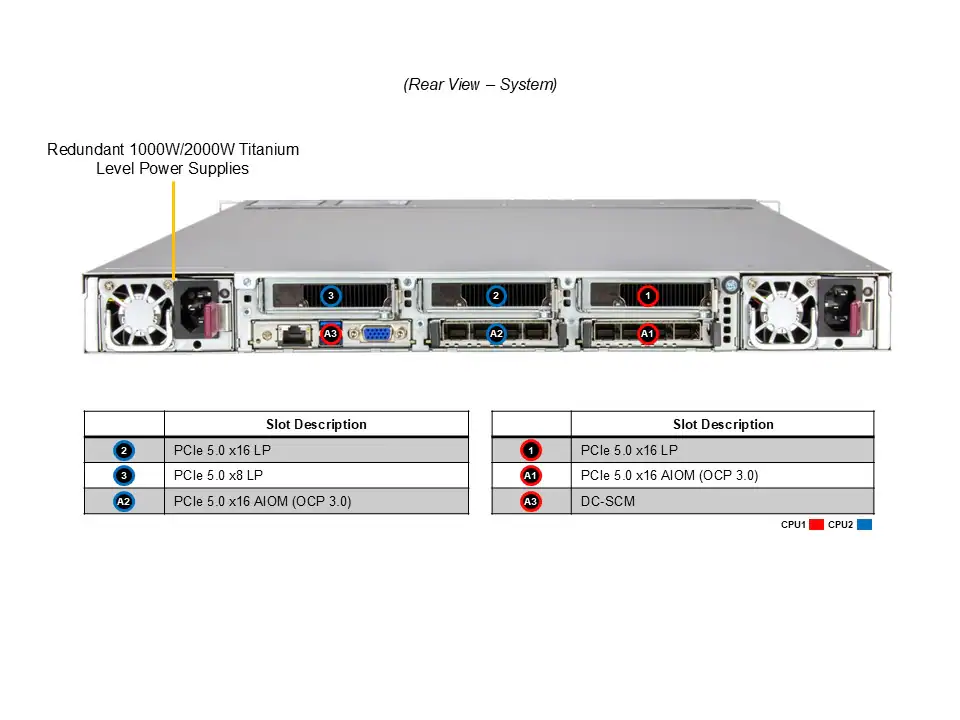

PCI-Express (PCIe) Configuration

- Default
  - 2 PCIe 5.0 x16 LP slots
  - 1 PCIe 5.0 x8 LP slot
  - 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)

- View AOC Options

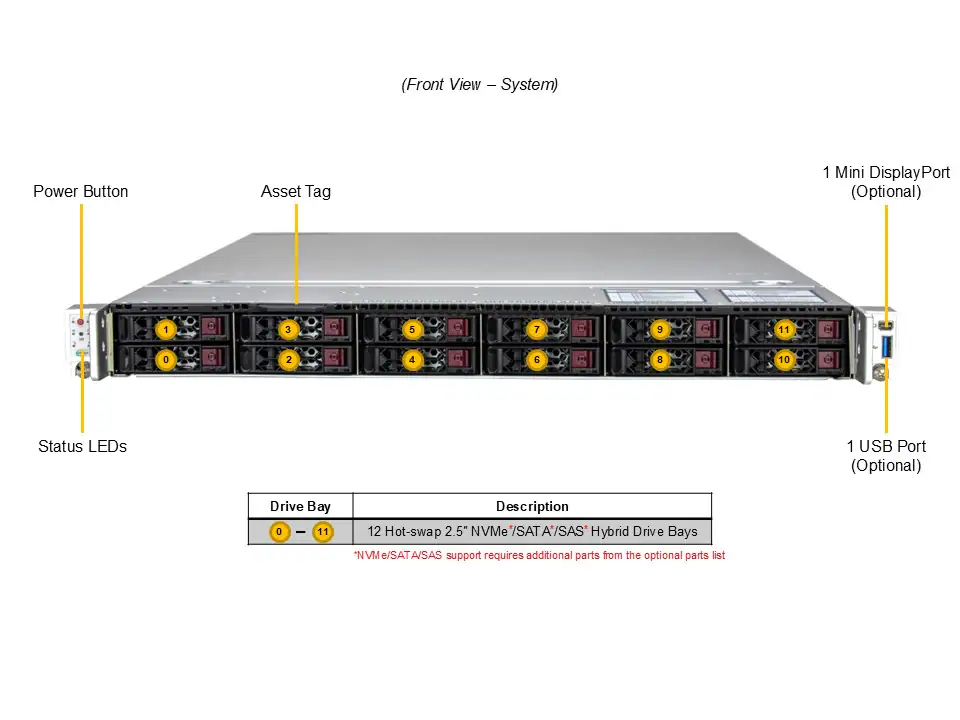

Drive Bays Configuration

- Default: Total 12 bays

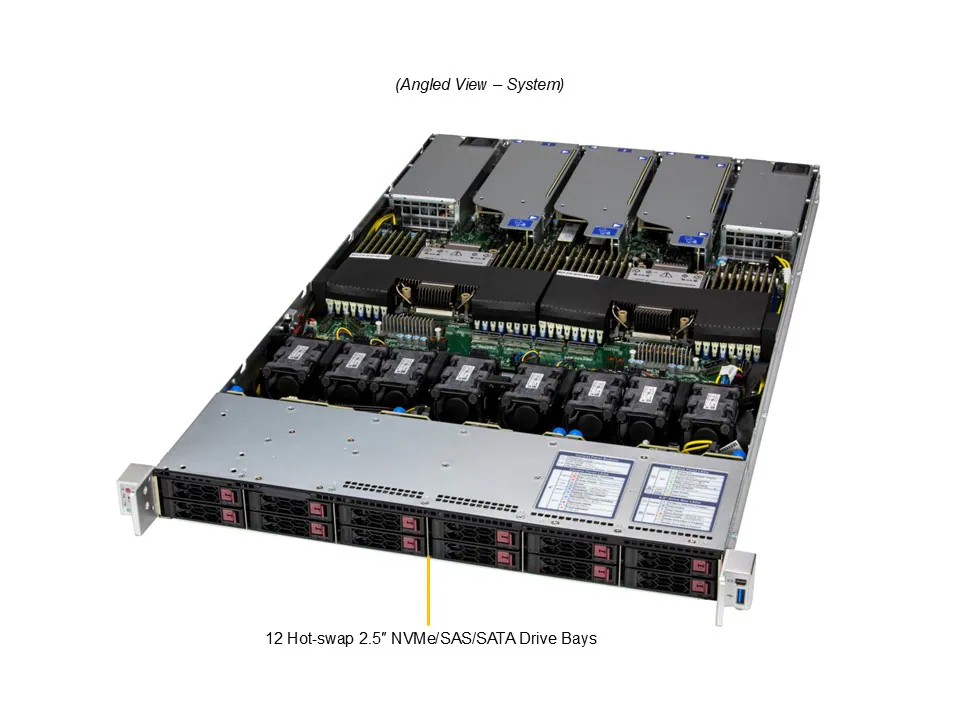

  - 12 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
- (*NVMe/SAS/SATA support may require additional storage controller and/or cables)

- View NVMe Options
- View Drive Options

M.2

- 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 22110(default)/2280; VROC required for RAID)

- View M.2 Options

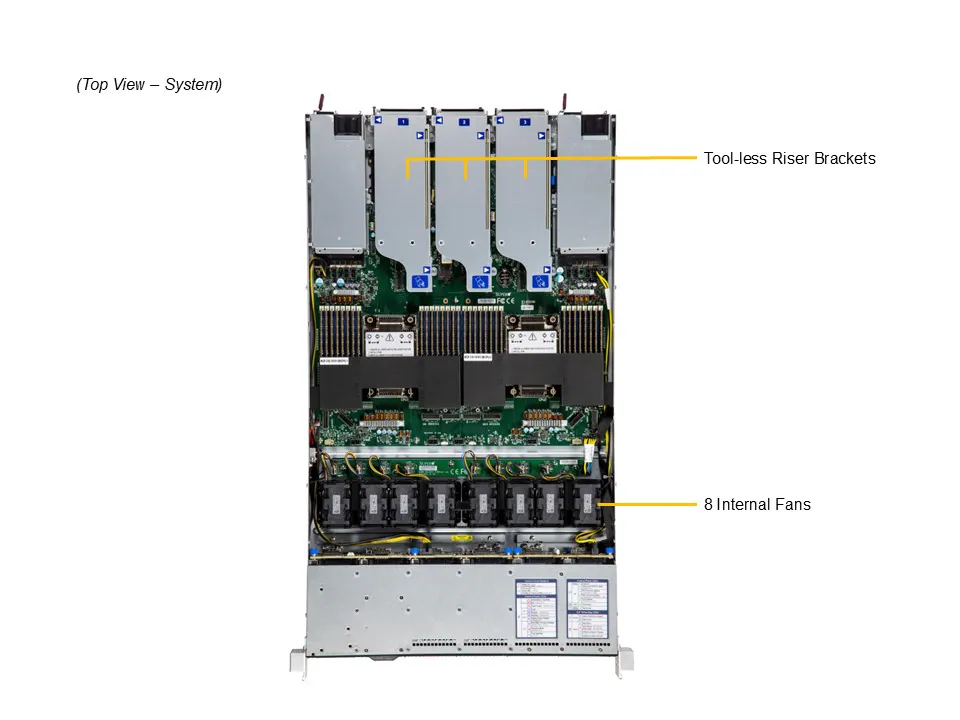

Fans	Up to 8x 4cm heavy duty fans with optimal fan speed control
Air Shroud	2 Air Shrouds

2x 1000W Redundant (1 + 1) Titanium Level (96%) power supplies

Dimension (WxHxL)	73.5 x 40 x 185 mm
Input	800W: 100-127Vac / 50-60Hz 1000W: 200-240Vac / 50-60Hz
+12V	Max: 66.7A (100Vac-127Vac) Max: A (100Vdc-240Vdc) Max: 83A (200Vac-240Vac)
12V SB	Max: 2.1A
Output Type	Backplanes (gold finger)
Certification	Titanium Level [ Test Report ]

ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-30°F to 140°F) Operating Relative Humidity: 8% to 80% (Non-Condensing) Non-operating Relative Humidity: 8% to 90% (Non-Condensing)
