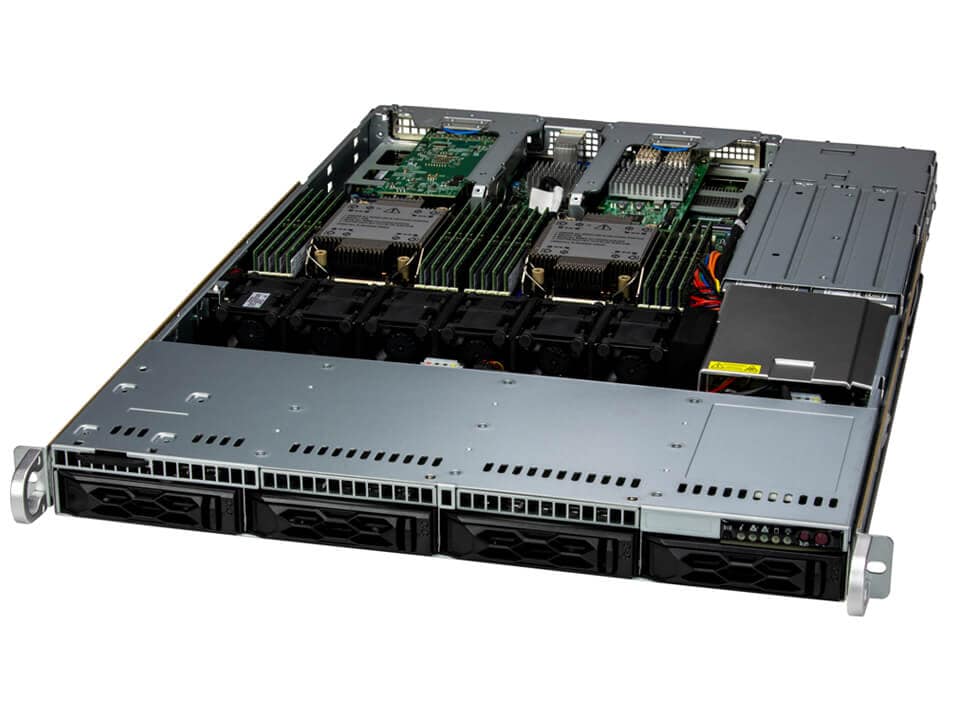

CloudDC SuperServer SYS-611C-TN4R

(SYS-611C-TN4R)

instock

MSRP^*

N/A

* Manufacturer’s Suggested Retail Price

Product Specifications

CPU	Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Core Count	Up to 36C/72T; Up to 82.5MB Cache per CPU
Note	Supports up to 270W TDP CPUs (Air Cooled)* *Air Cooled CPUs with TDP over 250W only supported under specific conditions. Contact a Supermicro representative for details.

Max GPU Count

Supported GPU

Memory

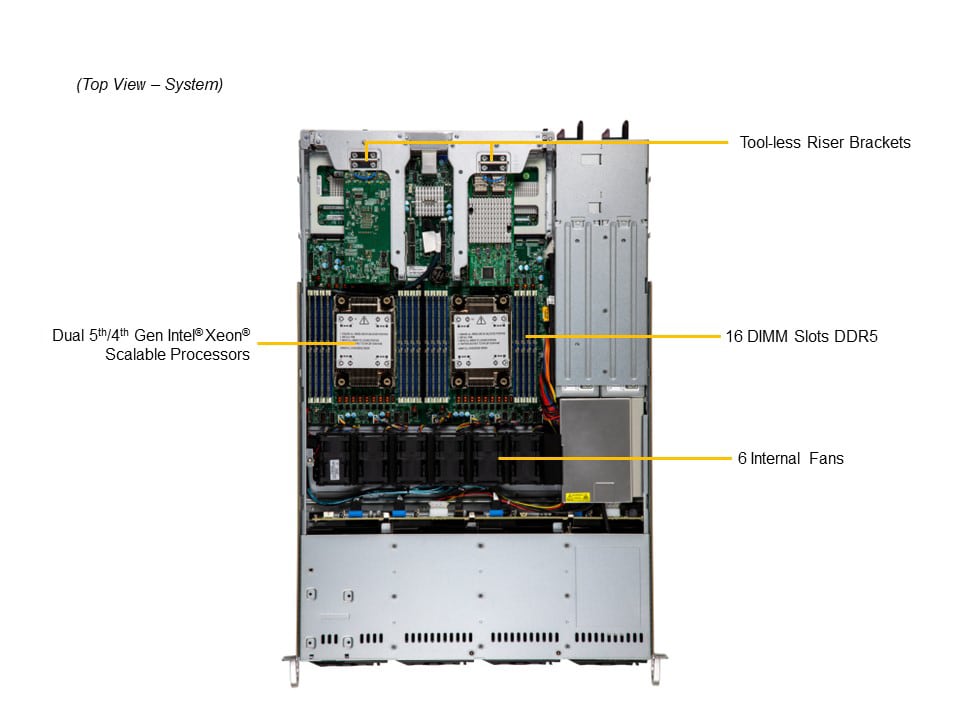

- Slot Count: 16 DIMM slots
- Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM

Memory Voltage

SATA	SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe	NVMe; RAID 0/1/5/10 support(VROC HW key required) View NVMe Options

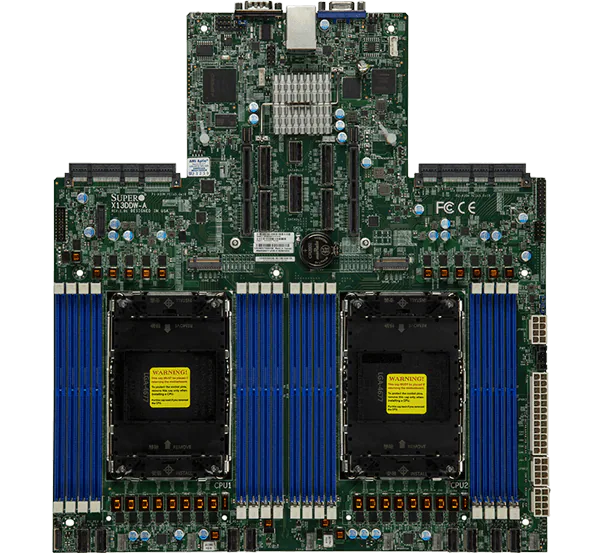

Chipset	Intel® C741
Network Connectivity	Via AIOM View AIOM Options View AOC Options

BIOS Type

Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	ACPI/APM Power Management

Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
CPU	Monitors for CPU Cores, Chipset Voltages, Memory. 8 Phase-switching voltage regulator

Form Factor	1U Rackmount
Model	CSE-LA15TS-R0AWNP2

Height	1.7″ (43 mm)
Width	17.2″ (437 mm)
Depth	25.6″ (650 mm)
Package	7.8″ (H) x 23.8″ (W) x 34.6″ (D)
Weight	Gross Weight: 46 lbs (20.9 kg) Net Weight: 25 lbs (11.3 kg)
Available Color	Black front & sliver body

LED	Drive activity Network activity Power status Universal Information
Buttons	Power On/Off Reset button Unit Identifier (UID)

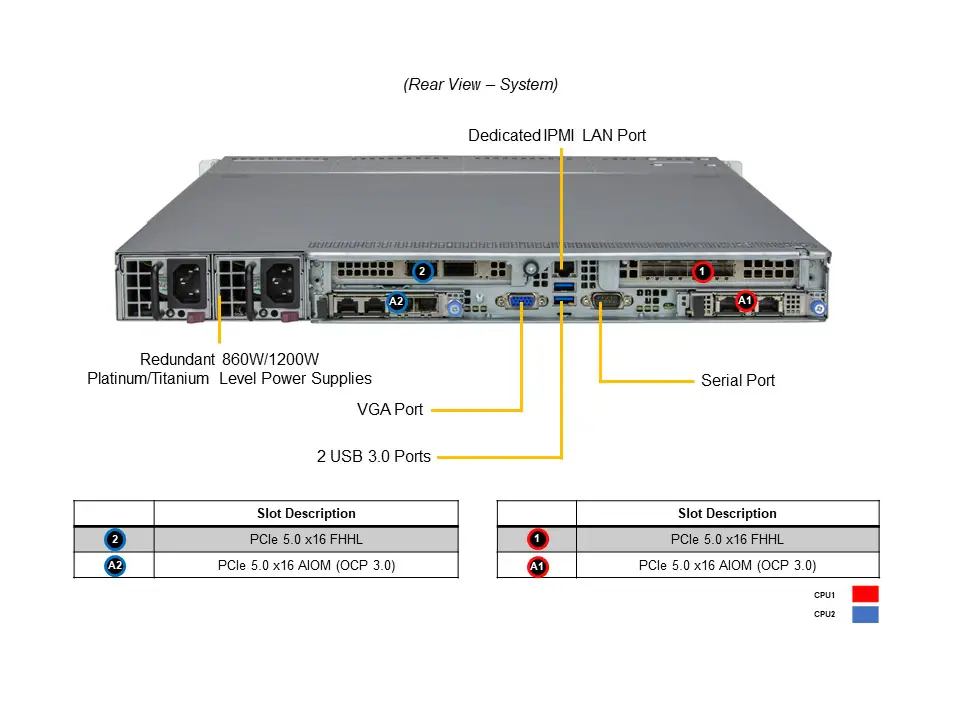

PCI-Express (PCIe) Configuration

- Default
  - 2 PCIe 5.0 x16 FHHL slots
  - 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)

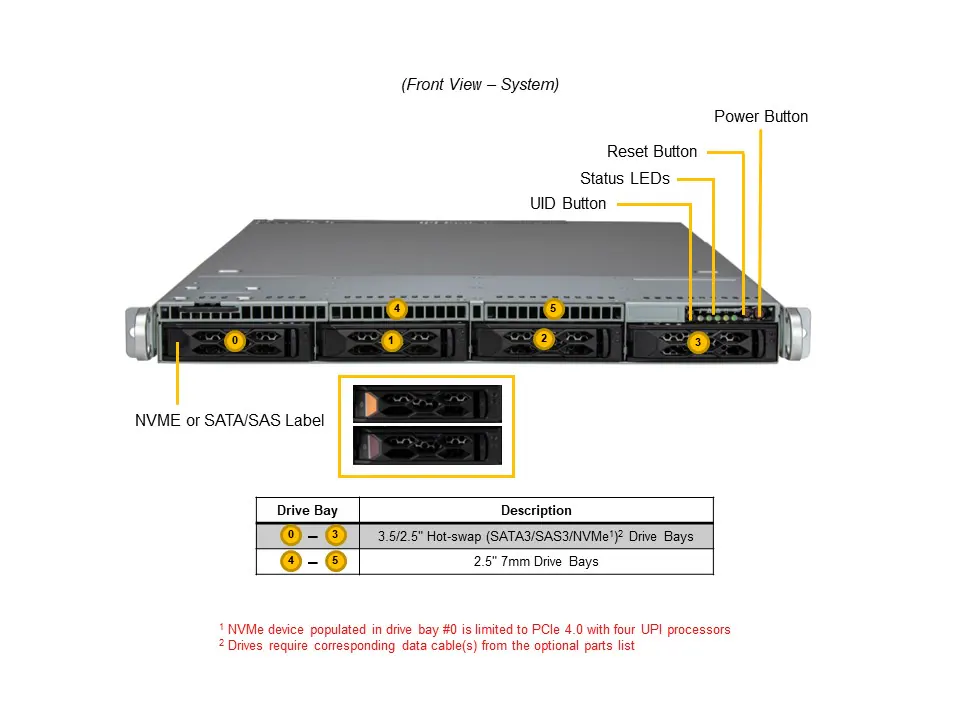

Drive Bays Configuration

- Default: Total 4 bays
  - 4 front hot-swap 3.5″ NVMe*/SAS*/SATA* drive bays
- Option A: Total 4 bays
  - 4 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
- (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)

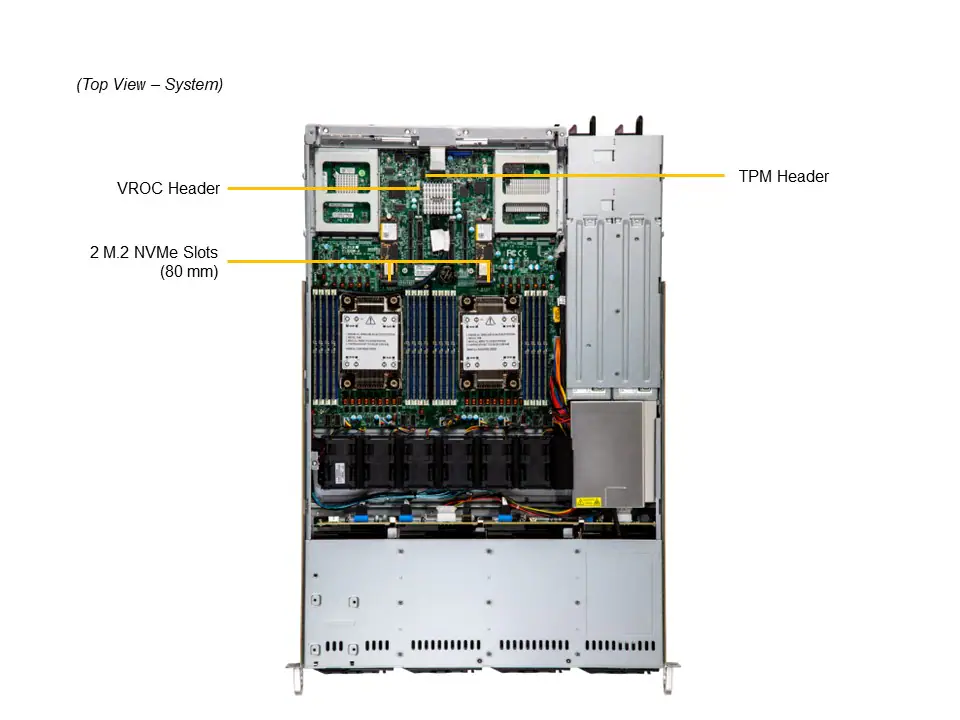

M.2

Peripheral Bays

Fans	Up to 6x 4cm heavy duty fans with optimal fan speed control
Air Shroud	2 Air Shrouds

2x 860W Redundant (1 + 1) Titanium Level (96%) power supplies

Dimension (WxHxL)	54.5 x 40.25 x 322 mm
Input	800W: 100-127Vac / 50-60Hz 860W: 200-240Vac / 50-60Hz 860W: 240Vdc / 50-60Hz
+12V	Max: 66.67A / Min: 0A (100Vac-127Vac) Max: 71.67A / Min: 0A (200Vac-240Vac) Max: 71.67A / Min: 0A (Vdc-240Vdc)
5V SB	Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)

ROHS	RoHS Compliant
Environmental Spec.	Name: A2 Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 80% (max 21° DP; non-condensing) Non-operating Relative Humidity: 8% to 90% (max 38° DP; non-condensing)
