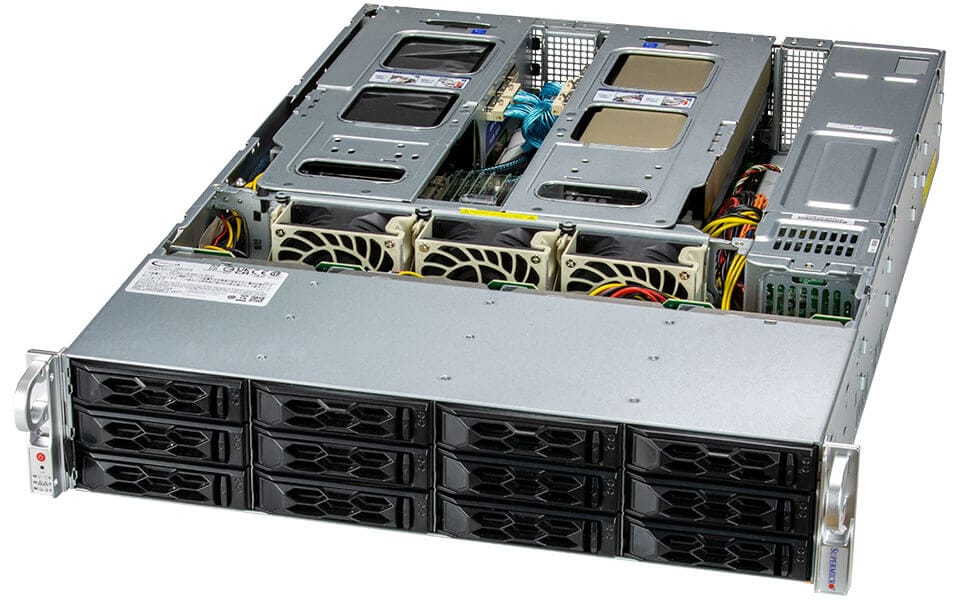

CloudDC SuperServer SYS-620C-TN12R

(SYS-620C-TN12R)

instock

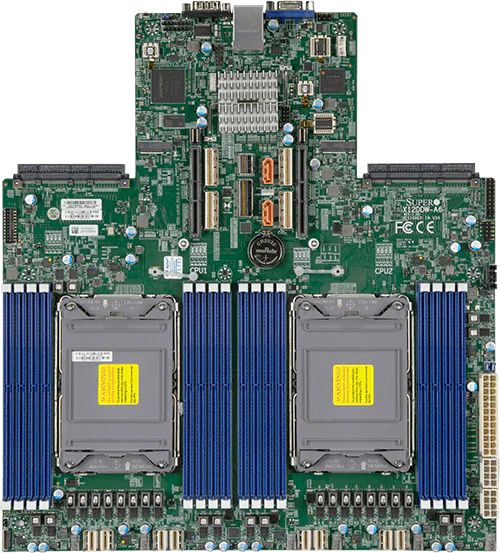

Dual sockets P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Intel® C621A Chipset
16 DIMMs up to 6TB 3DS ECC DDR4-3200: LRDIMM/RDIMM/Intel® Intel® DCPMM

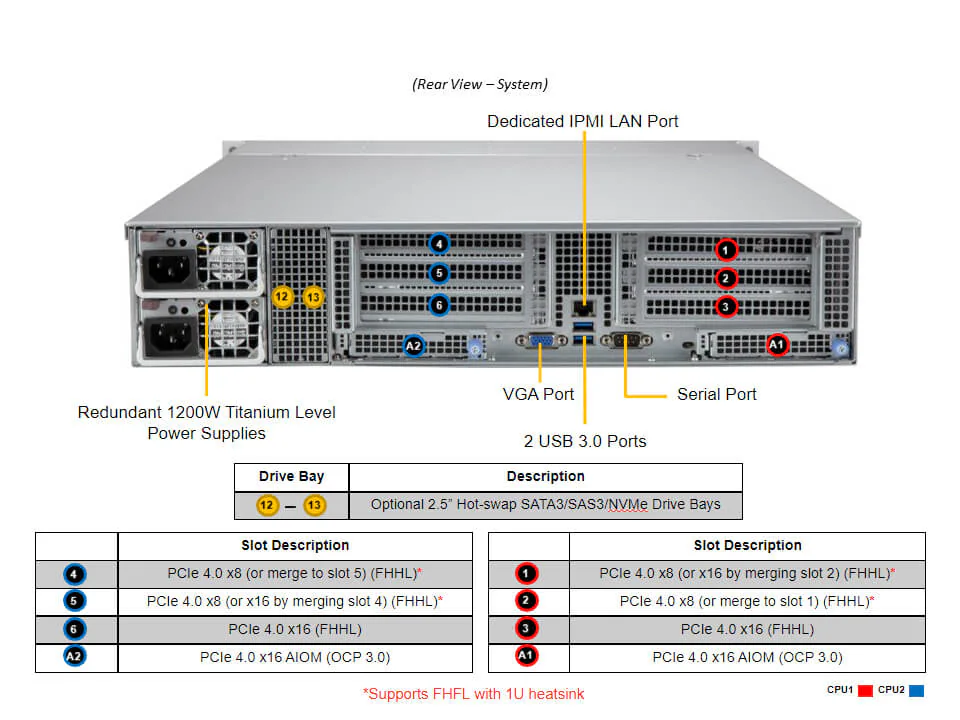

4 PCIe 4.0 x8 FHHL (optional: combine into 2 PCIe 4.0 x16);
2 PCIe 4.0 x16 FHHL;
2 PCIe 3.0 x2 NVMe M.2
Dual AIOM (OCP 3.0) slots with NCSI for networking, 1 dedicated IPMI LAN

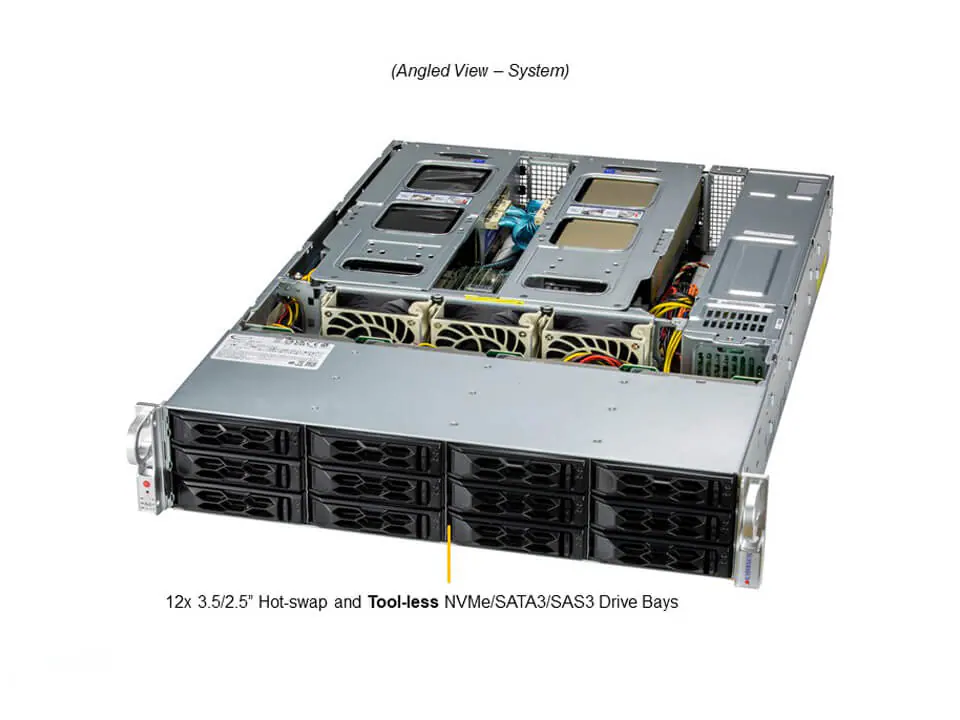

12x 3.5/2.5″ hot-swap hybrid NVMe/SATA/SAS drive bays
3 heavy duty fans with optimal fan speed control, 1 air shroud
1200W redundant Titanium level 100-240Vac and 200-240 Vdc power supplies
1 VGA, 1 COM, 2 USB 3.0 (rear)

MSRP^*

N/A

* Manufacturer’s Suggested Retail Price

Product Specifications

CPU	Dual Socket P4 (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Core Count	Up to 40C/80T; Up to 60MB Cache per CPU
Note	Supports up to 270W TDP CPUs (Air Cooled)

Max GPU Count

Supported GPU

- NVIDIA PCIe: RTX A6000, RTX A5000, RTX A4500, A30, A16, A2, A100
- Intel PCIe: Intel Data Center GPU Flex 170

Memory

- Slot Count: 16 DIMM slots
- Max Memory (1DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
- Supports Intel® Optane™ persistent memory 200 series

Memory Voltage

SATA	SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe	NVMe; RAID 0/1/5/10 support(VROC HW key required) View NVMe Options
Chipset	Intel® C621A
Network Connectivity	Via AIOM View AIOM Options View AOC Options

BIOS Type

Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	ACPI/APM Power Management

Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
CPU	Monitors for CPU Cores, Chipset Voltages, Memory. 8 Phase-switching voltage regulator

Form Factor	2U Rackmount
Model	CSE-LA26TS-R1K23AWP1

Height	3.5″ (89 mm)
Width	17.2″ (437 mm)
Depth	25.5″ (648 mm)
Package	11.4″ (H) x 26.7″ (W) x 34.5″ (D)
Weight	Gross Weight: 59 lbs (26.76 kg) Net Weight: 33 lbs (15 kg)
Available Color	Black front & sliver body

LED	Drive activity Network activity Power status Universal Information (UID)
Buttons	Power On/Off Universal Information (UID)

PCI-Express (PCIe) Configuration

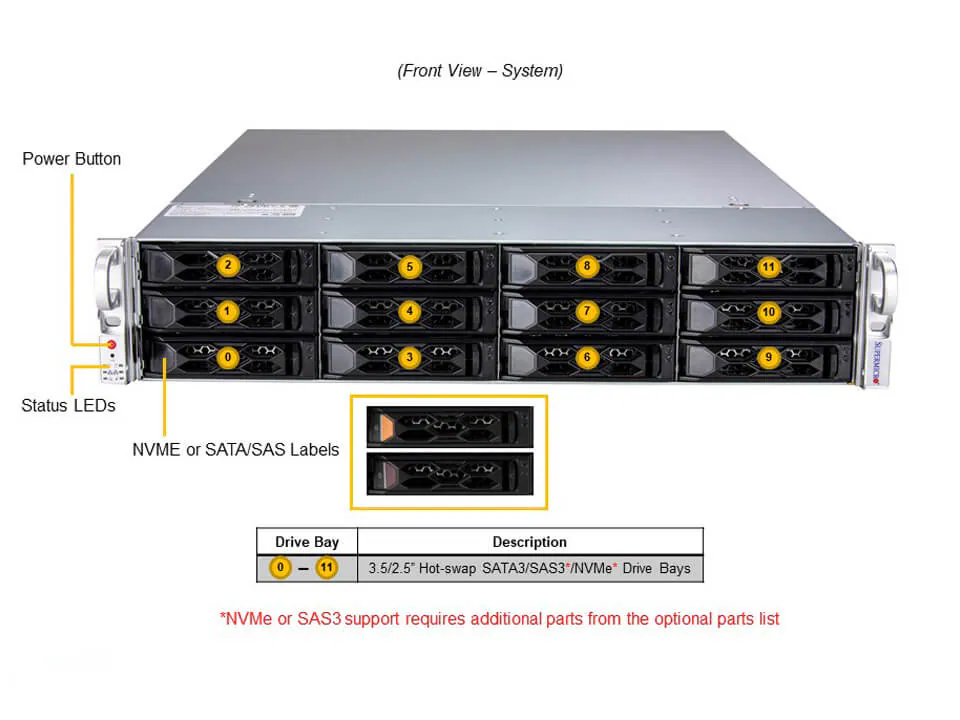

Drive Bays Configuration

- Default: Total 12 bays
  - 12 front hot-swap 3.5″ NVMe*/SAS*/SATA drive bays
- Option A: Total 12 bays
  - 12 front hot-swap 2.5″ NVMe*/SAS*/SATA drive bays
- (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)

M.2

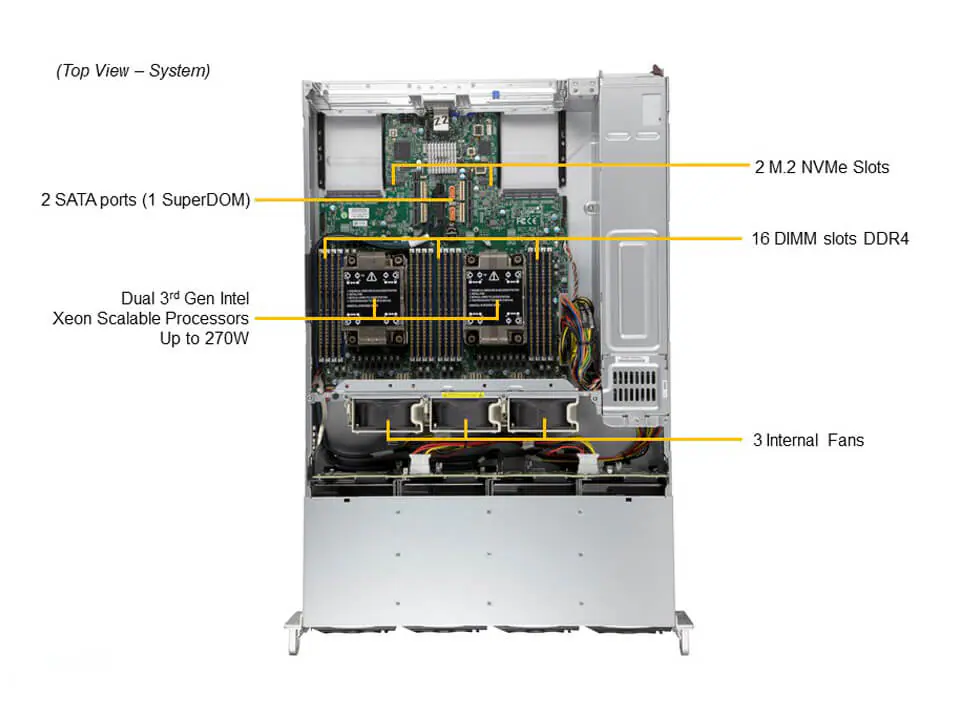

Fans	Up to 3x 8cm heavy duty fans with optimal fan speed control

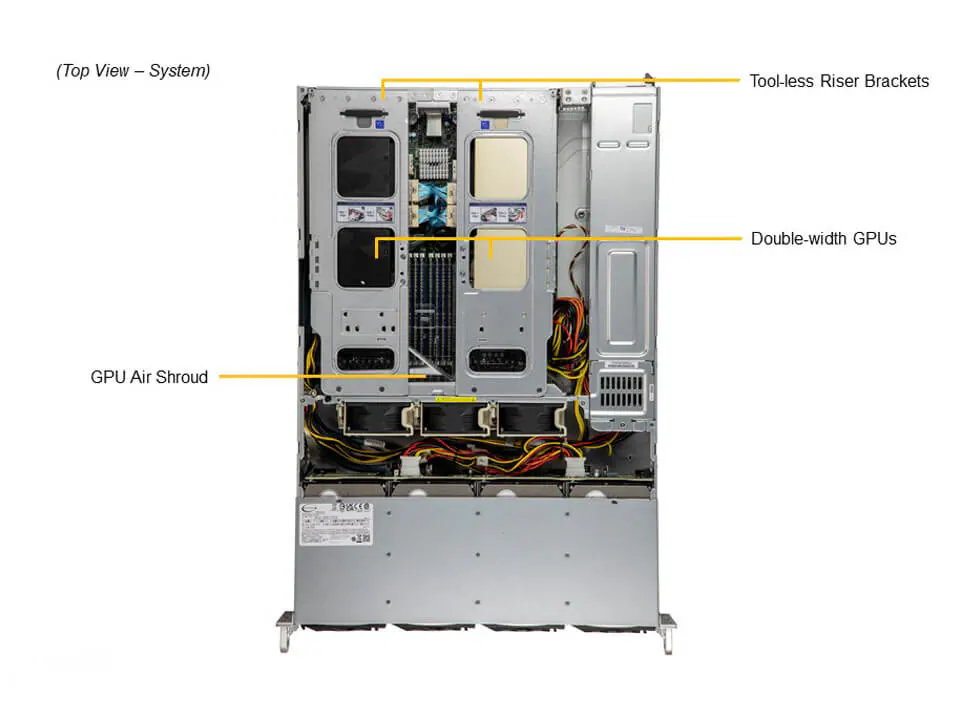

Air Shroud	1 Air Shroud

2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies

Dimension (WxHxL)	76 x 40 x 336 mm
Input	1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12V	Max: 83A / Min: 0A (100Vac-127Vac) Max: 100A / Min: 0A (200Vdc-240Vdc) Max: 100A / Min: 0A (200Vac-240Vac)
5V SB	Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)

ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
