CloudDC SuperServer SYS-621C-TN12R

(SYS-621C-TN12R)

instock

Categories: Servers, SuperMicro, Rack Servers

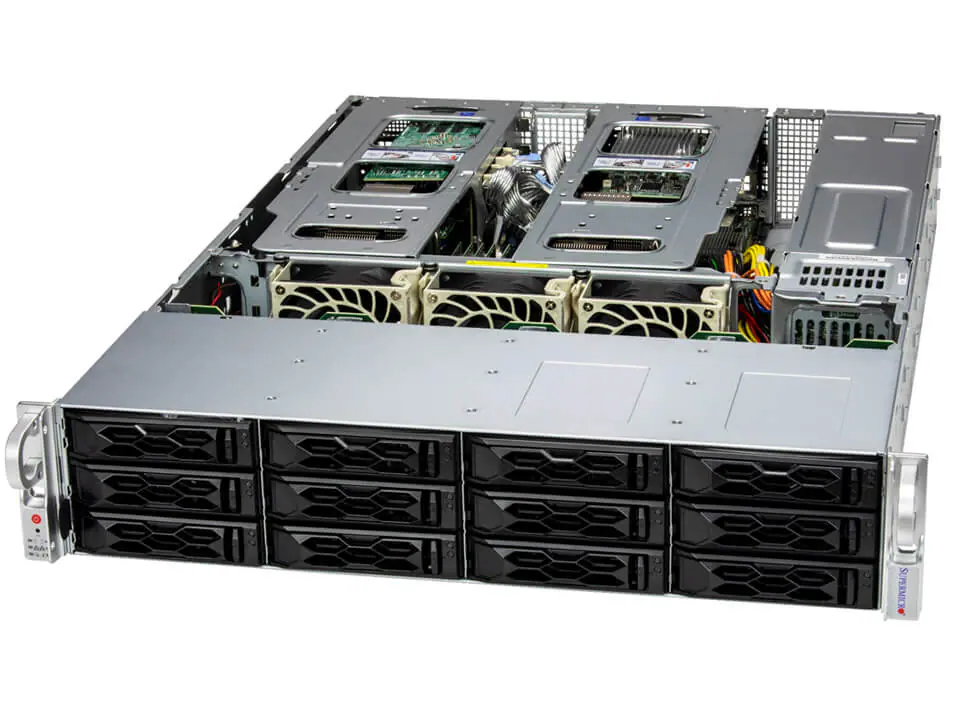

2U DP CloudDC with 12 hot-swap 3.5″ NVMe/SAS/SATA bays and 4 PCIe 5.0 x16 slots + 2 PCIe 5.0 x16 AIOM slots

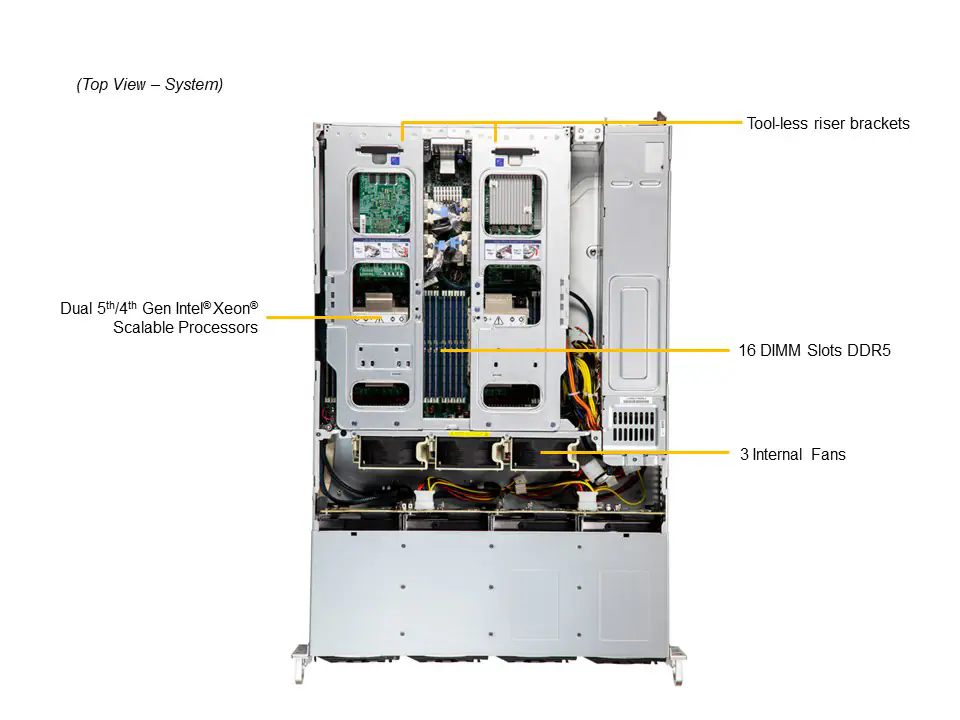

Key Features

Dual sockets E (LGA-4677) 5th and 4th Gen Intel® Xeon® Scalable processors
16 DIMMs up to 4TB 3DS ECC DDR5-5600: RDIMM
4 PCIe 5.0 x8 FHHL (optional: combine into 2 PCIe 5.0 x16);
2 PCIe 5.0 x16 FHHL;
2 PCIe 5.0 x4 NVMe M.2
Dual AIOM (OCP 3.0) slots with NCSI for networking, 1 dedicated IPMI LAN

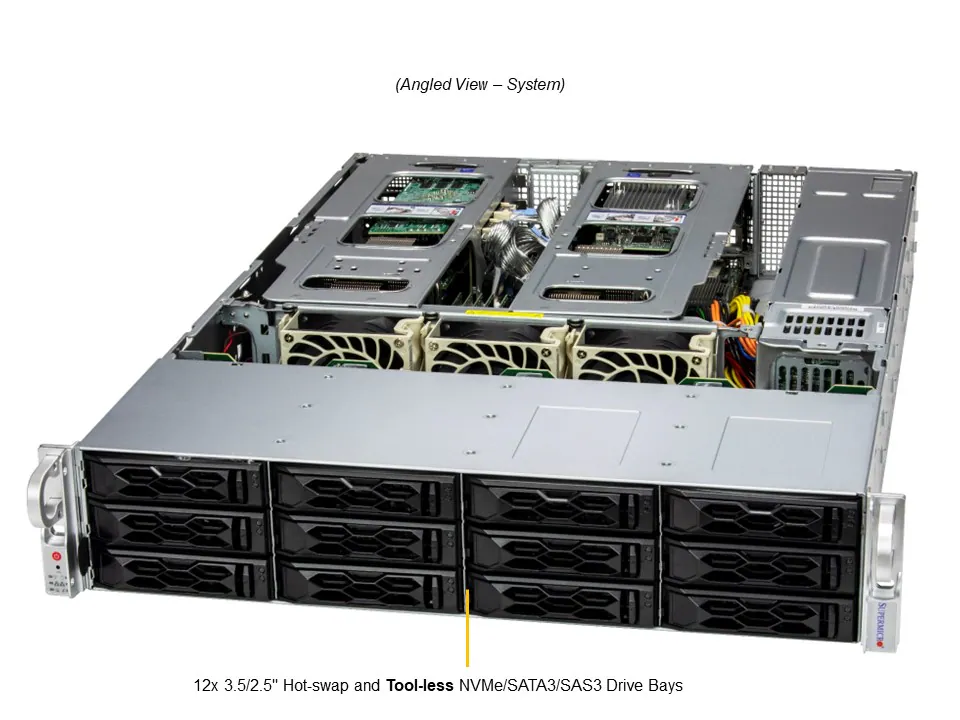

12x 3.5/2.5″ hot-swap hybrid NVMe/SATA/SAS drive bays
3 heavy duty fans with optimal fan speed control, 1 air shroud
1200W redundant Titanium level 100-240Vac and 200-240 Vdc power supplies
1 VGA, 1 COM, 2 USB 3.0 (rear)

MSRP^*

N/A

* Manufacturer’s Suggested Retail Price

Product Specifications

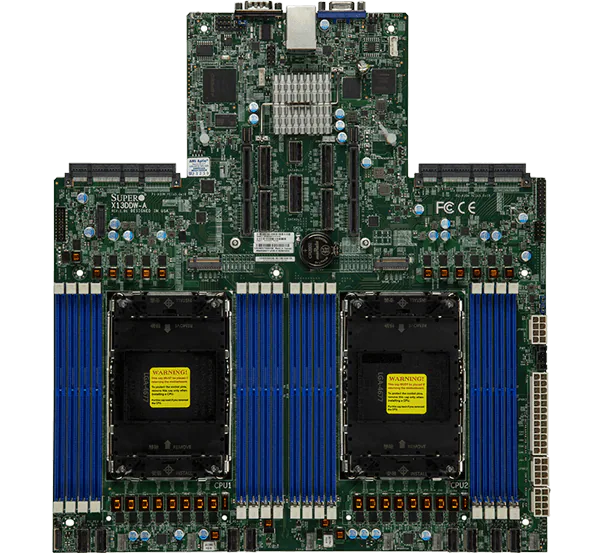

Super X13DDW-A

CPU	Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Core Count	Up to 64C/128T; Up to 112.5MB Cache per CPU
Note	Supports up to 350W TDP CPUs (Air Cooled)* *Air Cooled CPUs with TDP over 270W only supported under specific conditions. Contact a Supermicro representative for details.

Max GPU Count

- Up to 2 double-width or 6 single-width GPUs

Supported GPU

- NVIDIA PCIe: H100 NVL, H100, L40, RTX A6000, RTX A5000, RTX A4500, RTX A4000, L40S, L4, A2
- Intel PCIe: Intel Data Center GPU Flex 140, Intel Data Center GPU Flex 170

- View GPU Options

Certification

Memory

- Slot Count: 16 DIMM slots
- Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM

- View Memory Options

Memory Voltage

- 1.1V

SATA	SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe	NVMe; RAID 0/1/5/10 support(VROC HW key required) View NVMe Options
Chipset	Intel® C741
Network Connectivity	Via AIOM View AIOM Options View AOC Options

LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	2 USB 3.2 Gen1 Type-A ports(rear)
Video	1 VGA port
Serial	1 COM port(rear)
TPM	1 TPM header

BIOS Type

AMI 32MB SPI FLASH ROM

Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	ACPI/APM Power Management

Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
CPU	Monitors for CPU Cores, Chipset Voltages, Memory. 8 Phase-switching voltage regulator

Form Factor	2U Rackmount
Model	CSE-LA26TS-R1K23AWP1

Height	3.5″ (89 mm)
Width	17.2″ (437 mm)
Depth	25.5″ (648 mm)
Package	11.4″ (H) x 26.7″ (W) x 34.5″ (D)
Weight	Gross Weight: 59 lbs (26.76 kg) Net Weight: 33 lbs (15 kg)
Available Color	Black front & sliver body

LED	Drive activity Network activity Power status Universal Information (UID)
Buttons	Power On/Off Universal Information (UID)

PCI-Express (PCIe) Configuration

- Default
  - 4 PCIe 5.0 x8 (in x16) FHFL slots
  - 2 PCIe 5.0 x16 (in x16) FHHL slots
  - 2 PCIe 5.0 x16 (in x16) AIOM slots (OCP 3.0 compatible)
- Option A
  - 2 PCIe 5.0 x16 (in x16) FHFL slots
  - 2 PCIe 5.0 x16 (in x16) FHHL slots
  - 2 PCIe 5.0 x16 (in x16) AIOM slots (OCP 3.0 compatible)
- Option B
  - 4 PCIe 5.0 x16 (in x16) FHFL slots
  - 2 PCIe 5.0 x16 (in x16) FHHL slots
  - 2 PCIe 5.0 x16 (in x16) AIOM slots (OCP 3.0 compatible)
- Option C
  - 2 PCIe 5.0 x16 (in x16) FHFL double-width slots
  - 2 PCIe 5.0 x16 (in x16) FHHL slots
  - 2 PCIe 5.0 x16 (in x16) AIOM slots (OCP 3.0 compatible)

…

- View AOC Options

CXL Support

- Up to 2 CXL 1.1 x16/x8 Type 2/Type 3 devices

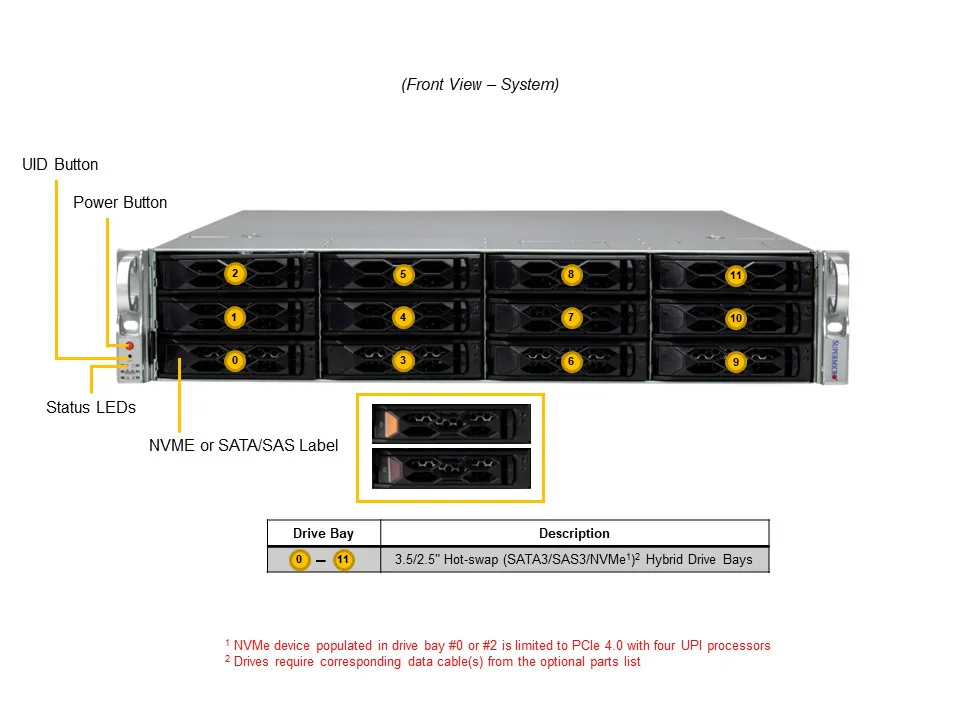

Drive Bays Configuration

- Default: Total 12 bays
  - 12 front hot-swap 3.5″ NVMe*/SAS*/SATA* drive bays
- Option A: Total 12 bays
  - 12 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
- (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)

- View NVMe Options
- View Drive Options

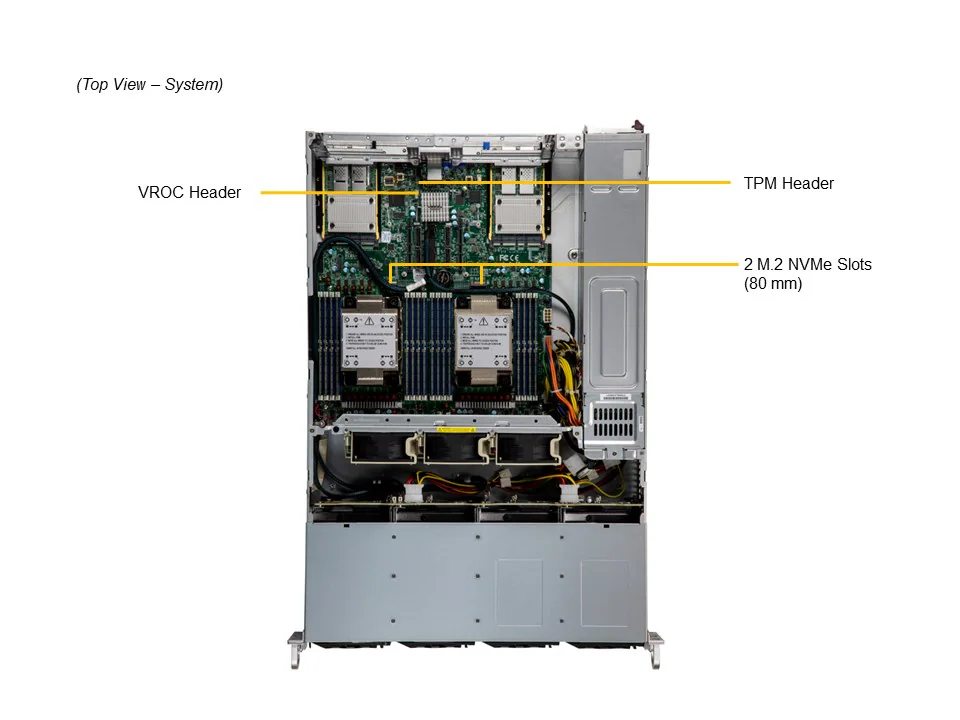

M.2

- 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280(default); VROC required for RAID)

- View M.2 Options

Fans	Up to 3x 8cm heavy duty fans with optimal fan speed control
Air Shroud	1 Air Shroud

2x 1200W Redundant Titanium Level (96%) Hot-plug power supplies

Dimension (WxHxL)	76 x 40 x 336 mm
Input	1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12V	Max: 83A / Min: 0A (100Vac-127Vac) Max: 100A / Min: 0A (200Vdc-240Vdc) Max: 100A / Min: 0A (200Vac-240Vac)
5V SB	Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)

ROHS	RoHS Compliant
Environmental Spec.	Name: A2 Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 80% (max 21° DP; non-condensing) Non-operating Relative Humidity: 8% to 90% (max 38° DP; non-condensing)
