Home » Products » Servers » Dell PowerEdge » Dell PowerEdge R650xs – rack-mountable Xeon Gold 5318Y 2.1 GHz – 32 GB – SSD 480 GB

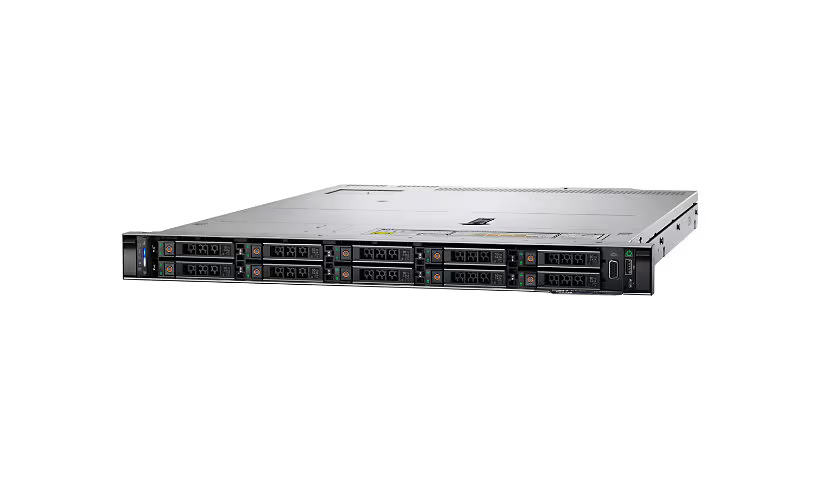

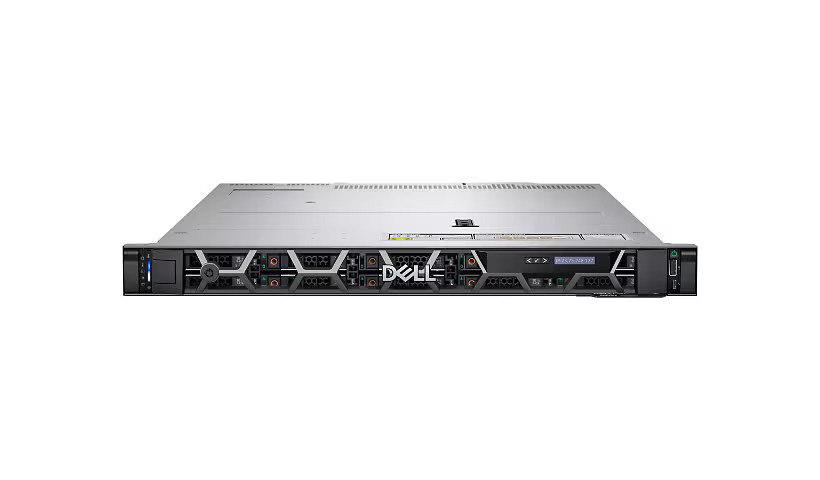

Dell PowerEdge R650xs – rack-mountable Xeon Gold 5318Y 2.1 GHz – 32 GB – SSD 480 GB

(87TR2)

Categories: Dell PowerEdge, Dell Rack Servers, R650

PowerEdge R650XS Xeon Gold 5318 2.1G 24C 2x16GB H755 800W 1x480GB RI SATA SSD.

Quick tech specs

Server
1U
1 x Xeon Gold 5318Y / up to 3.4 GHz
SAS
SSD 480 GB
Gigabit Ethernet
monitor: none
Dell Smart Value
Disti SNS
rack-mountable
2-way
RAM 32 GB
hot-swap 2.5″ bay(s)
Matrox G200
no OS
BTP
with 3 Years Basic Hardware Warranty Repair, 5×10 HW-Only, 5×10 NBD On-site

Product Specifications

BrandDell

Product LineDell PowerEdge

ModelR650xs

ManufacturerServer Solutions

Clock Speed2.1 GHZ

Cores24-core

Max Turbo Speed3.4 GHZ

Processor BrandIntel

Processor Main FeaturesIntel Turbo Boost Technology 2

Processor Number5318Y

Processor TypeXeon Gold

Processors Installed1

Server Scalability2-way

Total Processor Supported2

UpgradabilityUpgradable

Available Memory Slots14

Cache Memory Installed36 megabyte

Configuration Features2 x 16 GB

FeaturesDual rank, Registered

Max Memory Supported1 TB

Memory Slots16

Memory Speed2667 megahertz

Memory TechnologyDDR4 SDRAM

RAM Installed32 GB

Rated Memory Speed3200 megahertz

Drive InterfaceSerial ATA-600

Drive TypeNo optical drive

Hard Drive Capacity480 GB

Hard Drive Features1 DWPD, Read Intensive

Installed Quantity1

Interface ClassSerial ATA

Optical Drive TypeNo optical drive, None

Optical Drive Type (2nd)None

Removable Hard DriveHot-swap

SSD Form Factor2.5″

Storage (2nd)None

Storage (3rd)None

Storage (4th)None

Storage Controller NamePERC H755

Storage Controller TypeRAID

TypeNone

Hard Drive Interface TypeSSD

Data Link ProtocolsEthernet, Fast Ethernet, Gigabit Ethernet

Ethernet ControllersBroadcom BCM5720

Ethernet Ports4 x Gigabit Ethernet

Remote Management ControllerIntegrated Dell Remote Access Controller 9 Enterprise 15G (iDRAC9 15G)

Expansion Bays8 (total) / 7 (free) x hot-swap 2.5″

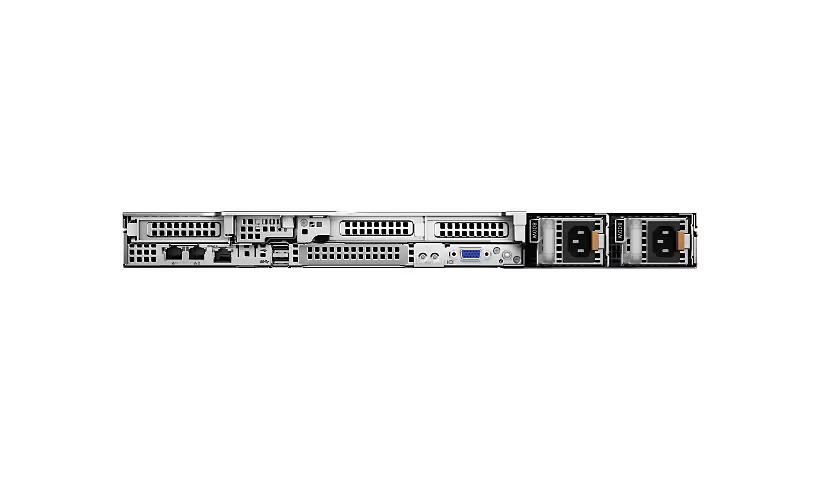

Interface Provided1 x management – micro-USB (1 in front) (iDRAC Direct port), 1 x USB 3.0, 2 x USB 2.0 (1 front, 1 rear), 2 x VGA (1 front, 1 rear), 4 x LAN (Gigabit Ethernet)

Bundled Services3 Years Basic Hardware Warranty Repair, 5×10 HW-Only, 5×10 NBD On-site – Disti SNS

Display TechnologyNone.

Graphics Controller ModelMatrox G200

Graphics Processor SeriesMatrox G200

Video InterfacesVGA

Installed Size16 megabyte

Power Device TypePower supply – hot-plug

Power Provided800 watt

Power Supplies Installed2

Power Supplies Supported2

Redundant Power SupplyYes

Redundant Power Supply Supported1+1

Form FactorRack-mountable

Form Factor (RAM)DIMM 288-pin

Controllers Included1

Printer Product TypeNone

Hot-Swap Bays8

Manufacturer Form FactorRack-mountable

Packaged Quantity1

Product TypeServer

Server Storage BaysHot-swap

Server Swappable Drive Form Factor2.5″

Server Swappable Drive Form Factor (metric)8.9 cm

Server Swappable Drive InterfaceSAS

Included AccessoriesReadyRails sliding rails without cable management arm

Height1.7 inch

Height (Rack Units)1

Weight36.55 lbs

Width19 inch

Color CategoryBlack

Compliant StandardsBIS, CCC

ENERGY STAR CertifiedNo

TCO CertifiedNo
