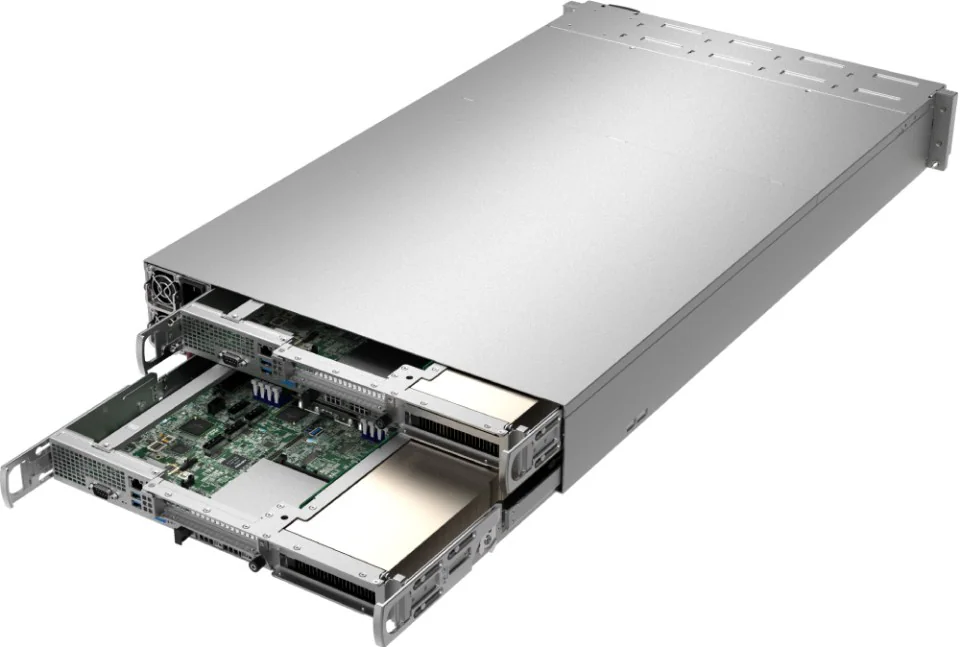

GPU A+ Server AS -2114GT-DNR

(AS -2114GT-DNR)

instock

Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

Single AMD EPYC™ 7003/7002 Series Processor
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs
Up to 6 PCIe 4.0 x16 (4 internal + 2 external) slots, 1 PCIe 4.0 x8 AIOM slot
M.2 Interface: 2 PCIe 4.0 x4
M.2 Form Factor: 2280, 22110
M.2 Key: M-key
2 Front hot-swap 2.5″ PCIe 4.0 NVMe drive bays

MSRP^*

N/A

* Manufacturer’s Suggested Retail Price

Product Specifications

CPU	Single SP3 AMD EPYC™ 7002/7003 Series Processors
Note	Supports up to 280W TDP CPUs (Air Cooled)

Max GPU Count

Supported GPU

- NVIDIA PCIe: L40, RTX A6000, RTX A4500, RTX A4000, A40, A16, A2, A100, A10
- AMD PCIe: Instinct™ MI210, Instinct™ MI100

Certification

Memory

- Slot Count: 8 DIMM slots
- Max Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM

Memory Voltage

SATA	SATA (6Gbps)
Chipset	System on Chip
Network Connectivity	Ethernet InfiniBand View AIOM Options View AOC Options
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

BIOS Type

Software

Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

CPU	Monitors for CPU Cores, Chipset Voltages, Memory 4+1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Form Factor	2U Rackmount
Model	CSE-227GTS-R2K63P

Height	3.47″ (88 mm)
Width	17.6″ (447 mm)

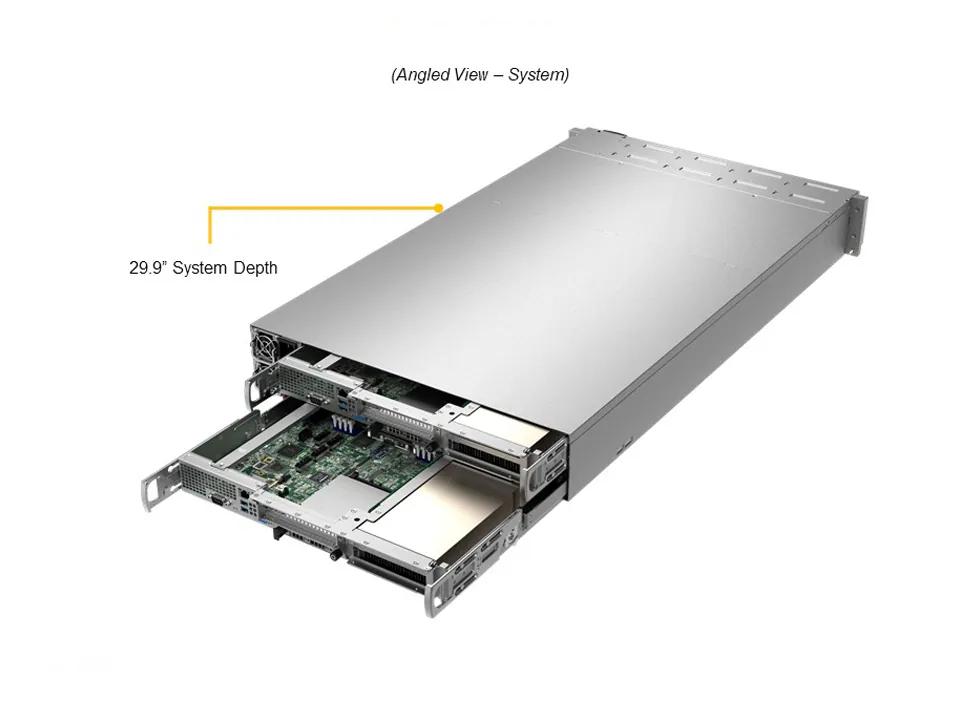

Depth	29.9″ (760 mm)
Package	9.44″ (H) x 23.62″ (W) x 43.3″ (D)
Weight	Gross Weight: 60 lbs (27.21 kg) Net Weight: 55 lbs (24.94 kg)
Available Color	Black Front & Silver Body

LED	Hard drive activity LED Information LED as manual description Network activity LEDs Power status LED
Buttons	Power On/Off button System UID button/LED

PCI-Express (PCIe) Configuration

- Default
  - 4 PCIe 4.0 x16 INTERNAL slots
  - 1 PCIe 4.0 x16 FHHL slot
  - 1 PCIe 4.0 x16 FHFL slot
  - 1 PCIe 4.0 x8 AIOM slot (OCP 3.0 compatible)

Drive Bays Configuration

Fans	Up to 4 Hot-swap heavy duty PWM 80mm Fan(s)

2x 2600W Redundant (1 + 1) Titanium Level (96%) power supplies

Dimension (WxHxL)	73.5 x 40 x 265 mm
Input	2600W: 200-240Vac 2600W: 200-240Vdc (For CQC Only) 2600W: 200-240Vac / 50-60Hz 2600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V	Max: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output) Max: 216A / Min: 0A (200Vac-240Vac)
12V SB	Max: 3.5A
Output Type	Backplanes (gold finger)

ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
