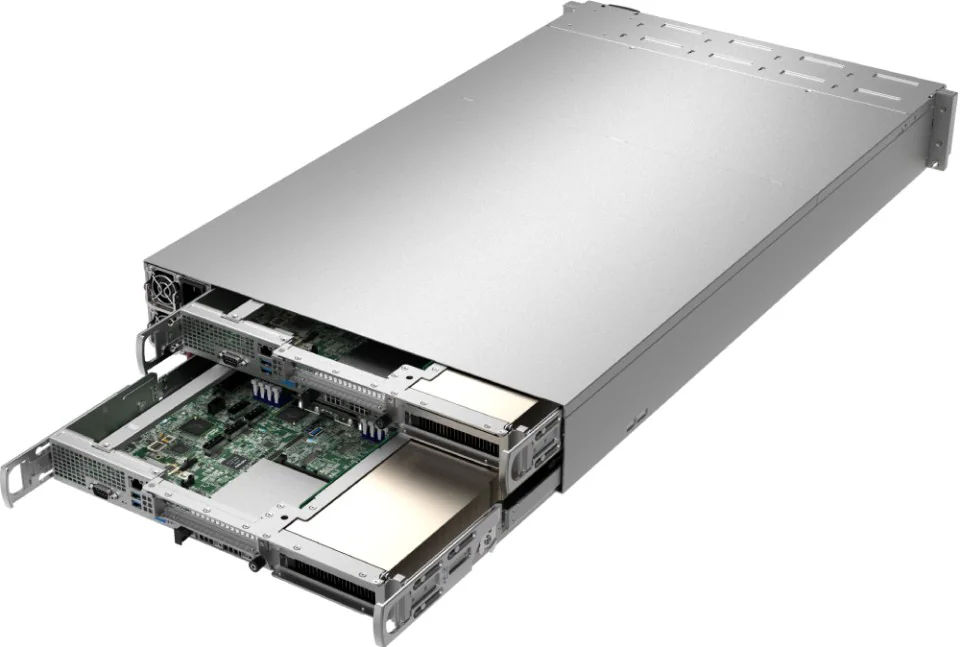

GPU A+ Server AS -2114GT-DPNR

(AS -2114GT-DPNR)

instock

Categories: Servers, SuperMicro, GPU Servers

2U 2-Node System with UP AMD and Up to 3 GPUs per Node

Key Features

Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

AMD Ryzen™ Threadripper™ PRO 5000WX/3000WX Series Processor, up to 64 Cores
2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs
2 PCIe 4.0 x16 external slots + 1 PCIe 4.0 x8 AIOM slot (or optional x16 AIOM with additional parts)

MSRP^*

N/A

* Manufacturer’s Suggested Retail Price

Product Specifications

Super H12SSG-ANP6

CPU	Single SP3 AMD EPYC™ 7002/7003 Series Processors
Note	Supports up to 280W TDP CPUs (Air Cooled)

Max GPU Count

- Up to 2 double-width or 4 single-width GPUs

Supported GPU

- NVIDIA PCIe: L40, RTX A6000, RTX A4500, RTX A4000, A40, A16, A2, A100, A10
- AMD PCIe: Instinct™ MI210, Instinct™ MI100

- View GPU Options

Certification

Memory

- Slot Count: 8 DIMM slots
- Max Memory (1DPC): Up to 2TB ECC DDR4 RDIMM/LRDIMM

- View Memory Options

Memory Voltage

- 1.2V

Chipset

- System on Chip

Network Connectivity

- Ethernet
- InfiniBand

- View AIOM Options
- View AOC Options

IPMI

- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	2 USB 3.0 ports(rear)
Video	1 VGA port(Rear)
Serial	1 COM port
TPM	1 TPM header

BIOS Type

AMI 256MB Flash ROM

Software

Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

CPU	Monitors for CPU Cores, Chipset Voltages, Memory 4+1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Form Factor	2U Rackmount
Model	CSE-227GTS-R2K63P

Height	3.47″ (88 mm)
Width	17.6″ (447 mm)

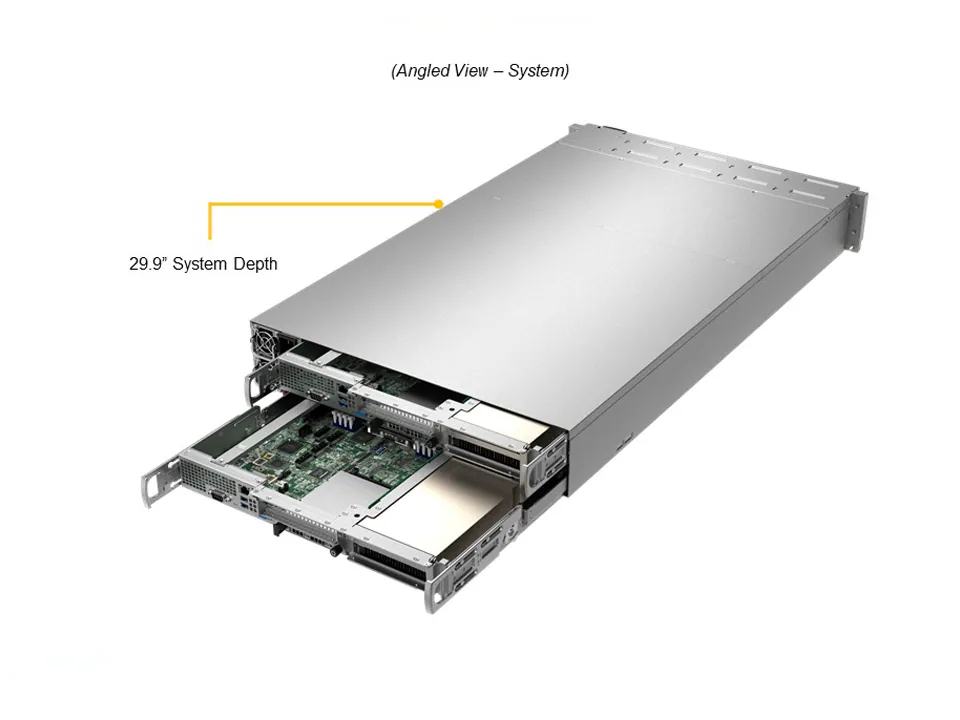

Depth	29.9″ (760 mm)
Package	9.44″ (H) x 23.62″ (W) x 43.3″ (D)
Weight	Gross Weight: 60 lbs (27.21 kg) Net Weight: 55 lbs (24.94 kg)
Available Color	Black Front & Silver Body

LED	Hard drive activity LED Information LED as manual description Network activity LEDs Power status LED
Buttons	Power On/Off button System UID button/LED

PCI-Express (PCIe) Configuration

- Default
  - 1 PCIe 4.0 x16 FHHL slot
  - 1 PCIe 4.0 x16 FHFL slot
  - 1 PCIe 4.0 x8 AIOM slot (OCP 3.0 compatible)
- Option A*
  - 1 PCIe 4.0 x16 FHHL slot
  - 1 PCIe 4.0 x16 FHFL slot
  - 1 PCIe 4.0 x16 AIOM slot (OCP 3.0 compatible)
- (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)

- View AOC Options

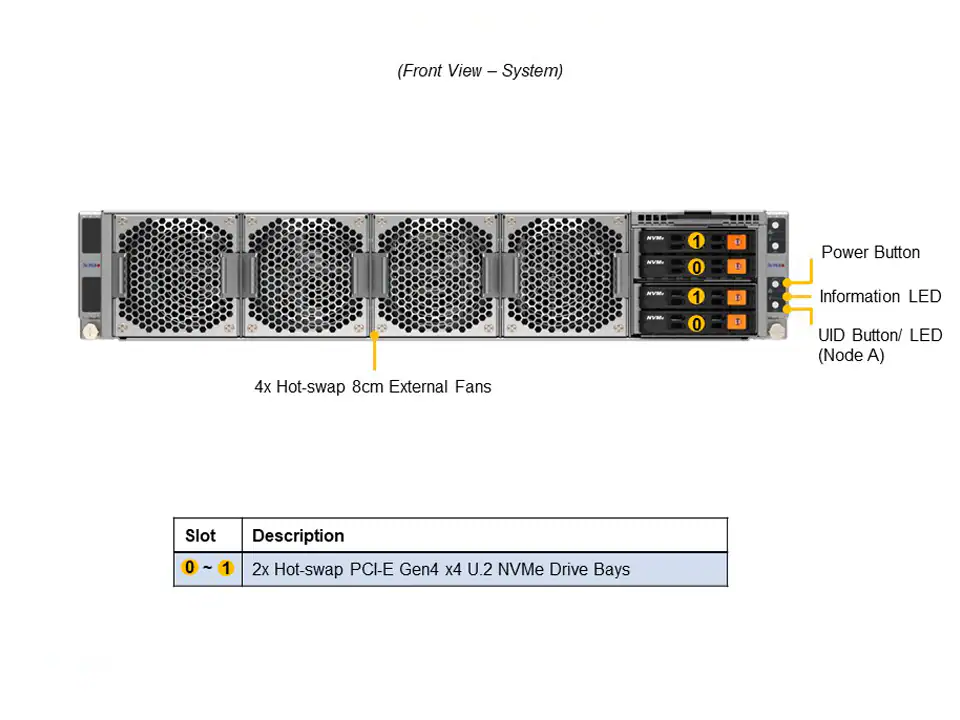

Drive Bays Configuration

- Default: Total 2 bays
  - 2 front hot-swap 2.5″ NVMe drive bays

- View NVMe Options
- View Drive Options

Fans

2x 2600W Redundant (1 + 1) Titanium Level (96%) power supplies

Dimension (WxHxL)	73.5 x 40 x 265 mm
Input	2600W: 200-240Vac 2600W: 200-240Vdc (For CQC Only) 2600W: 200-240Vac / 50-60Hz 2600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V	Max: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output) Max: 216A / Min: 0A (200Vac-240Vac)
12V SB	Max: 3.5A
Output Type	Backplanes (gold finger)

ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
