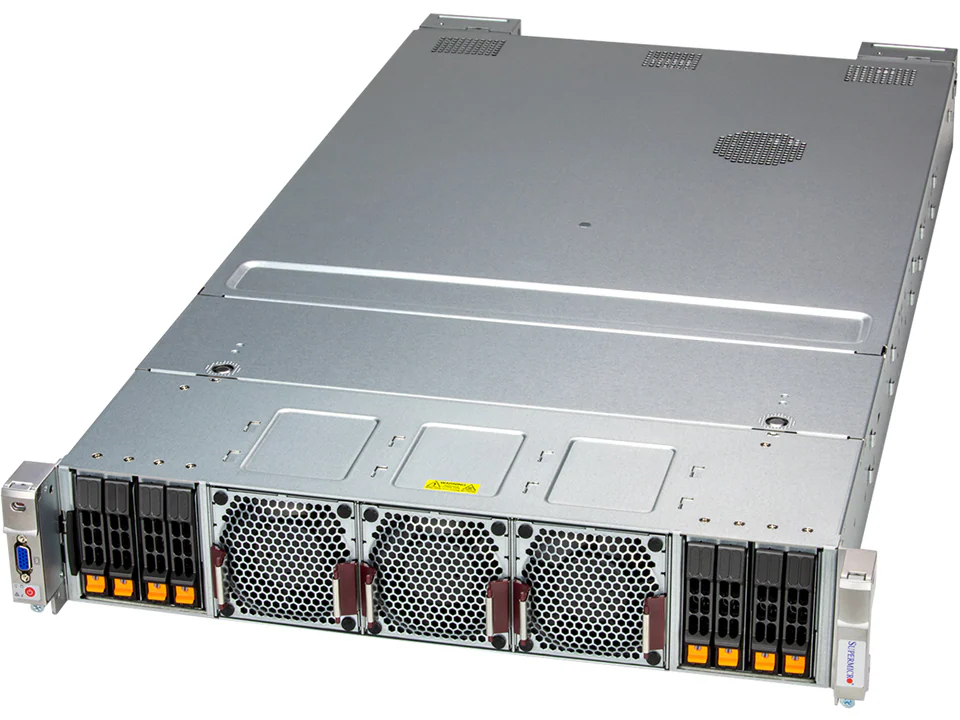

GPU A+ Server AS -2145GH-TNMR-LCC

(AS -2145GH-TNMR-LCC)
instock
  • Ready to Ship Today
Categories: Servers, SuperMicro, GPU Servers

2U Liquid Cooled System with Quad AMD Instinct™ MI300A Accelerators (onsite service OSNBD is required)

Key Features

  1. Quad AMD Instinct™ MI300A processors
  2. Onboard 512GB HBM3 unified memory
  3. Optional PCIe configurations up to 6 PCIe x16 FHHL slots
  4. Flexible networking options with 1 AIOM networking slots (OCP NIC 3.0 compatible)
  5. Default 8 2.5″ NVMe drive bays or Optional 8 2.5″ SAS3/SATA3 drive bays via storage add-on card
    2 Internal NVMe/SATA M.2 slots
  6. 3 heavy duty fans w/ Liquid Cooled
  7. 4x 2700W redundant Titanium level power supplies
MSRP*
N/A
Call for pricing
request for quote

* Manufacturer’s Suggested Retail Price

Product Specifications

System Features
Super H13QSH
CPU
  • Quad Socket SH5
  • AMD Instinct™ MI300A Accelerated Processing Units (APUs)
Note
  • Supports up to 760W TDP CPUs (Liquid Cooled)​
Max GPU Count
  • 4 onboard GPUs


Supported GPU
Memory
  • Slot Count: Onboard Memory
  • Max Memory: Up to 512GB ECC HBM3


Chipset
  • AMD SH5


Network Connectivity
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports(rear)
  • 2 USB 2.0 ports(front)
Video
  • 1 VGA port
  • 1 DisplayPort port
Serial
  • 1 COM port(rear)
BIOS Type
  • AMI 32MB SPI Flash
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Form Factor
  • 2U Rackmount
Model
Height
  • 3.5″ (88 mm)
Width
  • 17.3″ (438.4 mm)
Depth
  • 33.4″ (848.7 mm)
Package
  • 11.53″ (H) x 27.6″ (W) x 46.57″ (D)
Weight
  • Gross Weight: 101.1 lbs (45.86 kg)
  • Net Weight: 78 lbs (35.38 kg)
Available Color
  • Silver
PCI-Express (PCIe) Configuration
  • Default
    • 4 PCIe 5.0 x16 FHFL slots
  • Option A*
    • 4 PCIe 5.0 x16 FHFL slots
    • 2 PCIe 5.0 x16 FHHL slots
    • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
  • (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)

  • View AOC Options

Drive Bays Configuration
  • Default: Total 8 bays
    • 8 front fixed 2.5″ NVMe drive bays
  • Option A: Total 8 bays
    • 8 front fixed 2.5″ SAS*/SATA* drive bays
  • (*SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)

  • View NVMe Options
  • View Drive Options

M.2
Fans
  • Up to 3 Heavy duty counter-rotating 8cm Fan(s)
Liquid Cooling
  • Direct to Chip (D2C) Cold Plate
4x 2700W Redundant (3 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)73.5 x 40 x 203 mm
Input2700W: 200-240Vac
2700W: 200-240Vac / 50-60Hz
2700W: 240-240Vdc / 50-60Hz (for CQC only)
+12VMax: 225A / Min: 0A (200Vac-240Vac)
Max: 225A / Min: 0A (240Vdc-240Vdc)
12V SBMax: 3.5A / Min: 0A
Max: 4A / Min: 0A
Output TypeBackplanes (gold finger)
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
