Home » Products » Servers » GPU A+ Server AS -4124GO-NART

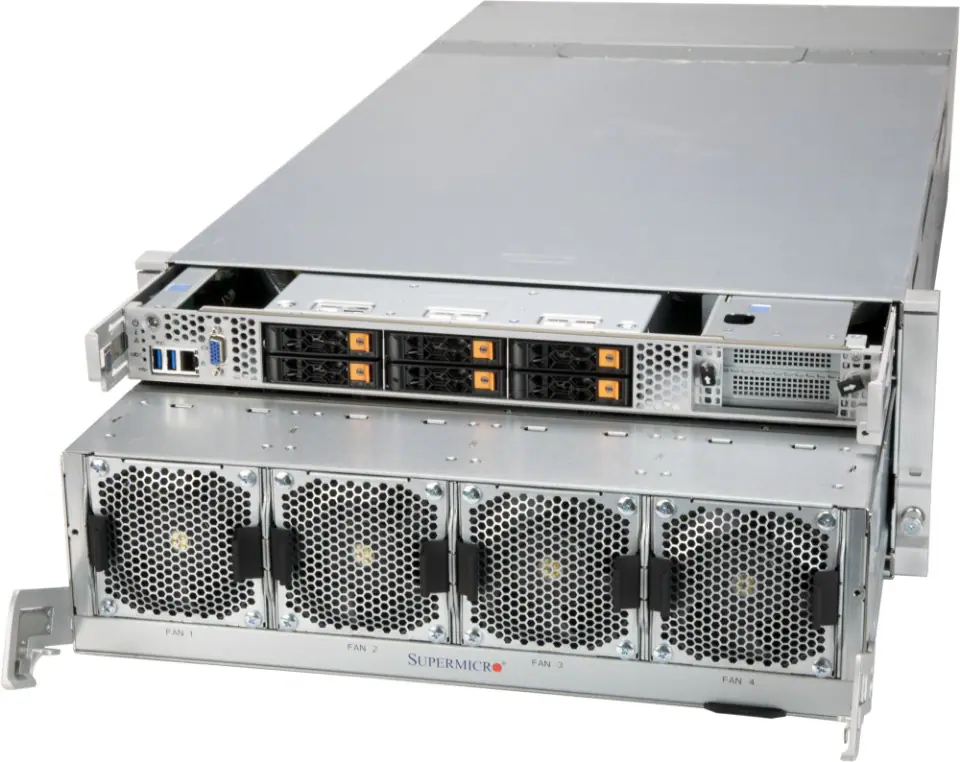

GPU A+ Server AS -4124GO-NART

(AS -4124GO-NART)

instock

Supports NVIDIA® HGX™ A100 8-GPU
Highest GPU communication using NVIDIA® NVLINK™ v3.0 + NVIDIA® NVSwitch™
NICs for GPUDirect RDMA (1:1 GPU Ratio)
Supports HGX A100 8-GPU 40GB (HBM2) or 80GB (HBM2e)
Dual AMD EPYC™ 7003/7002 Series Processors
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
8 PCIe 4.0 x16 via PCIe switch;1 PCIe 4.0 x 16 LP and 1 PCIe 4.0 x8 LP via CPUs;
AIOM Support
6 Hot-swap 2.5″ NVMe drive bays
(4 via PCIe switch, 2 via CPU)
Up to 10 U.2 NVMe 2.5″ drives available with an optional 4 drive bays at rear of system

MSRP^*

N/A

* Manufacturer’s Suggested Retail Price

Product Specifications

CPU	Dual SP3 AMD EPYC™ 7002/7003 Series Processors
Note	Supports up to 280W TDP CPUs (Air Cooled)

Max GPU Count

Supported GPU

Certification

Memory

SATA	SATA (6Gbps)
Chipset	System on Chip
Network Connectivity	Ethernet View AIOM Options View AOC Options
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

BIOS Type

Software

Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

CPU	Monitors for CPU Cores, Chipset Voltages, Memory 4+1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Form Factor	4U Rackmount
Model	CSE-438G

Height	6.9″ (174 mm)
Width	17.6″ (446 mm)
Depth	35.4″ (900 mm)
Package	29.5″ (H) x 27.4″ (W) x 44.9″ (D)
Weight	Gross Weight: 225 lbs (102.1 kg) Net Weight: 166 lbs (75.3 kg)
Available Color	Black Front & Silver Body

PCI-Express (PCIe) Configuration

- Default
  - 1 PCIe 4.0 x16 (in x16) LP slot
  - 1 PCIe 4.0 x8 (in x8) LP slot
  - 8 PCIe 4.0 x16 (in x16) via PCIe switch slots

Drive Bays Configuration

Fans	Up to 4 hot-swap 11.5K RPM heavy duty Fan(s)

4x 2200W Redundant (3 + 1) Platinum Level (94%) power supplies

Dimension (WxHxL)	106.5 x 82.4 x 203.5 mm
Input	1200W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 2000W: 180-220Vac (UL/CUL only) 1800W: 200-220Vac 1800W: 200-220Vac / 50-60Hz 1980W: 200-230Vac / 50-60Hz 1980W: 220-230Vac 2200W: 220-240Vac (UL/cUL only) 2200W: 220-240Vac / 50-60Hz (For UL/cUL Only) 2090W: 230-240Vac 2090W: 230-240Vdc / 50-60Hz (for CQC only) 2090W: 230-240Vac / 50-60Hz (for TUV/CB)
+12V	Max: 41.67A (100Vac-240Vac) Max: 10A / Min: 9.5A (200Vac-220Vac) (CQC only) Max: 10A / Min: 9.8A (220Vac-230Vac) (CQC only) Max: 10A / Min: 9.8A (230Vdc-240Vdc) (CQC only) Max: 10A / Min: 9.8A (230Vac-240Vac) (CQC only)
12V SB	Max: 3A
Output Type	Backplanes (connector)

ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
