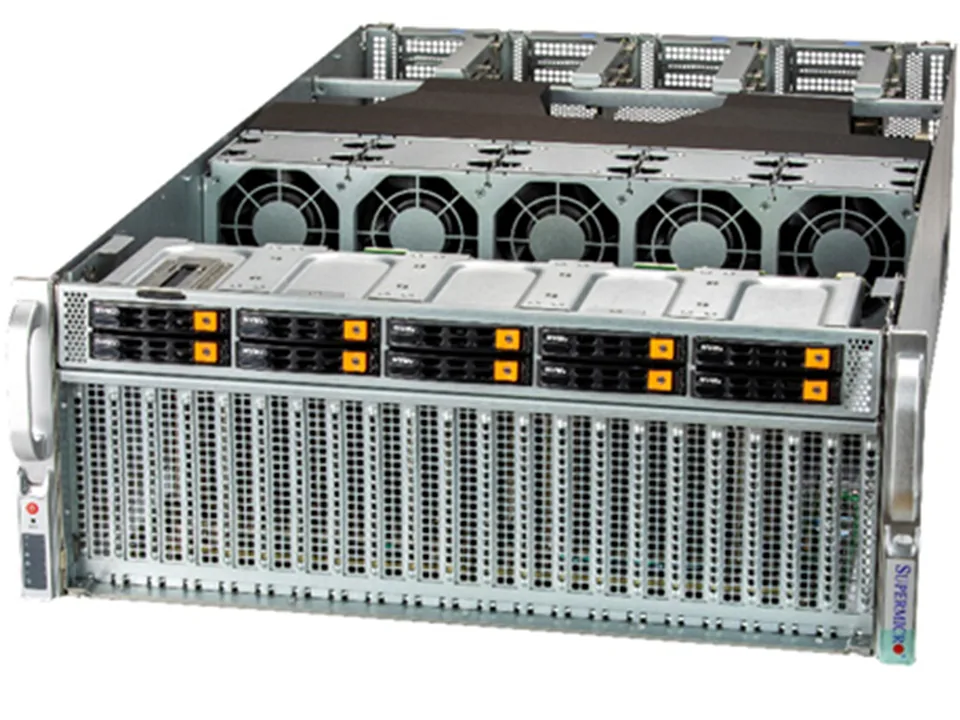

GPU A+ Server AS -4124GQ-TNMI

(AS -4124GQ-TNMI)

instock

Supports AMD Instinct™ MI200 Series Accelerators with AMD Infinity™ Fabric™ GPU-GPU Interconnect, 1:1 GPU-to-NIC ratio
Dual AMD EPYC™ 7003 Series Processors
8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
8 PCIe 4.0 x16 via PLX
2 PCIe 4.0 x16 LP via CPUs (for 5U SKU)

MSRP^*

N/A

* Manufacturer’s Suggested Retail Price

Product Specifications

CPU	Dual Socket SP3 AMD EPYC™ 7003 Series
Core Count	Up to 128C/256T
Note	Supports up to 280W TDP CPUs (Air Cooled)

Max GPU Count	4 onboard GPUs
Supported GPU	AMD: Instinct™ MI250 Accelerators View GPU Options
CPU-GPU Interconnect	PCIe 4.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	AMD Infinity Fabric™ Link

Memory	Slot Count: 32 DIMM slots/8 Channels Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM View Memory Options
Memory Voltage	1.2V

Chipset	System on Chip
Network Connectivity	Via AIOM View AIOM Options View AOC Options
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

BIOS Type

Software

Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

CPU	Monitors for CPU Cores, Chipset Voltages, Memory 4+1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors

Form Factor	4U Rackmount
Model	CSE-458GTS-R3K06P

Height	7″ (175.6 mm)
Width	17.67″ (449 mm)
Depth	32.79″ (833 mm)
Package	14.57″ (H) x 27.55″ (W) x 49.6″ (D)
Weight	Gross Weight: 140 lbs (64 kg) Net Weight: 105 lbs (48 kg)
Available Color	Black Front & Silver Body

LED	Hard drive activity LED Network activity LEDs Power status LED System Overheat & Power Fail LED
Buttons	Power On/Off button System Reset button

PCI-Express (PCIe) Configuration

Default
- 8 PCIe 4.0 x16 via PLX slots
Option A*
- 8 PCIe 4.0 x16 via PLX slots
- 2 PCIe 4.0 x16 LP slots
(*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)

Drive Bays Configuration

Fans	Up to 5 x hot-swap 11.5K RPM heavy duty Fan(s)

4x 3000W Redundant (2 + 2) Titanium Level (96%) power supplies

Dimension (WxHxL)	106.5 x 82.1 x 245.5 mm
Input	3000W: 0240Vdc / 50-60Hz (for CQC only) 2880W: 200-207Vac / 50-60Hz 3000W: 207-240Vac / 50-60Hz 3000W:
+12V	Max: 91.66A / Min: 0A (200Vac-240Vac)
12V SB	Max: 3A / Min: 0A
Output Type	Backplanes (gold finger)

ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
