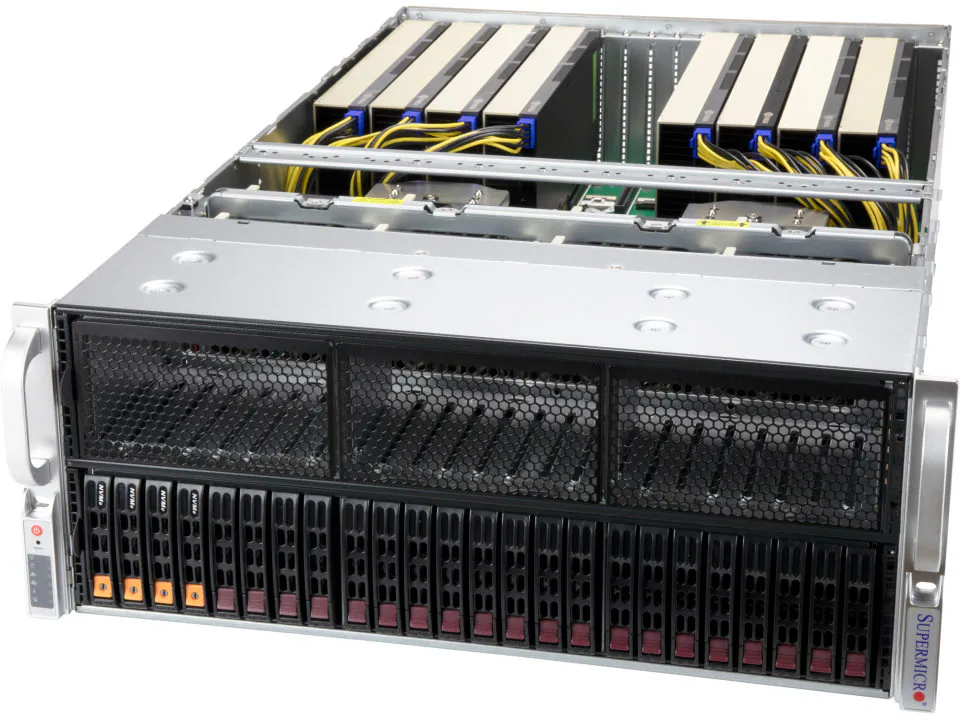

GPU A+ Server AS -4124GS-TNR+

(AS -4124GS-TNR+)

instock

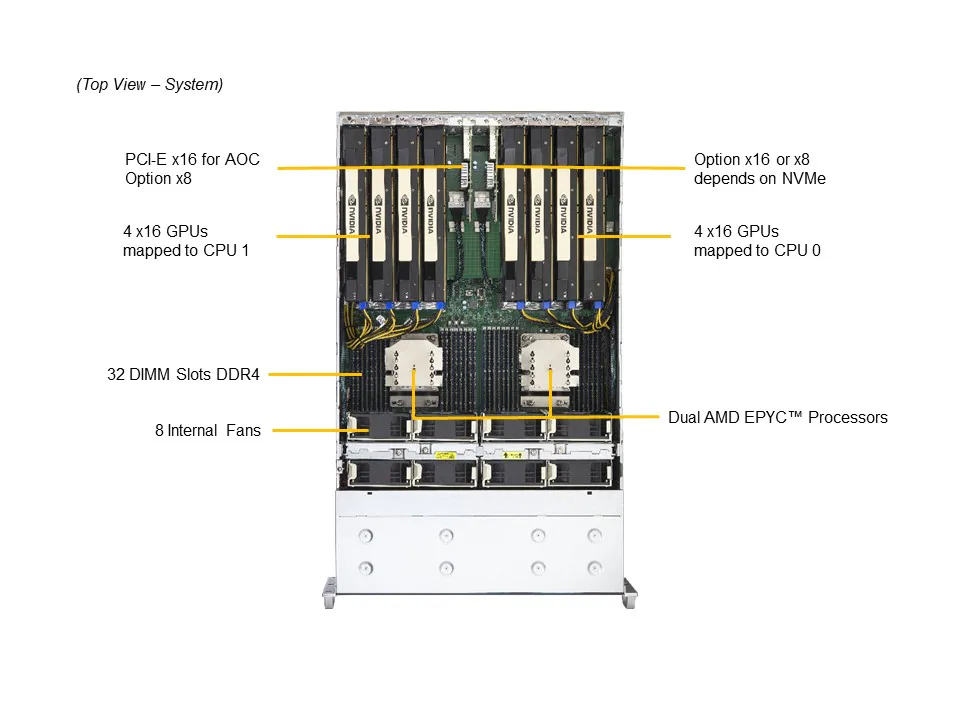

Supports up to 8 double-width GPUs Direct connect for maximum performance
Dual AMD EPYC™ 7003/7002 Series Processors
8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
9 PCIe 4.0 x16 (option: 10 PCIe 4.0 x16 slots without NVMe devices)

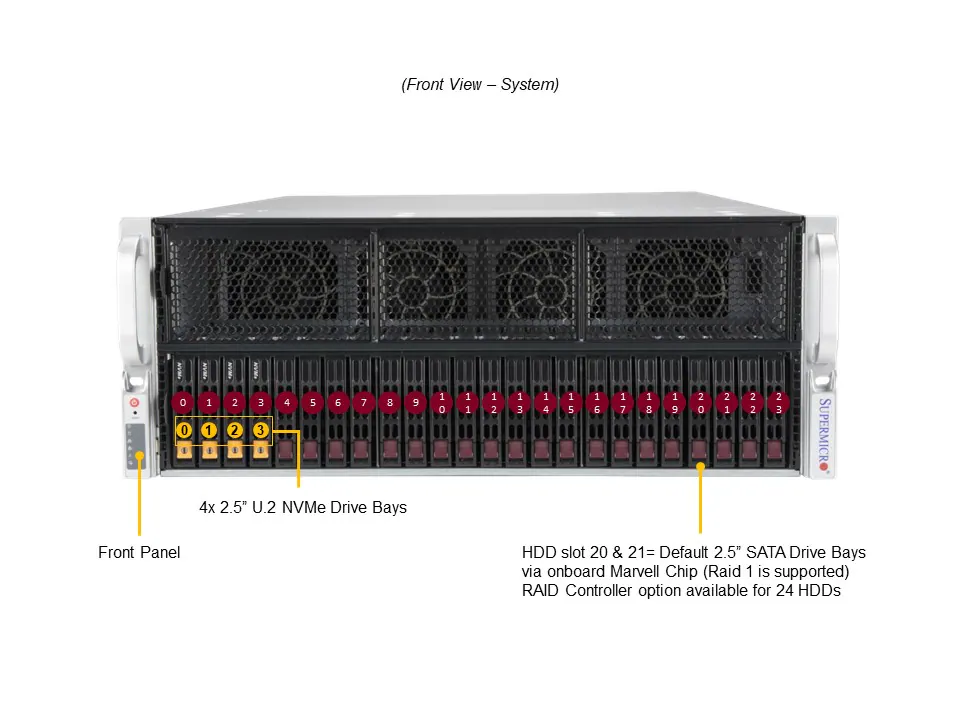

Up to 24 hot-swap 2.5″ drive bays
Dual 2.5″ SATA in RAID 1 via onboard Marvell 9230
Quad 2.5″ PCIe4.0 NVMe (depends on PCIe quantity based on #4) RAID controller, option available for 24 HDDs

MSRP^*

N/A

* Manufacturer’s Suggested Retail Price

Product Specifications

CPU	Dual SP3 AMD EPYC™ 7002/7003 Series Processors
Note	Supports up to 280W TDP CPUs (Air Cooled)

Max GPU Count	Up to 8 double-width or 8 single-width GPUs
Supported GPU	NVIDIA PCIe: H100, A100, A2, A16, A30, A40, L40S, A10, RTX 6000, RTX 6000 Ada Generation, RTX A4500, RTX A6000, T4, V100, L40, RTX 4000 AMD PCIe: Instinct™ MI150 View GPU Options
CPU-GPU Interconnect	PCIe 4.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	NVIDIA® NVLink® with NVSwitch™

Memory

- Slot Count: 32 DIMM slots
- Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM

Memory Voltage

Chipset

Network Connectivity

LAN	1 RJ45 1 GbE Dedicated BMC LAN port 2 RJ45 1 GbE LAN ports
USB	2 USB 3.0 ports(front)
Video	1 VGA port

BIOS Type

Software

Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

CPU	Monitors for CPU Cores, Chipset Voltages, Memory 4+1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Form Factor	4U
Model	CSE-418GTS-R4016BP

Height	7″ (178 mm)
Width	17.2″ (437 mm)

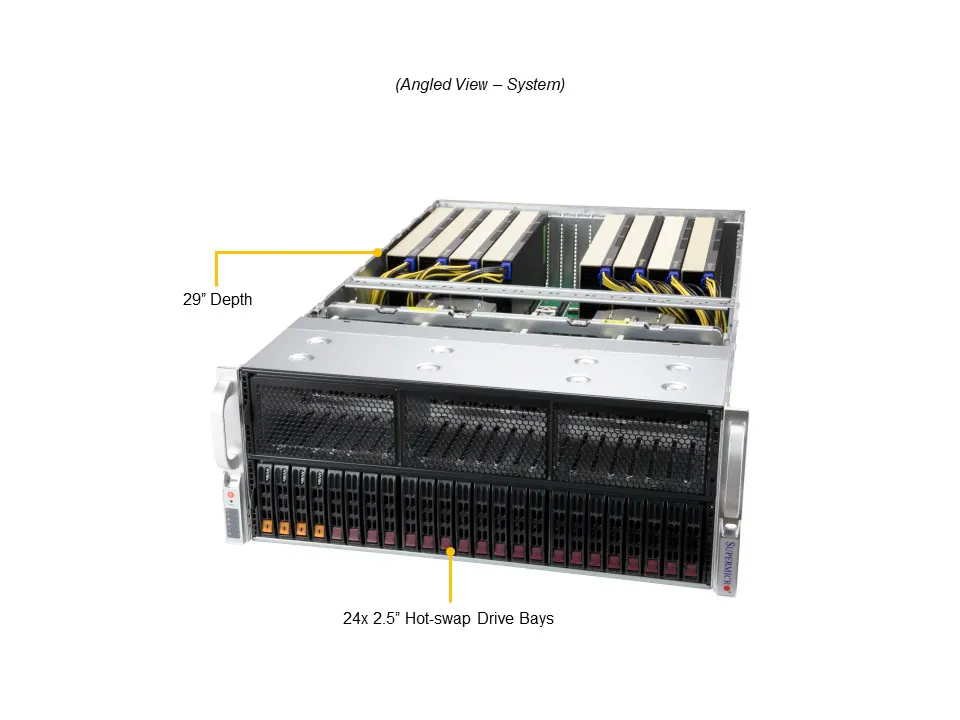

Depth	29″ (737 mm)
Package	26.57″ (H) x 27″ (W) x 41″ (D)
Weight	Gross Weight: 100 lbs (45.3 kg) Net Weight: 65.5 lbs (29.7 kg)
Available Color	Black

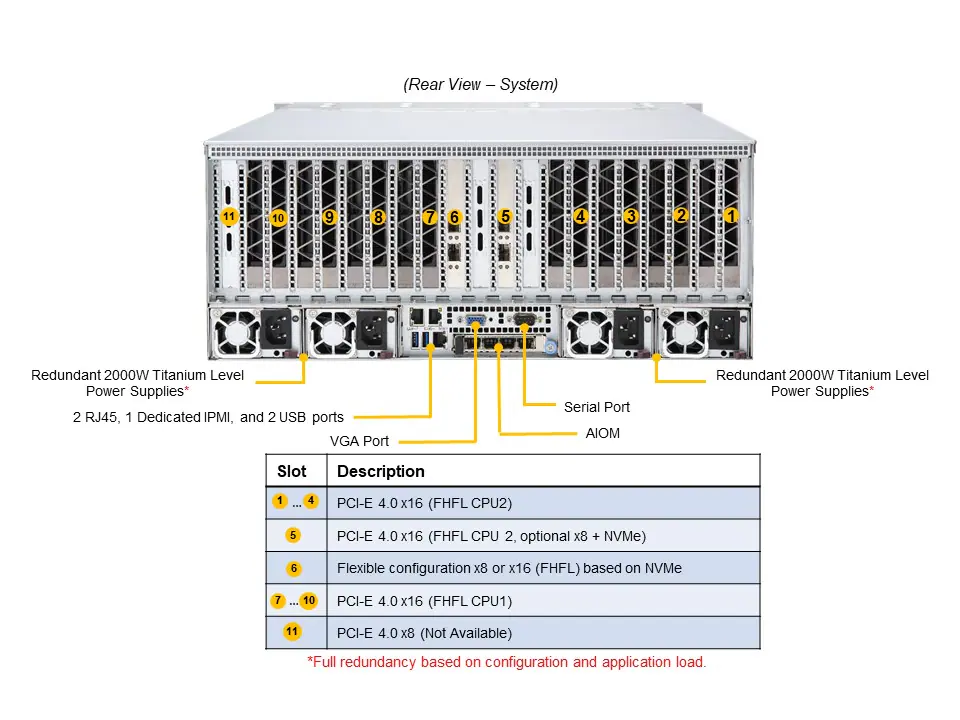

PCI-Express (PCIe) Configuration

- Default
  - 9 PCIe 4.0 x16 FHFL slots
- Option A
  - 10 PCIe 4.0 x16 FHFL slots

Drive Bays Configuration

- Default: Total 24 bays
  - 20 front hot-swap 2.5″ SATA drive bays
  - 4 front hot-swap 2.5″ NVMe drive bays
- Option A: Total 24 bays
  - 24 front hot-swap 2.5″ SATA drive bays

Fans	Up to 8x 11.5K RPM 92mm Fan(s)

4x 2000W Redundant (2 + 2) Titanium Level (96%) power supplies

Dimension (WxHxL)	73.5 x 40 x 203 mm
Input	1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac 1980W: 220-230Vac / 50-60Hz 2000W: 220-240Vac 2000W: 220-240Vac / 50-60Hz (for UL only) 2000W: 230-240Vdc 2000W: 230-240Vac 2000W: 230-240Vac / 50-60Hz 2000W: 230-240Vdc / 50-60Hz (for China only)
+12V	Max: 83A / Min: 0A (100Vac-127Vac) Max: 150A / Min: 0A (200Vac-220Vac) Max: 165A / Min: 0A (220Vac-230Vac) Max: 166A / Min: 0A (230Vac-240Vac)
12V SB	Max: 3.5A / Min: 0A Max: 3.5A
Output Type	Backplanes (gold finger)

ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
