GPU A+ Server AS -4126GS-NBR-LCC

(AS -4126GS-NBR-LCC)

instock

Categories: Servers, SuperMicro, GPU Servers

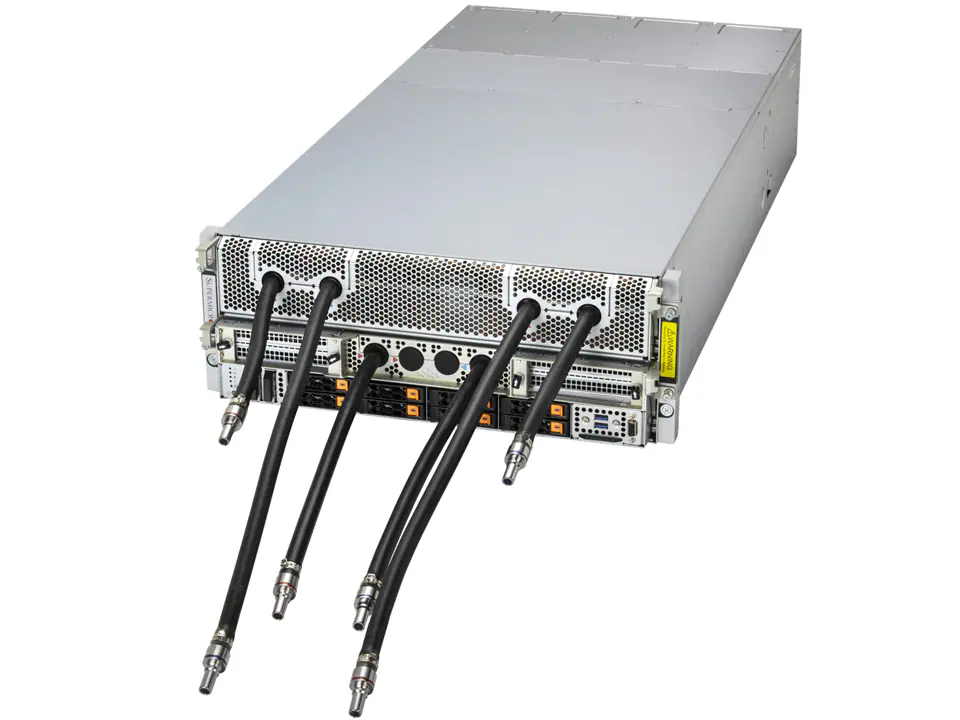

DP AMD 4U Liquid-Cooled System with NVIDIA HGX B200 8-GPU (complete rack and onsite service are required)

Key Features

*Rack solution and onsite service required for purchase*

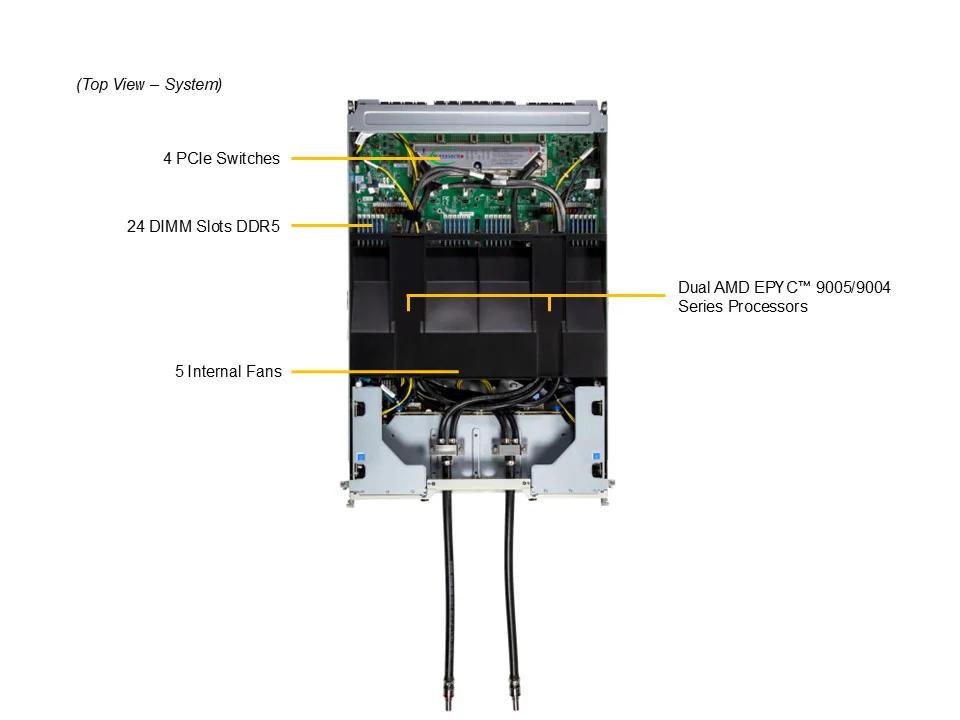

Dual processor(s) AMD EPYC™ 9005/9004 Series Processors up to 500W with Liquid Cooling
Supports up to 24 DIMM Slots, 6400 MT/s 6TB DDR5 memory
(Please check System Memory Section for detail)
Up to 8 PCIe 5.0 x16 LP + 2 PCIe 5.0 x16 FHHL slots
2 RJ45 10GbE

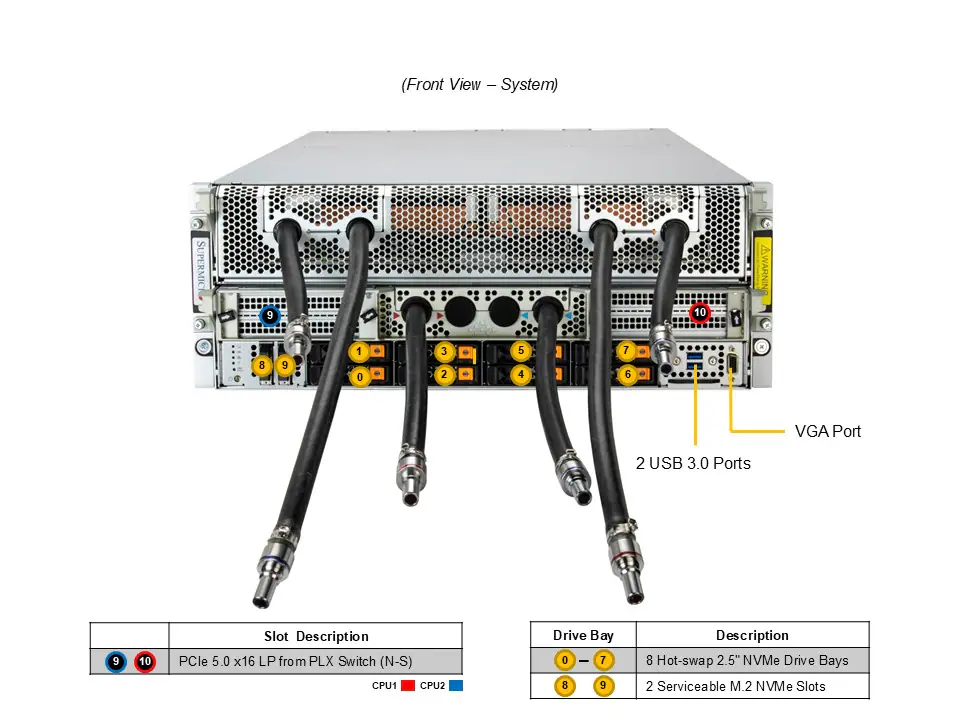

Total of 8 front hot-swap 2.5″ NVMe

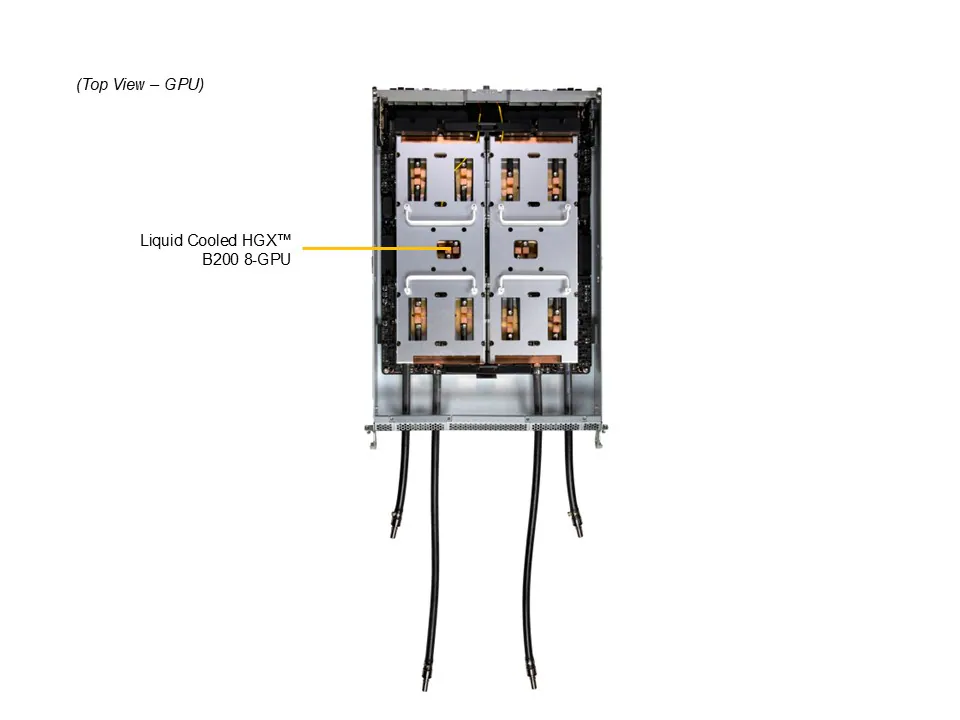

Support of 8 onboard SXM GPU accelerator cards with Liquid Cooling

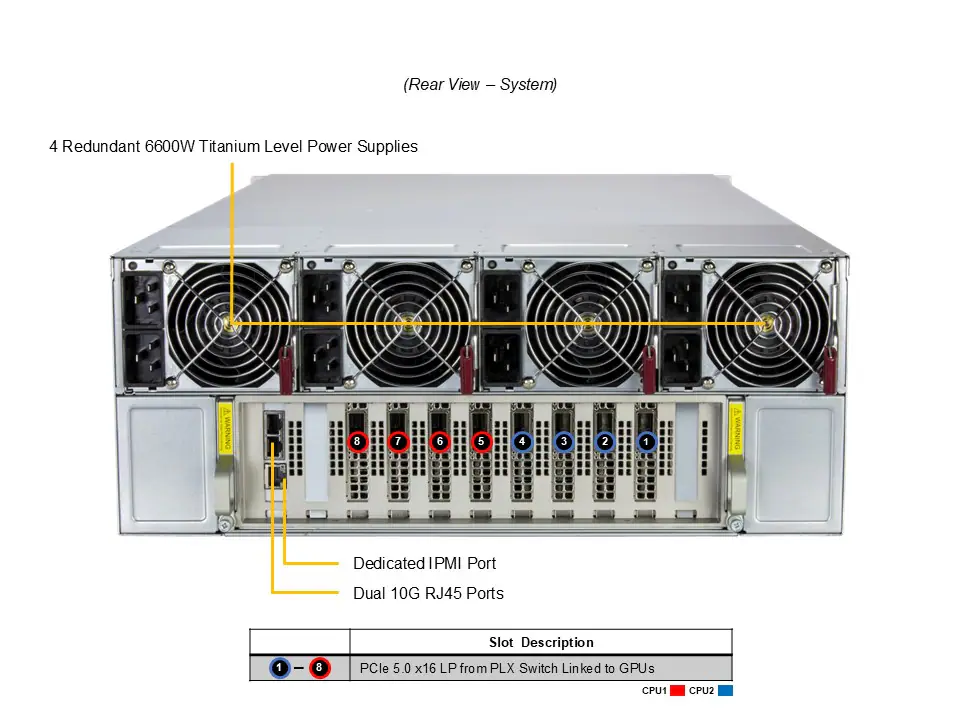

Total of 4x 6600W Redundant (2 + 2) Titanium Level power supplies
(Power supply full redundancy based on configuration and application load)

MSRP^*

N/A

* Manufacturer’s Suggested Retail Price

Product Specifications

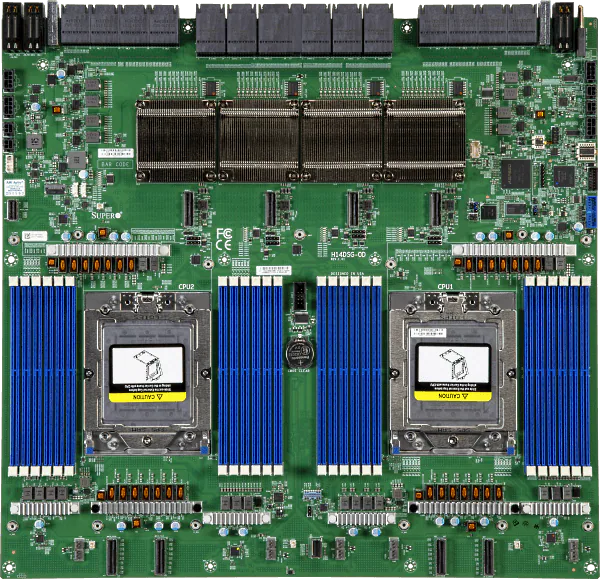

Super H14DSG-OD

CPU	Dual processor(s) AMD EPYC™ 9005/9004 Series Processors
Core Count	Up to 192C/384T; Up to 384MB Cache per CPU
Note	Supports up to 500W TDP CPUs (Liquid Cooled)

Max GPU Count	8 onboard GPUs
Supported GPU	NVIDIA SXM: HGX B200 8-GPU (180GB) View GPU Options
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	NVIDIA® NVLink® with NVSwitch™

Memory

- Slot Count: 24 DIMM slots
- Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
- Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)

- View Memory Options

Memory Voltage

- 1.1V

Chipset

- System on Chip

Network Connectivity

- 2 RJ45 10GbE with Intel® X710

- View AOC Options

<td class=”description border_b”

2 USB 3.0 Type-A ports(Rear)

LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB
Video	1 VGA port
TPM	1 TPM header

BIOS Type

AMI 64MB SPI Flash EEPROM

Software

Hardware

Trusted Platform Module (TPM) 2.0

CPU	Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Form Factor	4U Rackmount
Model	CSE-GP403TS-R000NP

Height	6.85″ (174 mm)
Width	17.6″ (449 mm)
Depth	35.25″ (895.35 mm)
Package	16.14″ (H) x 50.39″ (W) x 28.7″ (D)
Weight	Gross Weight: 236 lbs (107 kg) Net Weight: 203 lbs (92 kg)
Available Color	Silver

LED	Network activity LEDs System information (overheat/UID) UID
Buttons	Power On/Off UID/ Reset button

PCI-Express (PCIe) Configuration

- Default
  - 8 PCIe 5.0 x16 LP slots
  - 2 PCIe 5.0 x16 FHHL slots

- View AOC Options

M.2

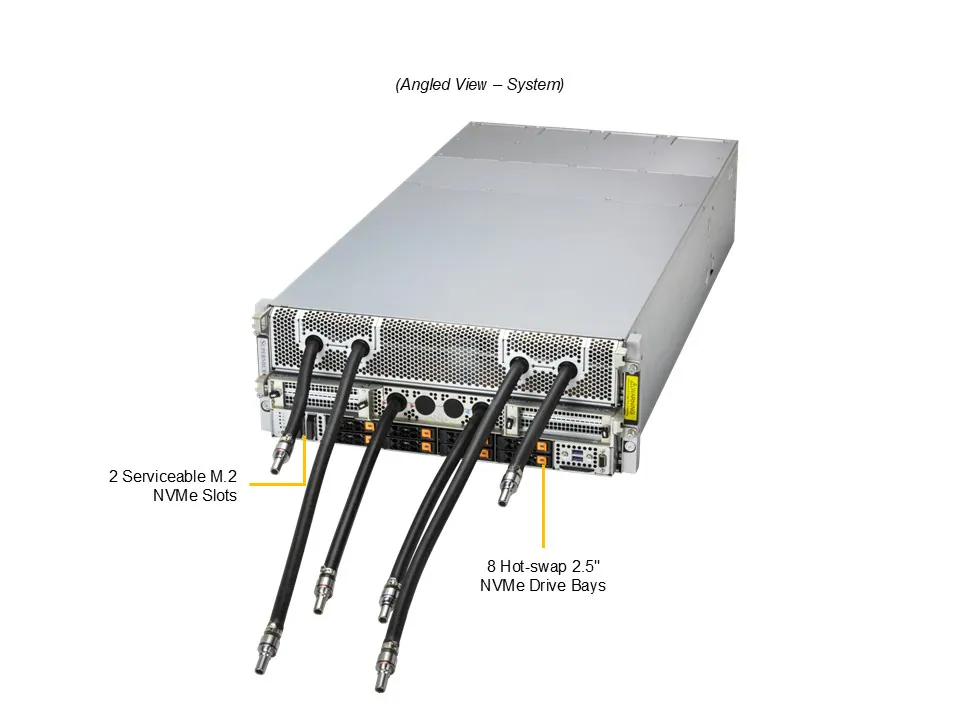

- 2 M.2 NVMe slots (M-key 22110(default))

Drive Bays Configuration

- Default: Total 8 bays
  - 8 front hot-swap 2.5″ PCIe 5.0 x4 NVMe drive bays

- View NVMe Options
- View Drive Options

M.2

- 2 M.2 NVMe slots (M-key)

- View M.2 Options

Fans	Up to 5x 6cm heavy duty fans with optimal fan speed control
Air Shroud	1 Air Shroud
Liquid Cooling	Direct to Chip (D2C) Cold Plate

4x 6600W Redundant (2 + 2) Titanium Level (96%) power supplies

Dimension (WxHxL)	106.5 x 82.1 x 245.3 mm
Input	5900W: 200-207.9Vac / 50-60Hz 6000W: 208-219.9Vac / 50-60Hz 6300W: 220-229.9Vac / 50-60Hz 6500W: 230-238.9Vac / 50-60Hz 6600W: 239-240Vac / 50-60Hz
+12V	Max: 130A / Min: 0A (200Vac-207.9Vac) Max: 130A / Min: 0A (208Vac-219.9Vac) Max: 130A / Min: 0A (220Vac-229.9Vac) Max: 130A / Min: 0A (230Vac-238.9Vac) Max: 130A / Min: 0A (239Vac-240Vac)
12V SB	Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)
Certification	Titanium Level [ Test Report ]
