GPU A+ Server AS -4145GH-TNMR

(AS -4145GH-TNMR)

instock

Categories: Servers, SuperMicro, GPU Servers

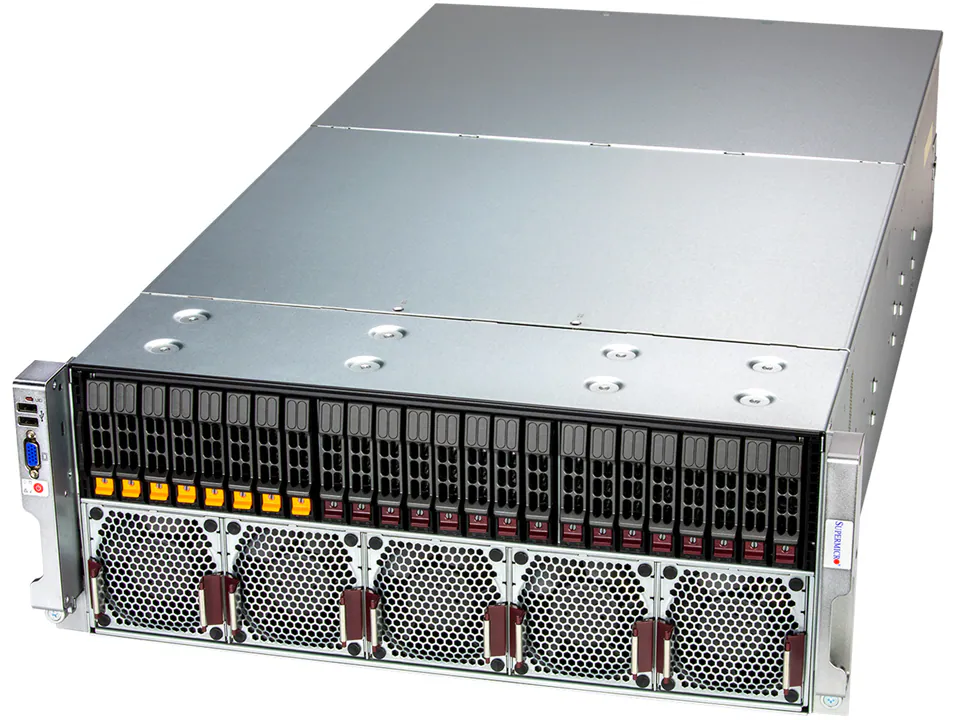

4U System with Quad AMD Instinct™ MI300A Accelerators (onsite service OSNBD is required)

Key Features

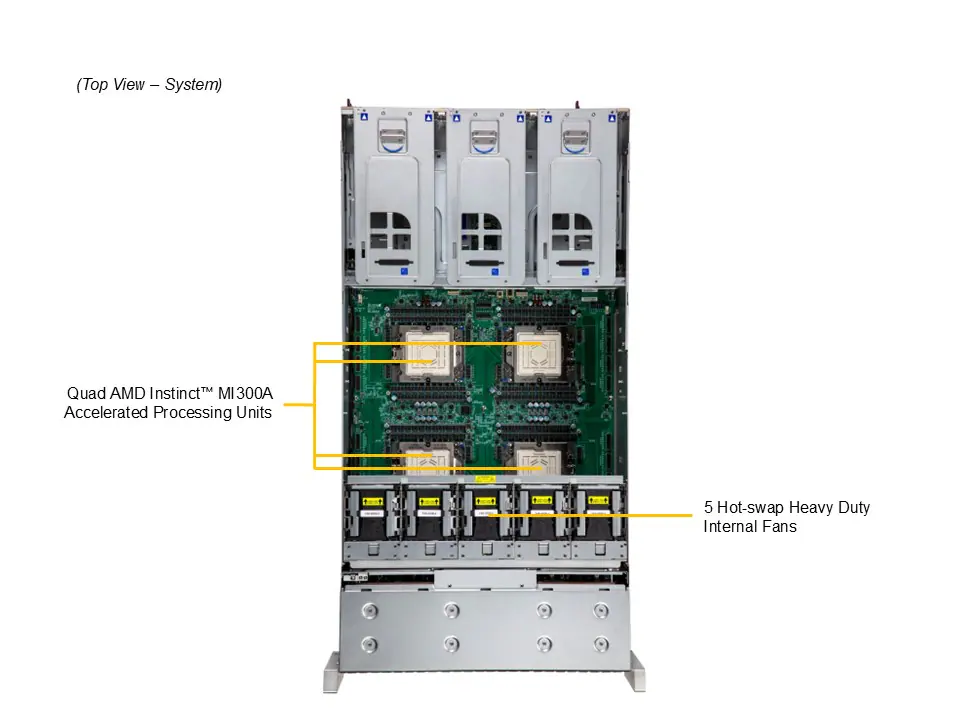

Quad AMD Instinct™ MI300A processors
Onboard 512GB HBM3 unified memory
Optional PCIe configurations up to 8 PCIe x16 slots
Flexible networking options with 2 AIOM networking slot (OCP NIC 3.0 compatible)
Default 8 2.5″ NVMe drive bays or Optional 24 2.5″ SAS3/SATA3 drive bays via storage add-on card
2 Internal NVMe/SATA M.2 slots
10 heavy duty fans w/ optimal fan speed control
4x 2700W redundant Titanium level power supplies

MSRP^*

N/A

* Manufacturer’s Suggested Retail Price

Product Specifications

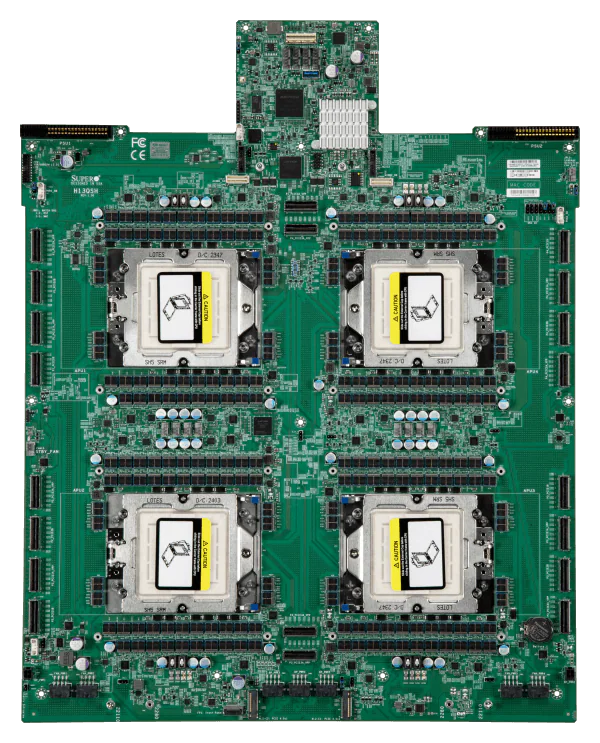

Super H13QSH

CPU	Quad Socket SH5 AMD Instinct™ MI300A Accelerated Processing Units (APUs)
Note	Supports up to 760W TDP CPUs (Air Cooled)

Max GPU Count

- 4 onboard GPUs

Supported GPU

- AMD: Instinct™ MI300A APU

- View GPU Options

GPU-GPU Interconnect

- AMD Infinity Fabric™ Link

Memory

- Slot Count: Onboard Memory
- Max Memory: Up to 512GB non-ECC HBM3

Chipset

- AMD SH5

Network Connectivity

- Via AIOM

- View AIOM Options
- View AOC Options

LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	2 USB 3.0 ports(rear) 2 USB 2.0 ports(front)
Video	1 DisplayPort port
Serial	1 COM port(rear)

BIOS Type

AMI 32MB SPI Flash

Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management

Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

CPU	Monitors for CPU Cores, Chipset Voltages, Memory 4+1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Form Factor	4U Rackmount
Model	CSE-418H2TS-R0AWNDP

Height	7″ (177 mm)
Width	17.3″ (438.4 mm)
Depth	33.4″ (848.7 mm)
Package	15.94″ (H) x 27.32″ (W) x 49.41″ (D)
Weight	Gross Weight: 158.07 lbs (71.7 kg) Net Weight: 120.59 lbs (54.7 kg)
Available Color	No Paint

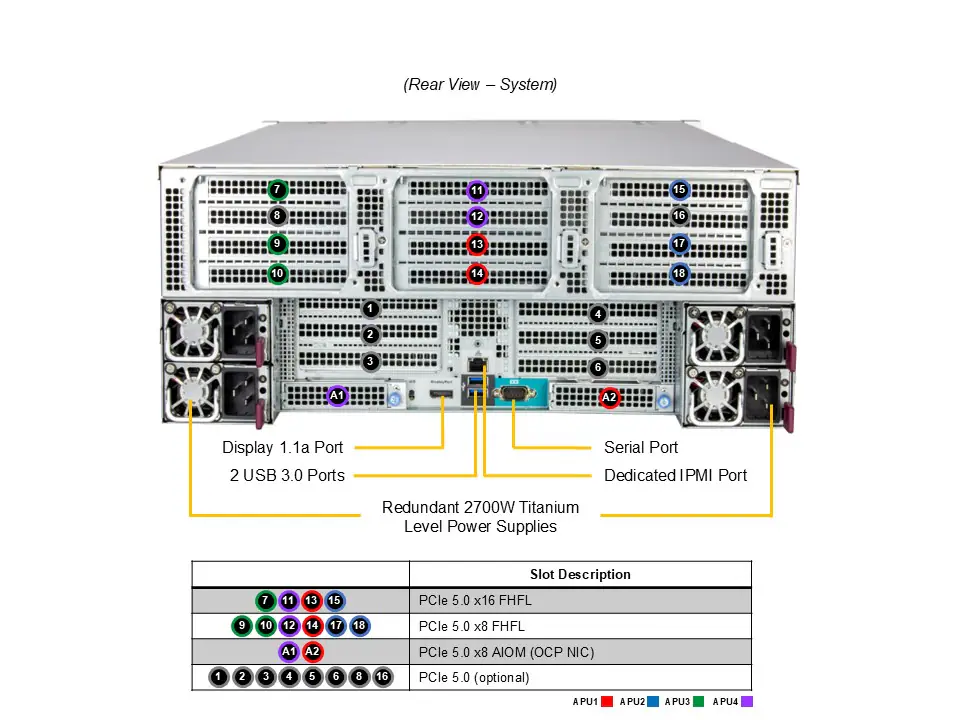

PCI-Express (PCIe) Configuration

- Default
  - 4 PCIe 5.0 x16 FHHL slots
  - 2 PCIe 5.0 x8 FHHL slots
- Option A*
  - 4 PCIe 5.0 x16 FHHL slots
  - 6 PCIe 5.0 x8 FHHL slots
  - 2 PCIe 5.0 x8 AIOM slots (OCP 3.0 compatible)
- Option B*
  - 6 PCIe 5.0 x16 FHHL slots
  - 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
- Option C*
  - 14 PCIe 5.0 x8 FHHL slots
  - 2 PCIe 5.0 x8 AIOM slots (OCP 3.0 compatible)
- Option D*
  - 4 PCIe 5.0 x16 FHHL slots
  - 2 PCIe 5.0 x8 FHHL slots
  - 2 PCIe 5.0 x8 AIOM slots (OCP 3.0 compatible)
- (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)

…

- View AOC Options

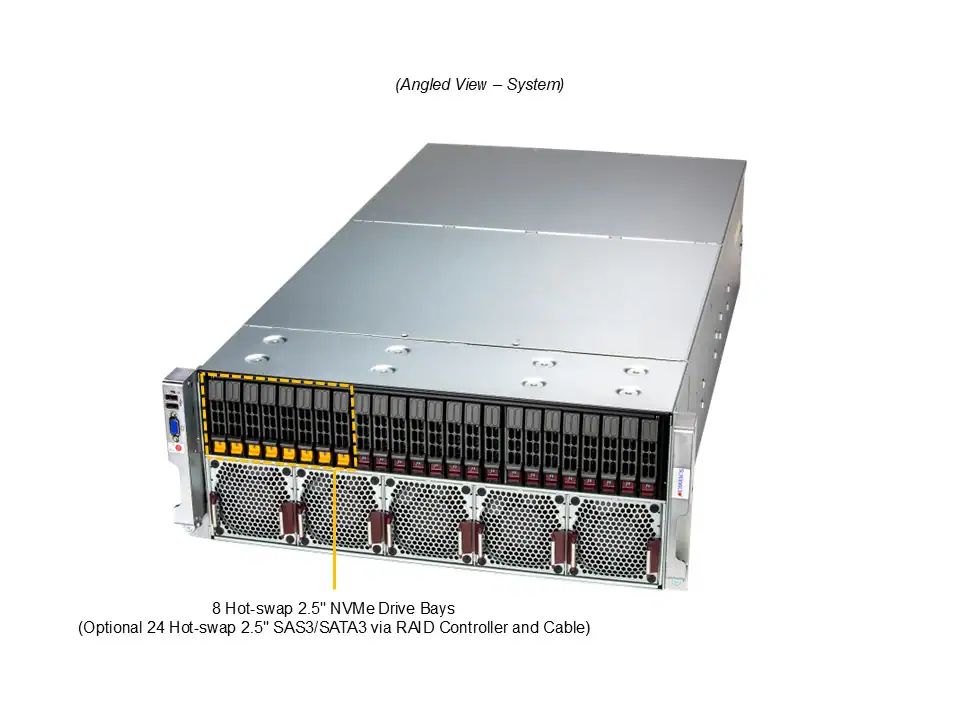

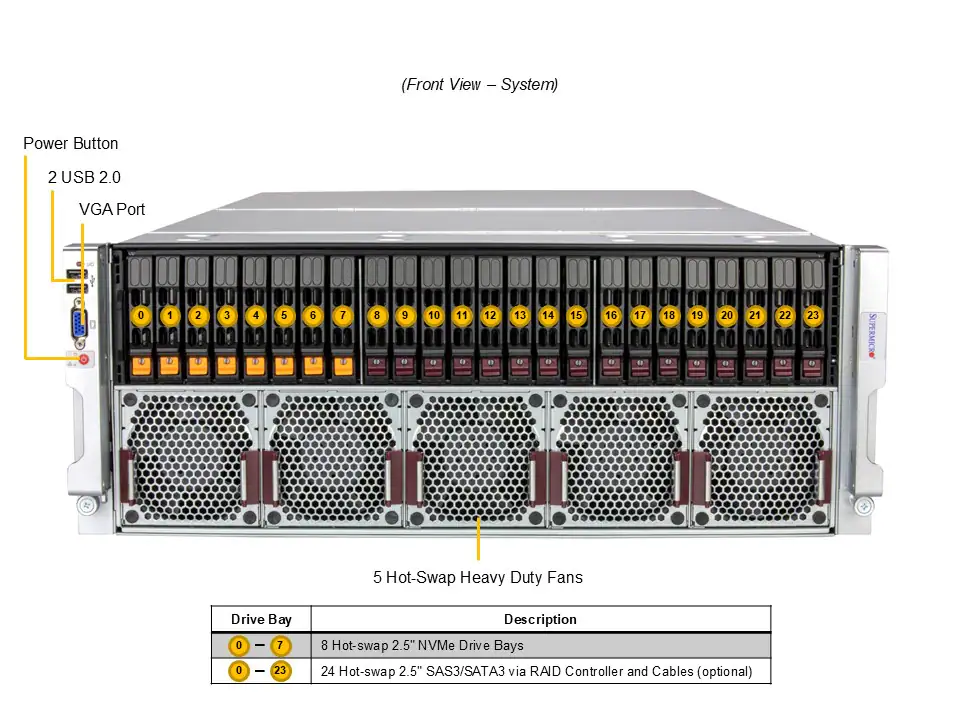

Drive Bays Configuration

- Default: Total 8 bays
  - 8 front fixed 2.5″ NVMe drive bays
- Option A: Total 16 bays
  - 16 front fixed 2.5″ NVMe drive bays
- Option B: Total 24 bays
  - 24 front fixed 2.5″ SAS*/SATA* drive bays
- (*SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)

- View NVMe Options
- View Drive Options

M.2

- 2 M.2 NVMe slots (M-key 2280/22110)

- View M.2 Options

Fans	Up to 10 Heavy duty counter-rotating 8cm Fan(s)
Air Shroud	1 Air Shroud

4x 2700W Redundant (3 + 1) Titanium Level (96%) power supplies

Dimension (WxHxL)	73.5 x 40 x 203 mm
Input	2700W: 200-240Vac 2700W: 200-240Vac / 50-60Hz 2700W: 240-240Vdc / 50-60Hz (for CQC only)
+12V	Max: 225A / Min: 0A (200Vac-240Vac) Max: 225A / Min: 0A (240Vdc-240Vdc)
12V SB	Max: 3.5A / Min: 0A Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)

ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
