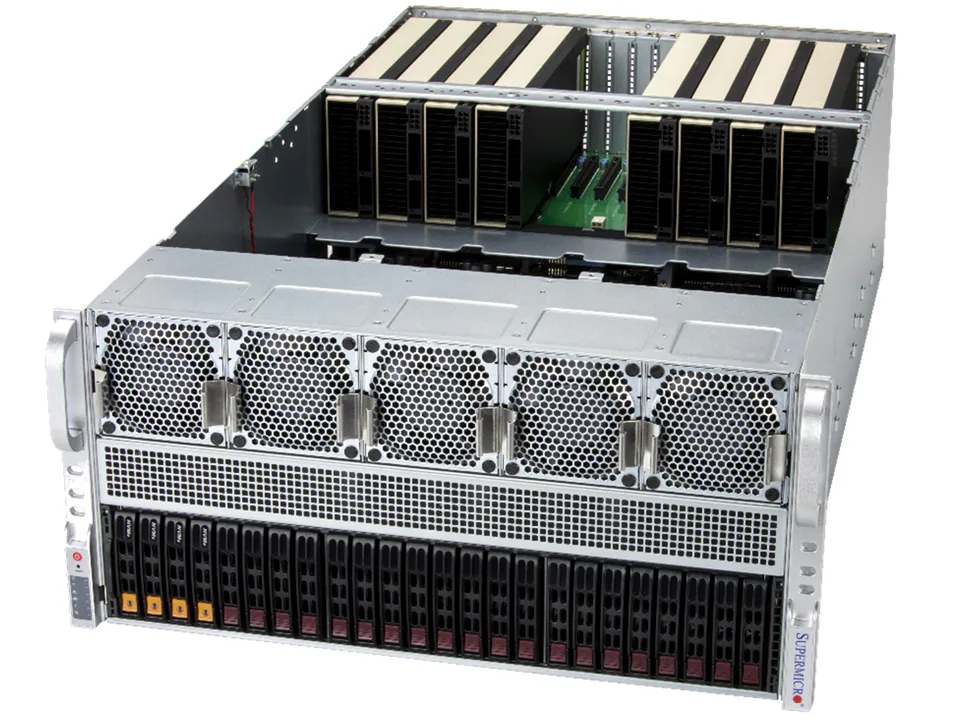

GPU A+ Server AS -5126GS-TNRT

(AS -5126GS-TNRT)

instock

Dual Socket SP5 AMD EPYC™ 9005 Series Processors up to 500W with air cooling
Supports up to 24 DIMM slots, 6400 MT/s 6TB DDR5 in 1DPC
(Please check System Memory Section for detail)
Total of 9 PCIe 5.0 x16 FHFL slots
(If NVMe drives are disabled, then can be used as 10th PCIe 5.0 x16 FHFL slot)- Option A
Supports up to 8 double-width PCIe GPU accelerator cards

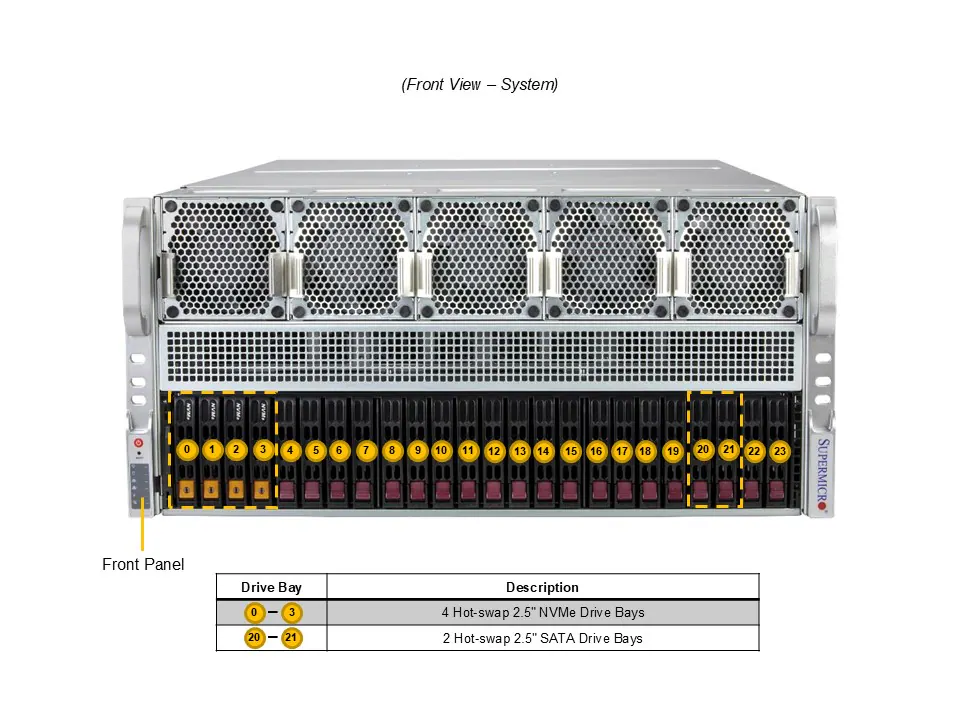

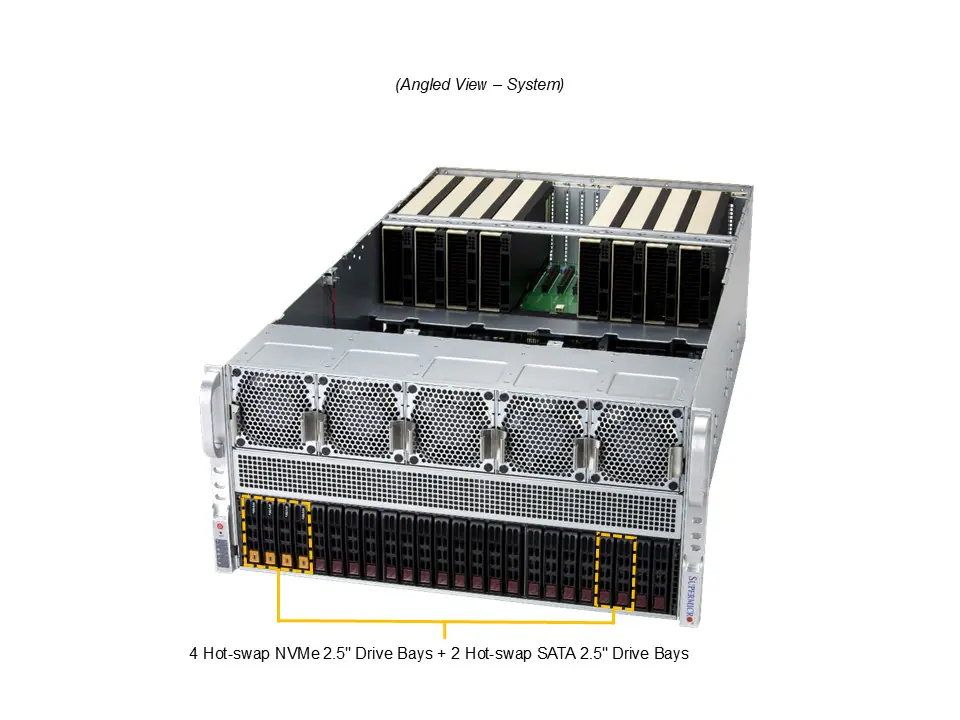

Dual front hot-swap 2.5″ SATA + 4 front hot-swap 2.5″ NVMe drive bays
(The PCIe signal for 4 NVMe drives can be re-directed for PCIe slot8 enablement)
Total of 6x 2700W Redundant (3+3 or 4+2) Titanium Level power supplies
(3+3 under 8100 Watt, 4+2 under 10,800 Watt)
(Power supply redundancy based on configuration and application load)

MSRP^*

N/A

* Manufacturer’s Suggested Retail Price

Product Specifications

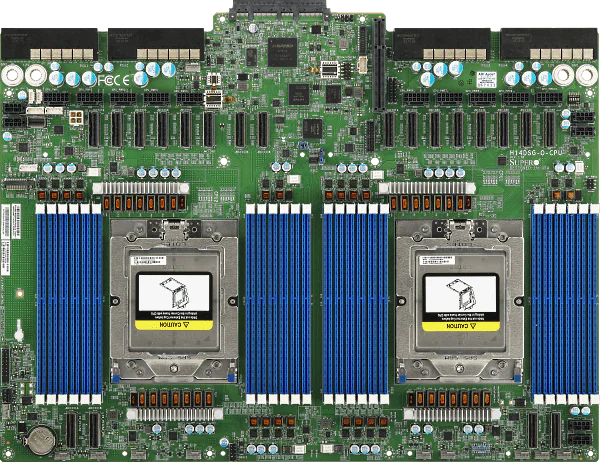

CPU	Dual processor(s) AMD EPYC™ 9005/9004 Series Processors
Core Count	Up to 192C/384T
Note	Supports up to 500W TDP CPUs

Max GPU Count	Up to 8 double-width GPUs
Supported GPU	NVIDIA PCIe: H100 NVL, NVIDIA RTX PRO™ 6000 Blackwell Server Edition, H200 NVL (141GB), L40S View GPU Options
CPU-GPU Interconnect	Direct Attached
GPU-GPU Interconnect	NVIDIA® NVLink® Bridge (optional), AMD Infinity Fabric™ Link (optional)

Memory

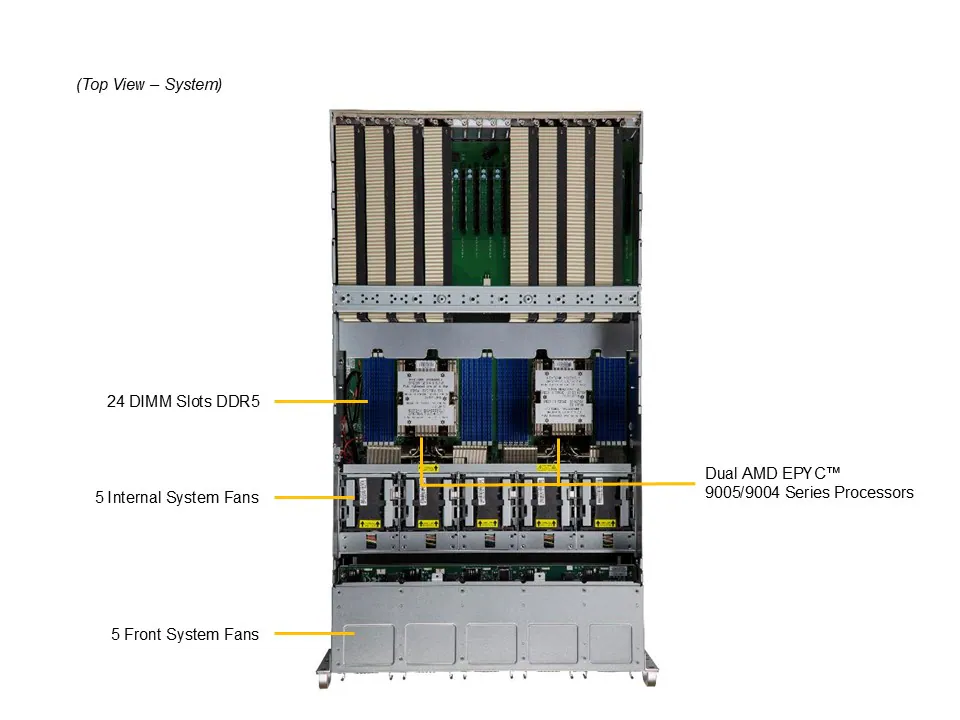

- Slot Count: 24 DIMM slots
- Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
- Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)

Memory Voltage

SATA

Chipset

Network Connectivity

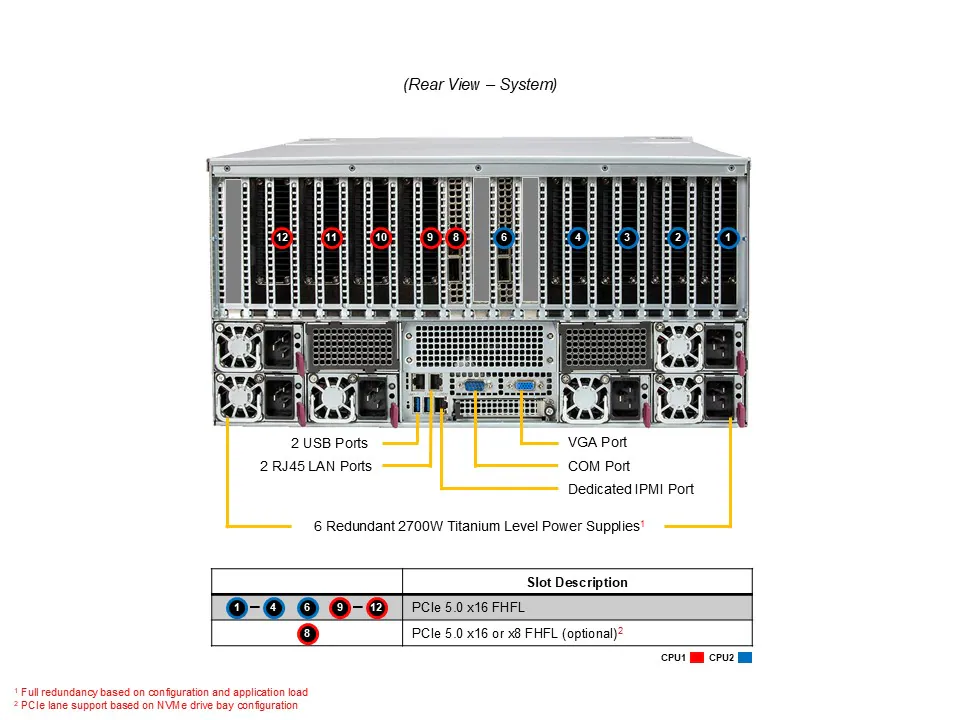

LAN	1 RJ45 1 GbE Dedicated BMC LAN port 2 RJ45 10 GBASE-T LAN ports
USB	2 ports(rear)
Video	1 VGA port

BIOS Type

Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management

Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

CPU	Monitors for CPU Cores, Chipset Voltages, Memory 7 +1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Form Factor	5U Rackmount
Model	CSE-528G2TS-R000NDP

Height	8.75″ (222.5 mm)
Width	17.2″ (438 mm)
Depth	31″ (786.1 mm)
Package	17.32″ (H) x 28.34″ (W) x 42.51″ (D)
Weight	Gross Weight: 100 lbs (45.3 kg) Net Weight: 65.5 lbs (29.7 kg)
Available Color	Black Front & Silver Body

PCI-Express (PCIe) Configuration

- Default
  - 9 PCIe 5.0 x16 FHFL double-width slots
- Option A
  - 10 PCIe 5.0 x16 FHFL double-width slots

Drive Bays Configuration

- Default: Total 6 bays
  - 2 front hot-swap 2.5″ SATA drive bays
  - 4 front hot-swap 2.5″ NVMe drive bays
- Option A: Total 2 bays
  - 2 front hot-swap 2.5″ SATA drive bays

M.2

Fans	Up to 10 heavy duty fans with optimal fan speed control

6x 2700W Redundant (4 + 2) Titanium Level (96%) power supplies

Dimension (WxHxL)	73.5 x 40 x 203 mm
Input	2700W: 200-240Vac 2700W: 200-240Vac / 50-60Hz 2700W: 240-240Vdc / 50-60Hz (for CQC only)
+12V	Max: 225A / Min: 0A (200Vac-240Vac) Max: 225A / Min: 0A (240Vdc-240Vdc)
12V SB	Max: 3.5A / Min: 0A Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)
