GPU A+ Server AS -8125GS-TNHR

(AS -8125GS-TNHR)

instock

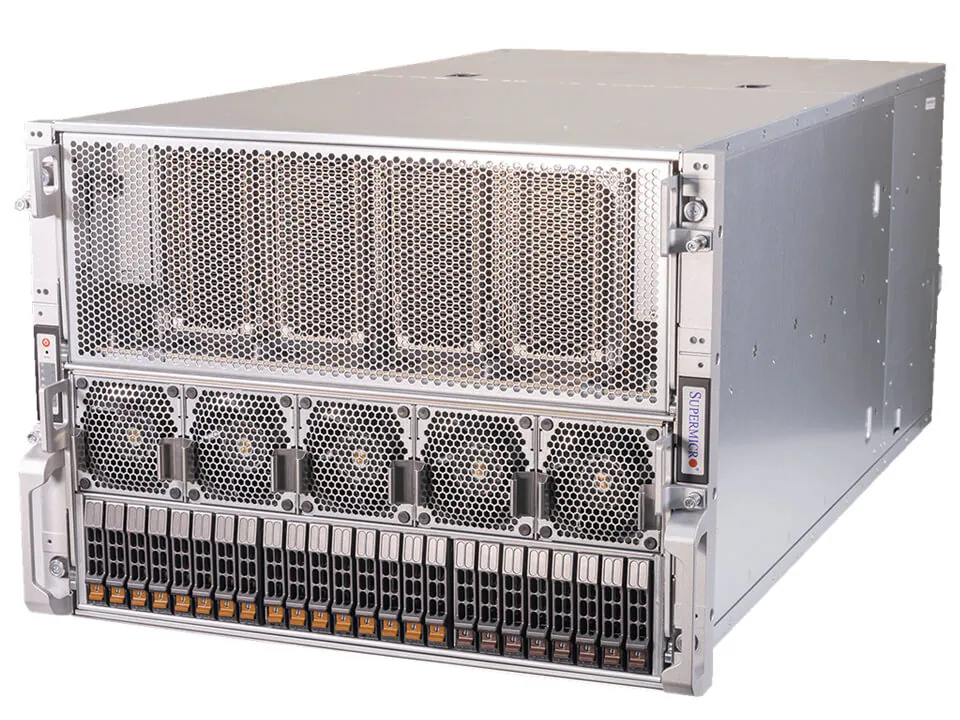

High density 8U system for NVIDIA® HGX™ H100/H200 8-GPU
Highest GPU communication using NVIDIA® NVLINK™ + NVIDIA® NVSwitch™
8 NIC for GPU direct RDMA (1:1 GPU Ratio)
Supports up to 24 DIMM Slots; 4800 MT/s 6TB DDR5 memory
(Please check System Memory Section for detail)

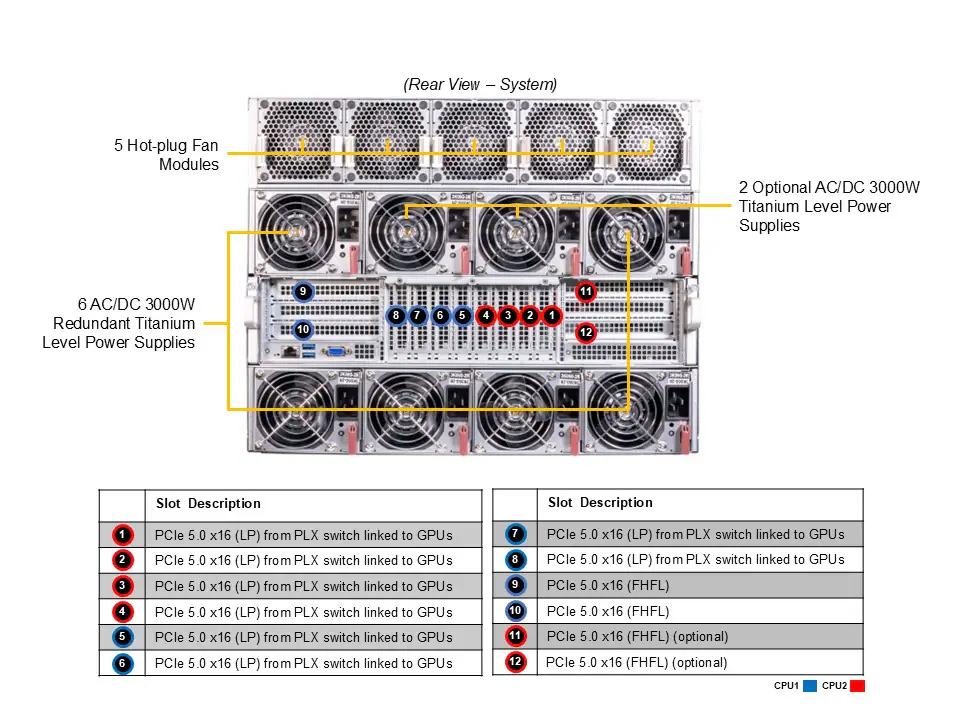

Up to 8 PCIe 5.0 x16 LP + 4 PCIe 5.0 x16 FHFL slots
Flexible networking options

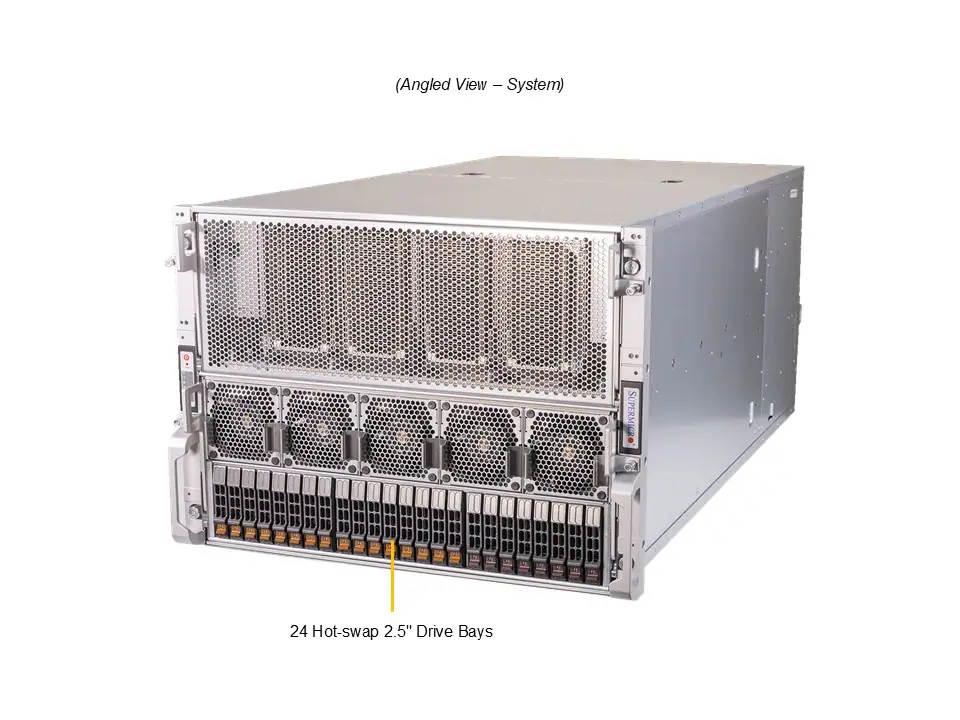

Total of 12 Hot-swap 2.5″ NVMe drive bays + 2 hot-swap 2.5″ SATA drive bays
+ 4 hot-swap 2.5″ NVMe drive bays (optional)
1 M.2 NVMe for boot drive only
10 heavy duty fans with optimal fan speed control
Total of 6x (3+3) 3000W Redundant Titanium Level Power Supplies
(Power supply full redundancy based on configuration and application load)

MSRP^*

N/A

* Manufacturer’s Suggested Retail Price

Product Specifications

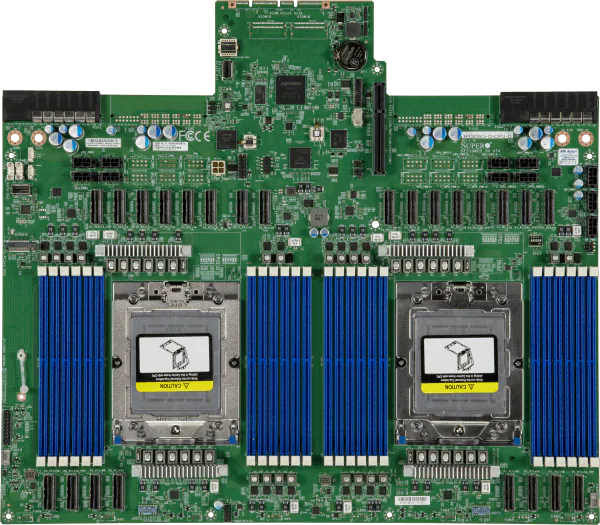

CPU	Dual Socket SP5 AMD EPYC™ 9004 Series Processors
Core Count	Up to 128C/256T
Note	Supports up to 400W TDP CPUs (Air Cooled)

Max GPU Count	8 onboard GPUs
Supported GPU	NVIDIA SXM: HGX H100 8-GPU (80GB), HGX H200 8-GPU (141GB) View GPU Options
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	NVIDIA® NVLink® with NVSwitch™
Certification

Memory

- Slot Count: 24 DIMM slots
- Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM

Memory Voltage

Chipset

Network Connectivity

Video

BIOS Type

Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management

Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

CPU	Monitors for CPU Cores, Chipset Voltages, Memory 7 +1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Form Factor	8U Rackmount
Model	CSE-GP801TS

Height	14″ (355.6 mm)
Width	17.2″ (437 mm)
Depth	33.2″ (843.28 mm)
Package	29.5″ (H) x 27.5″ (W) x 51.2″ (D)
Weight	Gross Weight: 225 lbs (102.1 kg) Net Weight: 166 lbs (75.3 kg)
Available Color	Black front & silver body

LED	Hard drive activity LED Network activity LEDs Power status LED System Overheat & Power Fail LED
Buttons	Power On/Off button System Reset button

PCI-Express (PCIe) Configuration

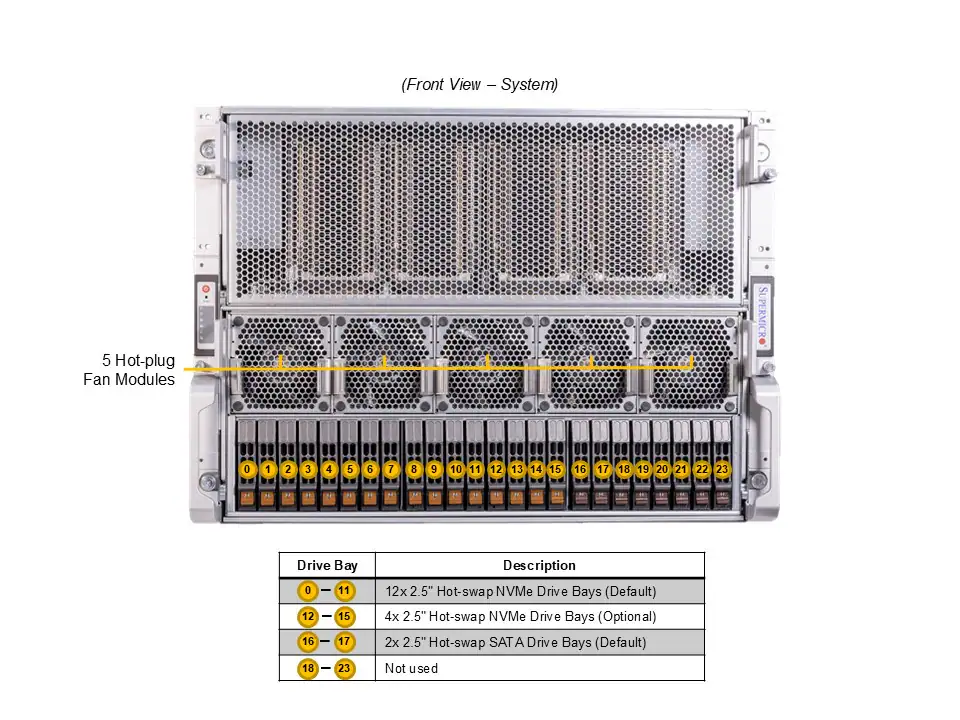

Drive Bays Configuration

- Default: Total 18 bays
  - 2 front hot-swap 2.5″ SATA drive bays
  - 4 front hot-swap 2.5″ NVMe* drive bays
  - 12 front hot-swap 2.5″ NVMe drive bays
- (*NVMe support may require additional storage controller and/or cables)

M.2

Fans	Up to 10 heavy duty fans with optimal fan speed control

6x 3000W Redundant (3 + 3) Titanium Level (96%) power supplies

Dimension (WxHxL)	106.5 x 82.1 x 245.5 mm
Input	3000W: 0240Vdc / 50-60Hz (for CQC only) 2880W: 200-207Vac / 50-60Hz 3000W: 207-240Vac / 50-60Hz 3000W:
+12V	Max: 91.66A / Min: 0A (200Vac-240Vac)
12V SB	Max: 3A / Min: 0A
Output Type	Backplanes (gold finger)
