GPU A+ Server AS -8126GS-NB3RT

(AS -8126GS-NB3RT)

instock

Categories: Servers, SuperMicro, GPU Servers

DP AMD 8U GPU System with NVIDIA HGX B300 NVL8
Key Features

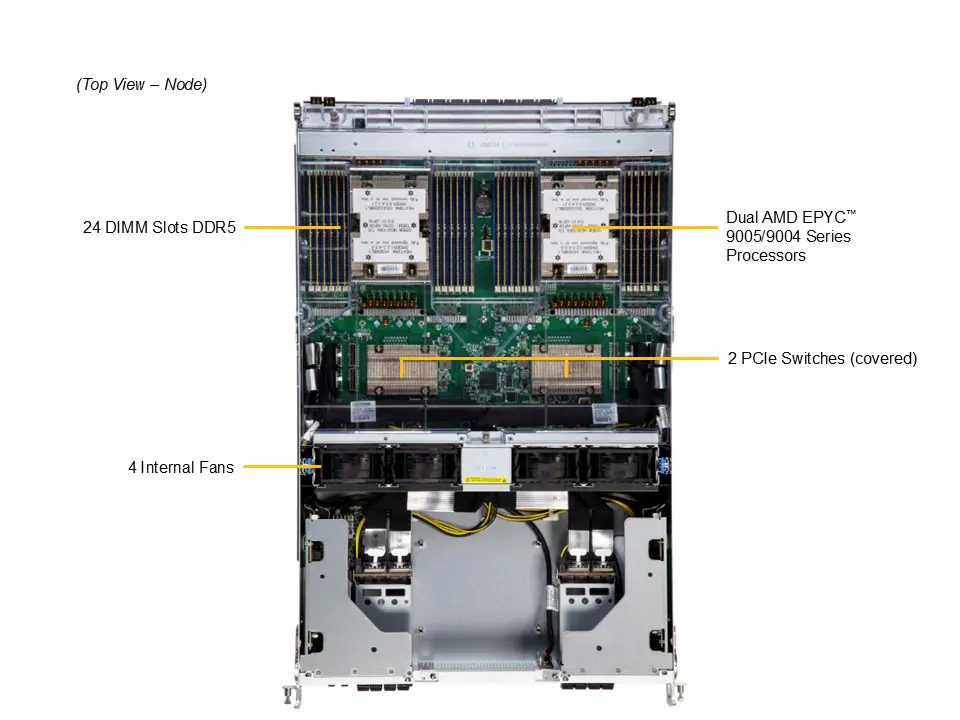

Dual AMD EPYC™ 9005/9004 Series Processors
NVIDIA HGX B300 8-GPU with 5th Generation NVLink® 1.8TB/s, 2.3TB of HBM3e GPU memory per system
24 DIMMs, with up to 6TB at 6400MT/s DDR5 memory
(Please check System Memory Section for detail)

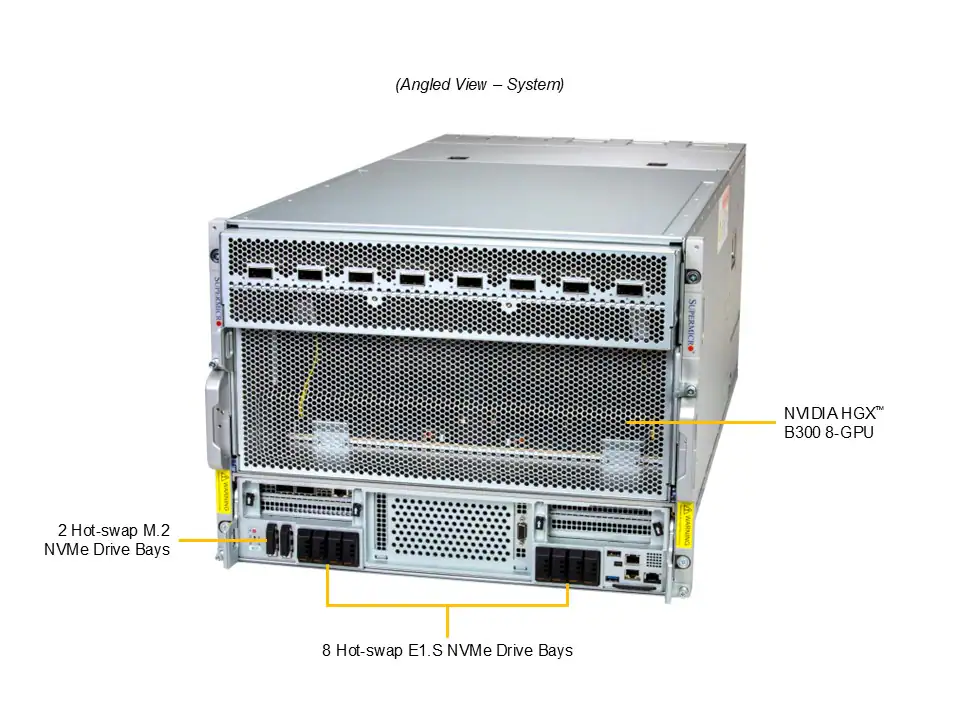

8 Hot-swap E1.S NVMe storage drive bays and 2 M.2 NVMe boot drives
8 NVIDIA ConnectX®-8 SuperNICs, up to 800Gb/s, up to two dual-port NVIDIA BlueField®-3 DPUs
6x 6600W Redundant (3 + 3) Titanium Level (96%) power supplies
(Power supply full redundancy based on configuration and application load)

MSRP^*

N/A

* Manufacturer’s Suggested Retail Price

Product Specifications

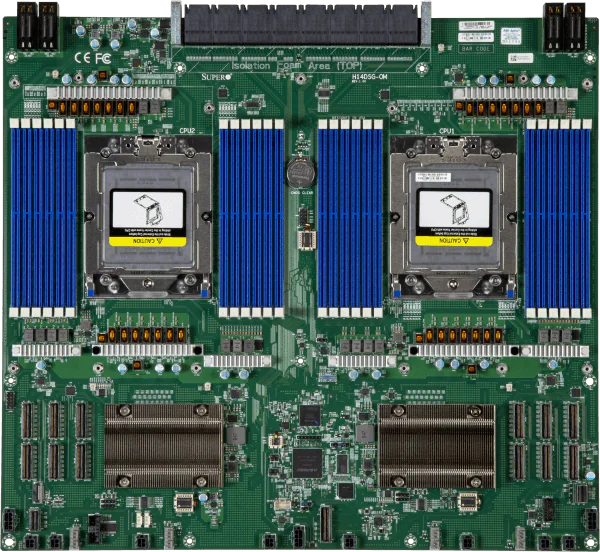

Super H14DSG-OM

CPU	Dual processor(s) AMD EPYC™ 9005/9004 Series Processors
Core Count	Up to 384C/768T
Note	Supports up to 500W TDP CPUs

Max GPU Count

- 8 onboard GPUs

Supported GPU

- NVIDIA SXM: HGX B300 8-GPU (288GB)

- View GPU Options

GPU-GPU Interconnect

- NVIDIA® NVLink® with NVSwitch™

Memory

- Slot Count: 24 DIMM slots
- Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
- Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)

- View Memory Options

Memory Voltage

- 1.1V

Chipset

- System on Chip

Network Connectivity

- 8 OSFP 800GbE

- View AOC Options

USB	1 USB 3.0 Type-A port(Front) 1 USB 2.0 Type-A port(Front)
Video	1 VGA port 1 mini-DP port

BIOS Type

AMI 64MB UEFI

Software	SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management

Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

CPU	Monitors for CPU Cores, Chipset Voltages, Memory 8+4 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Form Factor	8U Rackmount
Model	CSE-GP807TS-R000NP

Height	13.8″ (356 mm)
Width	17.6″ (449 mm)
Depth	37.4″ (950 mm)
Package	27.6″ (H) x 51″ (W) x 29.5″ (D)
Weight	Gross Weight: 266.76 lbs (121 kg) Net Weight: 108 lbs (49.4 kg)
Available Color	Silver

LED	HDD activity LAN1 activity LAN2 activity Power Fail Power status System information (overheat/UID)
Buttons	Power On/Off UID

PCI-Express (PCIe) Configuration

- Default
  - 2 PCIe 5.0 x16 FHHL slots

- View AOC Options

Drive Bays Configuration

- Default: Total 8 bays
  - 8 front hot-swap E1.S NVMe drive bays

- View NVMe Options

M.2

- 2 M.2 NVMe slots (M-key)

- View M.2 Options

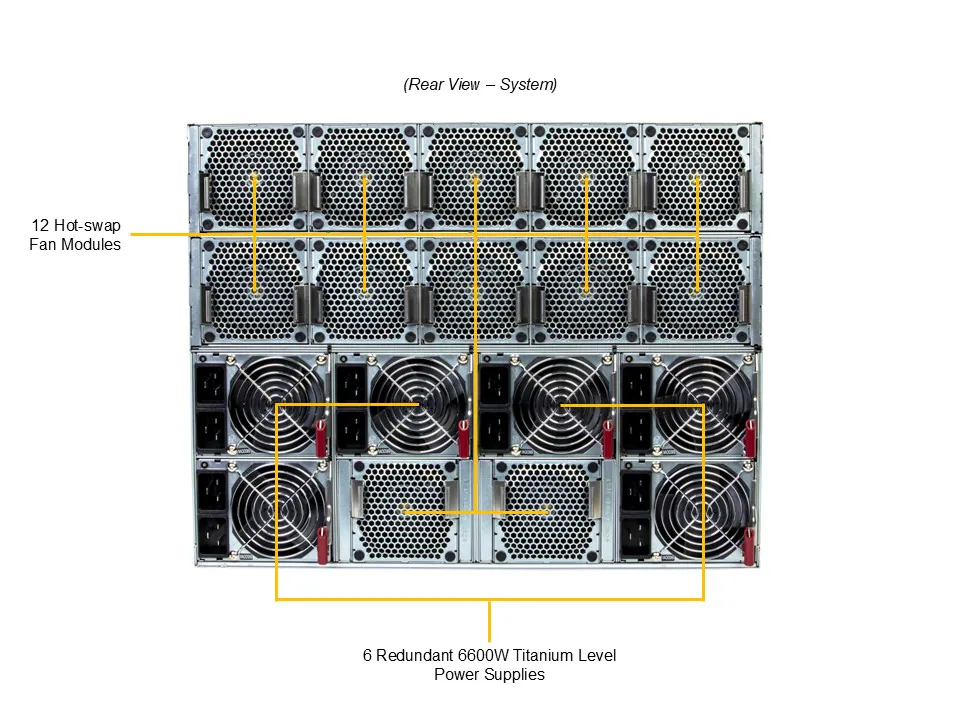

Fans	Up to 12 heavy duty fans with optimal fan speed control

6x 6600W Redundant (3 + 3) Titanium Level (96%) power supplies

Dimension (WxHxL)	106.5 x 82.1 x 245.3 mm
Input	5900W: 200-207.9Vac / 50-60Hz 6000W: 208-219.9Vac / 50-60Hz 6300W: 220-229.9Vac / 50-60Hz 6500W: 230-238.9Vac / 50-60Hz 6600W: 239-240Vac / 50-60Hz
+12V	Max: 130A / Min: 0A (200Vac-207.9Vac) Max: 130A / Min: 0A (208Vac-219.9Vac) Max: 130A / Min: 0A (220Vac-229.9Vac) Max: 130A / Min: 0A (230Vac-238.9Vac) Max: 130A / Min: 0A (239Vac-240Vac)
12V SB	Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)
Certification	Titanium Level [ Test Report ]
