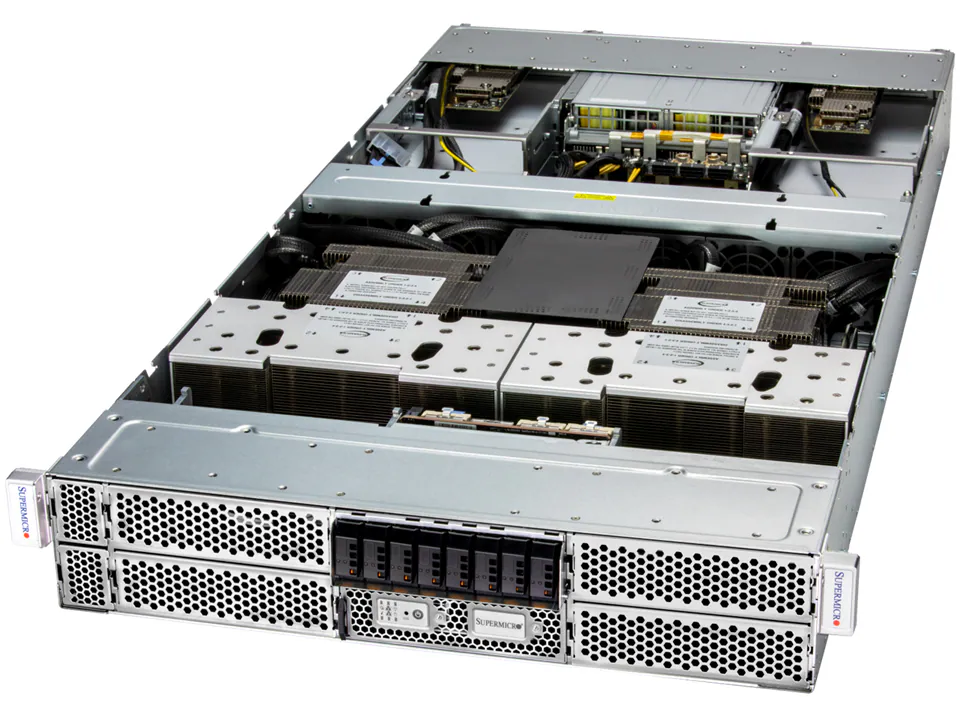

GPU ARS-221GL-NHIR

(ARS-221GL-NHIR)
instock
  • Ready to Ship Today
Categories: Servers, SuperMicro, GPU Servers

DP NVIDIA GH200 Grace Hopper Superchip system supporting NVIDIA BlueField-3 or NVIDIA ConnectX-7

Key Features

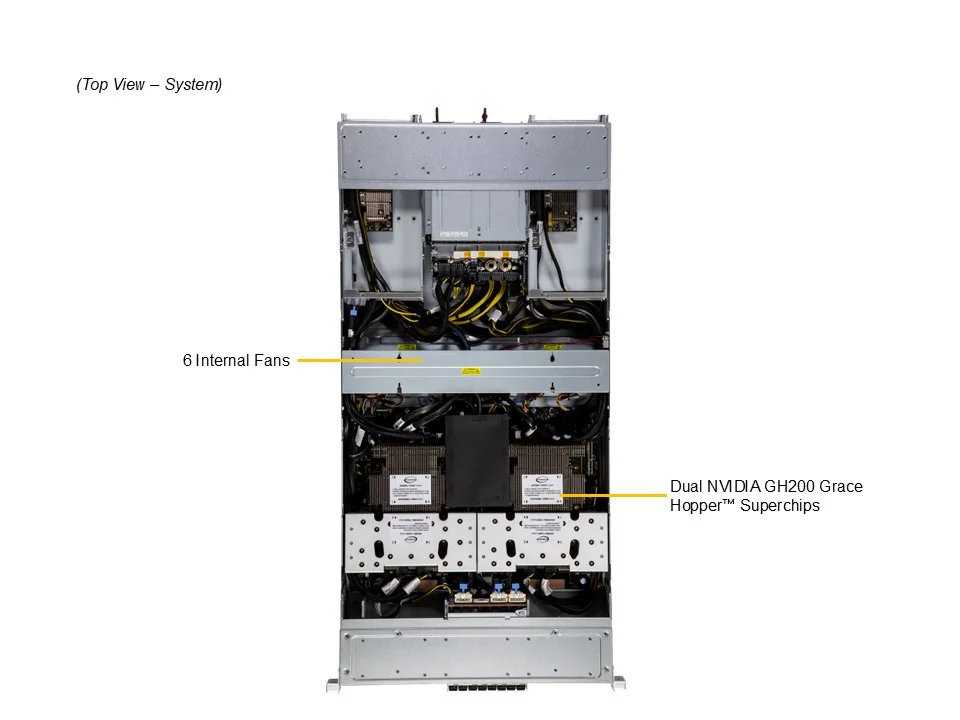

  1. High density 2U 1-node GPU system with two Integrated NVIDIA H100 GPUs and two 72-core Arm Neoverse V2 CPUs
    NVIDIA® NVLink® high speed interconnect between both GH200 Super Chips
  2. NVIDIA Grace™ Hopper Superchip (Grace CPU and H100 GPU)
  3. NVLink® Chip-2-Chip (C2C) high-bandwidth, low-latency interconnect between CPU and GPU at 900GB/s
  4. Up to 1248GB of coherent memory (system as a whole), including 960GB LPDDR5X and 288GB of HBM3e for LLM applications
  5. 4x PCIe 5.0 X16 supporting one NVIDIA Bluefield 3 and two connectX-7 cards
  6. 6 Heavy Duty Fans with Optional Speed Control
MSRP*
N/A
Call for pricing
request for quote

* Manufacturer’s Suggested Retail Price

Product Specifications

System Features

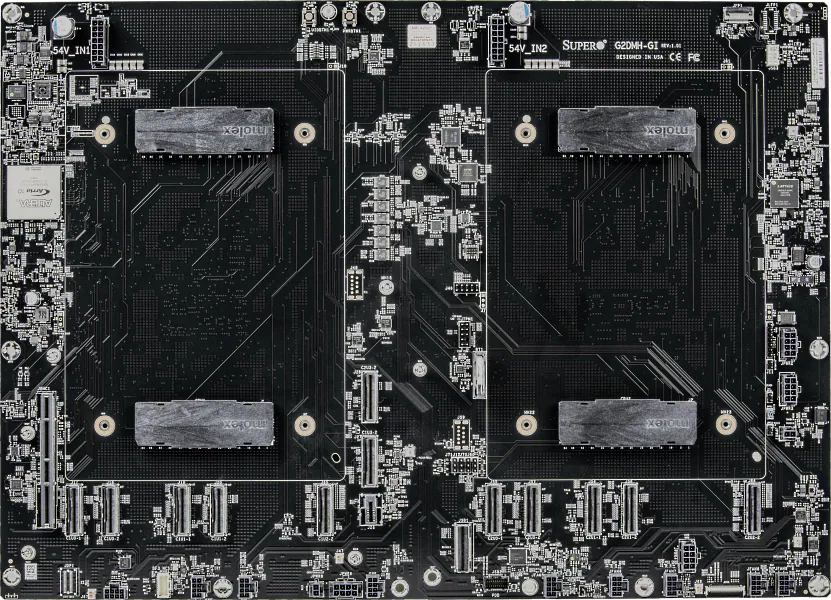

Super G2DMH-GI
CPU
  • NVIDIA 72-core NVIDIA Grace CPU on GH200 Grace Hopper™ Superchip
Note
  • Supports up to 300W TDP CPUs (Air Cooled)
Max GPU Count
    • 2 onboard GPUs


Supported GPU
    • NVIDIA: H100 Tensor Core GPU on GH200 Grace Hopper™ Superchip (Air-cooled)

CPU-GPU Interconnect
    • NVLink®-C2C


GPU-GPU Interconnect
    • NVIDIA® NVLink®


Certification
    • Nvidia Certified


Memory
    • Slot Count: Onboard Memory
    • Max Memory: Up to 960GB ECC LPDDR5X
    • Additional GPU Memory: Up to 288GB ECC HBM3e


Chipset
    • System on Chip


Network Connectivity

LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 1 port(Rear)
Video
  • 1 mini-DP port
BIOS Type
  • AMI 64MB UEFI
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Form Factor
  • 2U Rackmount
Model
Height
  • 3.43″ (87 mm)
Width
  • 17.3″ (438.4 mm)
Depth
  • 35.43″ (900 mm)
Package
  • 11.02″ (H) x 27.56″ (W) x 47.24″ (D)
Weight
  • Gross Weight: 103 lbs (46.8 kg)
  • Net Weight: 88 lbs (40 kg)
Available Color
  • Silver
LED
  • HDD activity
Buttons
  • Power On/Off

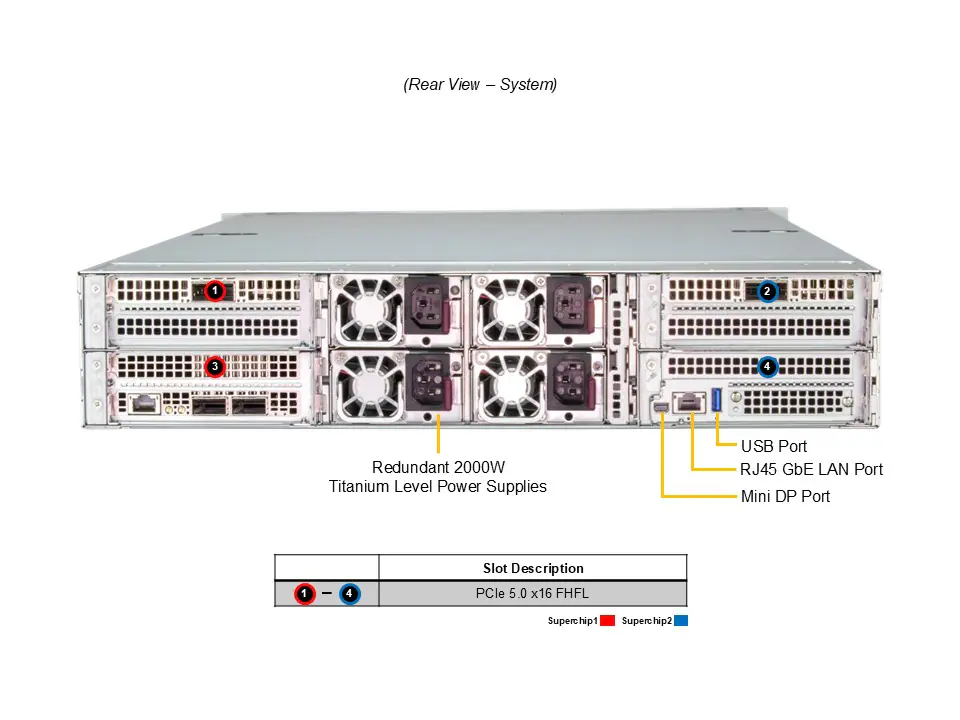

PCI-Express (PCIe) Configuration
    • Default
      • 3 PCIe 5.0 x16 (in x16) FHFL slots
      • 1 PCIe 5.0 x4 (in x16) FHFL slot

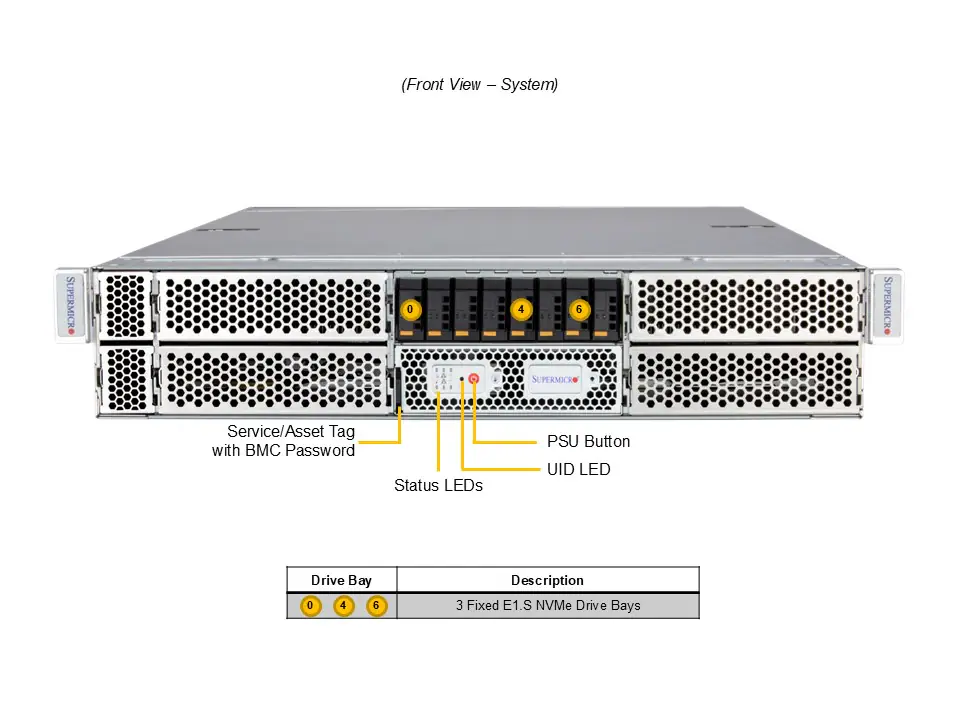

Drive Bays Configuration
    • Default: Total 3 bays

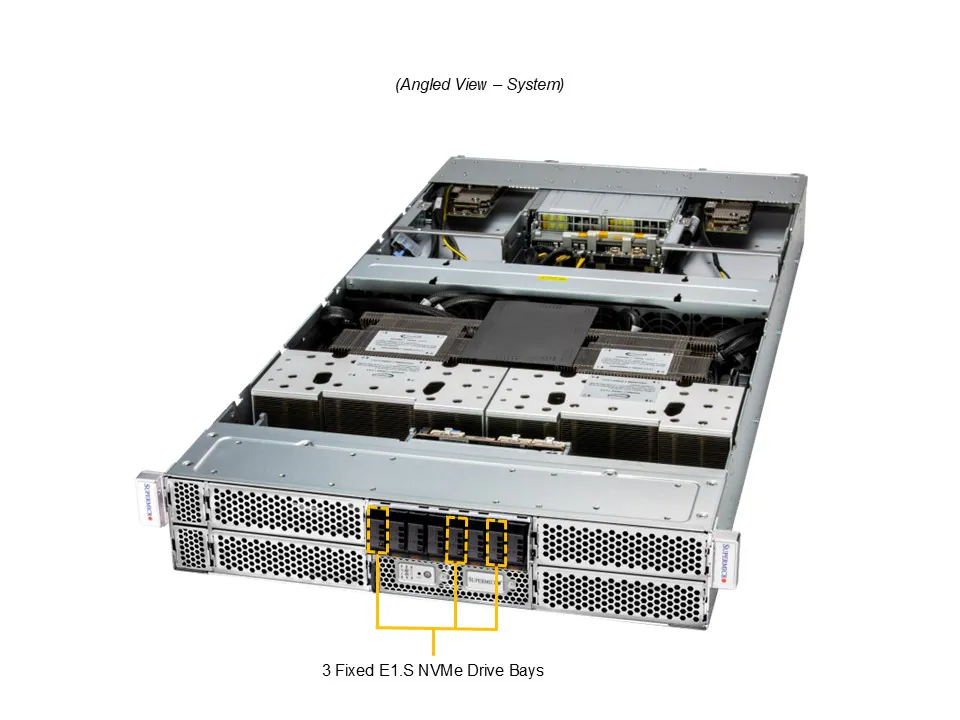

      • 3 front fixed E1.S NVMe drive bays


M.2
    • 2 M.2 NVMe slots (M-key)

Fans
  • Up to 6 Removable heavy-duty 6cm Fan(s)
4x 2000W Redundant (2 + 2) Titanium Level (96%) power supplies
Dimension (WxHxL)73.5 x 40 x 185 mm
Input1000W: 100-127Vac / 50-60Hz
1800W: 200-220Vac / 50-60Hz
1980W: 220-230Vac / 50-60Hz
2000W: 220-240Vac / 50-60Hz (for UL only)
2000W: 230-240Vac / 50-60Hz
2000W: 230-240Vdc / 50-60Hz (for CQC only)
+12VMax: 83A / Min: 0A (100Vac-127Vac)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 166A / Min: 0A (230Vac-240Vac)
12V SBMax: 3.5A / Min: 0A
Output TypeBackplanes (gold finger)
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
