GPU SuperServer SYS-210GP-DNR

(SYS-210GP-DNR)
instock
  • Ready to Ship Today
Categories: Servers, SuperMicro, GPU Servers

2U 2-Node System with UP Intel and Up to 3 GPUs per Node

Key Features

Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

  1. Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processor
  2. Intel® C621A Chipset
  3. 1TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs
  4. 3 PCIe Gen 4.0 x16 FHFL DW
  5. 2 front Hot-swap 2.5″ U.2 NVMe Gen4 drive bays
    2 M.2 NVMe and SATA for boot drive only
  6. AST2500 BMC
MSRP*
N/A
Call for pricing
request for quote

* Manufacturer’s Suggested Retail Price

Product Specifications

System Features
Super X12SPG-NF
CPU
  • Single Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
Max GPU Count
    • Up to 3 double-width or 3 single-width GPUs


Supported GPU
    • NVIDIA PCIe: A40, RTX A4500, RTX A4000, A30, A100, A10

CPU-GPU Interconnect
    • PCIe 4.0 x16 CPU-to-GPU Interconnect


GPU-GPU Interconnect
    • PCIe


Certification
    • Nvidia Certified


Memory
    • Slot Count: 8 DIMM slots
    • Max Memory (2DPC): Up to 1TB 3200MT/s ECC DDR4 RDIMM/LRDIMM

Memory Voltage
    • 1.2V


Chipset
    • Intel® C621A


Network Connectivity
    • Via AIOM

Video
  • 1 VGA port
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 7 +1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Form Factor
  • 2U Rackmount
Model
Height
  • 3.47″ (88 mm)
Width
  • 17.6″ (447 mm)
Depth

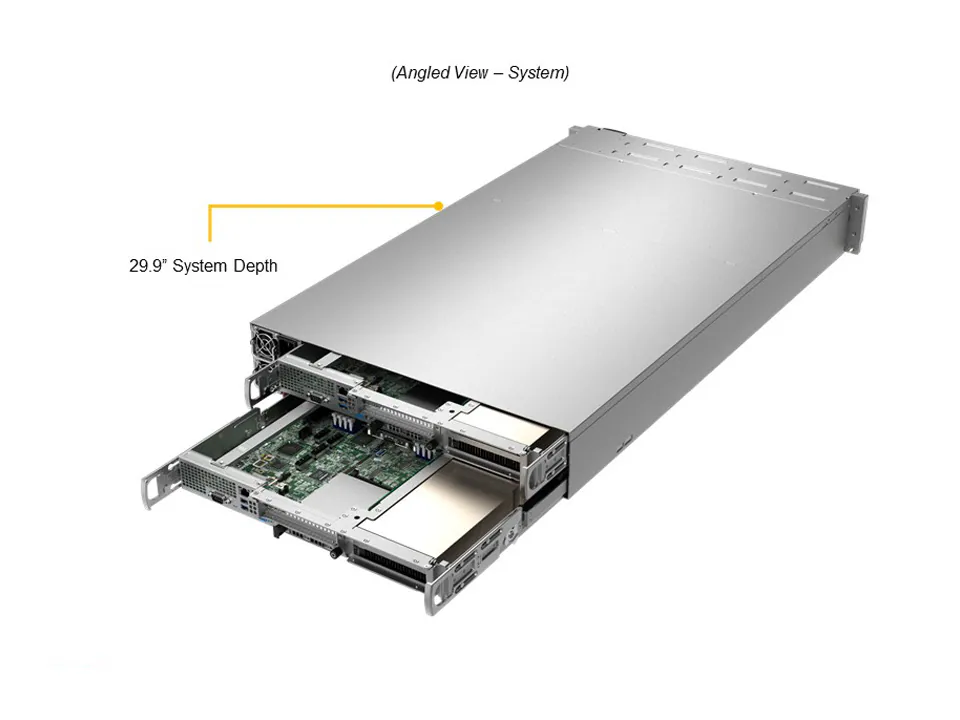

  • 29.9″ (760 mm)
Package
  • 9.44″ (H) x 23.62″ (W) x 43.3″ (D)
Weight
  • Gross Weight: 60 lbs (27.21 kg)
  • Net Weight: 55 lbs (24.94 kg)
Available Color
  • Black Front & Silver Body
LED
  • Hard drive activity LED
  • Information LED as manual description
  • Network activity LEDs
  • Power status LED
Buttons
  • Power On/Off button
  • System UID button/LED

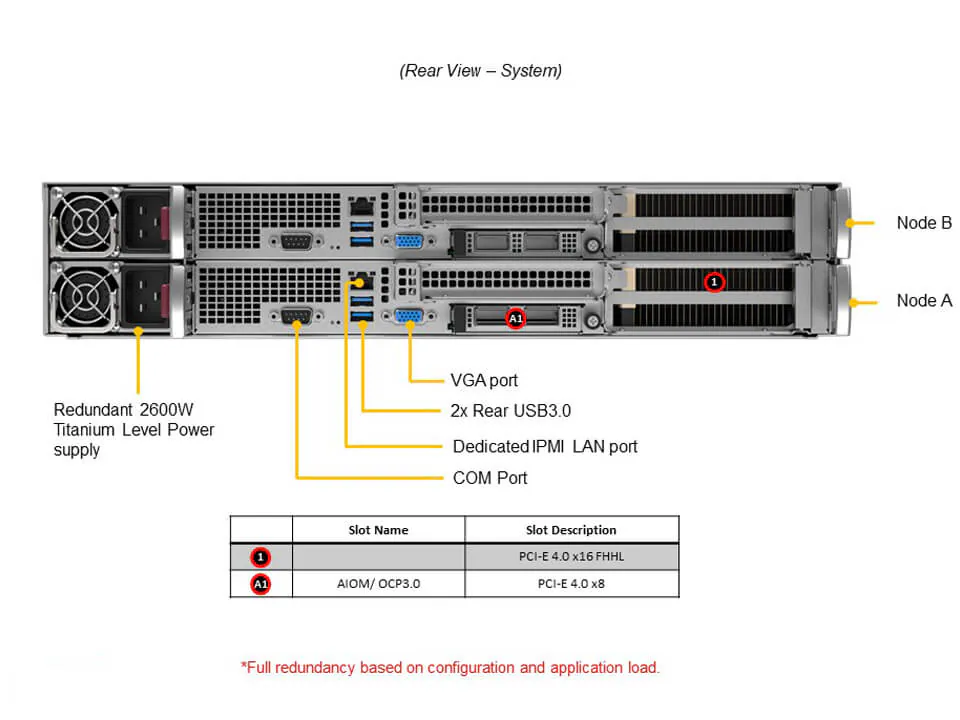

PCI-Express (PCIe) Configuration
    • Default
      • 3 PCIe 4.0 x16 FHFL double-width slots

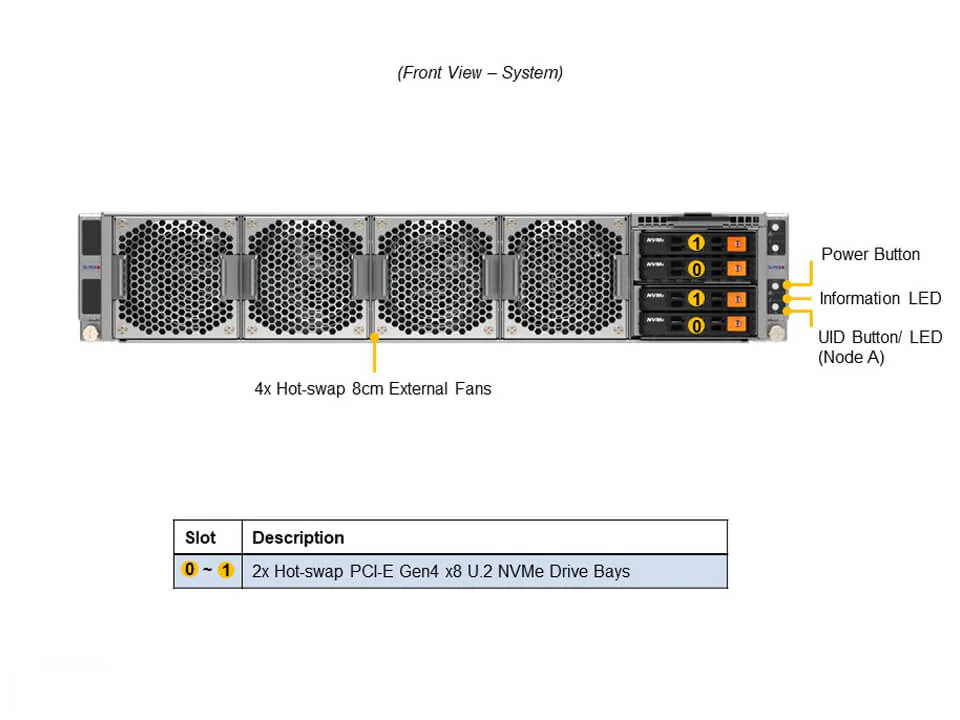

Drive Bays Configuration
    • Default: Total 2 bays
      • 2 front hot-swap 2.5″ NVMe drive bays

M.2
    • 2 M.2 NVMe/SATA slots (M-key)

Fans
  • Up to 4 Removable heavy-duty Fan(s)
1x 2600W Redundant Titanium Level (96%) power supply
Dimension (WxHxL)73.5 x 40 x 265 mm
Input2600W: 200-240Vac
2600W: 200-240Vdc (For CQC Only)
2600W: 200-240Vac / 50-60Hz
2600W: 200-240Vdc / 50-60Hz (for CQC only)
+12VMax: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output)
Max: 216A / Min: 0A (200Vac-240Vac)
12V SBMax: 3.5A
Output TypeBackplanes (gold finger)
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)

Related Products

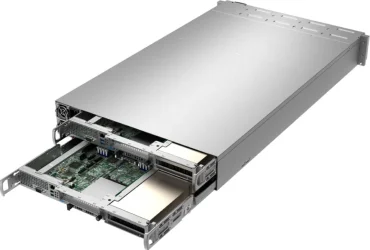

AS -2114GT-DPNR_main
