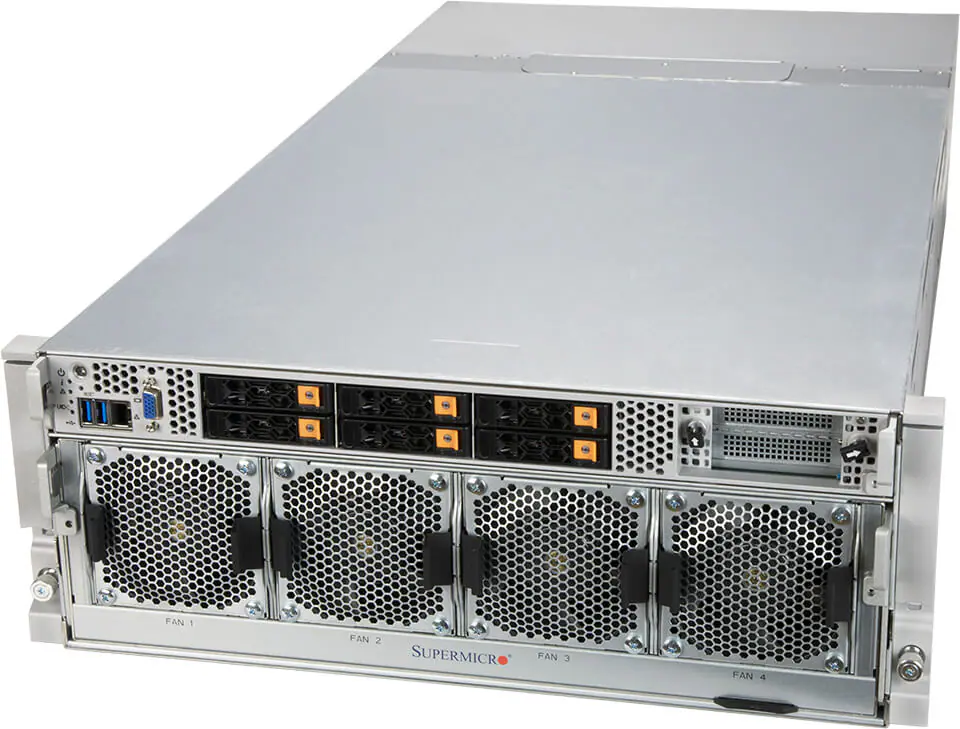

GPU SuperServer SYS-420GP-TNAR+

(SYS-420GP-TNAR+)
instock
  • Ready to Ship Today
Categories: Servers, SuperMicro, GPU Servers

DP Intel System with NVIDIA HGX A100 8-GPU and 3000W Power Supplies

Key Features

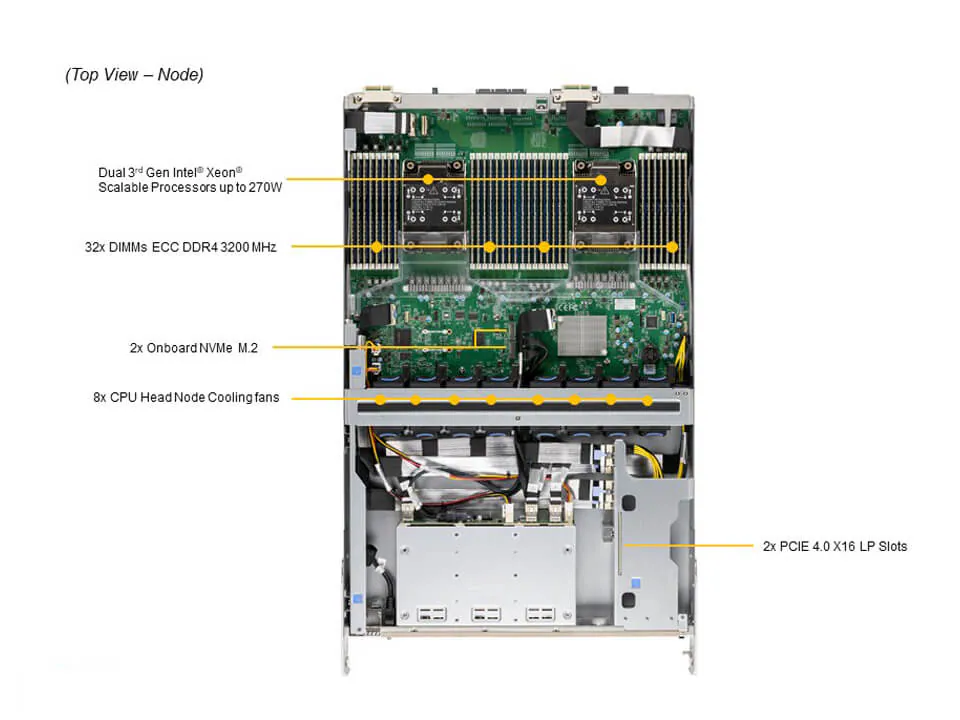

  1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
  2. Intel® C621A Chipset
  3. 32 DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM); 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
  4. AIOM/OCP 3.0 Support
    10 PCIe Gen 4.0 X16 LP Slots
  5. Flexible networking options
  6. 6x 2.5″ Hot-swap NVMe/SATA/SAS drive bays
    2 M.2 NVMe and SATA for boot drive only
  7. 4 heavy duty fans with optimal fan speed control

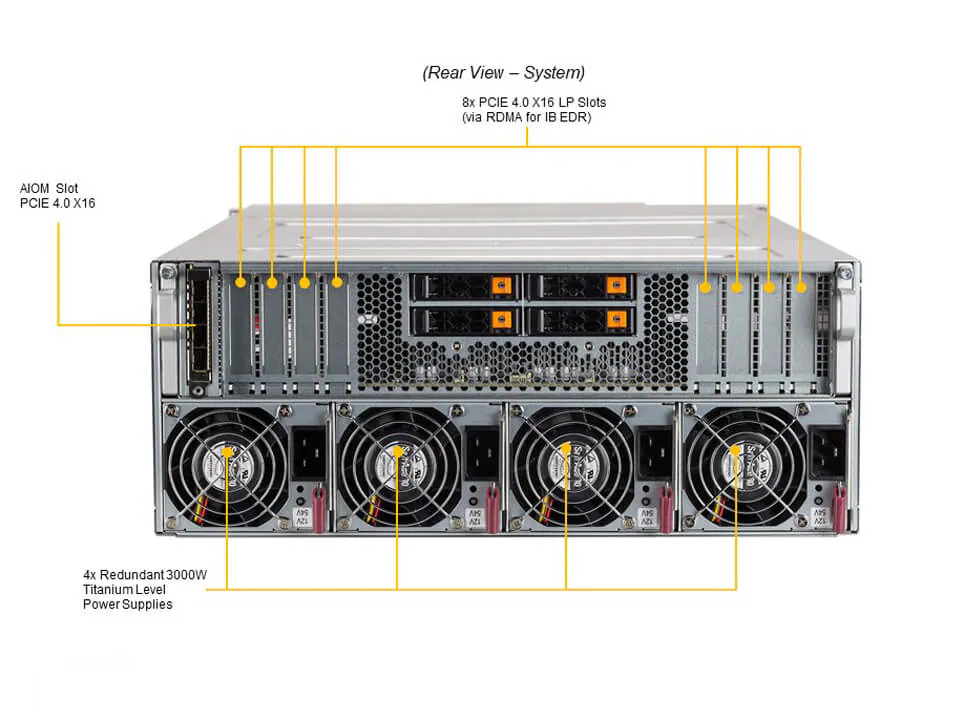

  8. 4x 3000W redundant Titanium level power supplies
MSRP*
N/A
Call for pricing
request for quote

* Manufacturer’s Suggested Retail Price

Product Specifications

System Features

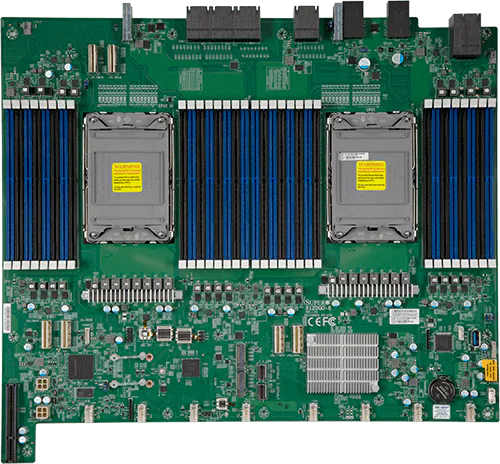

Super X12DGO-6
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache per CPU
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
Max GPU Count
    • 8 onboard GPUs


Supported GPU

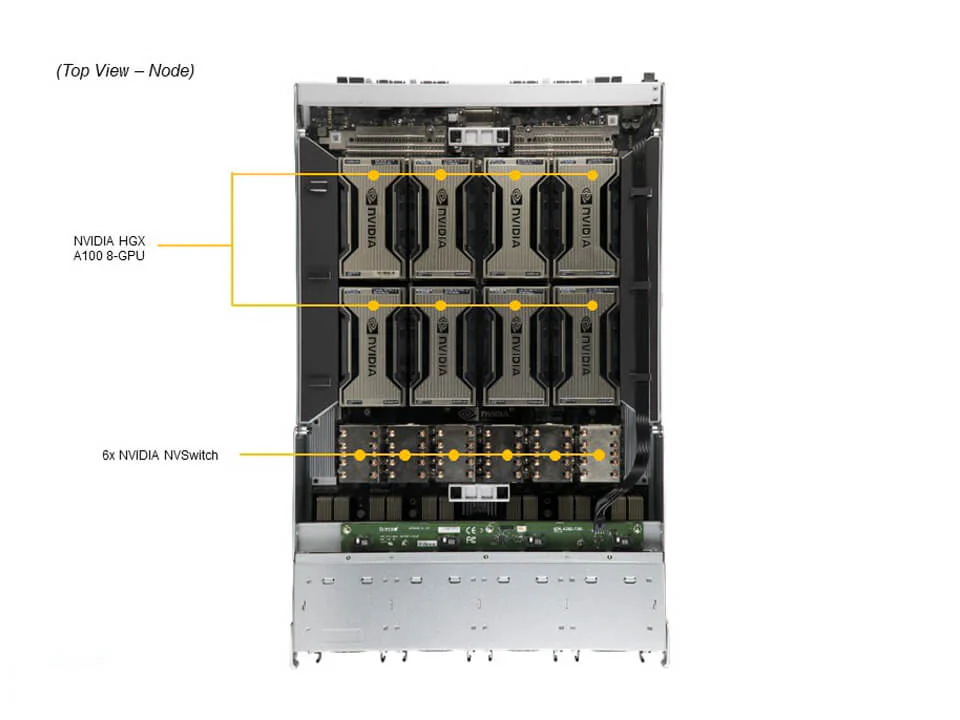

    • NVIDIA SXM: HGX A100 8-GPU (80GB)

CPU-GPU Interconnect
    • PCIe 4.0 x16 CPU-to-GPU Interconnect


GPU-GPU Interconnect
    • NVIDIA® NVLink® with NVSwitch™


Memory
    • Slot Count: 32 DIMM slots
    • Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
    • Supports Intel® Optane™ persistent memory 200 series

Memory Voltage
    • 1.2V


SATA
    • SATA (6Gbps) ; RAID 0/1/5/10 support


Chipset
    • Intel® C621A


Network Connectivity
    • 2 RJ45 10GbE with Intel® X550-AT2 (optional)

Video
  • 1 VGA port
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
Form Factor
  • 4U Rackmount
Model
Height
  • 6.9″ (174 mm)
Width
  • 17.6″ (446 mm)
Depth
  • 35.4″ (900 mm)
Package
  • 29.5″ (H) x 27.4″ (W) x 44.9″ (D)
Weight
  • Gross Weight: 225 lbs (102.1 kg)
  • Net Weight: 166 lbs (75.3 kg)
Available Color
  • Black Front & Silver Body
PCI-Express (PCIe) Configuration
    • Default
      • 10 PCIe 4.0 x16 LP slots

Drive Bays Configuration
    • Default: Total 6 bays

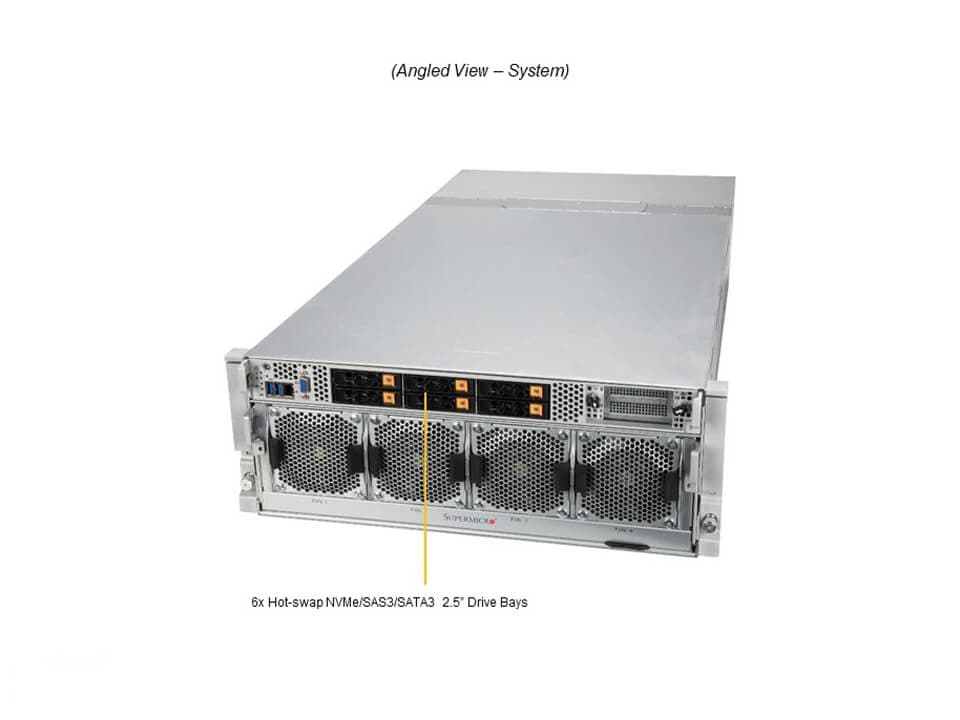

      • 6 front hot-swap 2.5″ NVMe/SAS/SATA drive bays

M.2
    • 2 M.2 NVMe/SATA slots (M-key)

Fans

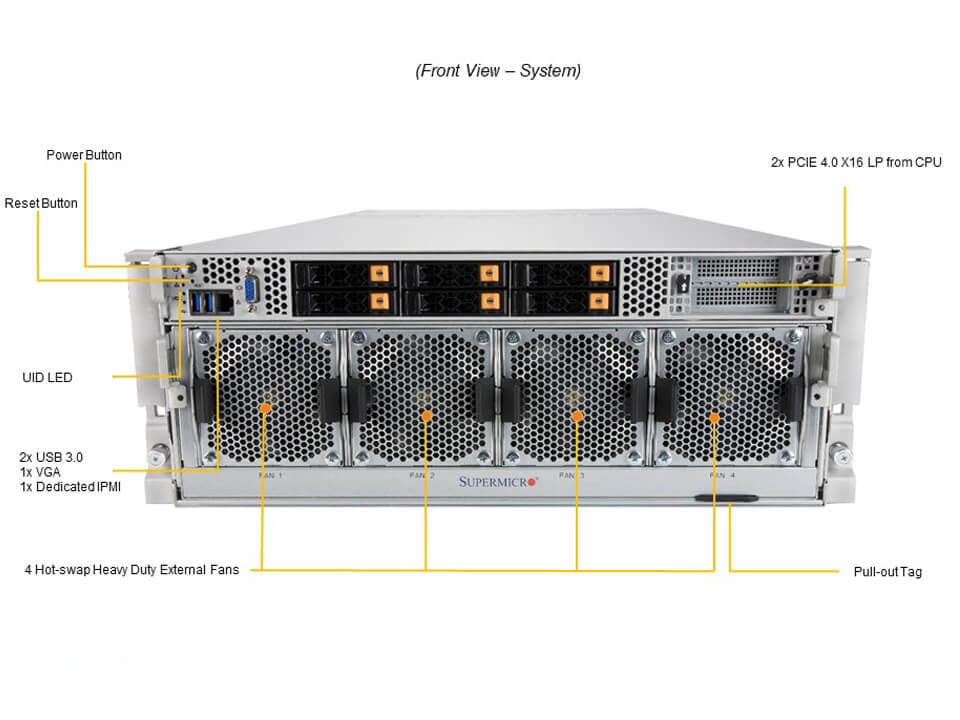

  • Up to 4 heavy duty fans with optimal fan speed control
1x 3000W Redundant Titanium Level (96%) power supply
Dimension (WxHxL)106.5 x 82.4 x 203.5 mm
Input2880W: 200-207Vac
2880W: 200-207Vac / 50-60Hz
3000W: 207.1-240Vac
3000W: 207.1-240Vac / 50-60Hz
3000W: 240Vdc
3000W: 240Vdc / 50-60Hz
+12VMax: 91.66A / Min: 0A (200Vac-240Vac)
Max: 91.66A / Min: 0A (Vdc-240Vdc)
12V SBMax: 4A / Min: 0A
Output TypeBackplanes (gold finger)
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
