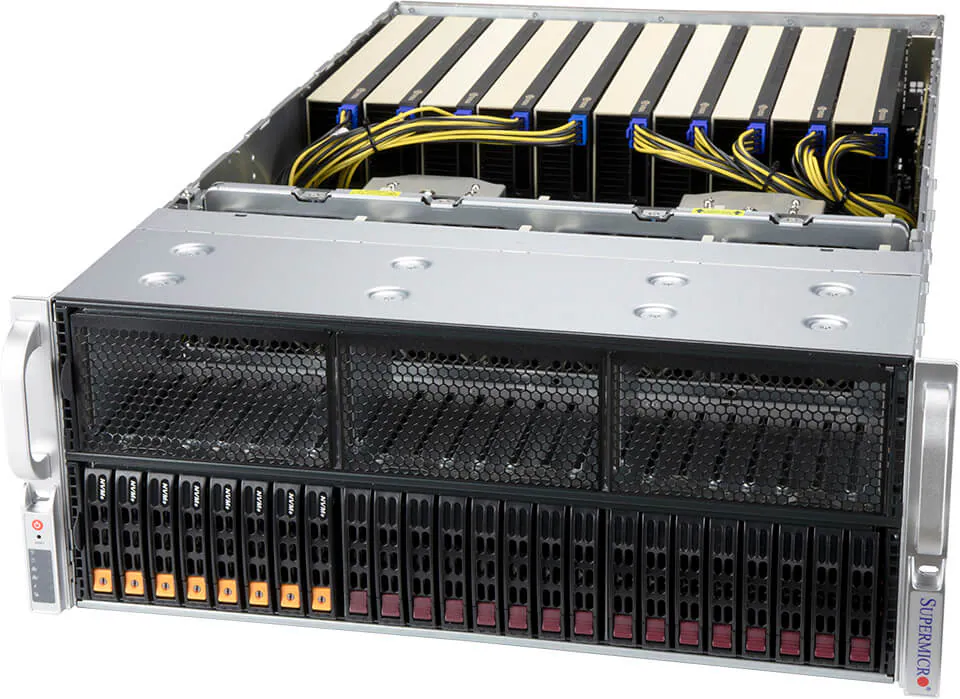

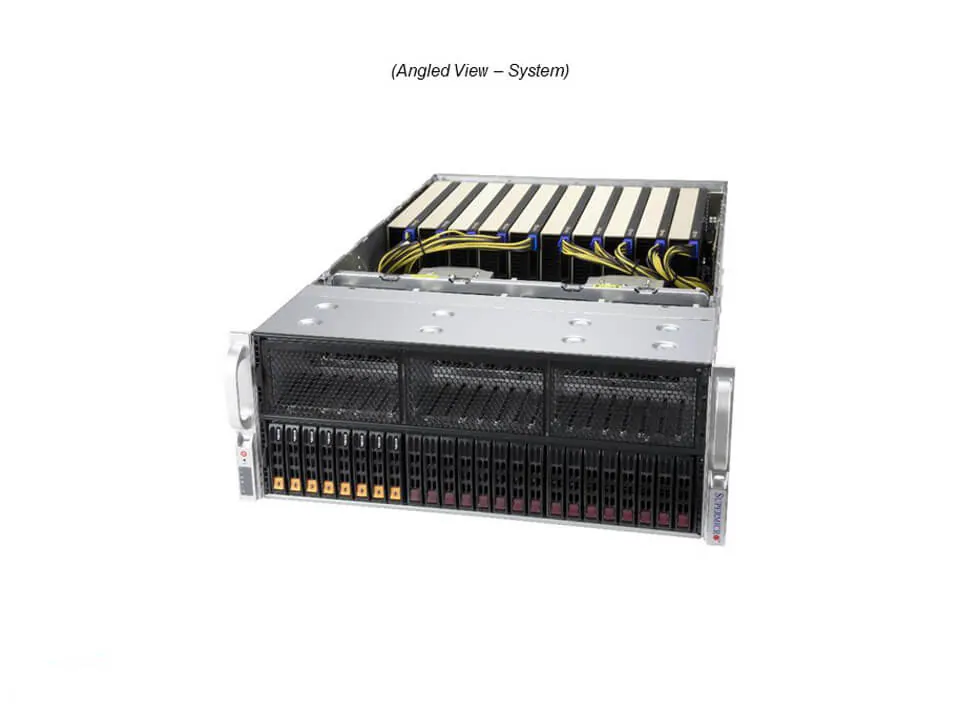

GPU SuperServer SYS-420GP-TNR

(SYS-420GP-TNR)

instock

Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors

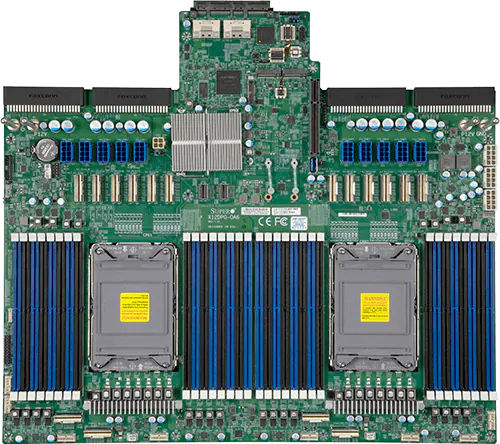

Intel® C621A Chipset
32 DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM); 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
AIOM/OCP 3.0 Support

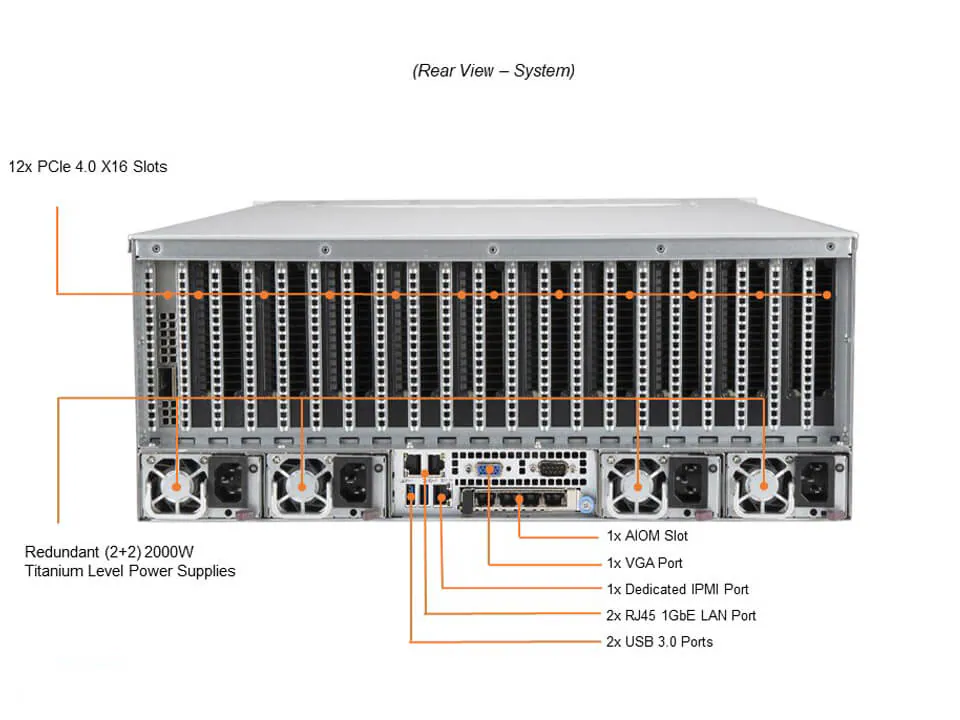

12 PCIe Gen 4.0 X16 FHFL Slots
Flexible networking options

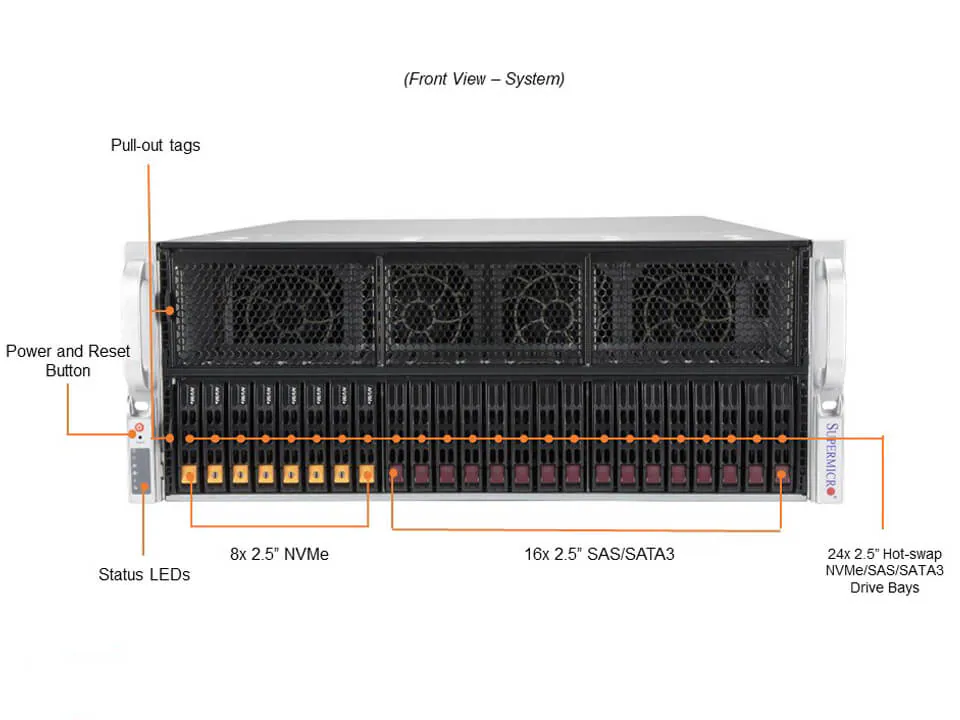

Total 24x 2.5″ Hot-swap drive bays
8x HOT SWAP 2.5” NVMe
8x HOT SWAP 2.5” SATA
8x HOT SWAP 2.5” SATA/SAS (AOC required)
2x M.2 NVMe for boot drive only
8 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control
4x 2000W redundant Titanium level power supplies

MSRP^*

N/A

* Manufacturer’s Suggested Retail Price

Product Specifications

CPU	Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Core Count	Up to 40C/80T; Up to 60MB Cache per CPU
Note	Supports up to 270W TDP CPUs (Air Cooled)

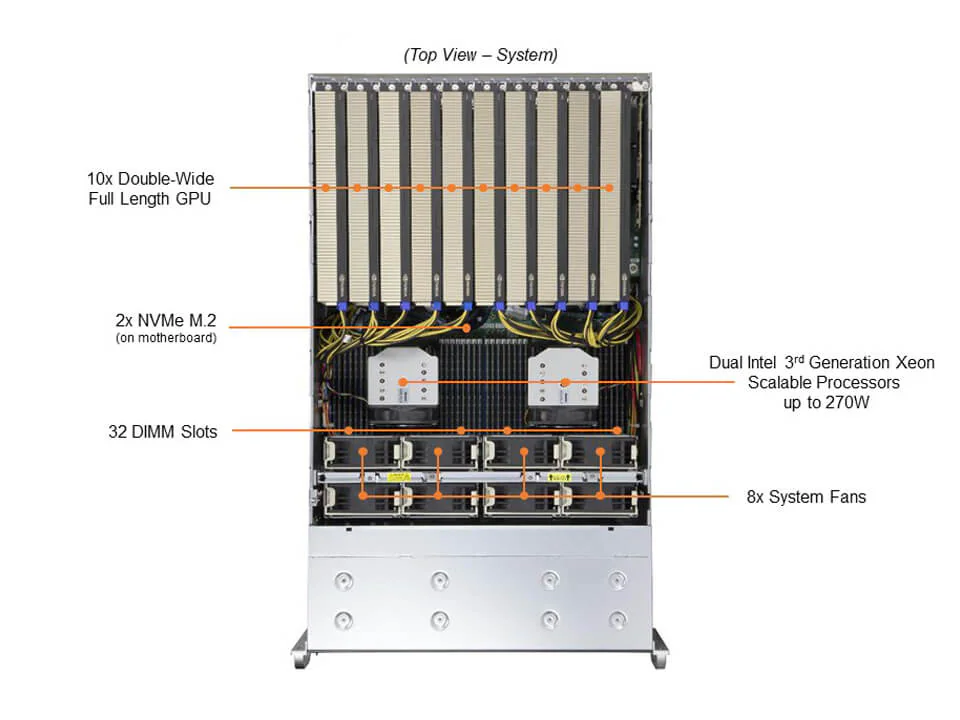

Max GPU Count	Up to 10 double-width or 10 single-width GPUs
Supported GPU	NVIDIA PCIe: H100, L40, RTX A5500, A40, RTX A6000, RTX A5000, RTX A4500, RTX A4000, RTX A2000, A30, A16, A2, A100, A10 Intel PCIe: Intel Data Center GPU Flex 170 View GPU Options
CPU-GPU Interconnect	PCIe 4.0 x16 Switch Dual-Root
GPU-GPU Interconnect	NVIDIA® NVLink® Bridge (optional)
Certification

Memory

- Slot Count: 32 DIMM slots
- Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
- Supports Intel® Optane™ persistent memory 200 series

Memory Voltage

SATA

Chipset

Network Connectivity

Video

BIOS Type

Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management

Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

CPU	Monitors for CPU Cores, Chipset Voltages, Memory 7 +1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Form Factor	4U Rackmount
Model	CSE-418G2TS-R4016BP

Height	7″ (178 mm)
Width	17.2″ (437 mm)
Depth	29″ (737 mm)
Package	26.57″ (H) x 27″ (W) x 41″ (D)
Weight	Gross Weight: 100 lbs (45.3 kg) Net Weight: 65.5 lbs (29.7 kg)
Available Color	Black Front & Silver Body

PCI-Express (PCIe) Configuration

Drive Bays Configuration

M.2

Fans	Up to 8 heavy duty fans with optimal fan speed control

4x 2000W Redundant Titanium Level (96%) power supplies

Dimension (WxHxL)	73.5 x 40 x 203 mm
Input	1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac 1980W: 220-230Vac / 50-60Hz 2000W: 220-240Vac 2000W: 220-240Vac / 50-60Hz (for UL only) 2000W: 230-240Vdc 2000W: 230-240Vac 2000W: 230-240Vac / 50-60Hz 2000W: 230-240Vdc / 50-60Hz (for China only)
+12V	Max: 83A / Min: 0A (100Vac-127Vac) Max: 150A / Min: 0A (200Vac-220Vac) Max: 165A / Min: 0A (220Vac-230Vac) Max: 166A / Min: 0A (230Vac-240Vac)
12V SB	Max: 3.5A / Min: 0A Max: 3.5A
Output Type	Backplanes (gold finger)
