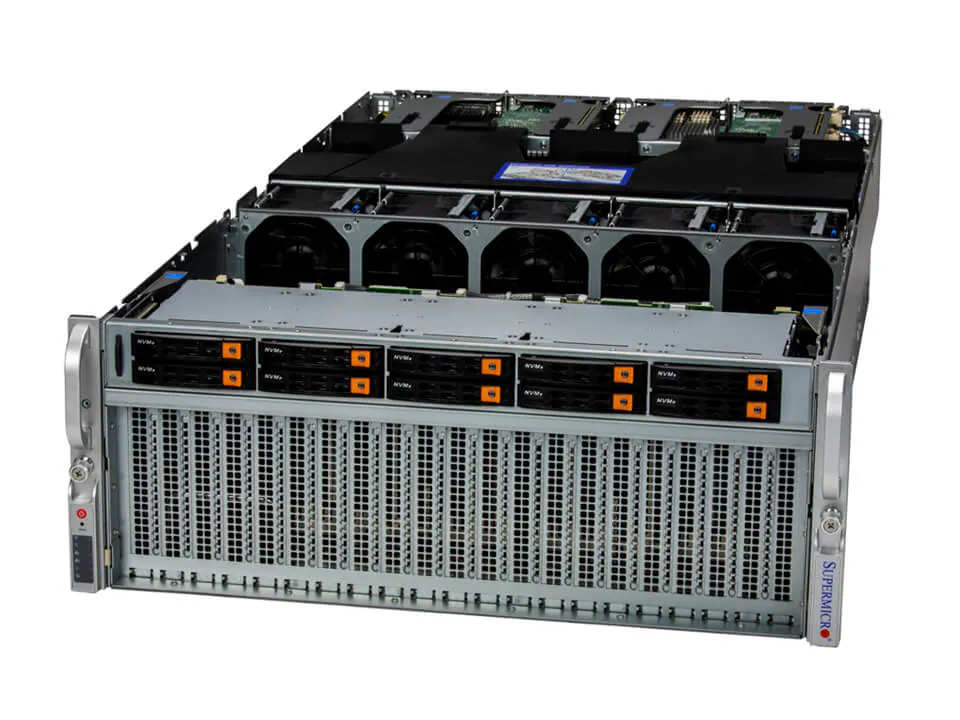

GPU SuperServer SYS-420GU-TNXR

(SYS-420GU-TNXR)
instock
  • Ready to Ship Today
Categories: Servers, SuperMicro, GPU Servers

DP Intel Universal GPU System with NVIDIA HGX A100 4-GPU

Key Features

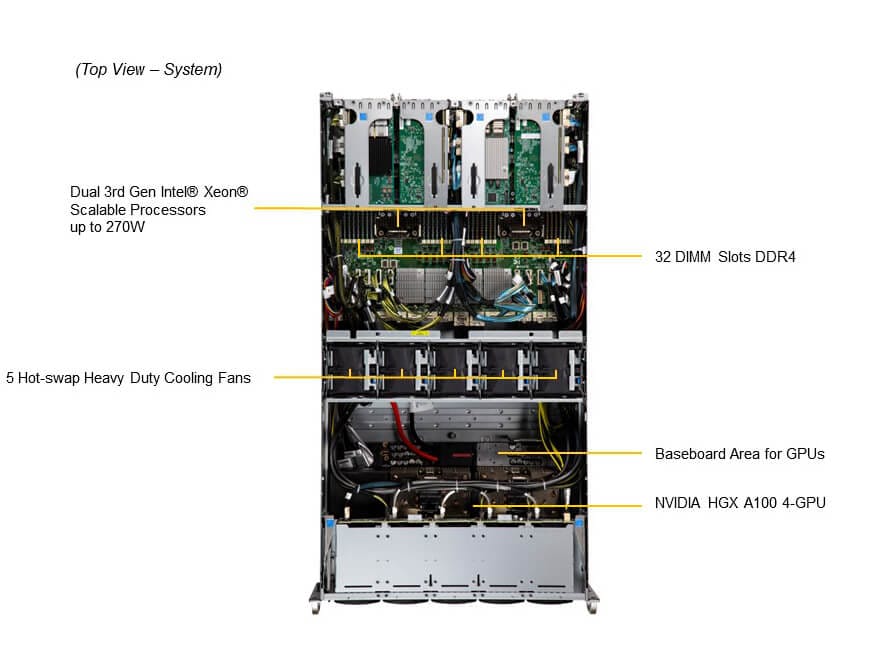

  1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
  2. Intel® C621A Chipset
  3. 32 DIMM Slots; Up to 8TB DRAM; 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM
  4. Highest GPU communication using NVIDIA® NVLINK™
    Supports HGX A100 4-GPU 40GB (HBM2) or 80GB (HBM2e)
    4U system with NVIDIA® HGX™ A100 4-GPU
    6 PCIe Gen 4.0 X16 LP Slots
  5. Flexible networking options

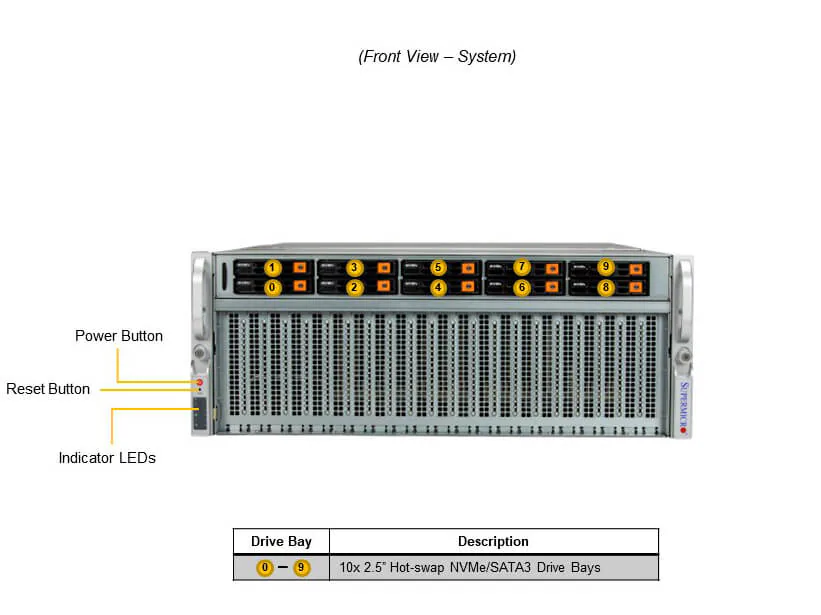

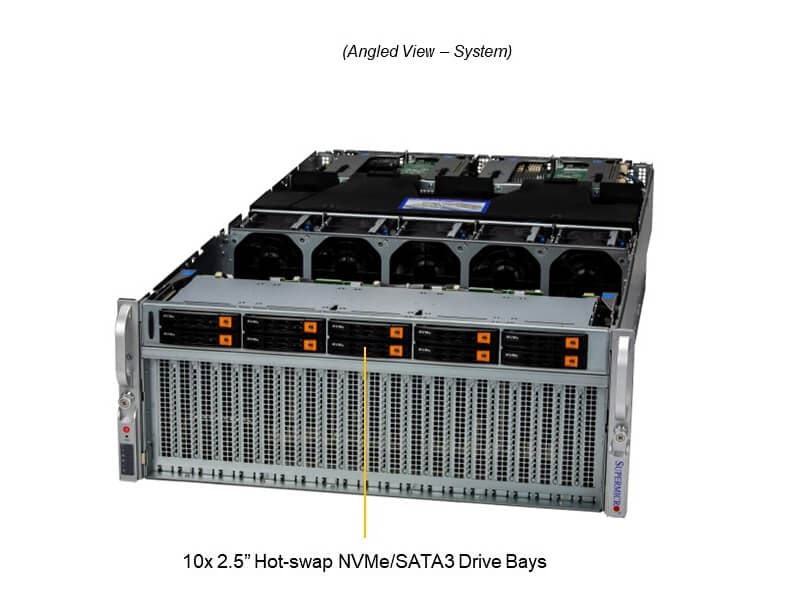

  6. Up to 10x 2.5″ Hot-swap  NVMe/SATA drive bays
    1 M.2  NVMe/SATA via Intel® C621A PCH chipset (for boot drive only)
  7. 5 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control

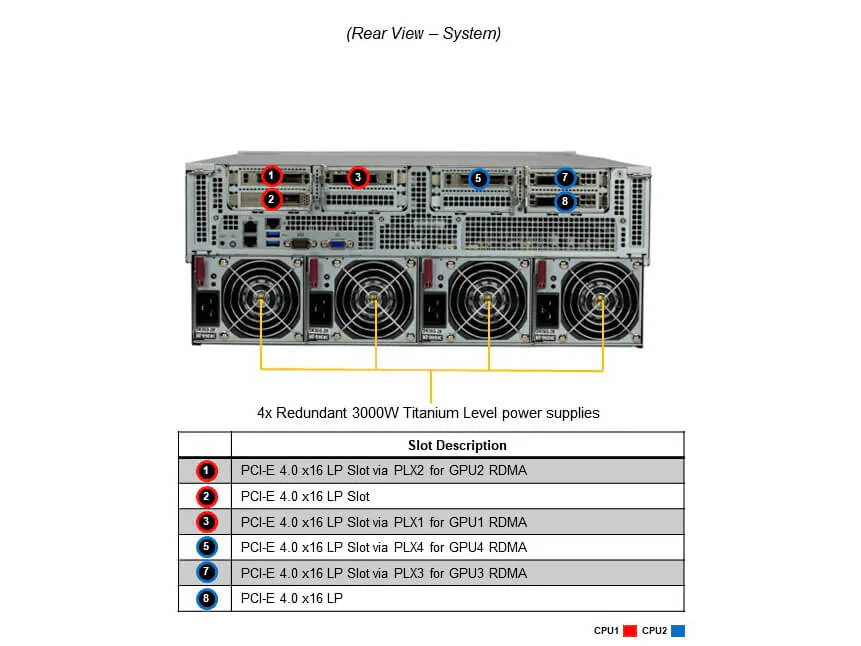

  8. 4x 3000W redundant Titanium level power supplies
MSRP*
N/A
Call for pricing
request for quote

* Manufacturer’s Suggested Retail Price

Product Specifications

System Features

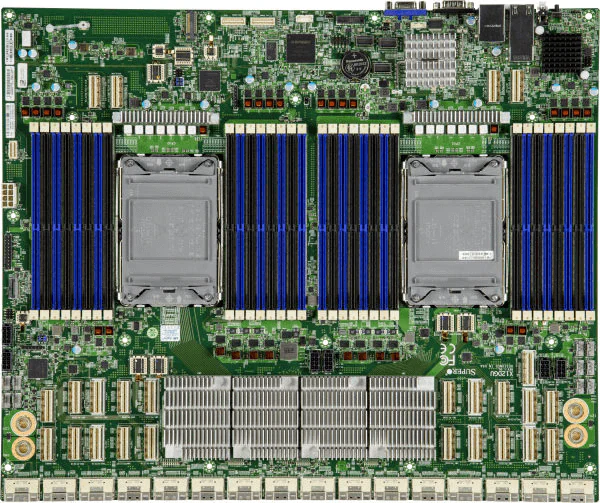

Super X12DGU
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache per CPU
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
Max GPU Count
    • 4 onboard GPUs


Supported GPU
    • NVIDIA SXM: HGX A100 4-GPU (80GB)

CPU-GPU Interconnect
    • PCIe 4.0 x16 Switch Dual-Root


GPU-GPU Interconnect
    • NVIDIA® NVLink®


Memory
    • Slot Count: 32 DIMM slots
    • Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM

Memory Voltage
    • 1.2V


SATA
    • SATA (6Gbps) ; RAID 0/1/5/10 support


Chipset
    • Intel® C621A


Network Connectivity
    • 2 RJ45 10GbE with Intel® X710

Video
  • 1 VGA port
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 7 +1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Form Factor
  • 4U Rackmount
Model
Height
  • 7″ (175.6 mm)
Width
  • 17.67″ (449 mm)
Depth
  • 32.79″ (833 mm)
Package
  • 14.57″ (H) x 27.55″ (W) x 49.6″ (D)
Weight
  • Gross Weight: 140 lbs (64 kg)
  • Net Weight: 105 lbs (48 kg)
Available Color
  • Black Front & Silver Body
LED
  • Hard drive activity LED
  • Network activity LEDs
  • Power status LED
  • System Overheat & Power Fail LED
Buttons
  • Power On/Off button
  • System Reset button
PCI-Express (PCIe) Configuration
    • Default
      • 6 PCIe 4.0 x16 LP slots

Drive Bays Configuration
    • Default: Total 10 bays
      • 10 front hot-swap 2.5″ NVMe/SATA drive bays

M.2
    • 2 M.2 NVMe/SATA slots (M-key)

Fans
  • Up to 5 removable heavy-duty Fan(s)
4x 3000W Redundant Titanium Level (96%) power supplies
Dimension (WxHxL)106.5 x 82.1 x 245.5 mm
Input3000W: 0240Vdc / 50-60Hz (for CQC only)
2880W: 200-207Vac / 50-60Hz
3000W: 207-240Vac / 50-60Hz
3000W:
+12VMax: 91.66A / Min: 0A (200Vac-240Vac)
12V SBMax: 3A / Min: 0A
Output TypeBackplanes (gold finger)
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
