Home   »   Products   »   Servers   »   GPU SuperServer SYS-422GA-NBRT-LCC

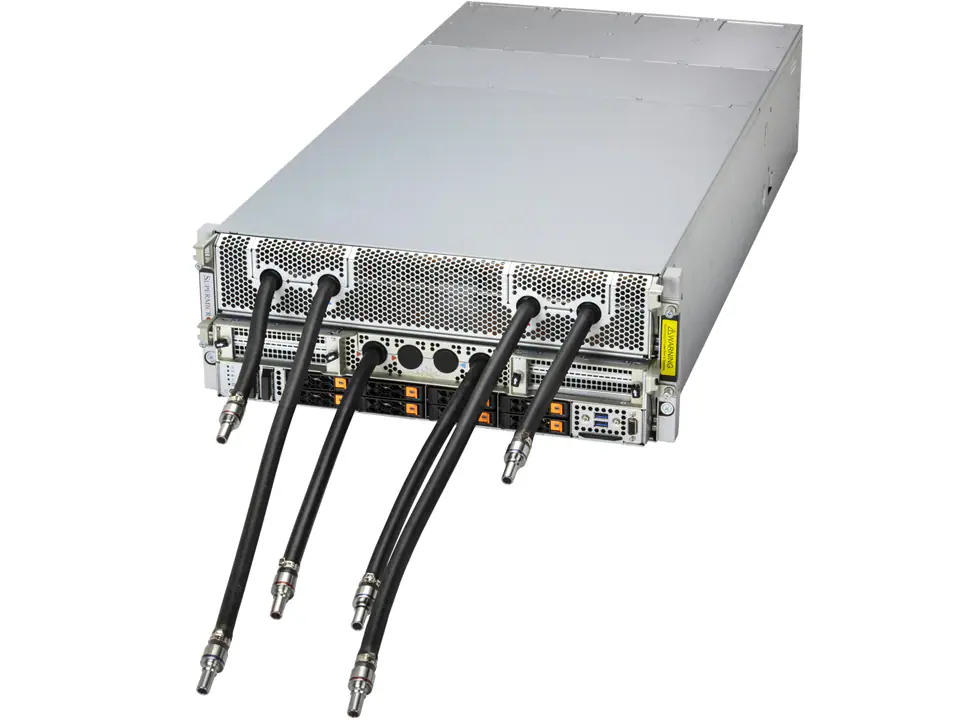

GPU SuperServer SYS-422GA-NBRT-LCC

(SYS-422GA-NBRT-LCC)
instock
  • Ready to Ship Today
Categories: Servers, SuperMicro, GPU Servers

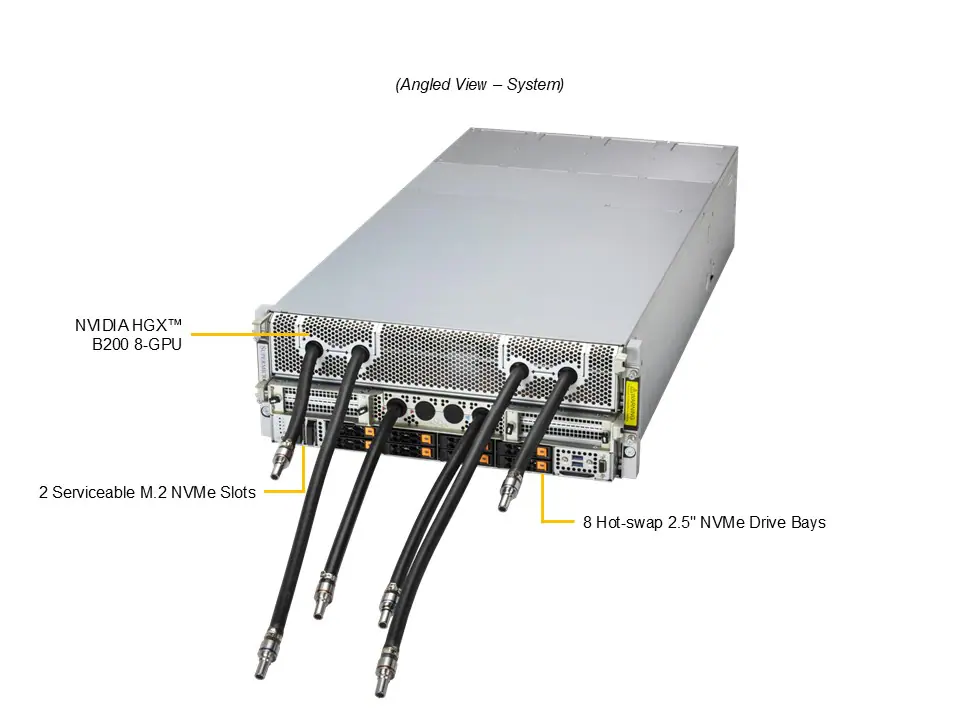

DP Intel 4U Liquid-Cooled System with NVIDIA HGX B200 8-GPU (complete rack and onsite service are required)

Key Features

  1. Complete liquid-cooled rack integration is required for purchase

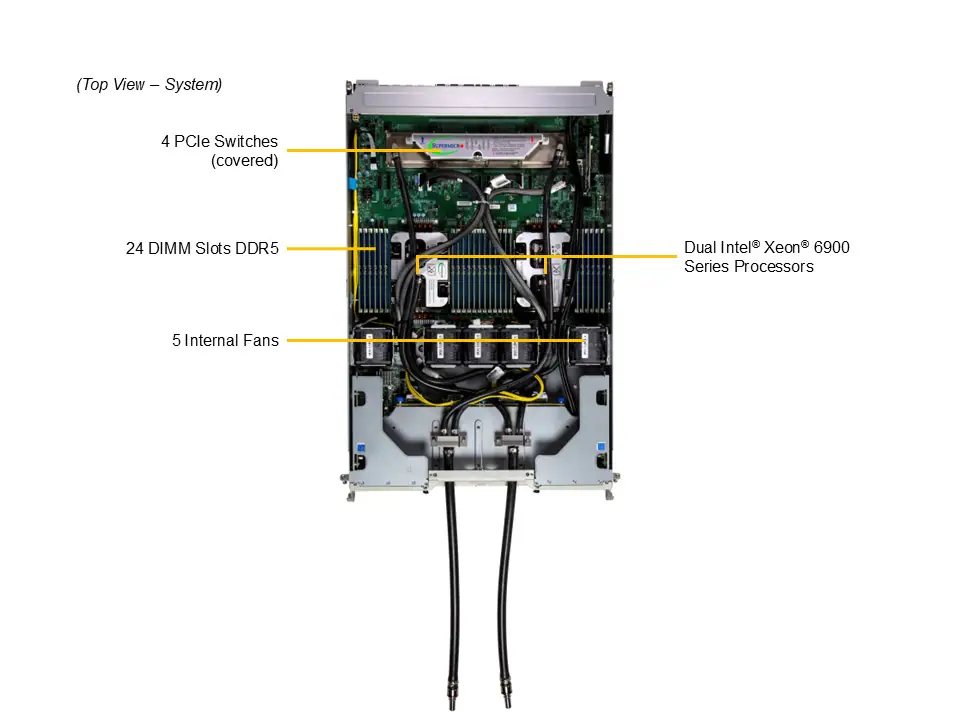

  2. Dual Intel® Xeon® 6900 series processors with P-cores
  3. 8x NVIDIA SXM B200 GPUs, 1.4TB of GPU memory space
  4. 24x DIMM slots, ECC RDIMM / MRDIMM DDR5 up to 8800MT/s (1DPC)
  5. 10x PCIe 5.0 x16 LP, 2x PCIe 5.0 x16 FHHL slots
  6. 8x front hot-swap 2.5″ NVMe U.2, 2x front hot-swap NVMe M.2
  7. 2x 10GbE RJ-45, 1x Dedicated BMC/IPMI
MSRP*
N/A
Call for pricing
request for quote

* Manufacturer’s Suggested Retail Price

Product Specifications

System Features

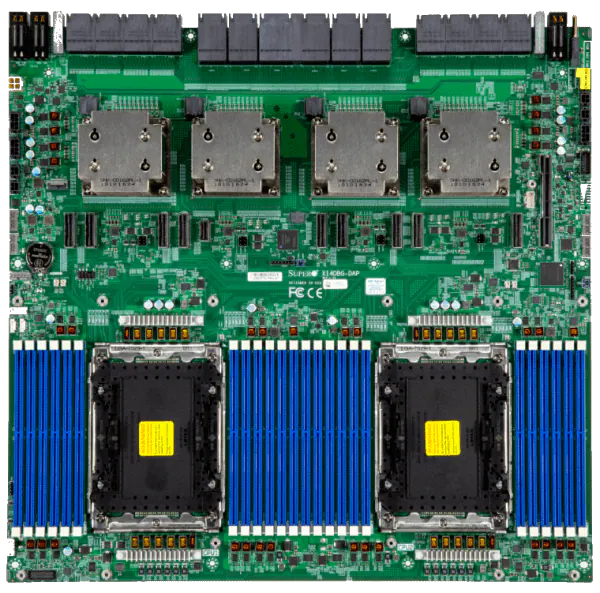

Super X14DBG-DAP
CPU
Core Count
  • Up to 128C/256T; Up to 504MB Cache per CPU
Note
  • Supports up to 500W TDP CPUs (Liquid Cooled)​
Max GPU Count
    • 8 onboard GPUs


Supported GPU
    • NVIDIA SXM: HGX B200 8-GPU (180GB)

CPU-GPU Interconnect
    • PCIe 5.0 x16 CPU-to-GPU Interconnect


GPU-GPU Interconnect
    • NVIDIA® NVLink® with NVSwitch™


Memory
    • Slot Count: 24 DIMM slots
    • Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM
    • Max Memory (1DPC): Up to 6TB 8800MT/s ECC DDR5 MRDIMM

Memory Voltage
    • 1.1V


Chipset
    • System on Chip


Network Connectivity
    • 2 RJ45 10GbE with Intel® X710-AT2

Video
  • 1 VGA port
BIOS Type
  • AMI 64MB UEFI
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 8+4 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Form Factor
  • 4U Rackmount
Model
Height
  • 6.85″ (174 mm)
Width
  • 17.6″ (449 mm)
Depth
  • 35.25″ (895.35 mm)
Package
  • 16.14″ (H) x 50.39″ (W) x 28.7″ (D)
Weight
  • Gross Weight: 236 lbs (107 kg)
  • Net Weight: 203 lbs (92 kg)
Available Color
  • Silver
LED
  • Network activity LEDs
  • System information (overheat/UID)
  • UID
Buttons
  • Power On/Off
  • UID/ Reset button
PCI-Express (PCIe) Configuration
    • Default
      • 10 PCIe 5.0 x16 LP slots
      • 2 PCIe 5.0 x16 FHHL slots

Drive Bays Configuration
    • Default: Total 8 bays
      • 8 front hot-swap 2.5″ NVMe drive bays

M.2
    • 2 M.2 NVMe slots (M-key)

Fans
  • Up to 5 Fan 60mm Fan(s)
Liquid Cooling
  • Direct to Chip (D2C) Cold Plate

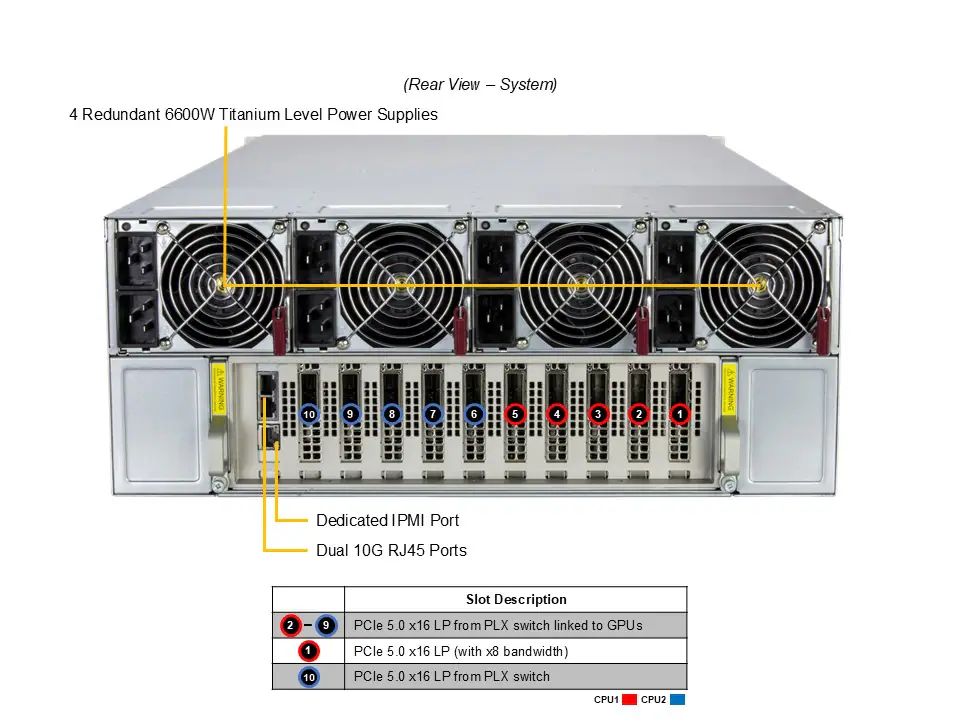

4x 6600W Redundant (2 + 2) Titanium Level (96%) power supplies
Dimension (WxHxL)106.5 x 82.1 x 245.3 mm
Input5900W: 200-207.9Vac / 50-60Hz
6000W: 208-219.9Vac / 50-60Hz
6300W: 220-229.9Vac / 50-60Hz
6500W: 230-238.9Vac / 50-60Hz
6600W: 239-240Vac / 50-60Hz
+12VMax: 130A / Min: 0A (200Vac-207.9Vac)
Max: 130A / Min: 0A (208Vac-219.9Vac)
Max: 130A / Min: 0A (220Vac-229.9Vac)
Max: 130A / Min: 0A (230Vac-238.9Vac)
Max: 130A / Min: 0A (239Vac-240Vac)
12V SBMax: 4A / Min: 0A
Output TypeBackplanes (gold finger)
CertificationTitanium Level94%+  Titanium Level

[ Test Report ]

Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
