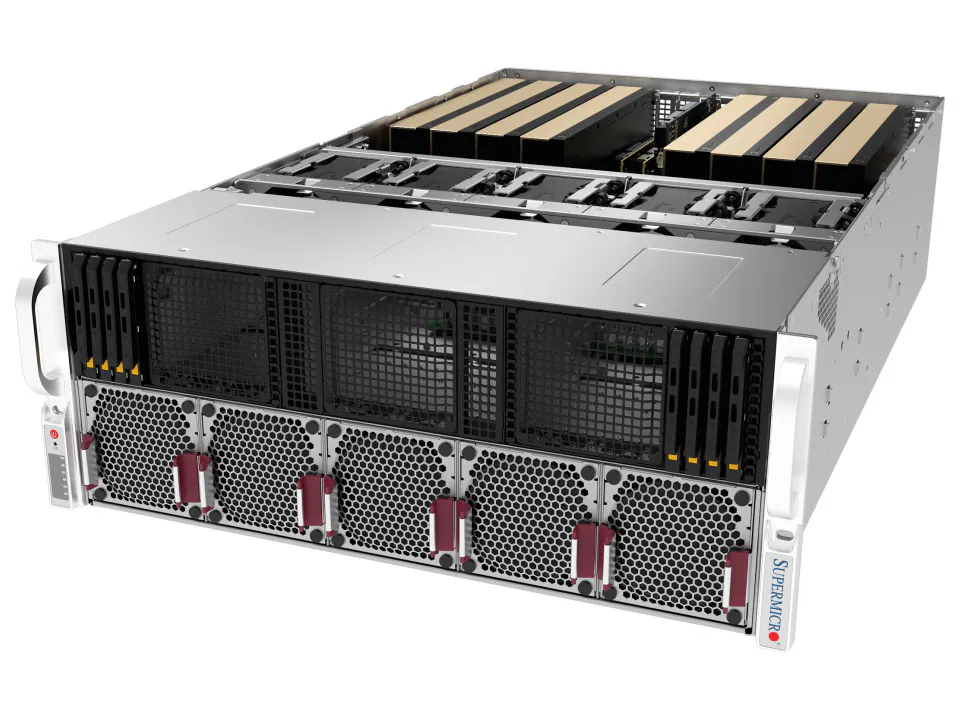

GPU SuperServer SYS-422GA-NRT Coming Soon

(SYS-422GA-NRT)

instock

Categories: Servers, SuperMicro, GPU Servers

DP Intel 4U Dual-Root PCIe GPU System with up to 10 GPUs

Key Features

Dual Socket BR (LGA-7529) Intel® Xeon® 6900 series processors with P-cores up to 500W with air cooling
Support for up to 8 double-width PCIe GPU accelerator cards
Up to 24 DIMMs supporting up to 6TB DDR5-6400 in 1DPC or 6TB DDR5-8800 in 1DPC
Flexible networking with up to AIOM slots
Up to 13 PCIe 5.0 x16 FHFL slots

MSRP^*

N/A

* Manufacturer’s Suggested Retail Price

Product Specifications

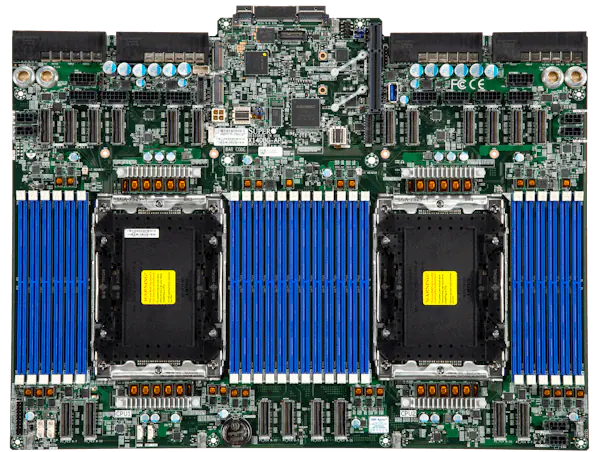

Super X14DBG-AP

CPU	Dual Socket BR (LGA-7529) Intel® Xeon® 6900 series processors with P-cores
Core Count	Up to 128C/256T; Up to 504MB Cache per CPU
Note	Supports up to 500W TDP CPUs (Air Cooled)

Max GPU Count

- Up to 2 quad-width or 2 triple-width or 8 double-width or 10 single-width GPUs

CPU-GPU Interconnect

- PCIe 5.0 x16 Switch Dual-Root

GPU-GPU Interconnect

- NVIDIA® NVLink® Bridge (optional)

Memory

- Slot Count: 24 DIMM slots
- Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM
- Max Memory (1DPC): Up to 6TB 8800MT/s ECC DDR5 MRDIMM

- View Memory Options

Memory Voltage

- 1.1V

Chipset

- System on Chip

Network Connectivity

- 2 RJ45 10GbE with Intel® X710-AT2

- View AIOM Options
- View AOC Options

LAN	2 RJ45 10 GbE LAN ports (Intel® I350)
USB	2 USB 3.0 Type-A ports(Rear)
Video	1 VGA port

BIOS Type

AMI 32MB SPI Flash EEPROM

Software	SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management

Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

CPU	Monitors for CPU Cores, Chipset Voltages, Memory 8+4 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Form Factor	4U Rackmount
Model	CSE-418G3TS-R6K40P

Height	7″ (178 mm)
Width	17.2″ (437 mm)
Depth	29″ (737 mm)
Package	26.57″ (H) x 27″ (W) x 41″ (D)
Weight	Gross Weight: 100 lbs (45.3 kg) Net Weight: 65.5 lbs (29.7 kg)
Available Color	Black Front & Silver Body

PCI-Express (PCIe) Configuration

- Default
  - 13 PCIe 5.0 x16 FHFL slots

- View AOC Options

M.2

- 2 M.2 PCIe 5.0 x4 NVMe slots (B+M-key)

Drive Bays Configuration

- Option A: Total 8 bays
  - 8 front hot-swap E3.S 1T PCIe 5.0 x4 NVMe drive bays
- Option B: Total 8 bays
  - 8 front hot-swap E3.L 1T PCIe 5.0 x4 NVMe drive bays
- Option C: Total 8 bays
  - 8 front hot-swap 2.5″ PCIe 5.0 x4 NVMe drive bays

M.2

- 2 M.2 NVMe slots (M-key)

- View M.2 Options

Fans	10x 8cm heavy duty fans with optimal fan speed control
Air Shroud	1 Air Shroud

4x 3200W Redundant (3 + 1) Titanium Level (96%) power supplies

Dimension (WxHxL)	73.5 x 40 x 203 mm
Input	1400W: 100-127Vac / 50-60Hz 2900W: 200-207Vac / 50-60Hz 3000W: 207.1-219Vac / 50-60Hz 3200W: 219.1-240Vac / 50-60Hz 3200W: 240Vdc / 50-60Hz (for CQC only)
+12V	Max: 116.6A / Min: 0A (100Vac-127Vac) Max: 241.6A / Min: 0A (200Vac-207Vac) Max: 250A / Min: 0A (207.1Vac-219Vac) Max: 266.6A / Min: 0A (219.1Vac-240Vac)
12V SB	Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)
