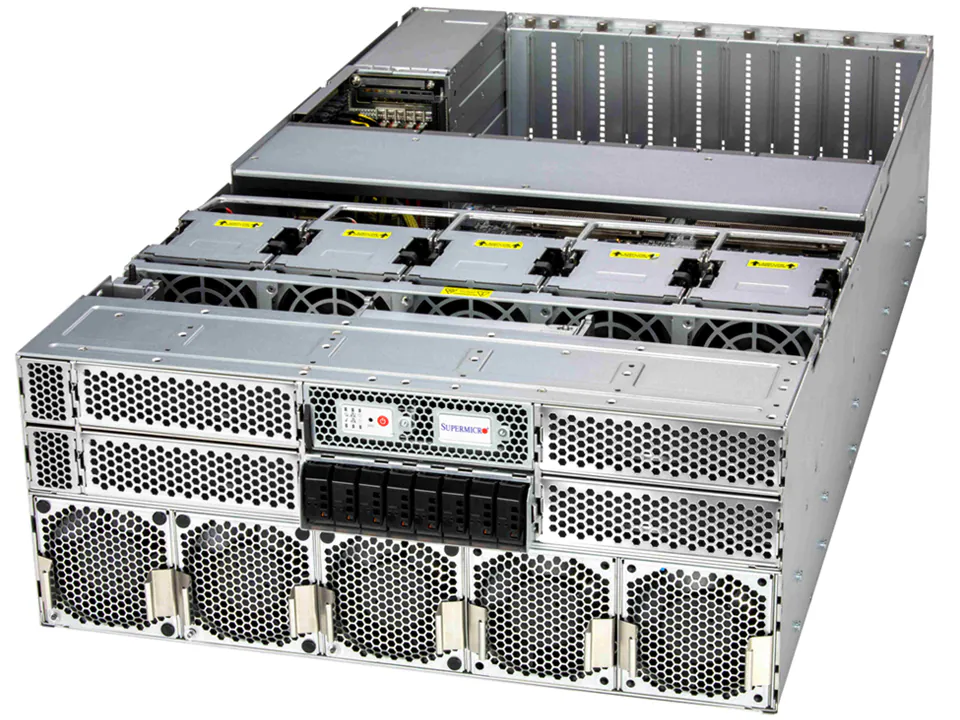

GPU SuperServer SYS-422GL-NR

(SYS-422GL-NR)
instock
  • Ready to Ship Today
Categories: Servers, SuperMicro, GPU Servers

DP Intel 4U MGX Dual-Root PCIe GPU System with up to 8 600W GPUs

Key Features

  1. Dual Socket Intel® Xeon® 6 6900 series processors with P-cores up to 500W
  2. Support for up to 8x 600W GPU’s
  3. Supports 24x ECC DDR5 DIMMs at 6400 MT/s
  4. 8x PCIe 5.0 x16 for GPU
    4x PCIe 5.0 x16 for NIC
    Additional 1x PCIe 5.0 x16 for NIC/DPU (Via CPU)

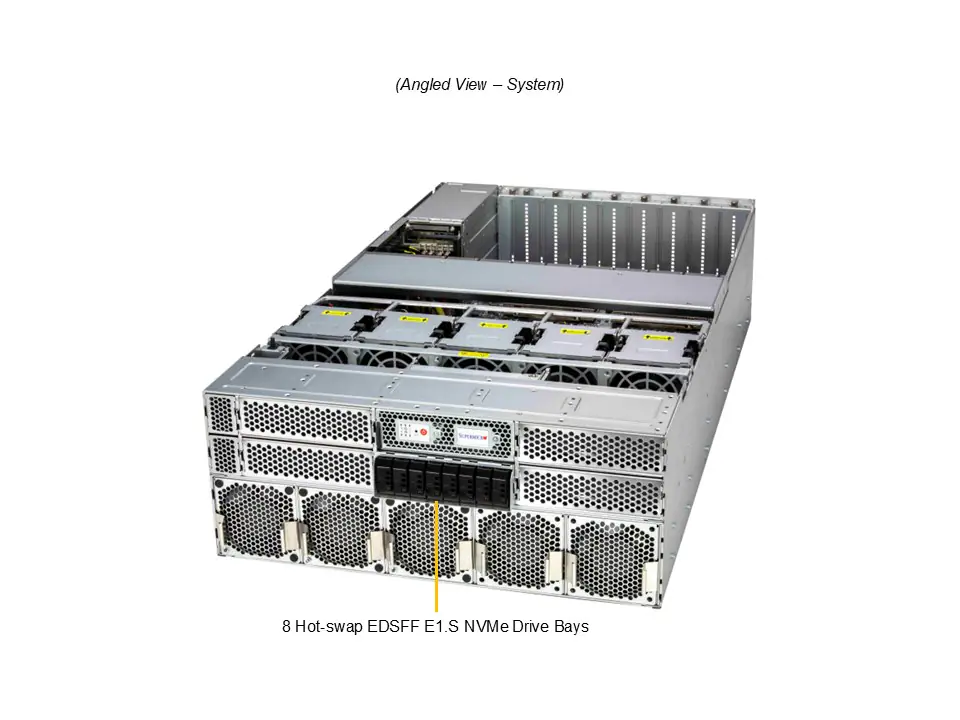

  5. Up to 8 front hot-swap E1.S NVMe drive bays
MSRP*
N/A
Call for pricing
request for quote

* Manufacturer’s Suggested Retail Price

Product Specifications

System Features

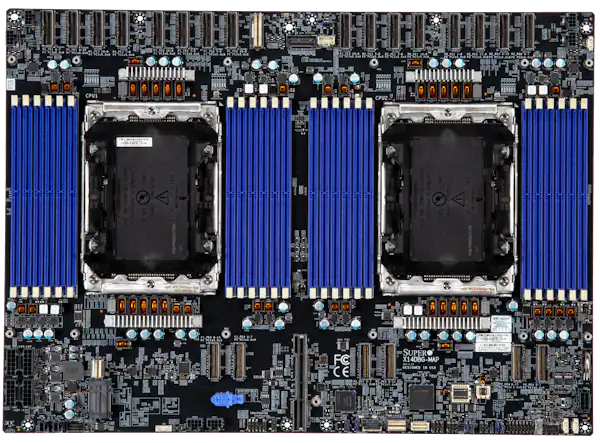

Super X14DBG-MAP
CPU
Core Count
  • 72C/144T
Note
  • Supports up to 500W TDP CPUs (Air Cooled)
Max GPU Count

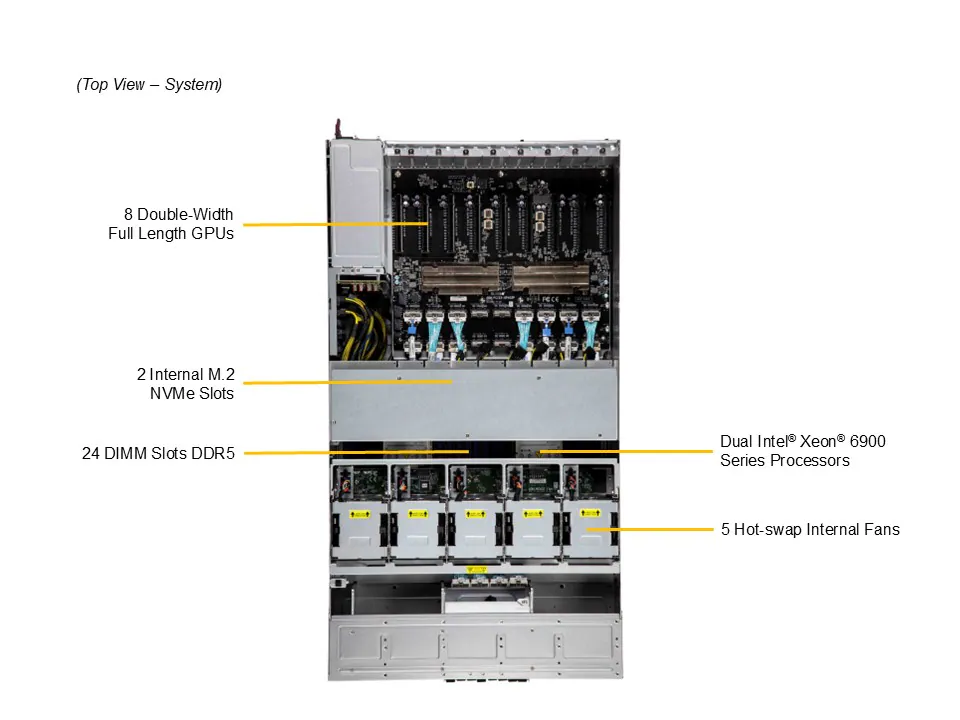

    • Up to 8 double-width GPUs


Supported GPU
    • NVIDIA PCIe: H100 NVL, NVIDIA RTX PRO™ 6000 Blackwell Server Edition, H200 NVL (141GB), L40S

CPU-GPU Interconnect
    • PCIe 5.0 x16 Switch Dual-Root


GPU-GPU Interconnect
    • NVIDIA® NVLink® Bridge (optional)


Memory
    • Slot Count: 24 DIMM slots
    • Max Memory (1DPC): 6.0TB 6400MT/s ECC DDR5 RDIMM
    • Max Memory (1DPC): 6.0TB 8800MT/s ECC DDR5 MRDIMM

Memory Voltage
    • 1.1V


Chipset
    • System on Chip


Network Connectivity
    • 1 RJ45 1GBASE-T with ASPEED AST2600

USB
  • 1 USB 3.0 Type-A port(Rear)
Video
  • 1 mini-DP port
TPM
  • 1 TPM header
BIOS Type
  • AMI 32MB UEFI
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
Form Factor
  • 4U Rackmount
Model
Height
  • 6.93″ (176 mm)
Width
  • 17.26″ (438.4 mm)
Depth
  • 31.5″ (800 mm)
Package
  • 27.32″ (H) x 49.41″ (W) x 19.49″ (D)
Weight
  • Gross Weight: 96.45 lbs (43.75 kg)
  • Net Weight: 49.5 lbs (22.45 kg)
Available Color
  • Silver
Buttons
  • Power On/Off button

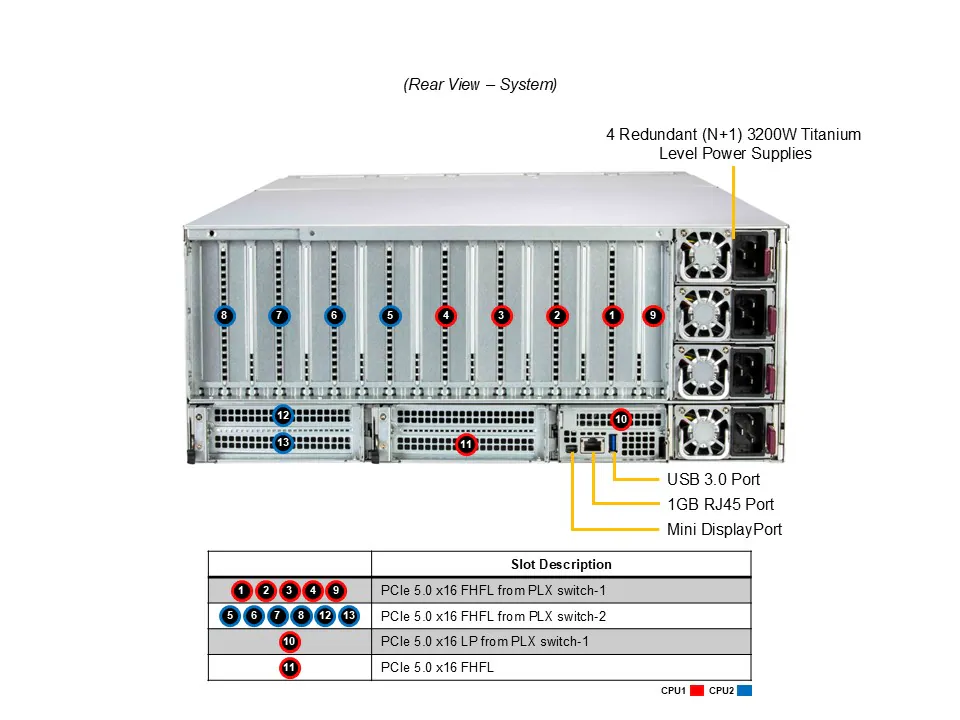

PCI-Express (PCIe) Configuration
    • Default
      • 8 PCIe 5.0 x16 FH double-width slots
      • 4 PCIe 5.0 x16 HHHL slots
    • Option A
      • 1 PCIe 5.0 x16 FHHL slot

Drive Bays Configuration

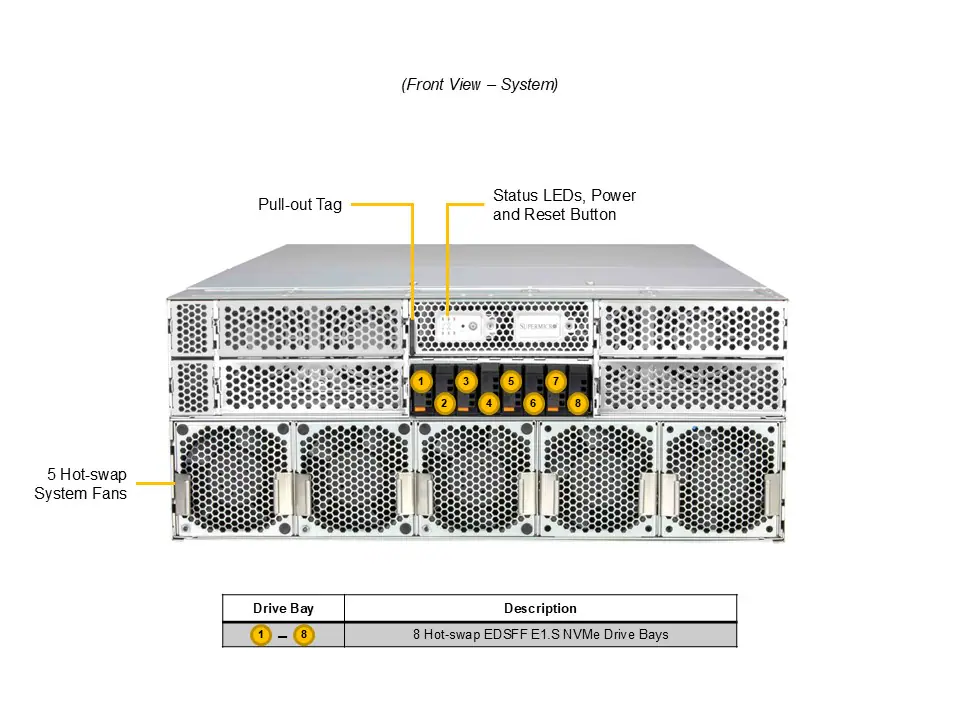

    • Default: Total 8 bays
      • 8 front hot-swap E1.S NVMe drive bays

M.2
    • 2 M.2 PCIe 4.0 x4 NVMe slots (M-key 2280(default))

Fans
  • Up to 10 Fan 80mm Fan(s)
4x 3200W Redundant (3 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)73.5 x 40 x 185 mm
Input3200W: 0240Vdc / 50-60Hz (for CQC only)
1000W: 100-127Vac / 50-60Hz
2900W: 200-207Vac / 50-60Hz
3000W: 207-220Vac / 50-60Hz
3200W: 220-240Vac / 50-60Hz
+12VMax: 82A / Min: 0A (100Vac-127Vac)
Max: 237.7A / Min: 0A (200Vac-207Vac)
Max: 245.9A / Min: 0A (207Vac-220Vac)
Max: 262.3A / Min: 0A (220Vac-240Vac)
12V SBMax: 3A / Min: 0A
Output TypeBackplanes (gold finger)
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
