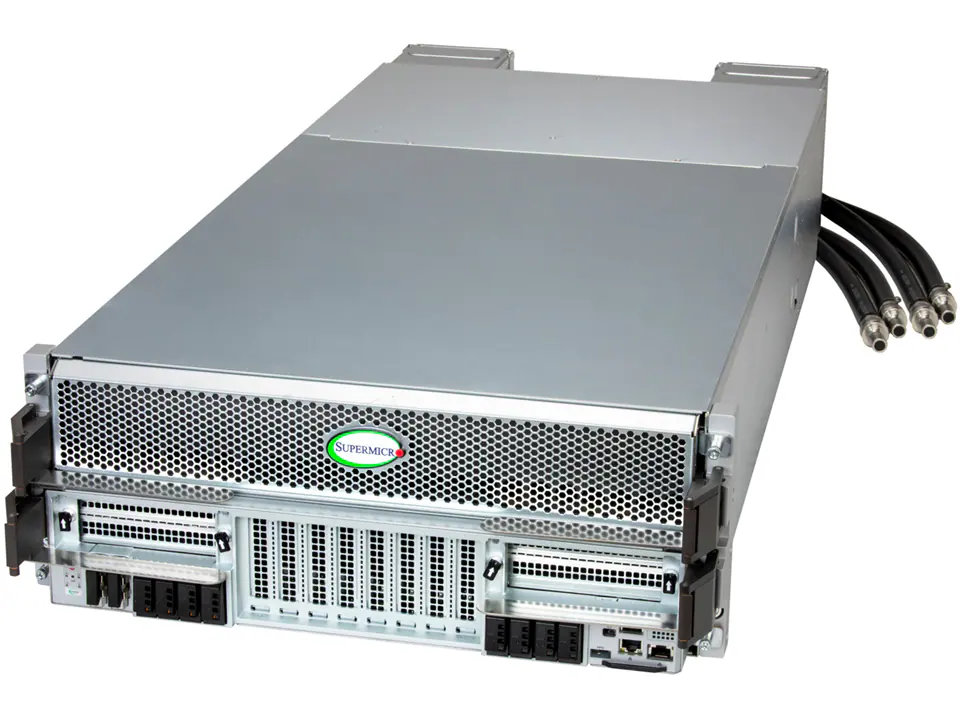

SYS-422GS-NBRT-LCC_main

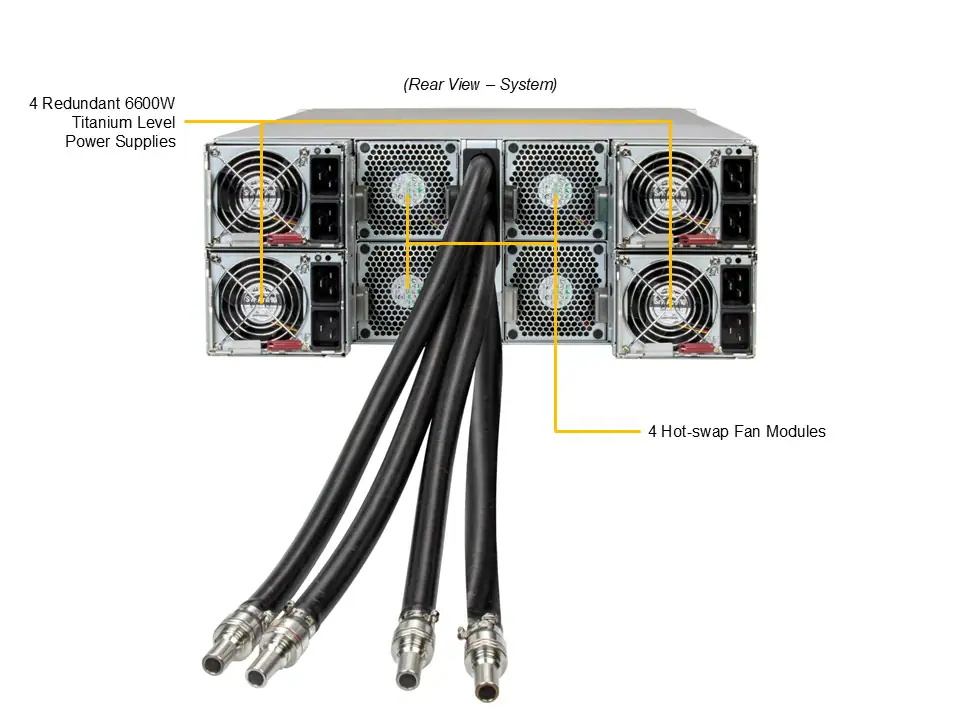

SYS-422GS-NBRT-LCC_callout_rear

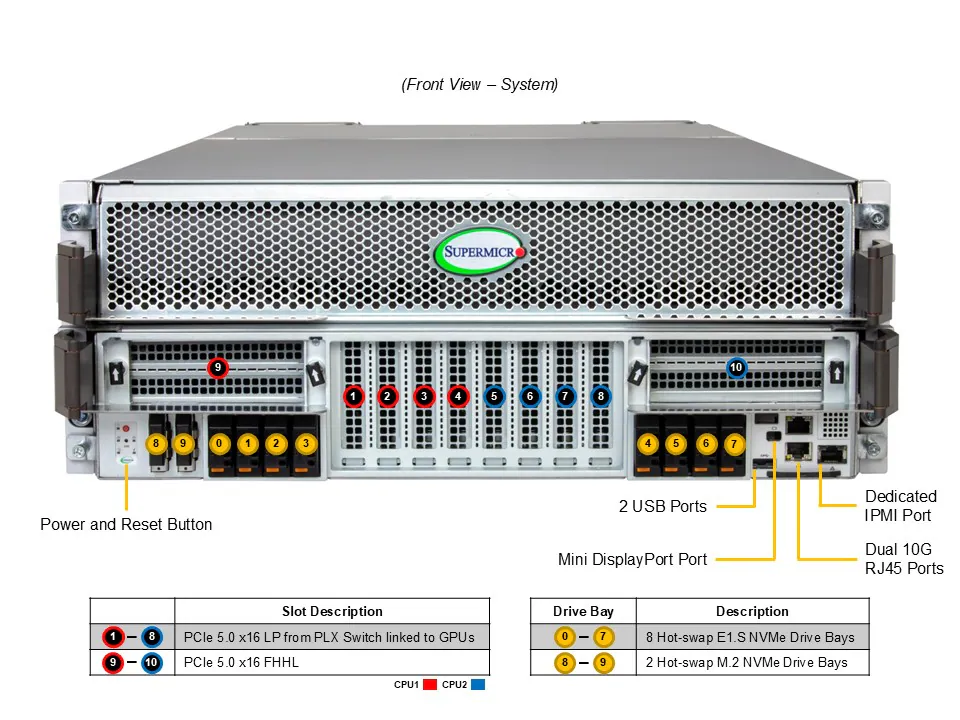

SYS-422GS-NBRT-LCC_callout_front

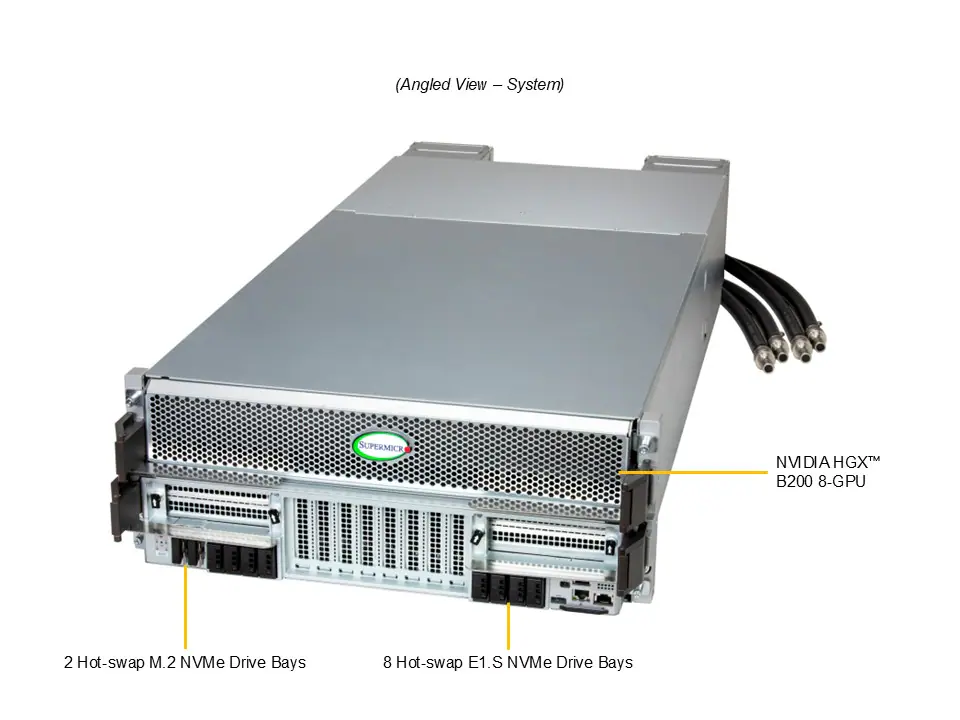

SYS-422GS-NBRT-LCC_callout_angle

GPU SuperServer SYS-422GS-NBRT-LCC

(SYS-422GS-NBRT-LCC)

instock

Categories: Servers, SuperMicro, GPU Servers

DP Intel 4U Liquid-Cooled System with NVIDIA HGX B200 8-GPU (complete rack and onsite service are required)

Key Features

Complete liquid-cooled rack integration is required for purchase
Dual Intel® Xeon® 6700 series processors with P-cores
8x Nvidia B200 GPUs, 1.4TB of GPU memory space
32x DIMMs slots, RDIMM ECC DDR5
8x PCIe 5.0 x16 LP + 2x PCIe 5.0 x16 FHHL slots
8x front hot-swap E1.S + 2x M.2 NVMe drive bays
2x 10GbE, 1x Dedicated BMC/IPMI
4x Redundant 6600W Titanium Level power supplies

MSRP^*

N/A

* Manufacturer’s Suggested Retail Price

Product Specifications

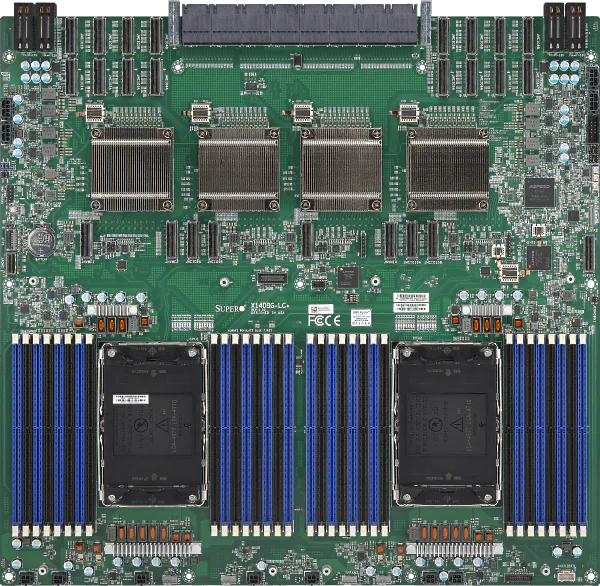

Super X14DBG-LC+

CPU	Dual Socket E2 (LGA-4710) Intel® Xeon® 6700-series processors with P-cores
Note	Supports up to 350W TDP CPUs (Liquid Cooled)

Max GPU Count	8 onboard GPUs
Supported GPU	NVIDIA SXM: HGX B200 8-GPU (180GB) View GPU Options
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	NVIDIA® NVLink® with NVSwitch™

Memory	Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 8TB 5200MT/s ECC DDR5 RDIMM View Memory Options
Memory Voltage	1.1V

Chipset	System on Chip
Network Connectivity	2 RJ45 10GbE with Intel® X710-AT2 View AOC Options

Video

1 VGA port(Front)
1 Mini-DP port(Front)

BIOS Type

AMI 64MB UEFI

Software	SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management

Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

CPU	Monitors for CPU Cores, Chipset Voltages, Memory 8+4 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Form Factor	4U Rackmount
Model	CSE-GP405TS-R000NP

Height	6.85″ (174 mm)
Width	17.6″ (448 mm)
Depth	39.03″ (991.4 mm)
Package	16.14″ (H) x 54.92″ (W) x 31.29″ (D)
Weight	Gross Weight: 280 lbs (127 kg) Net Weight: 236 lbs (107 kg)
Available Color	Silver

LED	HDD activity LAN1 activity LAN2 activity Power Fail Power status System information (overheat/UID)
Buttons	Power On/Off UID

PCI-Express (PCIe) Configuration

Default
- 8 PCIe 5.0 x16 LP slots
- 2 PCIe 5.0 x16 FHHL slots

View AOC Options

Drive Bays Configuration	Default: Total 8 bays 8 front hot-swap E1.S NVMe drive bays
M.2	2 M.2 NVMe slots (M-key; RAID support via S3808N controller) View M.2 Options

Fans	Up to 6 Fan 80mm Fan(s)
Liquid Cooling	Direct to Chip (D2C) Cold Plate

4x 6600W Redundant (2 + 2) Titanium Level (96%) power supplies

Dimension (WxHxL)	106.5 x 82.1 x 245.3 mm
Input	5900W: 200-207.9Vac / 50-60Hz 6000W: 208-219.9Vac / 50-60Hz 6300W: 220-229.9Vac / 50-60Hz 6500W: 230-238.9Vac / 50-60Hz 6600W: 239-240Vac / 50-60Hz
+12V	Max: 130A / Min: 0A (200Vac-207.9Vac) Max: 130A / Min: 0A (208Vac-219.9Vac) Max: 130A / Min: 0A (220Vac-229.9Vac) Max: 130A / Min: 0A (230Vac-238.9Vac) Max: 130A / Min: 0A (239Vac-240Vac)
12V SB	Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)
Certification	Titanium Level [ Test Report ]

Environmental Spec.

Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
