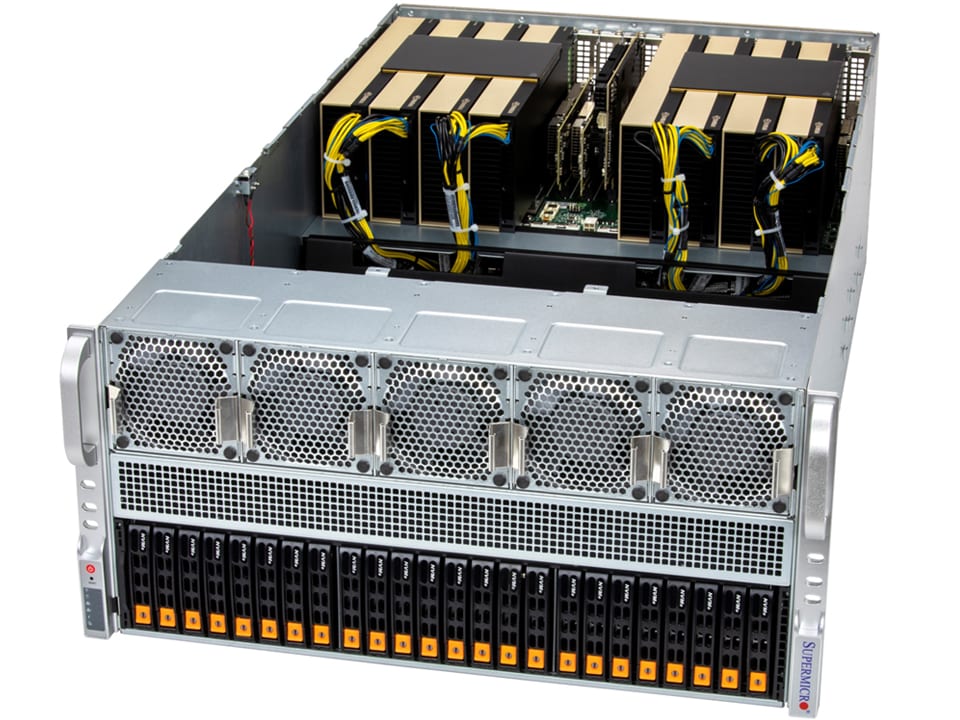

GPU SuperServer SYS-522GA-NRT

(SYS-522GA-NRT)
instock
  • Ready to Ship Today
Categories: Servers, SuperMicro, GPU Servers

DP Intel 5U Dual-Root PCIe GPU System with up to 10 GPUs and extended thermal capacity

Key Features

  1. Dual Intel® Xeon® 6900 series processors with P-cores, up to 500W TDP

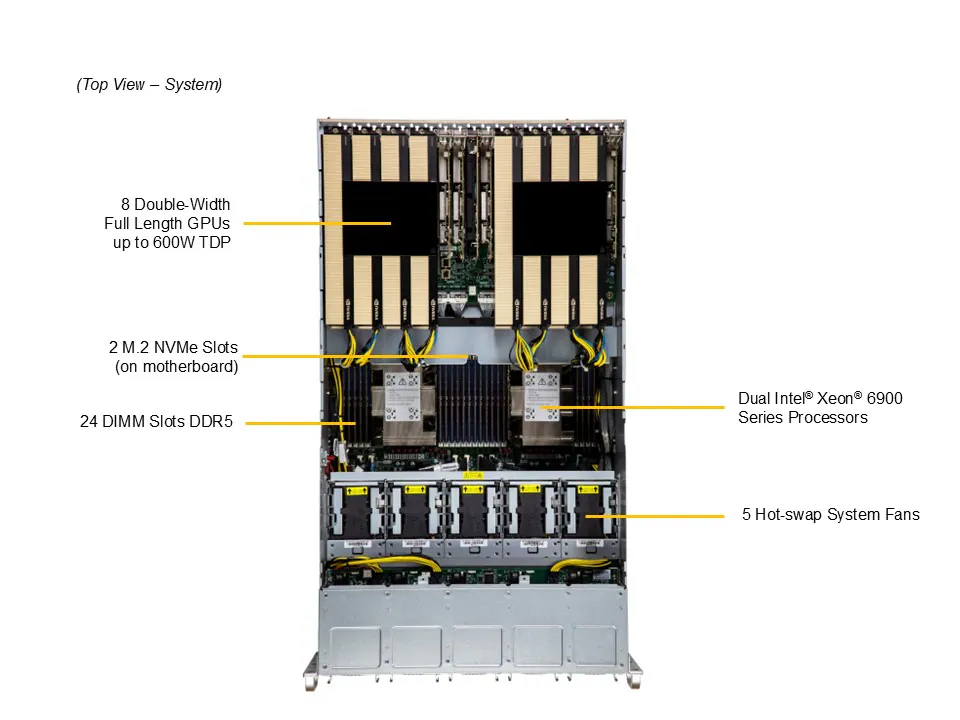

  2. Support for up to 10x PCIe GPU accelerator cards
  3. 24 DIMM slots, ECC RDIMM / MRDIMM DDR5
  4. Up to 13 PCIe 5.0 x16 FHFL slots

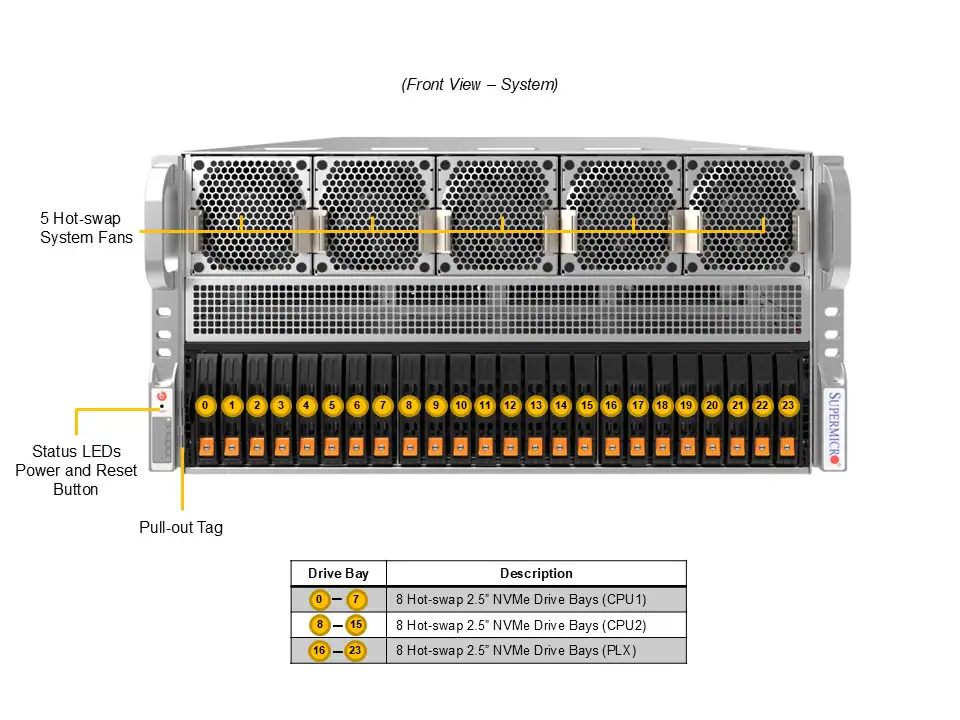

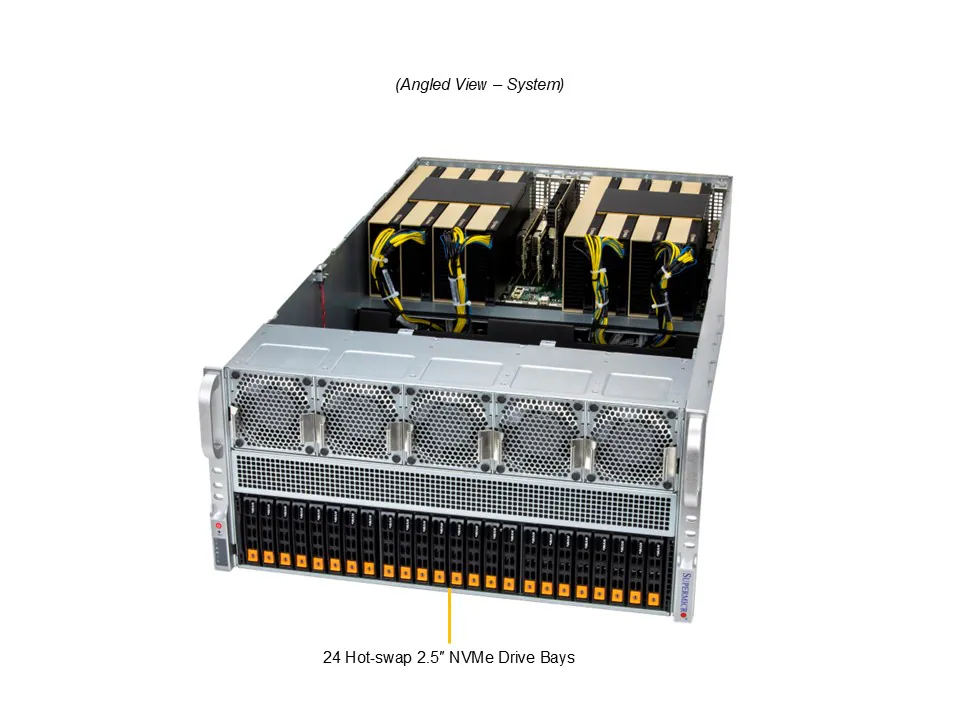

  5. 24x U.2/U.3 NVMe and 2x M.2 NVMe
  6. Flexible networking with AIOM slots
MSRP*
N/A
Call for pricing
request for quote

* Manufacturer’s Suggested Retail Price

Product Specifications

System Features

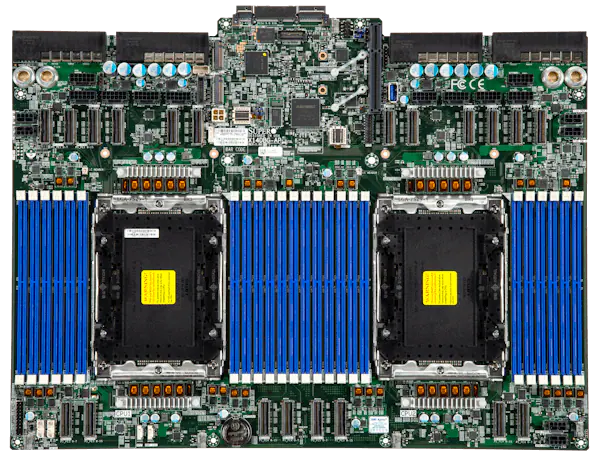

Super X14DBG-AP
CPU
Core Count
  • Up to 128C/256T; Up to 504MB Cache per CPU
Note
  • Supports up to 500W TDP CPUs (Air Cooled)
Max GPU Count
    • Up to 2 quad-width or 2 triple-width or 8 double-width or 10 single-width GPUs


Supported GPU
    • NVIDIA PCIe: NVIDIA RTX PRO™ 6000 Blackwell Server Edition

CPU-GPU Interconnect
    • PCIe 5.0 x16 Switch Dual-Root


GPU-GPU Interconnect
    • NVIDIA® NVLink® Bridge (optional)


Memory
    • Slot Count: 24 DIMM slots
    • Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM
    • Max Memory (1DPC): Up to 6TB 8800MT/s ECC DDR5 MRDIMM

Memory Voltage
    • 1.1V


Chipset
    • System on Chip


Network Connectivity
    • 2 RJ45 10GbE with Intel® X710-AT2

LAN
  • 2 RJ45 10 GbE LAN ports (Intel® I350)
USB
  • 2 USB 3.0 Type-A ports(Rear)
Video
  • 1 VGA port
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 8+4 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Form Factor
  • 5U Rackmount
Model
Height
  • 8.75″ (222.5 mm)
Width
  • 17.2″ (438 mm)
Depth
  • 31″ (786.1 mm)
Package
  • 17.32″ (H) x 28.34″ (W) x 42.51″ (D)
Weight
  • Gross Weight: 100 lbs (45.3 kg)
  • Net Weight: 65.5 lbs (29.7 kg)
Available Color
  • Black Front & Silver Body
LED
  • Hard drive activity LED
  • Network activity LEDs
  • Power status LED
  • System Overheat & Power Fail LED
Buttons
  • Power On/Off button
  • System Reset button

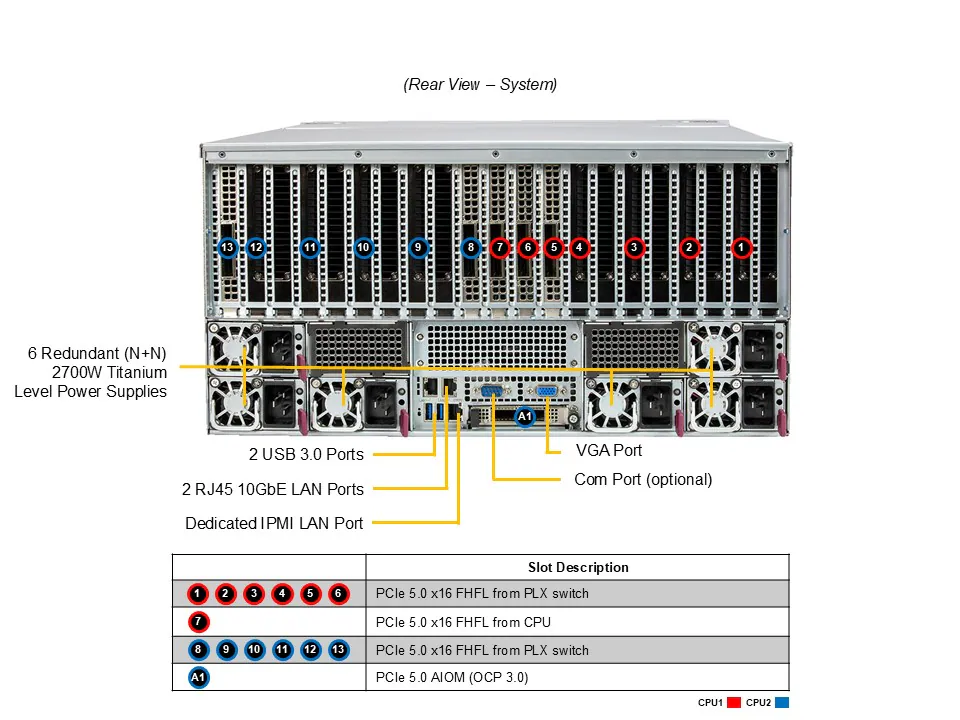

PCI-Express (PCIe) Configuration
    • Default
      • 13 PCIe 5.0 x16 FHFL slots

M.2
    • 2 M.2 PCIe 5.0 x4 NVMe slots (B+M-key)


PCI-Express (PCIe) Configuration
    • Default
      • 13 PCIe 5.0 x16 FHFL slots

M.2
    • 2 M.2 PCIe 5.0 x4 NVMe slots (B+M-key)


Fans
  • Up to 10 heavy duty fans with optimal fan speed control
Air Shroud
  • 1 Air Shroud
6x 2700W Redundant Titanium Level (96%) power supplies
Dimension (WxHxL)73.5 x 40 x 203 mm
Input2700W: 200-240Vac
2700W: 200-240Vac / 50-60Hz
2700W: 240-240Vdc / 50-60Hz (for CQC only)
+12VMax: 225A / Min: 0A (200Vac-240Vac)
Max: 225A / Min: 0A (240Vdc-240Vdc)
12V SBMax: 3.5A / Min: 0A
Max: 4A / Min: 0A
Output TypeBackplanes (gold finger)
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
