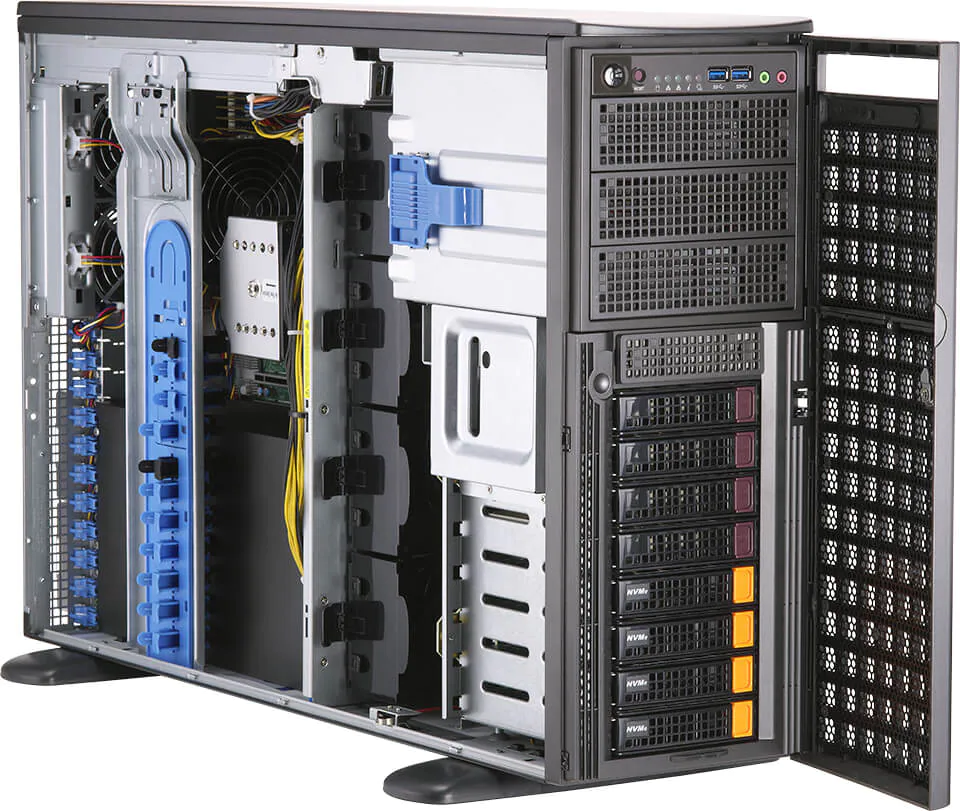

GPU SuperServer SYS-740GP-TNRT

(SYS-740GP-TNRT)

instock

Categories: Servers, SuperMicro, GPU Servers

DP Intel, Tower Workstation with 4 GPUs

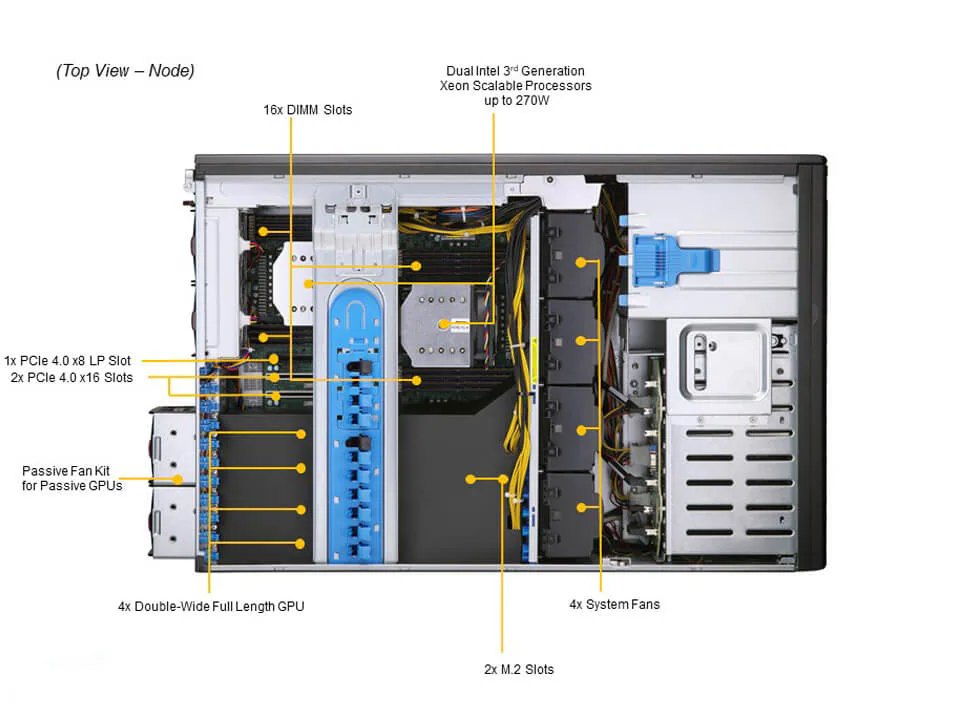

Key Features

Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
Intel® C621A Chipset
16 DIMM Slots; Up to 4TB DRAM; Up to 6TB Intel® Optane™ Persistent Memory ; 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
4 PCIe 4.0 x16 (double-width) slots, 2 PCIe 4.0 x16 (single-width) slots,
1 PCIe 4.0 x8 LP
Total 8x 3.5″ Hot-swap drive bays
Up to 8 NVMe drives (4 NVMe drives supported by default)
2 M.2 NVMe or SATA for boot drive only
4 Removable heavy duty fans w/ Optimal Fan Speed Control
2x 2200W redundant Titanium level power supplies

MSRP^*

N/A

* Manufacturer’s Suggested Retail Price

Product Specifications

Super X12DPG-QT6

CPU	Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Core Count	Up to 40C/80T; Up to 60MB Cache per CPU
Note	Supports up to 270W TDP CPUs (Air Cooled)

Max GPU Count	Up to 4 double-width or 6 single-width GPUs
Supported GPU	NVIDIA PCIe: A40, RTX A6000, RTX A5000, RTX A4500, RTX A4000, A30, A16, A100, A10 View GPU Options
CPU-GPU Interconnect	PCIe 4.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	PCIe
Certification

Memory

- Slot Count: 16 DIMM slots
- Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
- Supports Intel® Optane™ persistent memory 200 series

- View Memory Options

Memory Voltage

- 1.2V

SATA

- SATA (6Gbps) ; RAID 0/1/5/10 support

Chipset

- Intel® C621A

Network Connectivity

- 2 RJ45 10GbE with Intel® X550-AT2

- View AOC Options

Video

1 VGA port

BIOS Type

AMI 32MB SPI Flash EEPROM

Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management

Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

CPU	Monitors for CPU Cores, Chipset Voltages, Memory 7 +1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Form Factor	Full-Tower Rackmount
Model	CSE-747BTS-R2K20BP

Height	18.32″ (465.4 mm)
Width	6.96″ (177 mm)
Depth	26.71″ (678.5 mm)
Package	12.95″ (H) x 27.12″ (W) x 38.22″ (D)
Weight	Gross Weight: 57 lbs (25.85 kg) Net Weight: 52.9 lbs (24 kg)
Available Color	black

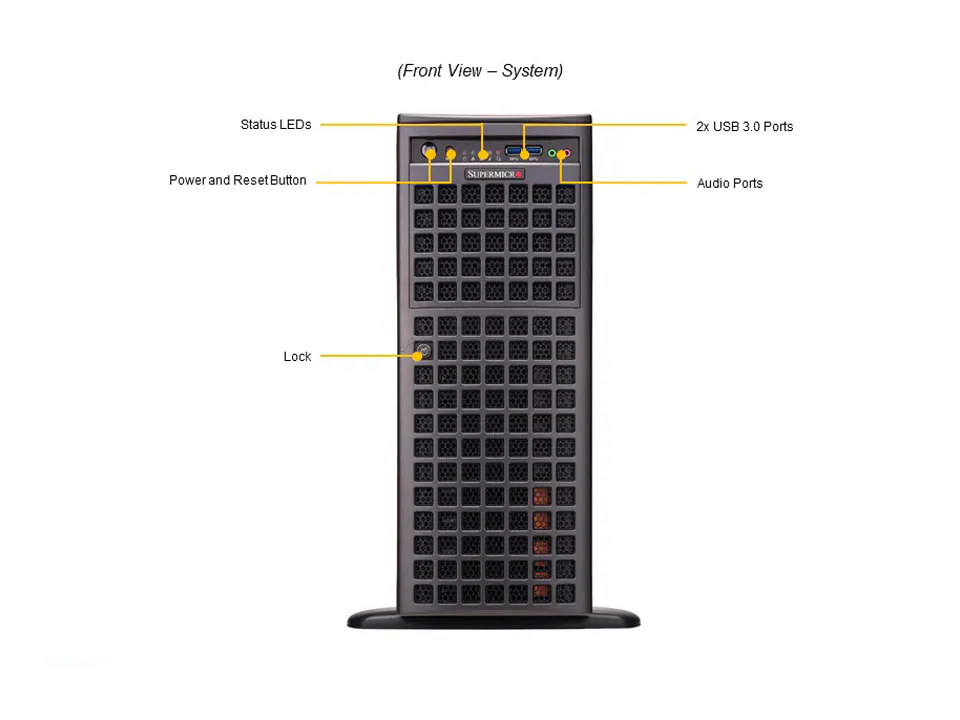

LED	HDD activity Network activity Power On System Overheat / Fan Fail LED
Buttons	Power On/Off System Reset

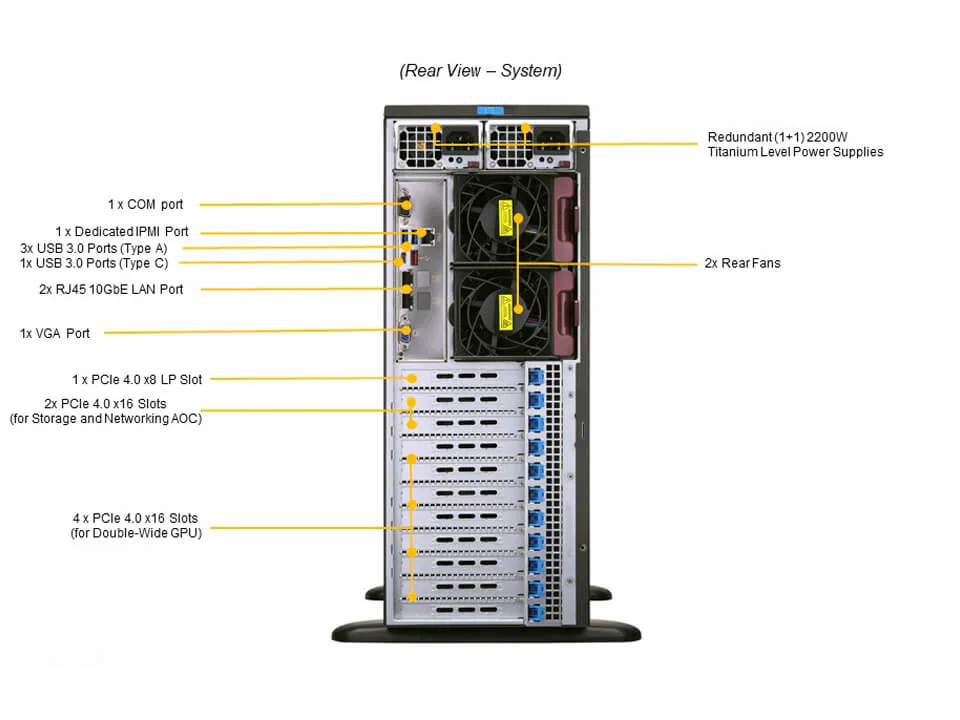

PCI-Express (PCIe) Configuration

- Default
  - 4 PCIe 4.0 x16 FHFL slots
  - 2 PCIe 4.0 x16 LP slots
  - 1 PCIe 4.0 x8 LP slot

- View AOC Options

Drive Bays Configuration

- Default: Total 8 bays
  - 4 front hot-swap 3.5″ SAS/SATA drive bays
  - 4 front hot-swap 3.5″ NVMe/SAS/SATA drive bays

- View NVMe Options
- View Drive Options

M.2

- 2 M.2 NVMe/SATA slots (M-key)

- View M.2 Options

Peripheral Bays

- 3 5.25″ peripheral bays

Fans	Up to 4 heavy duty fans with optimal fan speed control

1x 2200W Redundant Titanium Level (96%) power supply

Dimension (WxHxL)	76 x 40 x 336 mm
Total Output Power	(for CCC only) (for UL/cUL use only)
Input	1200W: 100-127Vac 1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 2090W: 200-220Vac / 50-60Hz (for UL/cUL use only) 1980W: 220-230Vac / 50-60Hz 2200W: 220-240Vac / 50-60Hz (for UL/cUL use only) 2200W: 230-240Vac 2090W: 230-240Vac / 50-60Hz 2090W: 230-240Vdc / 50-60Hz (for CCC only)
+12V	Max: 100A / Min: 0A (100Vdc-127Vdc) Max: 100A / Min: 0A (100Vac-127Vac) Max: 150A / Min: 0A (200Vac-220Vac) Max: 165A / Min: 0A (220Vac-230Vac) Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only) Max: 183.3A / Min: 0A (220Vac-240Vac) Max: 174.17A / Min: 0A (230Vac-240Vac) Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only) Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only) Max: 183.33A / Min: 0A (230Vdc-240Vdc)
5V SB	Max: 1A / Min: 0A
Output Type	Backplanes (gold finger)
