GPU SuperServer SYS-741GE-TNRT

(SYS-741GE-TNRT)

instock

Categories: Servers, SuperMicro, GPU Servers

DP Intel Workstation with up to 4 NVIDIA H100 or A100 PCIe GPUs

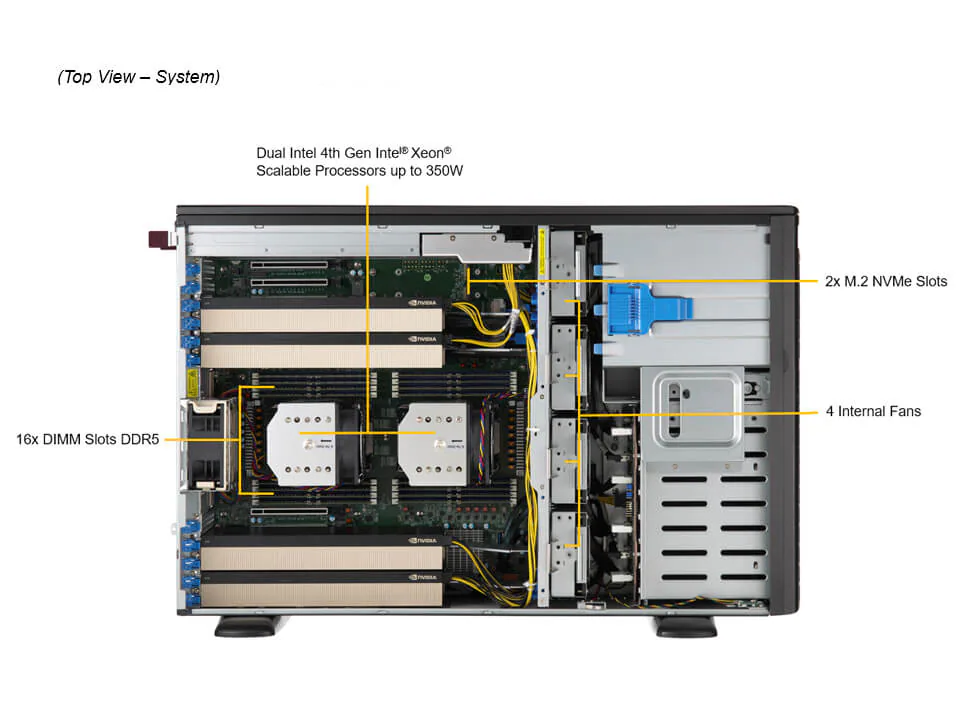

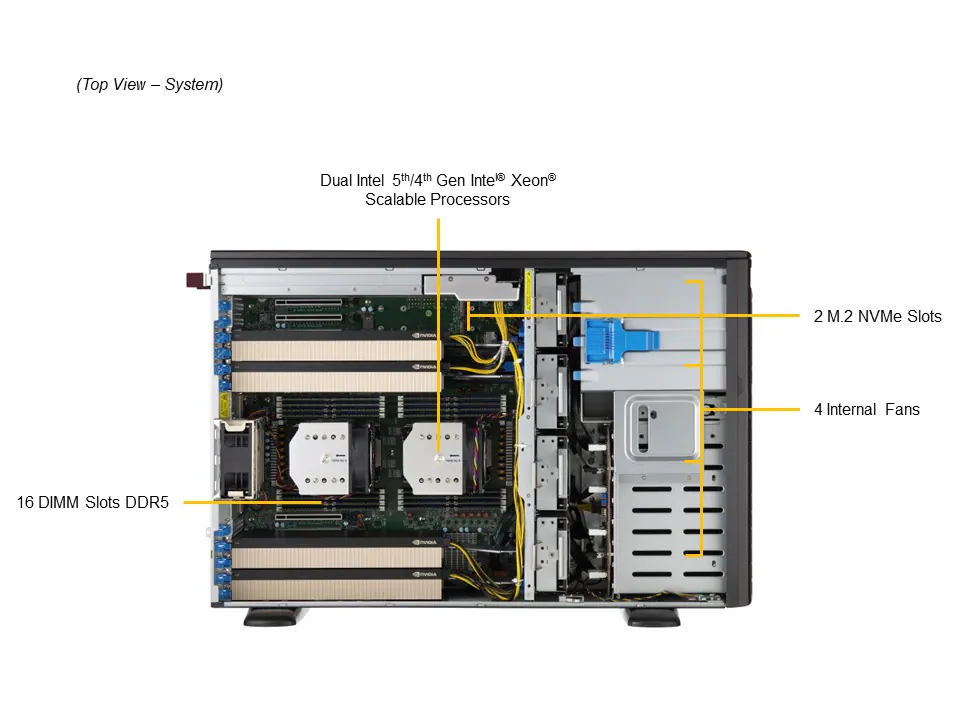

Key Features

5th/4th Gen Intel® Xeon® Scalable processor support
16 DIMM slots Up to 4TB: 16x 256 GB DRAM Memory Type: 5600MTs ECC DDR5
Up to 4x double width, full length GPUs
4x PCIe 5.0 x16 (double-width) slots, 3x PCIe 5.0 x16 (single-width) slots
Total 8x 3.5″ Hot-swap SATA/NVMe/SAS drive bays
2x M.2 NVMe for boot drive only
Up to 8x NVMe drives (8 NVMe drives supported by default)
4 Removable heavy duty fans w/ Optimal Fan Speed Control
2x 2000W (1+1) Redundant Power Supplies, Titanium Level

MSRP^*

N/A

* Manufacturer’s Suggested Retail Price

Product Specifications

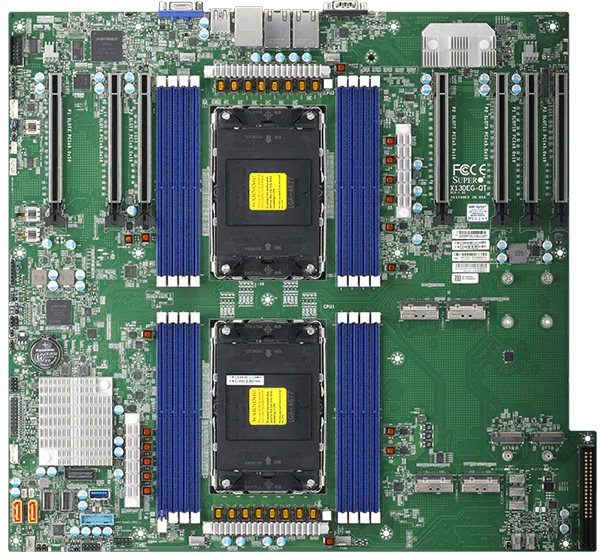

Super X13DEG-QT

CPU	Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Core Count	Up to 64C/128T; Up to 320MB Cache per CPU
Note	Supports up to 350W TDP CPUs (Air Cooled)

Max GPU Count	Up to 4 double-width or 4 single-width GPUs
Supported GPU	NVIDIA PCIe: H100 NVL, H100, RTX 4000 Ada Generation, L40, RTX A5500, RTX A6000, RTX A4000, RTX 6000 Ada Generation, L40S, L4, A30, A100 AMD PCIe: Instinct™ MI210 View GPU Options
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	NVIDIA® NVLink® Bridge (optional)
Certification

Memory

- Slot Count: 16 DIMM slots
- Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM
- Max Memory (2DPC): Up to 4TB 4400MT/s ECC DDR5 RDIMM

- View Memory Options

Memory Voltage

- 1.1V

SATA

- SATA (6Gbps)

Chipset

- Intel® C741

Network Connectivity

- 2 RJ45 10GbE with Intel® X550-AT2

- View AOC Options

Video	1 VGA port(Rear)
Serial	1 COM port(rear)
Audio	Front Audio
TPM	1 TPM Onboard/port 80

BIOS Type

AMI 32MB SPI Flash EEPROM

Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management

Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

CPU	Monitors for CPU Cores, Chipset Voltages, Memory 8+4 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Form Factor	Tower Rackmount
Model	CSE-749TS-R2K05BP

Height	18.32″ (465.4 mm)
Width	6.96″ (177 mm)
Depth	26.71″ (678.5 mm)
Package	12.59″ (H) x 26.85″ (W) x 37.95″ (D)
Weight	Gross Weight: 62 lbs (28.1 kg) Net Weight: 46 lbs (20.9 kg)
Available Color	Black Front & Silver Body

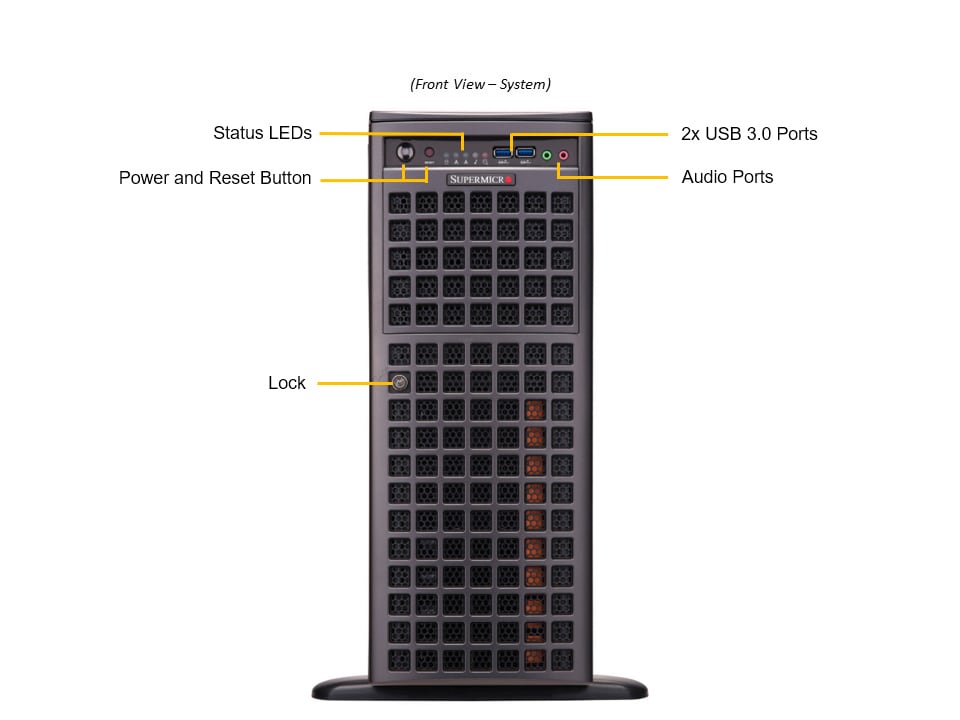

LED	Hard drive activity LED Network activity LEDs Power status LED System Overheat & Power Fail LED
Buttons	Power On/Off button System Reset button

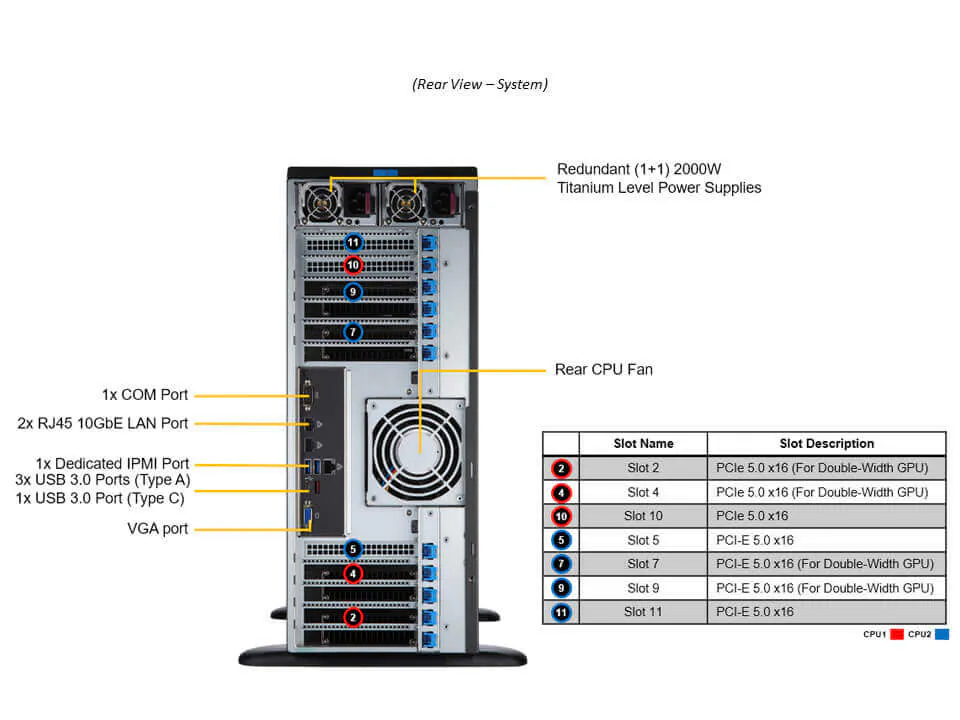

PCI-Express (PCIe) Configuration

- Default
  - 7 PCIe 5.0 x16 FHFL slots

- View AOC Options

M.2

- 2 M.2 PCIe 5.0 x4 NVMe slots (M-key)

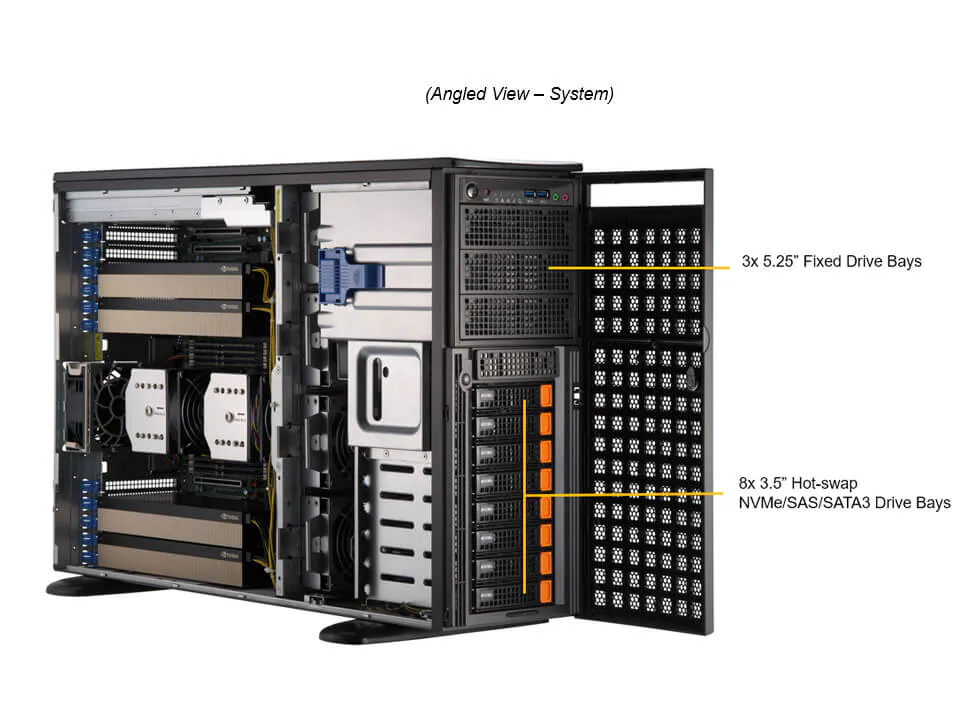

Drive Bays Configuration

- Default: Total 8 bays
  - 8 front hot-swap 3.5″ NVMe/SAS/SATA drive bays
- Option A: Total 8 bays
  - 8 front hot-swap 2.5″ NVMe/SAS/SATA drive bays

- View NVMe Options
- View Drive Options

M.2

- 2 M.2 NVMe slots (M-key)

- View M.2 Options

Fans	Up to 4 heavy duty fans with optimal fan speed control

2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies

Dimension (WxHxL)	73.5 x 40 x 265 mm
Input	1000W: 100-120Vac / 50-60Hz 100-127Vac 1800W: 200-220Vac / 50-60Hz 200-240Vac 2000W: 200-240Vac / 50-60Hz (for UL/cUL only) 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vdc 2000W: 230-240Vac / 50-60Hz
+12V	Max: 83.3A / Min: 0A (100Vac-120Vac) Max: 83.3A / Min: 0A (100Vac-127Vac) Max: 150A / Min: 0A (200Vac-220Vac) Max: 166.7A / Min: 0A (200Vac-240Vac) Max: 166.7A / Min: 0A (200Vac-240Vac) (for UL/cUL only) Max: 165A / Min: 0A (220Vac-230Vac) Max: 166.7A / Min: 0A (230Vac-240Vac)
12V SB	Max: 2.1A / Min: 0A
Output Type	Backplanes (gold finger)

ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing)
