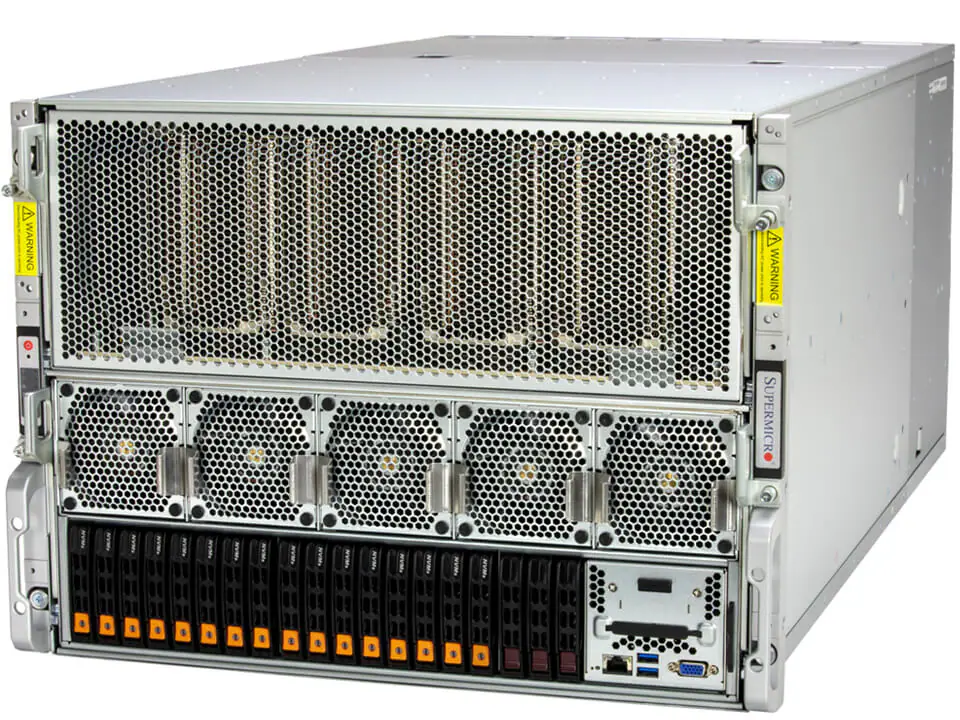

GPU SuperServer SYS-821GE-TNHR

(SYS-821GE-TNHR)

instock

5th/4th Gen Intel® Xeon® Scalable processor support

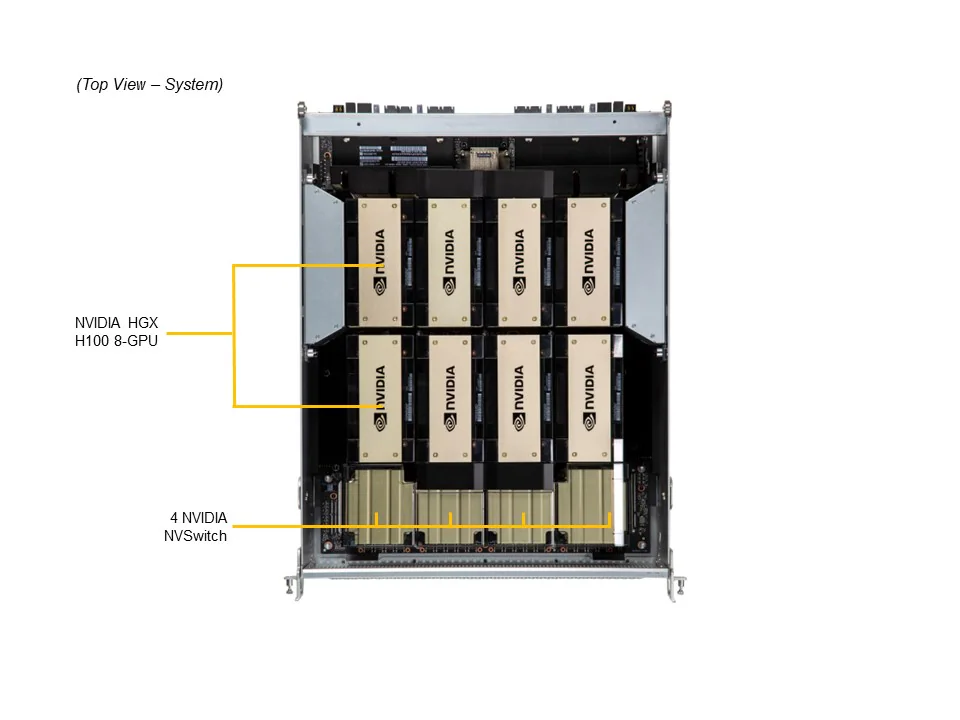

Support for NVIDIA HGX™ H100/H200 8-GPU

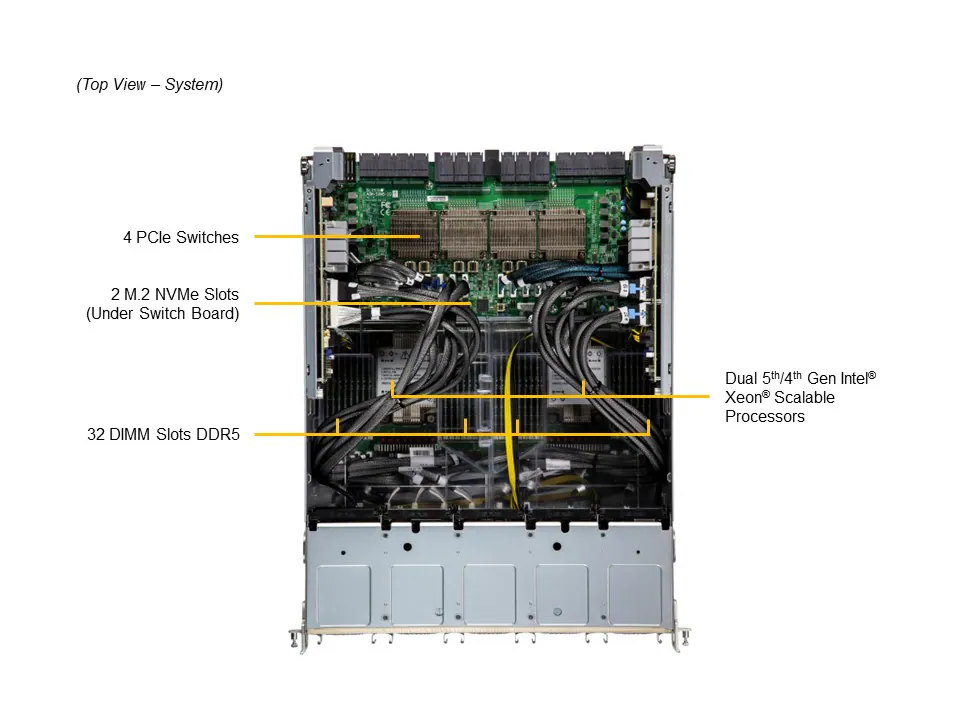

32 DIMM slots Up to 8TB: 32x 256 GB DRAM Memory Type: 5600MTs ECC DDR5
8 PCIe Gen 5.0 X16 LP
2 PCIe Gen 5.0 X16 FHHL Slots, 2 PCIe Gen 5.0 X16 FHHL Slots (optional)
Flexible networking options
2 M.2 NVMe for boot drive only

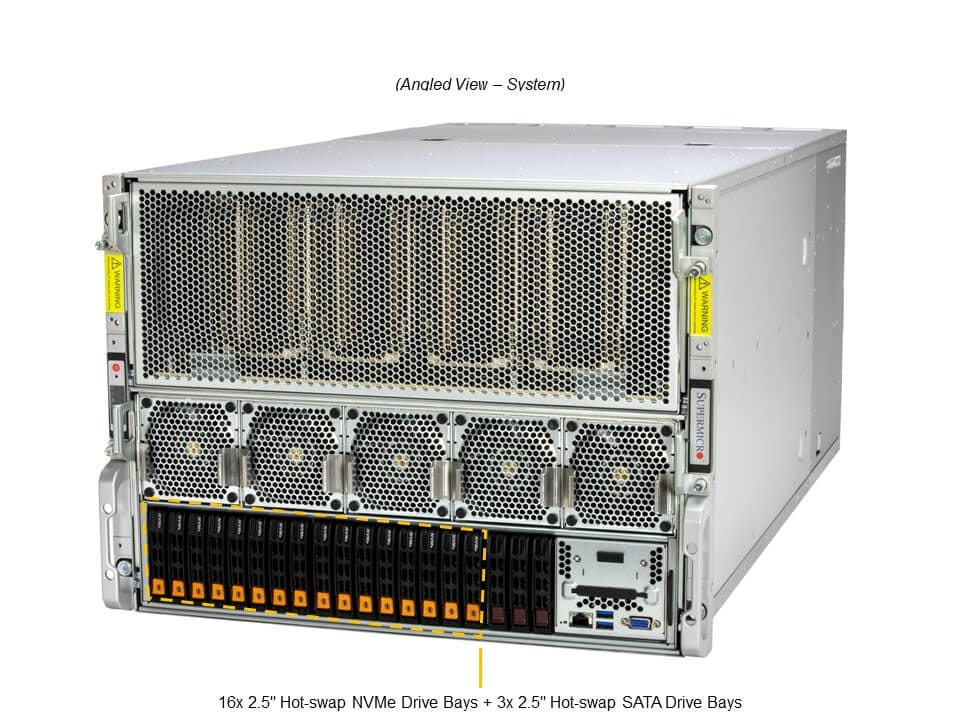

16x 2.5″ Hot-swap NVMe drive bays (12x by default, 4x optional)
3x 2.5″ Hot-swap SATA drive bays
Optional: 8x 2.5″ Hot-swap SATA drive bays
10 heavy duty fans with optimal fan speed control
Optional: 8x 3000W (4+4) Redundant Power Supplies, Titanium Level
6x 3000W (4+2) Redundant Power Supplies, Titanium Level

MSRP^*

N/A

* Manufacturer’s Suggested Retail Price

Product Specifications

CPU	Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Core Count	Up to 64C/128T; Up to 320MB Cache per CPU
Note	Supports up to 350W TDP CPUs (Air Cooled)

Max GPU Count	8 onboard GPUs
Supported GPU	NVIDIA SXM: HGX H100 8-GPU (80GB), HGX H200 8-GPU (141GB) View GPU Options
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	NVIDIA® NVLink® with NVSwitch™

Memory

- Slot Count: 32 DIMM slots
- Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
- Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM

Memory Voltage

Chipset

Network Connectivity

- 2 RJ45 10GbE with Intel® X550-AT2 (optional)
- 2 SFP28 25GbE with Broadcom® BCM57414 (optional)
- 2 RJ45 10GbE with Intel® X710-AT2 (optional)

Video	1 VGA port
TPM	1 TPM header

BIOS Type

Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management

Hardware	Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

CPU	Monitors for CPU Cores, Chipset Voltages, Memory 8+4 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Form Factor	8U Rackmount
Model	CSE-GP801TS

Height	14″ (355.6 mm)
Width	17.2″ (437 mm)
Depth	33.2″ (843.28 mm)
Package	29.5″ (H) x 27.5″ (W) x 51.2″ (D)
Weight	Gross Weight: 225 lbs (102.1 kg) Net Weight: 166 lbs (75.3 kg)
Available Color	Black front & silver body

LED	Hard drive activity LED Network activity LEDs Power status LED System Overheat & Power Fail LED
Buttons	Power On/Off button System Reset button

PCI-Express (PCIe) Configuration

- Default
  - 8 PCIe 5.0 x16 LP slots
  - 2 PCIe 5.0 x16 FHHL slots
- Option A
  - 2 PCIe 5.0 x16 FHHL slots

Drive Bays Configuration

M.2

Fans	Up to 10 heavy duty fans with optimal fan speed control

6x 3000W Redundant (3 + 3) Titanium Level (96%) power supplies

Dimension (WxHxL)	106.5 x 82.1 x 245.5 mm
Input	3000W: 0240Vdc / 50-60Hz (for CQC only) 2880W: 200-207Vac / 50-60Hz 3000W: 207-240Vac / 50-60Hz 3000W:
+12V	Max: 91.66A / Min: 0A (200Vac-240Vac)
12V SB	Max: 3A / Min: 0A
Output Type	Backplanes (gold finger)
