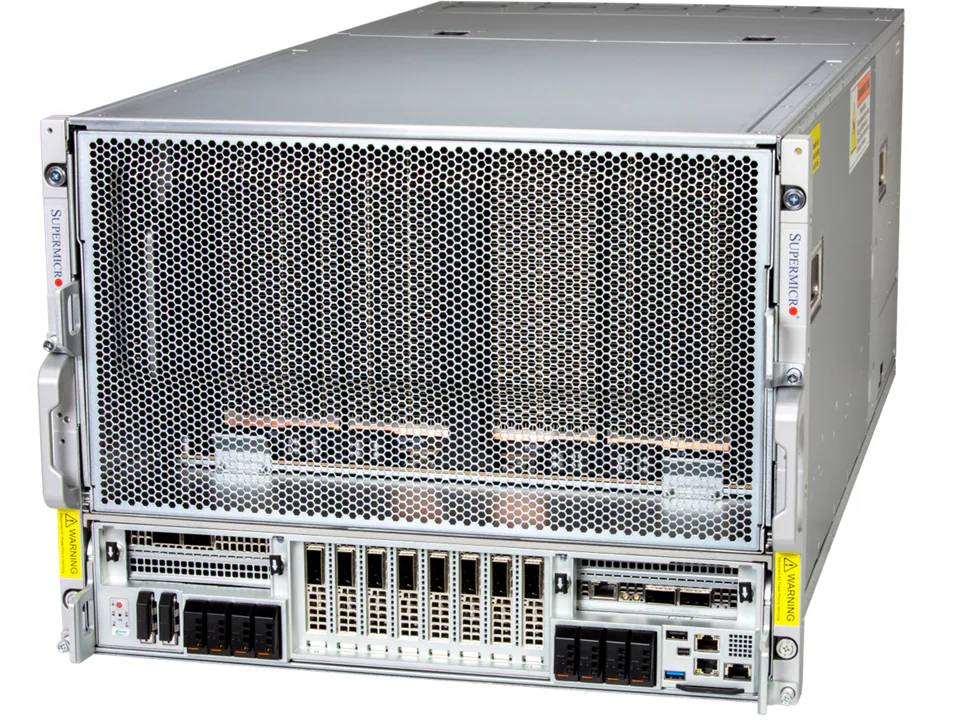

GPU SuperServer SYS-822GS-NBRT

(SYS-822GS-NBRT)

instock

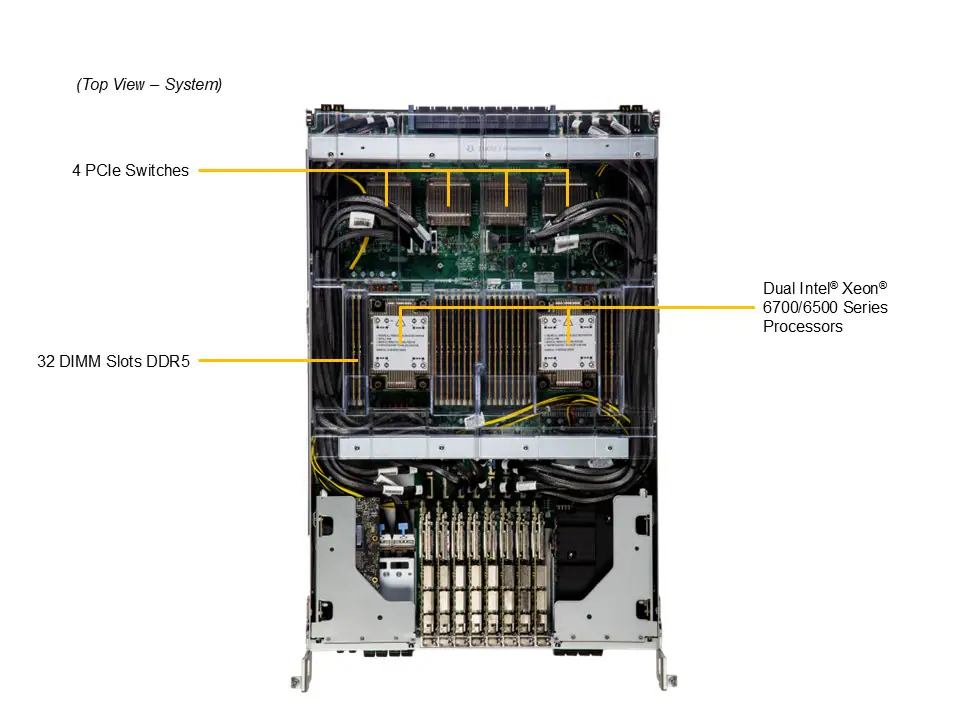

Dual Intel® Xeon® 6700/6500 series processors with P-cores, up to 350W TDP

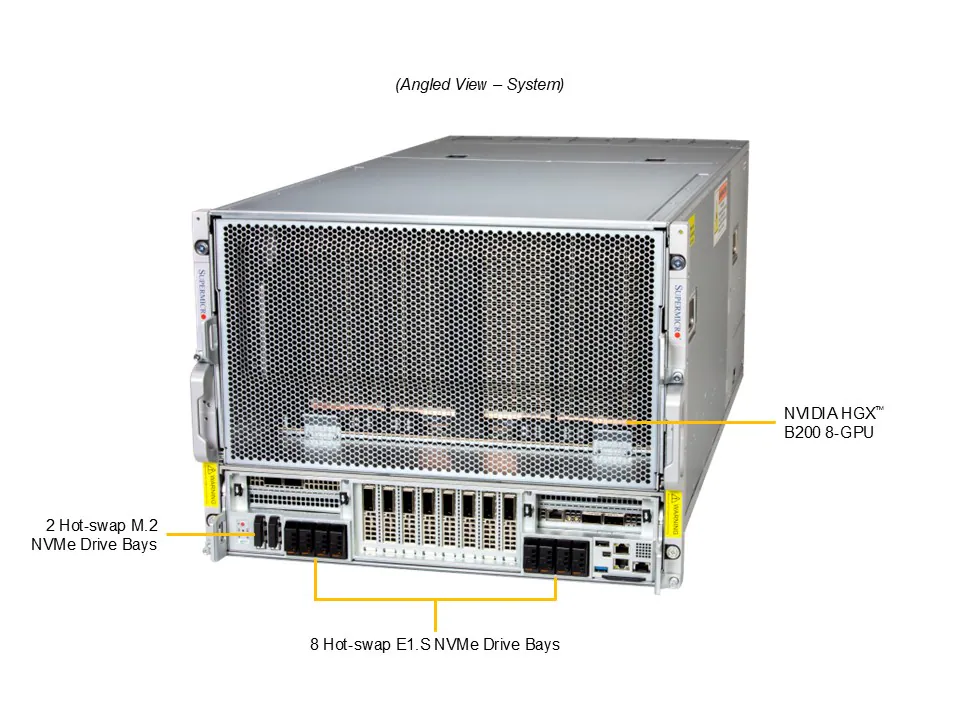

HGX B200 8-GPU SXM6 with NVSwitch, 1000W TDP per GPU, air cooled
32 DIMM slots supporting up to 8TB of memory
8 Hot-swap E1.S NVMe storage drives , 2 M.2 NVMe

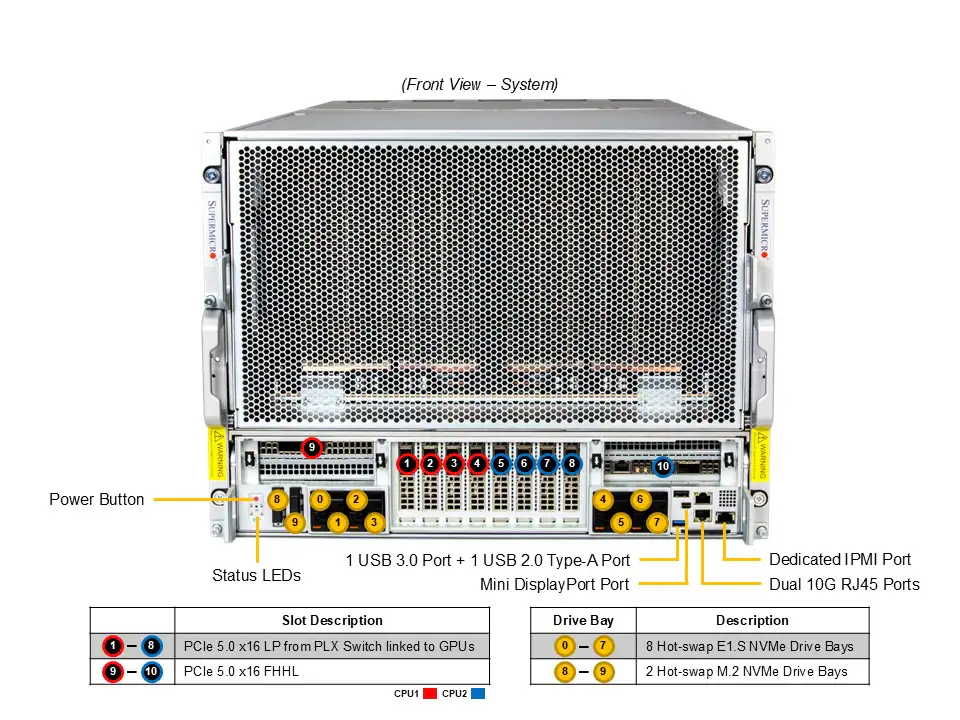

Up to 8 PCIe 5.0 x16 LP + 2 PCIe 5.0 x16 FHHL
1 USB 3.0 port, 1 USB 2.0 port, 1 Mini-DP port, 1 IPMI GbE LAN port, 2 10G NIC (X710)
6 redundant (3+3) 6600W Titanium level power supplies
8U air-cooled Front I/O system

MSRP^*

N/A

* Manufacturer’s Suggested Retail Price

Product Specifications

CPU	Dual Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores
Core Count	Up to 86C/172T; Up to 336MB Cache per CPU
Note	Supports up to 350W TDP CPUs (Air Cooled)

Max GPU Count	8 onboard GPUs
Supported GPU	NVIDIA SXM: HGX B200 8-GPU (180GB) View GPU Options
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	NVIDIA® NVLink® with NVSwitch™

Memory

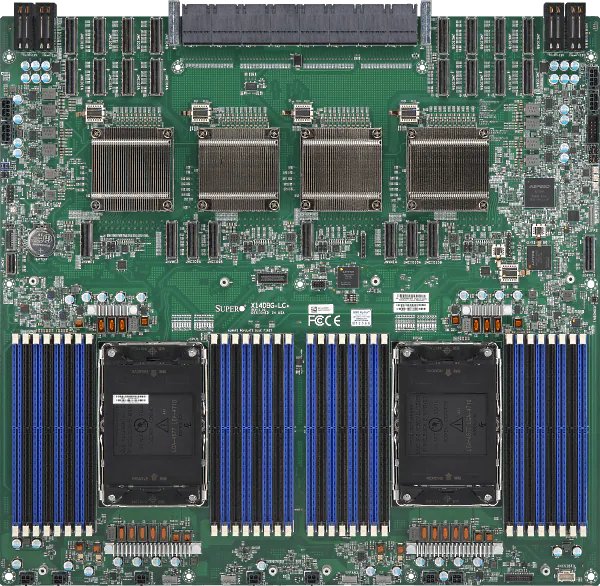

- Slot Count: 32 DIMM slots
- Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM
- Max Memory (2DPC): Up to 8TB 5200MT/s ECC DDR5 RDIMM

Memory Voltage

Chipset

Network Connectivity

LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	1 USB 3.0 Type-A port(Front) 1 USB 2.0 Type-A port(Front)
Video	1 Mini-DP port(Front)
TPM	1 TPM header

BIOS Type

Software	SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management

Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

CPU	Monitors for CPU Cores, Chipset Voltages, Memory 8+4 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Form Factor	8U Rackmount
Model	CSE-GP807TS-R000NP-B2

Height	13.8″ (356 mm)
Width	17.6″ (449 mm)
Depth	37.4″ (950 mm)
Package	27.6″ (H) x 51″ (W) x 29.5″ (D)
Weight	Gross Weight: 341 lbs (155 kg) Net Weight: 293 lbs (133 kg)
Available Color	Silver

LED	HDD activity LAN1 activity LAN2 activity Power Fail Power status System information (overheat/UID)
Buttons	Power On/Off UID

PCI-Express (PCIe) Configuration

Drive Bays Configuration

M.2

- 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280/22110; RAID support via S3808N controller)

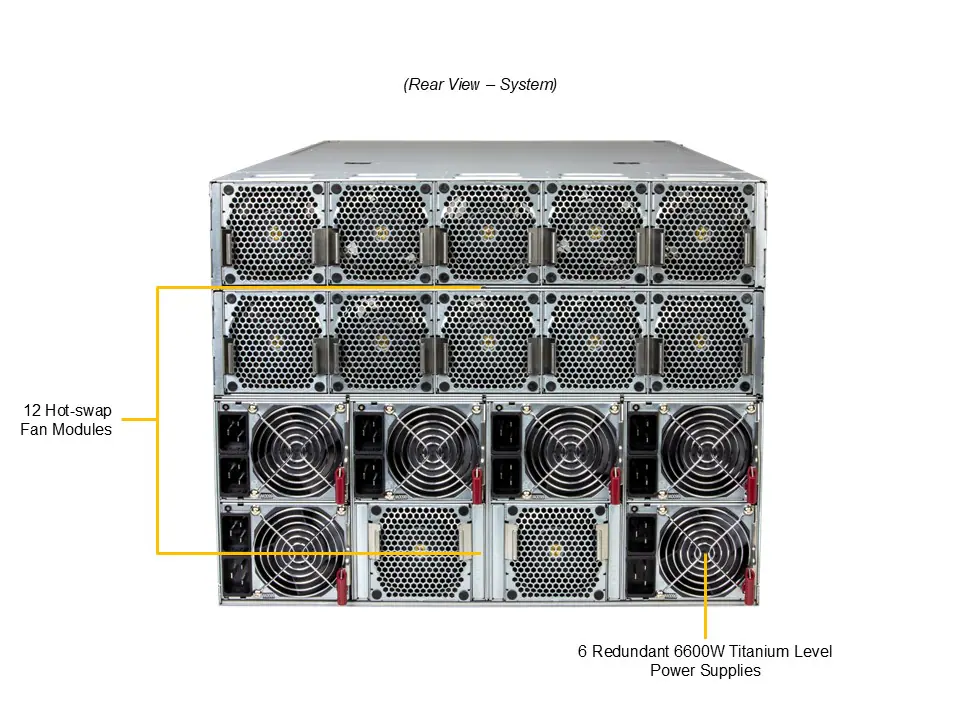

Fans	12 heavy duty fans with optimal fan speed control
Air Shroud	1 Air Shroud

6x 6600W Redundant (3 + 3) Titanium Level (96%) power supplies

Dimension (WxHxL)	106.5 x 82.1 x 245.3 mm
Input	5900W: 200-207.9Vac / 50-60Hz 6000W: 208-219.9Vac / 50-60Hz 6300W: 220-229.9Vac / 50-60Hz 6500W: 230-238.9Vac / 50-60Hz 6600W: 239-240Vac / 50-60Hz
+12V	Max: 130A / Min: 0A (200Vac-207.9Vac) Max: 130A / Min: 0A (208Vac-219.9Vac) Max: 130A / Min: 0A (220Vac-229.9Vac) Max: 130A / Min: 0A (230Vac-238.9Vac) Max: 130A / Min: 0A (239Vac-240Vac)
12V SB	Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)
Certification	Titanium Level [ Test Report ]
