The HP 10500 Switch Series is a next-generation modular enterprise campus core switch designed to enable the evolving needs of a cloud-connected and rich-media-capable infrastructure. It sets a benchmark for performance, reliability, and scalability with next-generation Clos architecture with 3-microsecond latency, and delivering ultra-high 1/10/40/100GbE port density.
With HP Intelligent Resilient Fabric (IRF) technology, the HP 10500 Switch Series can be virtualized across four chassis with a single management interface—enabling flatter, more agile networks.
* Manufacturer’s Suggested Retail Price
Differentiator
14-slot horizontal chassis, 14U, with 2 MPU slots, 4 SFM slots, 8 LPU slots
Ports
(8) I/O module slots
Supports a maximum of 384 10GbE ports or 192 1/10GBASE-T ports or 384 Gigabit Ethernet ports or 64 40GbE ports, or a combination
Memory and processor
Dual Core MIPS @ 1.2 GHz
512 MB flash
8 GB DDR2 SDRAM
Throughput
up to 5.7 Bpps
Switching capacity
7.7 Tbps
Stacking capabilities
IRF
4 switches
Management features
Imc – intelligent management center
Command-line interface
Out-of-band management (serial rs-232c)
Snmp manager
Telnet
Terminal interface (serial rs-232c)
Modem interface
Ieee 802.3 ethernet mib
Ethernet interface mib
Dimensions (W x D x H)
17.32 x 25.98 x 24.41 in (43.99 x 65.99 x 62 cm)
Weight
125 lb (56.7 kg)
What’s in the box

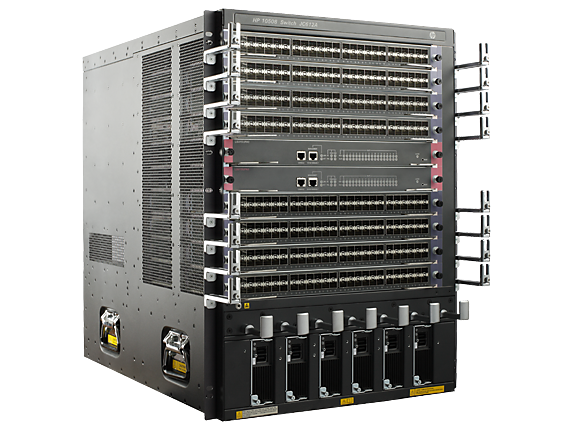

(1) HP 10508 Switch Chassis
Warranty
1 year warranty: with advance replacement and 10 calendar day delivery (available in most countries)
Electronic and telephone support: limited electronic and telephone support is available from HP- for details on the duration of support provided with your product purchase
refer to www.hp.com/networking/warrantysummary.
Software releases: for details on the software releases available with your product purchase
refer to www.hp.com/networking/warrantysummary.
