HP 12508 DC Switch

(JC652A)

Categories: Networking, HP Switches, HP Data Center Core, HP 12500

The SDN-enabled HP 12500 Switch Series offers industry leading scalability for enterprise data center cores giving you significantly higher throughput with 24.3 Tbps switching capacity. Along with scalability you get high performance 10/40/100GbE line cards.

With high scalability and performance, the new core switch series extends the value of your installed base and also delivers high availability and resilience with redundant fabrics, power supplies and fan trays. Customers will find great value in Comware 7 advanced features, including IRF, MDC, SPB and EVI.

Details Specification

Product Specifications

Differentiator

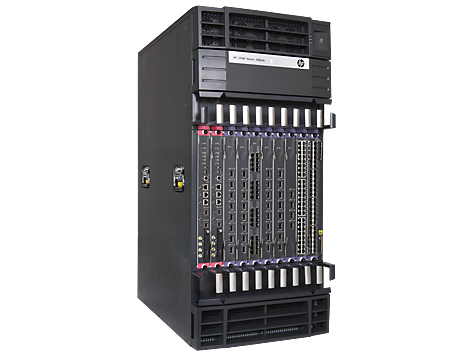

The HP 12508 DC Switch Chassis is an 8-slot DC-powered modular next-generation switching platform that delivers the scalablity and performance needed in the data center.

Ports
8 open module slots
Supports a maximum of 384 Gigabit Ethernet ports or 384 1/10GbE ports or 128 40GbE ports or 32 100GbE ports, or a combination
Included

Memory and processor
PowerPC @ 400 MHz
128 MB RAM

Throughput
3840 Mpps

Routing/switching capacity
6120 Gb/s

Management features
IMC – Intelligent Management Center
command-line interface
out-of-band management (serial RS-232C)
SNMP Manager
Telnet
RMON1
FTP
in-line and out-of-band
terminal interface (serial RS-232C)
modem interface

Dimensions (W x D x H)
17.4 x 29.13 x 38.39 in (44.2 x 73.99 x 97.51 cm)
Weight
209.44 lb (95 kg)

What's in the box
(1) HP 12508 DC Switch Chassis
Warranty
1 year, advance replacement, 10 calendar day, phone support, software releases
