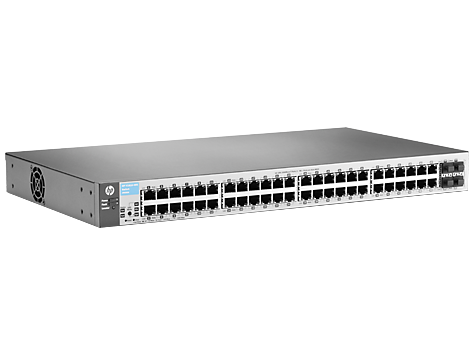

HP 1810-48G Switch

(J9660A)

Categories: Networking, HP Switches, HP Small Business, HP 1810

The HP 1810 Switch Series, part of the HP OfficeConnect portfolio, are designed for small businesses looking for key features in an easy-to-administer solution. These devices are smart-managed, fixed-configuration, Gigabit Ethernet and Fast Ethernet Layer 2 switches and include 8- and 24-port models and a 48-port Gigabit Ethernet model.

Both the 8- and 24-port HP 1810 Switch Series include the latest energy-saving capabilities, including Energy Efficient Ethernet (EEE) and idle-port power down. These models are also fanless making them ideal for office deployments.

Details Specification

Product Specifications

Differentiator
48-port Gigabit Ethernet Layer 2 smart-managed switch
4 non-shared SFP slots for optional fiber uplinks

Ports
48 RJ-45 autosensing 10/100/1000 ports
4 SFP 100/1000 Mbps ports
Supports a maximum of 48 autosensing 10/100/1000 ports plus 4 SFP ports
Included

Memory and processor
64 MB RAM
packet buffer size: 1.5 MB
8 MB flash

Latency
100 Mb Latency: < 8.4 µs
1000 Mb Latency: < 3.2 µs

Throughput
up to 77.4 Mpps

Switching capacity
104 Gbps

Management features
Web browser

Dimensions (W x D x H)
17.4 x 9.75 x 1.75 in (44.2 x 24.77 x 4.45 cm)
Weight
6.31 lb (2.86 kg)

What’s in the box
(1) HP 1810-48G Switch
Warranty
Limited Lifetime warranty: Advance hardware replacement with next-business-day delivery (available in most countries). See www.hp.com/networking/warrantysummary for duration details.;Electronic and telephone support: limited electronic and telephone support is available from HP refer to www.hp.com/networking/support for details on the support provided and the period during which support is available
