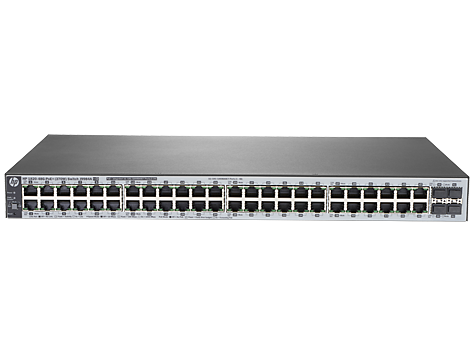

HP 1820-48G-PoE+ (370W) Switch

(J9984A)

Categories: Networking, HP Switches, HP Small Business, HP 1820

The HP 1820 Switch Series offers more choice and flexibility for smaller organizations that require ease of use and lower TCO, while delivering better network performance with an enhanced user experience. HP 1820 Switch Series devices are smart-managed, fixed-configuration Gigabit Ethernet Layer 2 switches with basic features in an easy-to-administer solution.

Details Specification

Product Specifications

Differentiator
Smart-managed Layer 2 switch with 48 10/100/1000 ports, 24 of which provide PoE/PoE+, and 4 SFP 100/1000 ports

Ports
(24) RJ-45 autosensing 10/100/1000 PoE+ ports
(24) RJ-45 autosensing 10/100/1000 ports
(4) SFP 100/1000 Mbps ports

Memory and processor
ARM Cortex-A9 @ 400 MHz
128 MB SDRAM
Packet buffer size: 1.5 MB
16 MB flash

Latency
100 Mb Latency: < 7 µs
1000 Mb Latency: < 2 µs

Throughput
up to 77.3 Mpps

Switching capacity
104 Gbps

PoE capability
370 W PoE+

Management features
Web browser

Dimensions (W x D x H)
17.42 x 12.7 x 1.73 in (44.25 x 32.26 x 4.39 cm)
Weight
9.7 lb (4.4 kg)

What’s in the box
(1) HP 1820-48G-PoE+ (370W) Switch
Warranty
Limited Lifetime warranty: Advance hardware replacement with next-business-day delivery (available in most countries). See www.hp.com/networking/warrantysummary for duration details.
Electronic and telephone support: limited electronic and telephone support is available from HP- for details on the duration of support provided with your product purchase
refer to www.hp.com/networking/warrantysummary.
